Underground inspection is a frequent and mission-critical task in coal mine operations. Many mines already deploy a large number of 4K HD cameras to cover working faces, transportation roadways, electromechanical rooms, belt conveyors, substations, pump stations, loading areas, and other safety-critical zones. These cameras help control room operators observe more underground areas without sending personnel to every inspection point.
However, having cameras does not automatically mean that inspection work becomes efficient. In many mines, the real problem is not a lack of video, but the separation between video monitoring and dispatch communication. When these two systems operate independently, operators must switch interfaces, search camera lists, verify locations, and then return to the dispatch platform to continue communication. This increases repetitive work and slows down response during abnormal situations.
Why Traditional Inspection Workflows Are Still Inefficient
In a conventional coal mine monitoring environment, the video management system usually runs separately from the command and dispatch system. The video platform is responsible for live preview, playback, camera management, and monitoring, while the dispatch platform handles voice communication, command coordination, group calling, emergency notification, and work assignment.
This separation creates a practical workflow problem. When a dispatcher receives an abnormal report from an underground area, the operator may need to identify the location, open the video platform, search the camera tree, find the correct point, confirm the live image, and then return to the dispatch system to continue communication. The process may seem simple, but repeated many times every day, it reduces inspection efficiency and increases operator fatigue.
During emergency handling, the delay becomes more serious. If the operator cannot quickly open the right camera feed, the command center may lose valuable visual information at the moment when it is needed most. For mines that already have extensive 4K camera coverage, the next improvement should focus on making video resources easier to call, share, and use inside the dispatch workflow.
The Core Requirement: Direct Visual Access from Dispatch
The key requirement from coal mine users is straightforward: dispatchers want to view underground camera footage directly from the dispatch platform. They do not want to jump between multiple systems, search video points manually, or depend on a separate monitoring operator for every visual confirmation.
A more efficient model is to make each camera point behave like a callable field resource. Similar to placing a call to an underground worker, team, terminal, or dispatch extension, the operator can select a video point from the dispatch console and open the live image immediately.
In this model, video is no longer only a passive monitoring resource. It becomes part of the dispatch process. The operator can communicate, verify, command, and coordinate around the same incident more quickly because the visual information is available at the same operational entry point.
Using a Video Gateway as the Integration Layer
A practical way to achieve this integration is to deploy a video gateway between the existing underground camera system and the command dispatch platform. The gateway does not require the mine to replace existing cameras or rebuild the entire video monitoring platform. Instead, it works as a bridge that connects existing video resources to the dispatch environment.

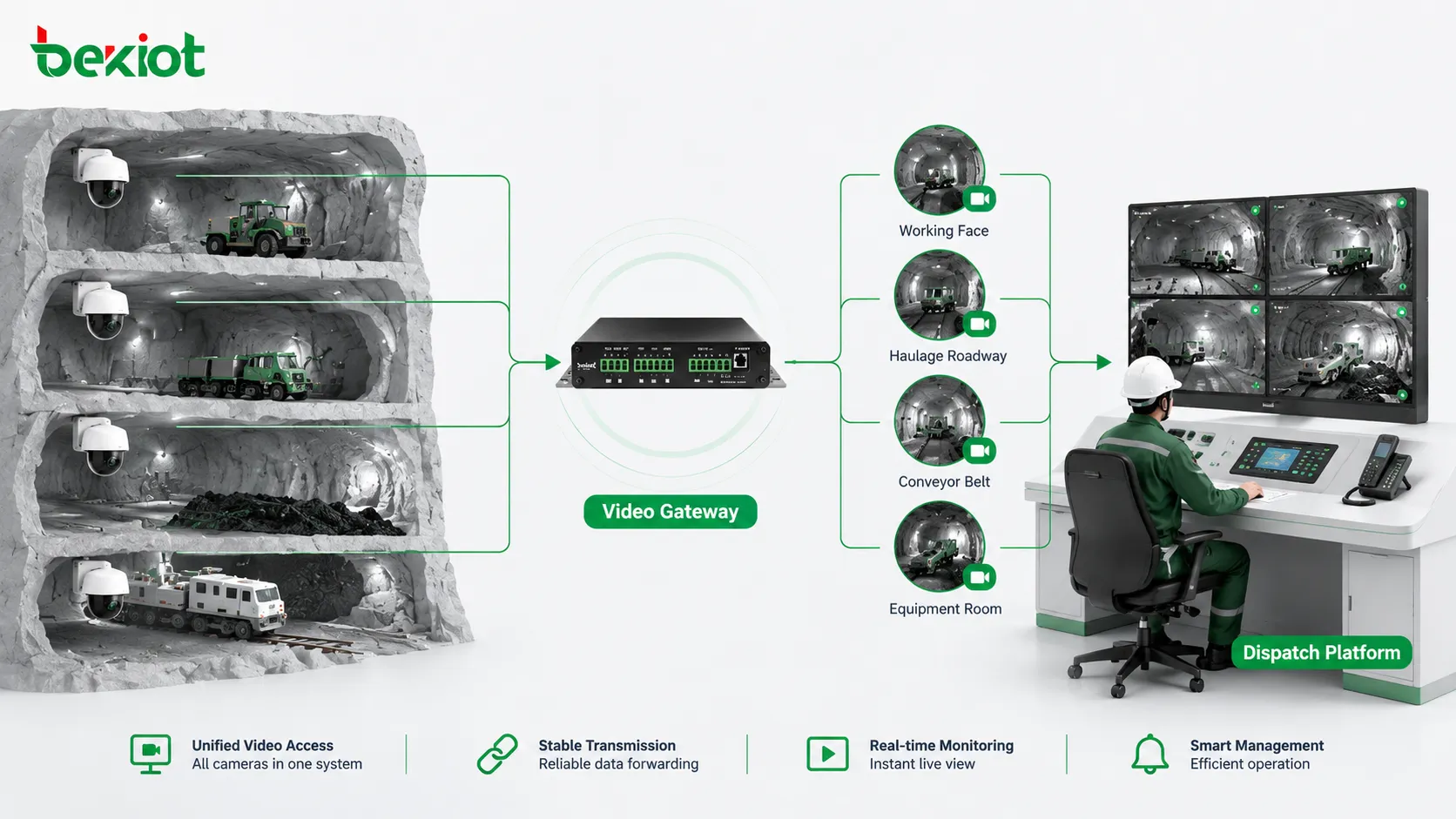

The basic architecture is simple. Underground cameras are connected to the video gateway. The gateway communicates with the dispatch platform. Each camera channel is mapped into a video point that can be selected or called from the dispatch console. After integration, the dispatcher can open the corresponding real-time video image directly from the dispatch workstation.
This design is especially useful for mines that already have many cameras deployed but still depend on separate video and communication systems. The integration layer helps protect earlier investment while improving daily operational efficiency.
How the Integrated Workflow Works
After system integration is completed, underground cameras continue to capture real-time images from working faces, transportation roadways, equipment rooms, loading and unloading areas, belt conveyor corridors, and other safety-critical zones. All video streams are uniformly collected by the video gateway and then pushed to the dispatch platform through a standardized access method.

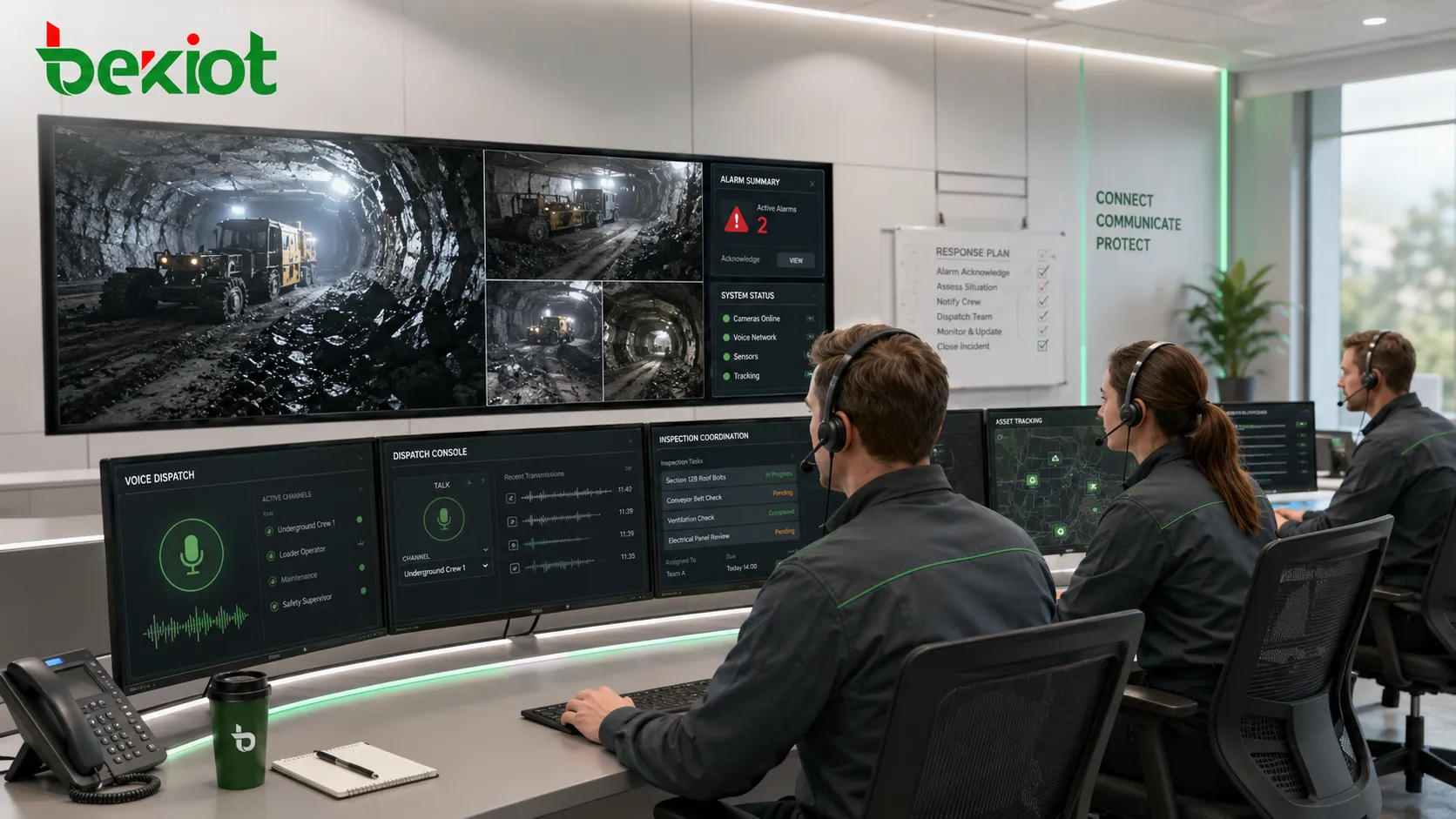

When dispatchers perform fixed-point inspection, they can directly select the target video point from the dispatch console. The system automatically opens the live monitoring image without requiring the operator to switch to an independent video management system. This greatly shortens the operation path from inspection demand to real-scene visual confirmation.
At the application level, routine inspection can significantly improve overall work efficiency. Abnormal condition handling can accelerate emergency response. In coordinated command and dispatch scenarios, operators can combine voice intercom, real-time video, location information, alarm data, and work instructions to form a continuous and complete response workflow.
Operational Value for Coal Mine Command Centers
The most direct value is a unified operation entrance. Instead of using one system for communication and another system for video, dispatchers can complete more work from the dispatch platform. This reduces interface switching, lowers training complexity, and makes the system easier to use during high-pressure situations.
The second value is faster video retrieval. Camera access becomes similar to calling a terminal or dispatch extension. Operators no longer need to search long camera trees or confirm point names repeatedly. For high-frequency inspection tasks, this can save time every day and reduce operational fatigue.
The third value is synchronized response. When video and dispatch are linked, the command center can view the field image while communicating with underground personnel or related teams. This supports faster judgment, clearer instructions, and better coordination between the control room and the underground site.
The fourth value is system compatibility. A video gateway-based design can often reuse existing cameras and video platforms, helping the mine upgrade its workflow without a full replacement project. This is important for mining enterprises that need practical modernization rather than disruptive reconstruction.
Typical Application Scenarios
In working face inspection, dispatchers can quickly open the camera feed for production areas and check whether operations, equipment movement, or site conditions match the reported situation. This helps reduce unnecessary manual confirmation and supports safer remote observation.
In transportation roadway monitoring, the control room can call video points around belt conveyors, track transportation areas, vehicle intersections, and material transfer locations. When an abnormal sound, blockage, alarm, or manual report appears, operators can immediately check the related image.
In equipment room inspection, cameras around substations, pump rooms, ventilation-related facilities, and key electromechanical equipment can be accessed from the dispatch platform. This helps maintenance and command teams verify field status before arranging personnel.
In emergency response, video access becomes even more valuable. When an alarm, fault report, safety incident, or communication request occurs, the dispatcher can open the nearest video point and coordinate voice communication at the same time. This improves situational awareness and supports faster decision-making.
Technical Design Considerations
Before deployment, the project team should confirm the existing camera quantity, camera distribution, stream format, video platform architecture, network bandwidth, dispatch platform interface, and real operational workflow. The goal is not only to connect devices, but to make camera access useful for dispatchers.
Camera naming and point mapping are also important. If the dispatch console displays unclear camera names, operators may still struggle to find the correct feed. A good design should organize video points according to mine area, roadway, equipment type, inspection route, or emergency priority.
Network planning should consider video quality, stream quantity, latency, and reliability. 4K cameras provide strong image detail, but not every dispatch scenario requires full-resolution video at all times. The system can use practical stream selection, bandwidth planning, and access control to balance image quality and operational stability.
Security and permission control should also be included. Different dispatch roles may need different access rights for underground video points. Important areas should support controlled access, operation logging, and management policies aligned with mine safety requirements.
From Passive Monitoring to Active Dispatch Resource
The main change brought by video and dispatch integration is the shift from passive monitoring to active operational use. In a traditional model, cameras are mainly used for observation. In an integrated model, cameras become dispatch resources that can be called, viewed, shared, and coordinated during inspection and incident handling.
This is why a video gateway layer is valuable. It gives existing cameras a new role inside the command workflow. The system does not simply show video; it makes video part of inspection, communication, command, and response.
For projects that require voice dispatch, video access, alarm linkage, and emergency communication in one workflow, Becke Telcom can be considered as a lightweight solution reference, especially when a mine or industrial site needs to connect field terminals, dispatch consoles, video resources, and emergency communication systems in a unified architecture.
A More Practical Upgrade Path for Mine Digitalization
Many coal mines have already completed camera deployment, network construction, and basic monitoring platform implementation. The next stage of digital improvement should focus on workflow integration. If operators still need to switch systems and search manually, the value of the video system is not fully released.
By integrating underground cameras with the dispatch platform through a video gateway, mines can improve inspection efficiency without replacing the whole video infrastructure. The command center gains faster visual access, dispatchers reduce repetitive operations, and emergency handling becomes more direct.
The key to improving coal mine inspection is not only installing more cameras. It is making existing camera resources easier to call, easier to understand, and easier to use inside the dispatch workflow.
FAQ
Does this solution require replacing existing underground cameras?
In most projects, the purpose of using a video gateway is to reuse existing cameras and video resources as much as possible. The project team should still confirm camera protocols, stream formats, network access, and platform compatibility before deployment.
Can 4K video be used directly inside the dispatch platform?
It depends on bandwidth, platform capability, stream format, and operational requirements. Some scenarios may use full HD or sub-stream video for faster access, while high-resolution streams can be kept for detailed monitoring or recording when needed.
How should camera points be organized for dispatch use?
Camera points should be named and grouped according to real operational logic, such as working face, roadway, belt conveyor, pump room, substation, inspection route, or emergency zone. Clear naming is essential for fast access.
Is video integration useful only during emergencies?
No. It is also valuable for routine inspection, equipment status verification, shift handover, production coordination, remote supervision, and maintenance support. Emergency response is only one high-value scenario.
What should be checked before choosing a video gateway architecture?
The project should check existing camera protocols, video platform structure, dispatch system interface, network bandwidth, latency requirements, permission policies, and the actual workflow of control room operators.
