Modern ships are no longer isolated operating units. Cargo vessels, patrol boats, offshore engineering ships, law-enforcement vessels, research ships, and special-purpose fleets are increasingly equipped with electronic systems, video devices, communication terminals, satellite links, and onboard command applications. These systems support navigation, dispatching, safety management, remote collaboration, and operational decision-making.

Among these systems, video has become especially important. Traditional onboard surveillance cameras are now used together with video conferencing terminals, video phones, unmanned aerial vehicles, underwater inspection robots, mobile inspection cameras, and shore-based command platforms. Through satellite networks or maritime broadband links, the shore command center can view onboard surveillance, join video meetings with ship personnel, and in some missions receive live drone or inspection robot footage from the vessel.

However, shipboard video integration is not as simple as connecting a camera to a display. Different video devices may use different ports, stream protocols, codecs, resolutions, and control methods. If every device requires a separate decoder, software client, or custom integration module, the system becomes expensive, difficult to deploy, and hard to maintain. A unified video access gateway provides a more practical way to aggregate, convert, transmit, and distribute video resources across ship and shore systems.

Why Shipboard Video Needs a Unified Layer

More devices are being added to vessel operations

Modern vessels often carry multiple types of video sources. Fixed cameras may monitor the deck, bridge, engine room, cargo areas, machinery spaces, and safety zones. Video conferencing terminals may be used for remote consultation or operational coordination. Video phones can support internal communication and visual confirmation. Drones may provide aerial inspection, maritime patrol, rescue observation, or emergency assessment. Underwater robots may send visual data for hull inspection, underwater engineering, rescue, or maintenance tasks.

Each type of device may come from a different supplier and may output video in a different way. Some devices use HDMI. Some provide RTSP streams. Some platforms use RTMP, FLV, HLS, GB/T28181, or other standard protocols. Without a unified access layer, the system integrator may need to configure different decoding equipment, different software, and different interfaces for each video source.

Ship environments make integration more demanding

Compared with land-based sites, vessels have stricter space, power, wiring, network, and maintenance constraints. Equipment must be compact, reliable, and easy to manage. Onboard teams may not have the same IT maintenance resources as a land-based control room, so the system should reduce unnecessary hardware and simplify operation.

A video access gateway can act as a central media layer. It receives video from onboard devices, performs protocol adaptation, converts stream formats, and provides unified output to command systems, conferencing platforms, AI analysis servers, business applications, and remote users. Instead of building many isolated video paths, the project can use one gateway architecture to organize the whole video system.

Unifying Cameras, Drones, and Inspection Video

Onboard video sources can be centrally aggregated

A key value of a shipboard video access gateway is unified video access. Surveillance cameras, NVRs, video terminals, HDMI sources, drone receivers, and underwater robot video feeds can be connected to the gateway and then made available to other systems. This avoids the need for each upper-layer platform to connect to each video source separately.

For vessels with special missions, this capability is especially useful. A patrol vessel may need to send deck camera video and drone footage to a shore command center. An offshore engineering ship may need to transmit crane operation video, underwater inspection video, and equipment status images. A research vessel may need to collect visual feeds from observation cameras and underwater equipment. The gateway helps these sources enter one managed video pool.

Mainstream protocols make deployment easier

A practical gateway should support multiple video input and output methods. Common access capabilities may include HDMI, RTSP, RTMP, GB/T28181, FLV, HLS, and other mainstream streaming formats. With simple configuration, the gateway can bring different video devices online and provide standardized access to the upper-layer system.

This reduces project adaptation work. The integrator no longer needs to design a separate solution for every camera, drone receiver, or video terminal. The gateway becomes the compatibility layer between onboard video equipment and the ship-shore command platform.

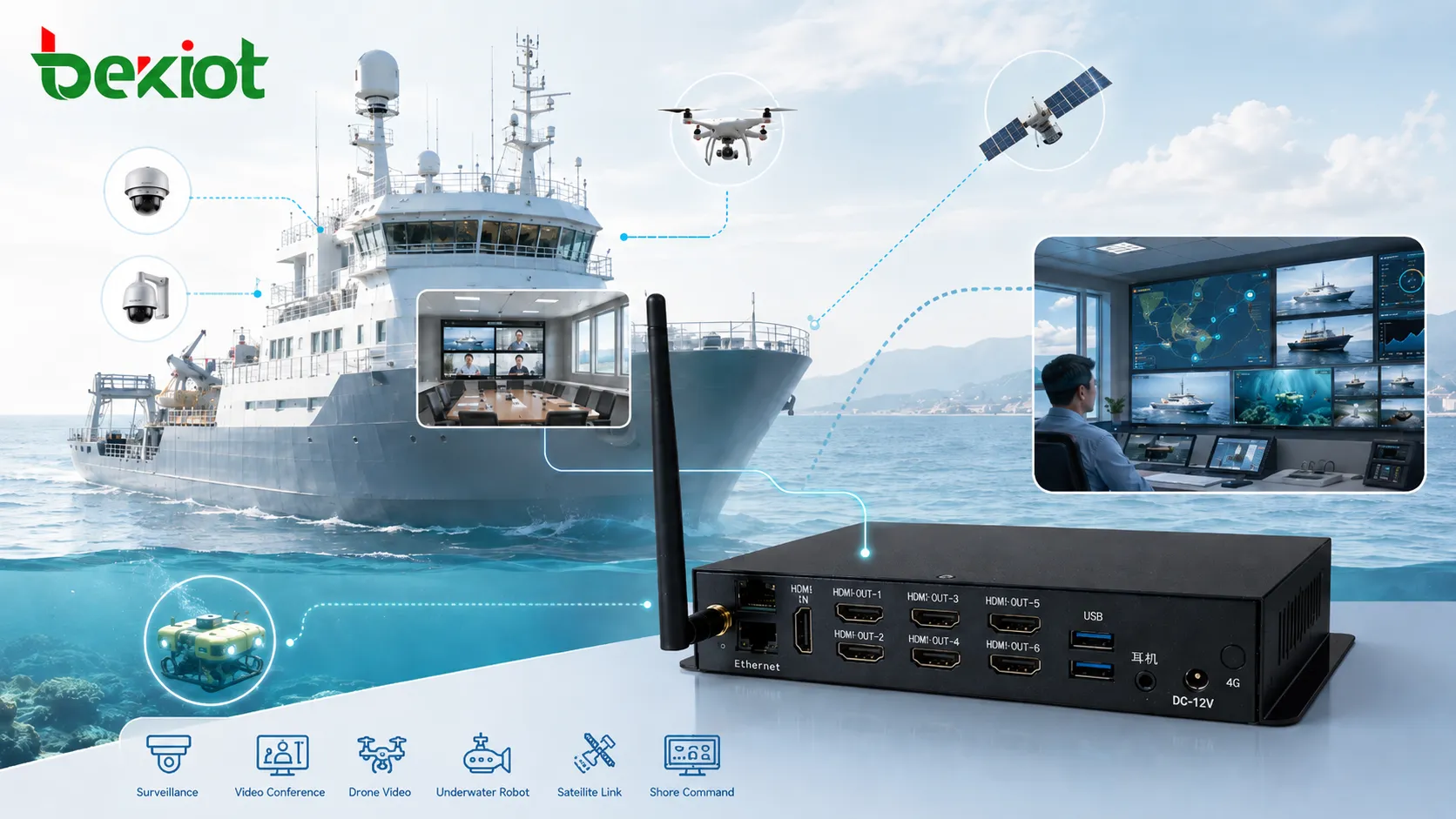

Making Satellite Video Transmission Lighter

Bandwidth and cost are major maritime limitations

Many modern vessels rely on satellite communication to keep contact with shore-based dispatch centers. Satellite links allow command centers to understand vessel conditions, support remote coordination, and receive important video information. However, maritime satellite communication still faces practical challenges, including limited bandwidth, unstable link quality, noticeable latency, and high transmission cost.

Because video consumes much more bandwidth than ordinary data or voice communication, direct high-bitrate video transmission may not be suitable for long-distance maritime links. If multiple onboard cameras or drone feeds are transmitted without optimization, the satellite channel can become overloaded and the viewing experience may become unstable.

Lightweight transmission improves usability

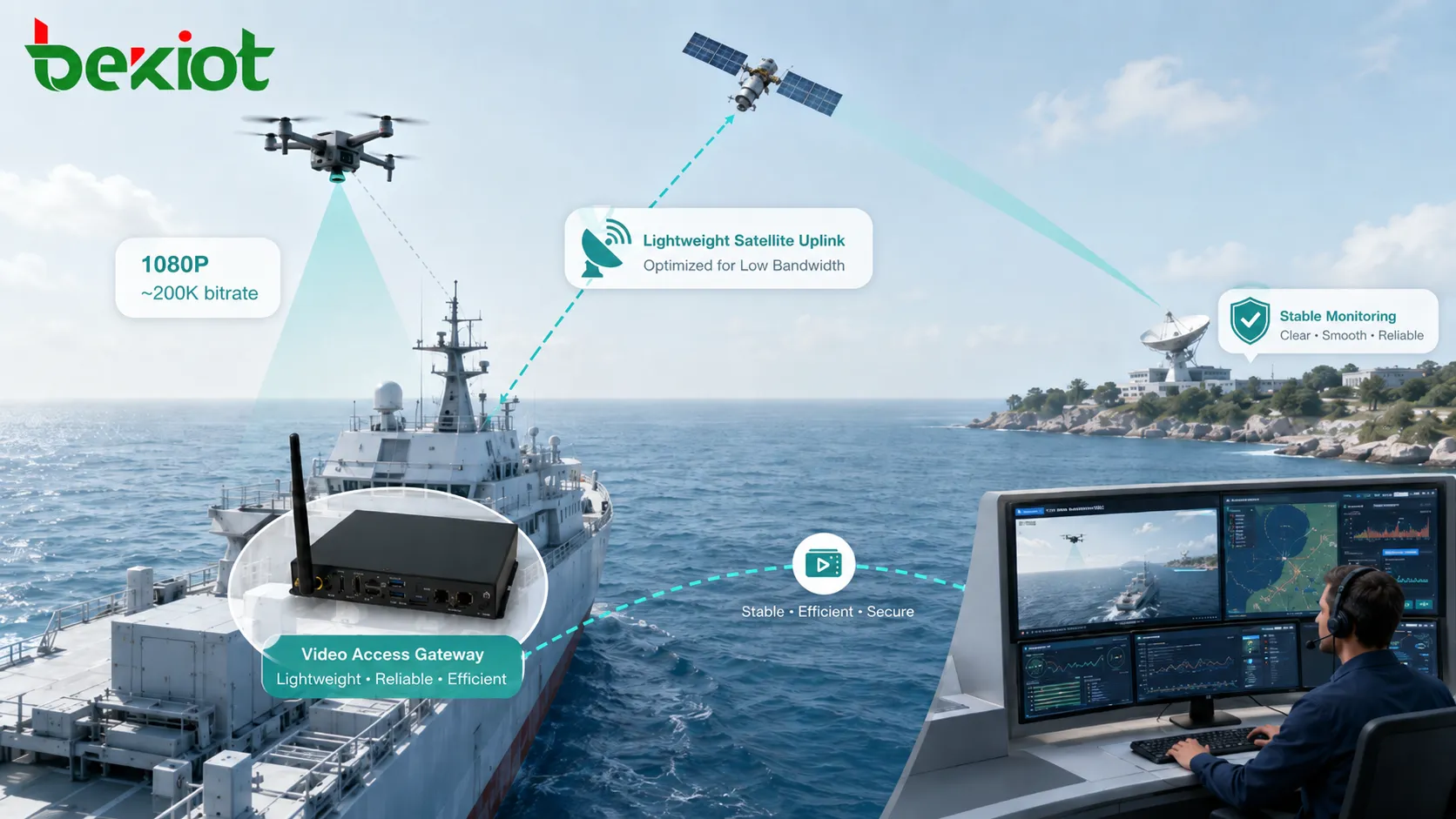

A video access gateway can reduce the transmission burden by compressing, transcoding, and adapting video streams according to the actual network condition. In the original application scenario, dynamic 1080P video can be transmitted at around 200K bitrate while still keeping the moving image clear and stable enough for command observation. This is valuable when a vessel needs to send usable live video through a bandwidth-limited satellite link.

This type of lightweight transmission is suitable for law-enforcement vessels, offshore engineering ships, special operation ships, and other maritime platforms that need remote video backhaul. For example, a shipboard drone can capture live aerial footage, send it to the onboard gateway, and then transmit an optimized stream through the vessel’s satellite link to the shore command center.

One Video Input, Multiple System Outputs

Different platforms require different formats

As vessel information systems become more integrated, video resources are no longer used by only one monitor or one recorder. Surveillance video may need to connect with a command system. Drone video may need to enter a video conferencing platform. An AI analysis server may need a different stream format from a browser-based business platform. A dispatch system may require SIP video linkage, while another platform may require GB/T28181 or WebRTC.

If each application goes directly to the video terminal to request a stream, the pressure is placed on the terminal side. Multiple parallel calls may increase device load, network consumption, and system complexity. A gateway-based model changes this structure. The gateway receives one source stream and then distributes it to multiple systems in the format each system requires.

Protocol conversion simplifies upper-layer integration

For one onboard surveillance camera, the gateway may receive one video stream and then output a GB/T28181 stream to a superior command platform, an RTSP stream to an AI analysis server, a SIP stream to a dispatch or video meeting system, and WebRTC or FLV streams to a browser-based business platform. The same video source can therefore serve multiple applications without requiring repeated access at the device side.

The gateway can also adapt codec format, resolution, frame rate, and bitrate according to the decoding capability of different platforms. This makes video fusion easier because the upper-layer system does not need to solve every video conversion problem by itself.

Supporting Internal Visual Communication

SIP devices can be part of the onboard system

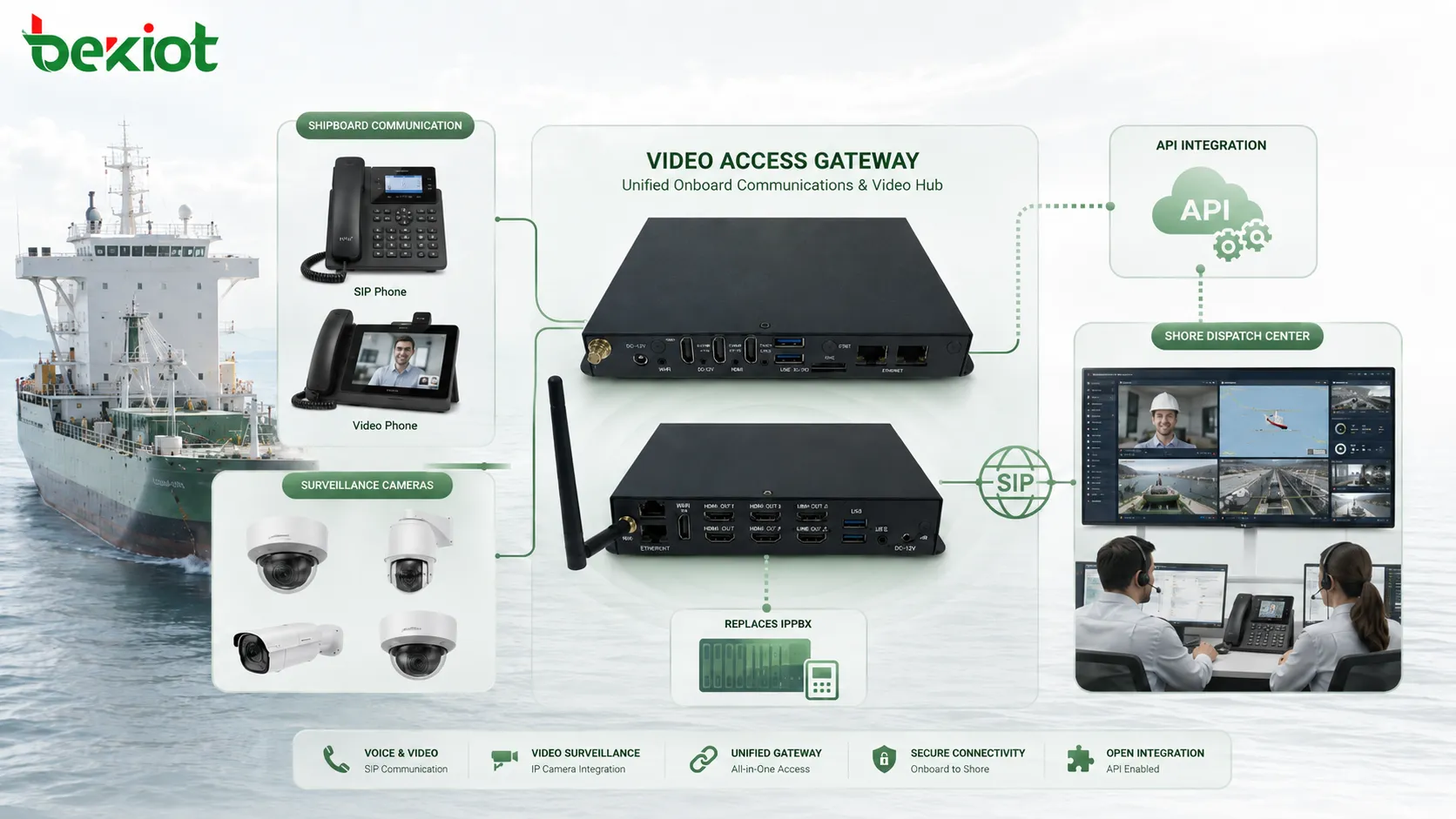

A shipboard video access gateway is not limited to media conversion. In a more integrated architecture, it can also connect SIP-based audio and video communication devices, including IP phones, video phones, intercom terminals, and dispatch endpoints. This allows the vessel to build an internal communication system that supports both voice and video calls.

For onboard users, this means a video phone or dispatch terminal can be used not only for communication but also for visual confirmation. Crew members may view selected surveillance images, check drone video, or communicate with the shore command center through a unified system interface.

Replacing separate IPPBX and video modules

Some vessels previously deployed a dedicated IPPBX system for internal communication and separate video equipment for surveillance or remote viewing. In many shipboard projects, this creates extra equipment, extra configuration, and extra maintenance work.

A video access gateway with SIP communication capability can reduce this fragmentation. It may provide communication switching, video access, stream conversion, and API integration within one compact device or a 1U rack-mounted unit. This helps system integrators simplify the shipboard architecture while keeping enough flexibility for deeper maritime information integration.

Practical Value for Maritime Projects

Lower hardware complexity

A unified gateway reduces the need for many separate decoders, converters, software clients, and communication modules. This is important on ships where installation space, rack space, power supply, and maintenance conditions are limited.

Simpler system deployment

When the gateway supports mainstream video products and protocols, project implementation becomes easier. Integrators can connect cameras, video platforms, drones, and SIP terminals through a centralized device instead of repeatedly developing separate interfaces for each subsystem.

Better ship-shore collaboration

The gateway helps shore command centers receive onboard video, participate in visual communication, view drone feeds, and support operational decisions. In emergency response, law enforcement, engineering operation, maritime rescue, or fleet management, this improves situational awareness and communication continuity.

More room for future expansion

A mature gateway should provide API interfaces for deeper integration. Through APIs, upper-layer systems can call video streams, connect business workflows, manage devices, trigger video linkage, or combine video with GIS, alarm, dispatch, and event records. This makes the video layer more reusable for future maritime digital projects.

Implementation Notes for Integrators

Check the existing onboard equipment first

Before deployment, the project team should identify existing cameras, video recorders, HDMI sources, drone systems, satellite terminals, internal communication devices, network topology, and shore platform requirements. This helps define which protocols, interfaces, and stream formats must be supported.

Match video quality with the transmission link

For satellite backhaul, the highest resolution is not always the best choice. The system should balance image clarity, bitrate, latency, and cost. In many command scenarios, stable and continuous video is more useful than a very high-resolution stream that frequently freezes.

Plan access permissions and security

Shipboard video may involve operational safety, cargo areas, personnel activity, or mission-sensitive information. The gateway should support secure access control, account management, stream authorization, and reliable network protection. Remote viewing should be limited to authorized systems and users.

Consider compact and rack-mounted deployment

Different vessels may require different installation forms. Small ships may prefer a compact gateway, while larger vessels or integrated communication rooms may use a 1U rack-mounted device. The selected equipment should match the available space, power conditions, cooling environment, and maintenance method.

For maritime projects that need to combine video access, SIP voice, dispatch communication, paging, emergency notification, and shore-side coordination, Becke Telcom can be considered as a lightweight integration partner for building a more unified ship-shore communication workflow.

A More Integrated Direction for Shipboard Video

Deploying a video access gateway on a ship is not only about converting video formats. It is about creating a unified media and communication layer for onboard systems. The gateway can aggregate surveillance cameras, video conferencing equipment, drone feeds, underwater robot video, SIP terminals, and satellite backhaul into a more manageable architecture.

By supporting multi-protocol access, lightweight transmission, one-input-to-many-output distribution, SIP visual communication, and API integration, the gateway helps solve the common problems of device diversity, complex deployment, repeated protocol adaptation, satellite bandwidth pressure, and fragmented onboard communication.

As maritime operations continue to move toward digital command, remote inspection, unmanned equipment collaboration, and ship-shore integrated dispatch, video access gateways will become an important foundation for scalable and maintainable vessel information systems.

FAQ

Can a video access gateway work when a ship has poor satellite bandwidth?

Yes, but the system must be configured carefully. The gateway should support bitrate control, resolution adjustment, codec optimization, and stream selection. For very limited links, only key video channels may be transmitted to shore while other streams remain available locally.

Does every onboard camera need to be replaced before gateway deployment?

Usually no. The purpose of a gateway is to reuse existing video resources as much as possible. As long as the cameras, recorders, or video platforms can provide supported interfaces or stream protocols, they can often be integrated into the gateway architecture.

How should drone video be handled on a vessel?

Drone video can be received onboard first, connected to the video gateway, processed into the required stream format, and then distributed to local displays, command terminals, AI platforms, or shore command centers. This avoids building a separate drone video path for every application.

Is SIP communication necessary for all maritime video projects?

Not always. SIP is valuable when the project needs voice calls, video calls, dispatch terminals, visual intercom, or integration with communication systems. If the project only needs video viewing and recording, SIP may be optional.

What should integrators confirm before selecting a shipboard gateway?

They should confirm input interfaces, protocol compatibility, satellite transmission requirements, concurrent stream capacity, transcoding performance, SIP support, API openness, device size, installation method, power conditions, and long-term maintenance requirements.
