An emergency command vehicle is designed to bring communication, coordination, and field command capability to an incident site. It may carry radios, vehicle-mounted transceivers, broadband ad hoc network equipment, 4G/5G backhaul devices, satellite communication terminals, video systems, and dispatch workstations. In a rescue scene, disaster response operation, security incident, or mobile command task, these systems help connect the field team with the remote command center.

However, handheld radios and vehicle radios still have practical limitations. They are reliable and familiar for field users, but their coverage is often limited to a local area or specific radio network. Different teams may also use different radio standards, channels, and frequency plans. A RoIP gateway solves this gap by connecting radio channels on the command vehicle to an IP-based dispatch platform, allowing the command center to reach on-site radio users more directly.

Why Field Radios Still Need a Network Bridge

Two-way radios are essential in emergency communication because they are simple, fast, and suitable for field operations. Rescue workers, security teams, vehicle crews, fire teams, engineering staff, and temporary command groups can use radios for immediate push-to-talk communication without complex operation.

The limitation is that radio communication is usually local. The effective range depends on transmit power, terrain, antenna height, repeater deployment, building blockage, and the specific radio system in use. At a large disaster site or temporary operation area, radio coverage may only reach part of the field. The remote command center may not be able to hear every on-site radio group directly.

A RoIP gateway creates an IP bridge for these radio channels. It converts radio-side audio and control signals into IP-based communication resources, allowing dispatchers, SIP phones, command platforms, or remote control rooms to communicate with field radio users through the emergency command vehicle.

Command Vehicles Are Natural Integration Points

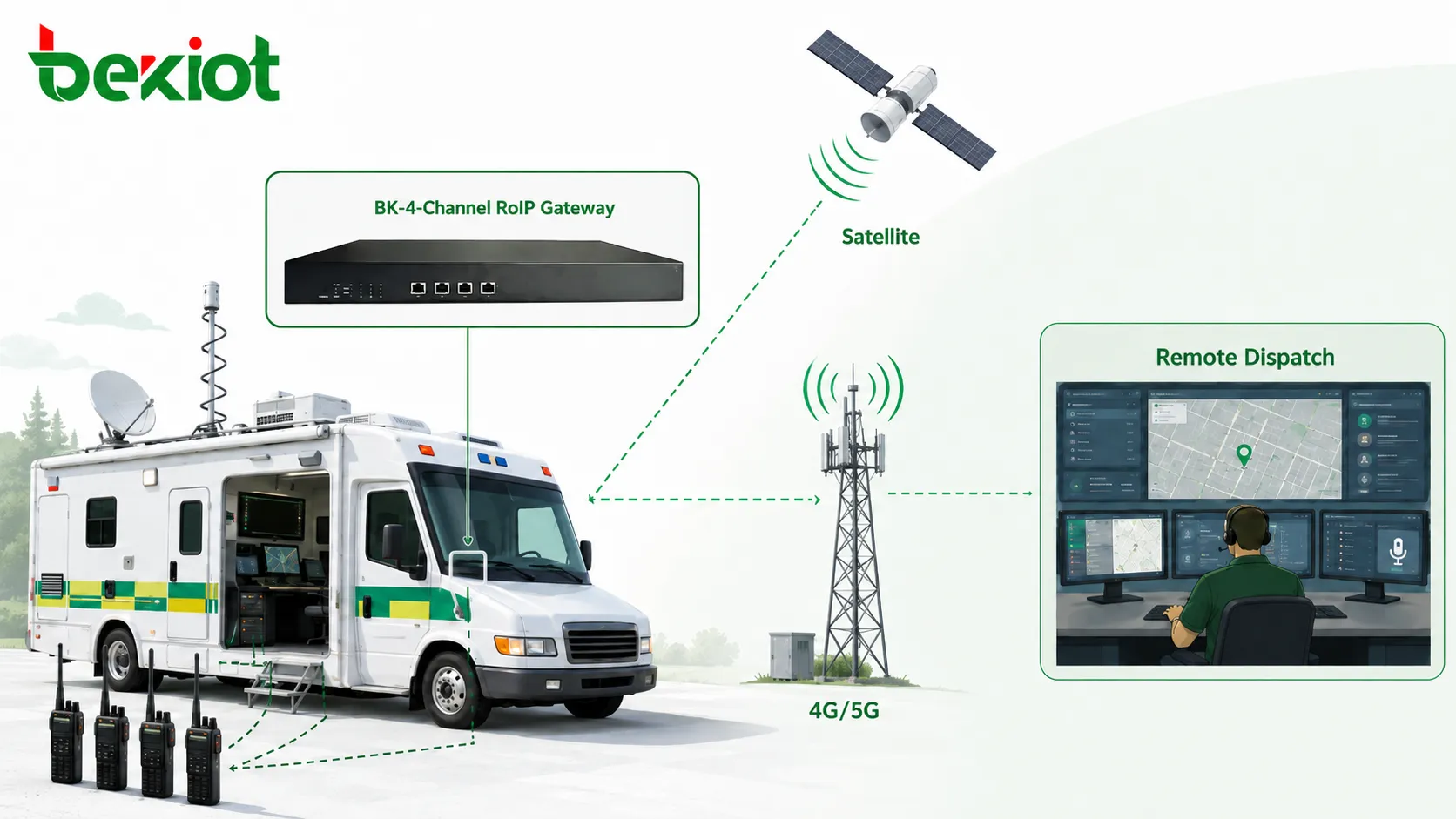

An emergency command vehicle is often the most suitable location for deploying a RoIP gateway. The vehicle usually stays near the incident area and already contains communication equipment such as vehicle radios, dispatch terminals, network switches, satellite terminals, 4G/5G routers, video transmission systems, and power supply facilities.

By installing the gateway inside the vehicle, radio equipment on site can be connected to the command network without changing how field users operate their handheld radios. The vehicle becomes a mobile communication hub that links local radio users, vehicle operators, and the remote command center.

This architecture is useful for emergency rescue, flood control, wildfire response, earthquake response, public security operations, large-event security, military command, industrial accident handling, and temporary field command scenarios. It helps solve the “last-mile communication” problem between the front line and the command center.

How the Gateway Connects Radio Channels

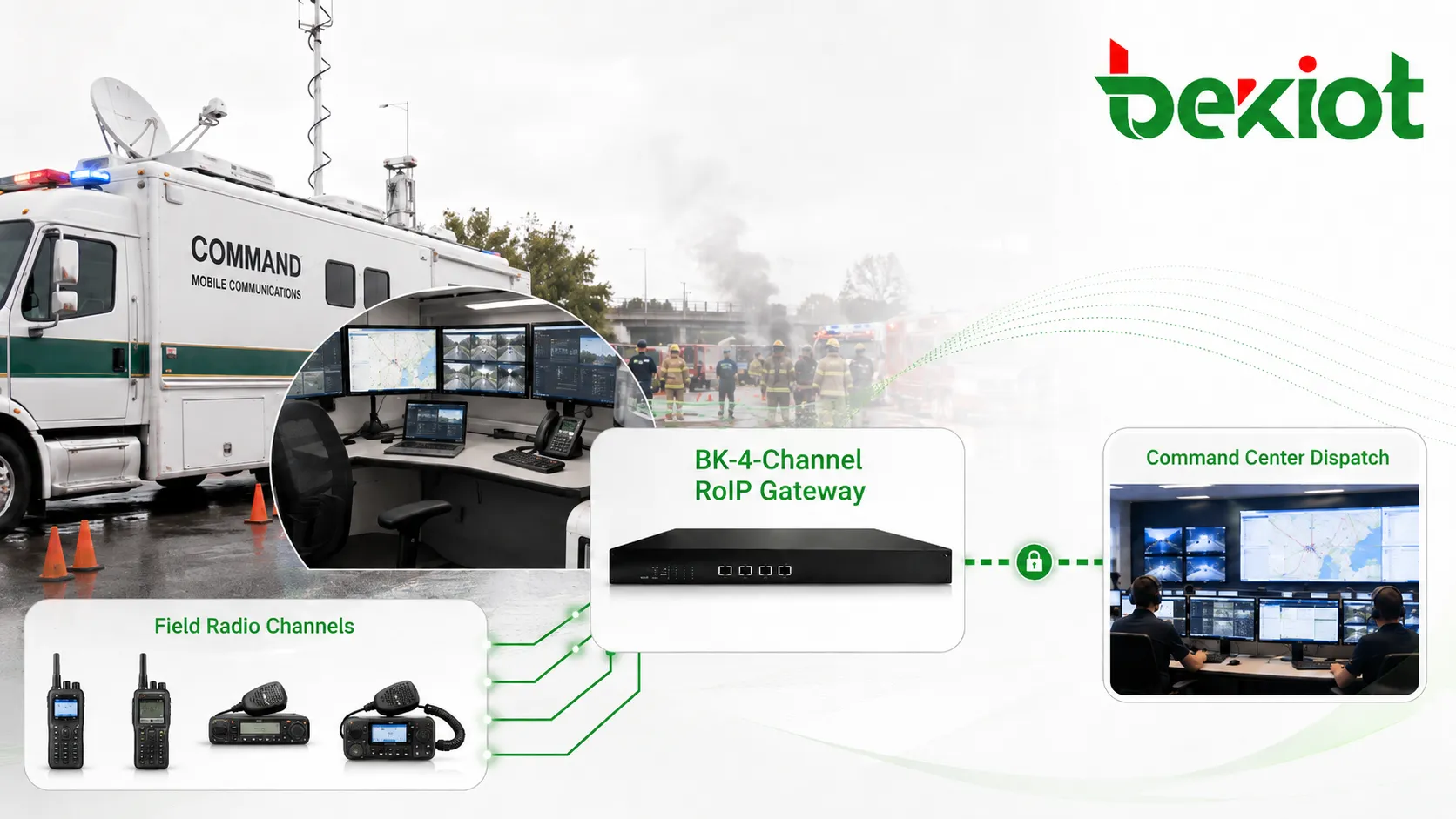

A RoIP gateway can connect with radios, vehicle-mounted transceivers, or other radio communication equipment through audio and control interfaces. Each connected radio channel can be mapped to a gateway port, SIP extension, dispatch resource, or platform channel. After configuration, the remote dispatcher can call the corresponding channel and speak with field radio users.

In a four-channel deployment, one gateway can connect four different radio systems or four channels of the same radio system. For example, one channel may serve rescue workers, another may serve vehicle coordination, another may serve logistics support, and another may serve security or emergency response. The command center can select the required channel according to the real situation.

This design makes field communication more organized. Instead of relying only on local radio operators inside the vehicle, the remote command center can directly participate in radio communication when needed. Command instructions can be delivered to the front line faster, and field reports can be sent back to the command center more clearly.

Related Product: BK 4-Channel RoIP Gateway

Satellite and 4G/5G Backhaul Extend the Link

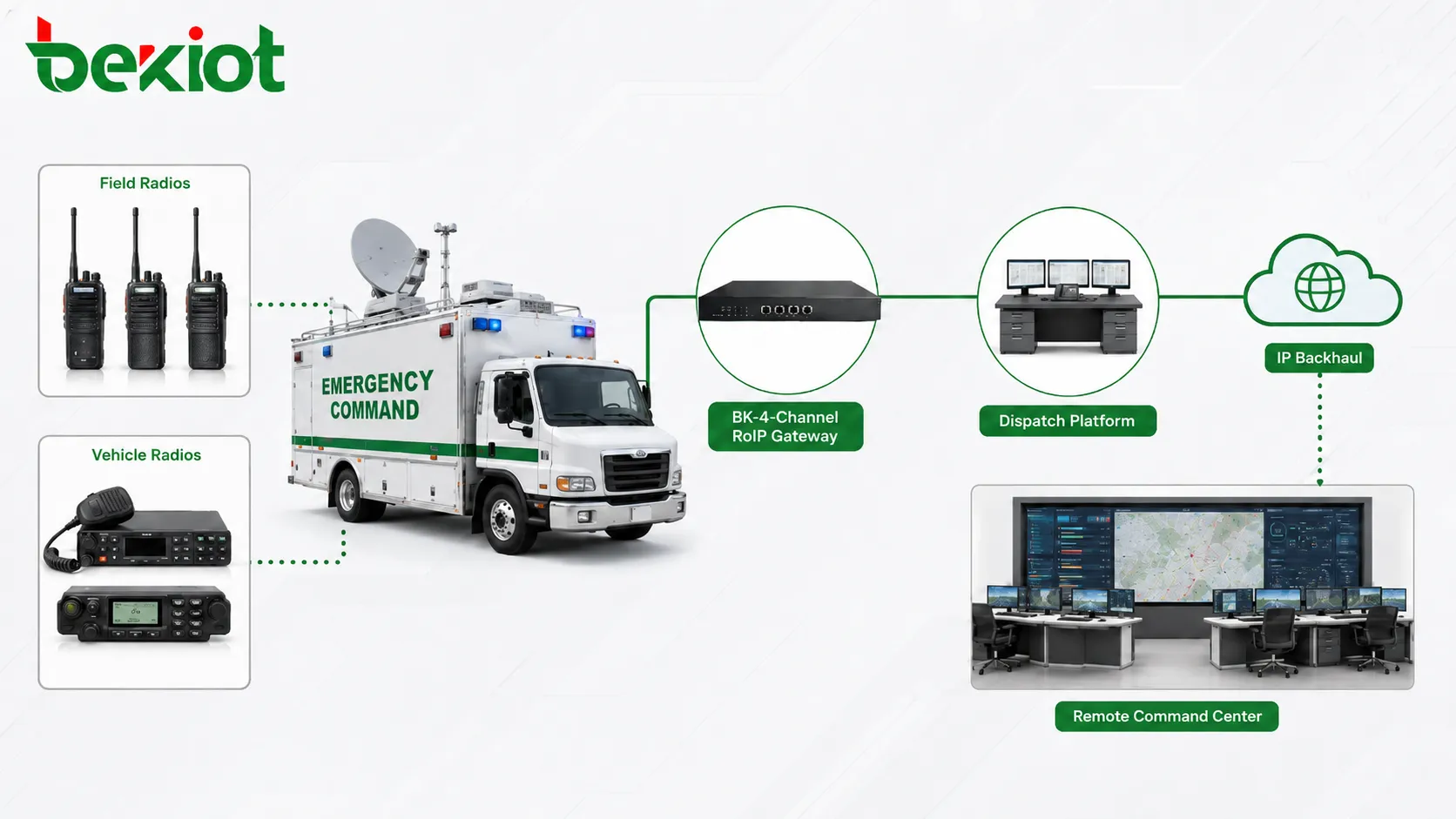

The gateway itself connects radio communication to IP communication, but the emergency command vehicle also needs a backhaul network to reach the command center. In practical deployments, this backhaul may use satellite communication, 4G/5G public network, private LTE or 5G network, broadband ad hoc network, microwave link, or wired broadband when available.

Satellite links are valuable when terrestrial networks are damaged, overloaded, or unavailable. 4G/5G links are useful when mobile network coverage is still available and bandwidth is sufficient. In some projects, both links may be used together to improve resilience. The command vehicle can automatically or manually switch between network paths according to site conditions.

Once the IP backhaul is available, the RoIP gateway can connect the field radio channel to the remote dispatch platform. Dispatchers at the command center can speak with radio users at the incident site, and field teams can report status without leaving their existing radio workflow.

Solving Cross-System Communication Problems

Emergency scenes often involve multiple teams and multiple radio systems. Fire rescue, police, medical rescue, engineering repair, emergency management, transportation, utilities, and volunteer teams may each bring their own equipment. These radios may use different frequencies, standards, channels, or management rules.

Without integration, each team can only communicate inside its own radio group. The command center may need several radios, several operators, or manual message relay. This increases delay and can create communication errors during high-pressure events.

A RoIP gateway helps create cross-system communication. By connecting different radio systems to different gateway ports or channels, the dispatch platform can organize them into a more unified command workflow. Dispatchers can call one channel, monitor another channel, or coordinate several teams through the same platform.

Vehicle-Based Dispatch Improves Field Control

If the emergency command vehicle also carries a local dispatch platform, the gateway can connect radio resources into the vehicle-based command system. The vehicle operator can manage local radio groups, communicate with field personnel, and coordinate with the remote command center at the same time.

This is useful when the incident site needs both local autonomy and remote command support. The vehicle can serve as the front-line dispatch node, while the command center provides higher-level coordination, resource allocation, decision support, and multi-department communication.

For example, the vehicle operator may handle routine radio traffic on site, while the command center joins the channel only when major decisions, evacuation instructions, or cross-department coordination are required. This reduces communication pressure and keeps the command structure clearer.

Radio Channels Can Be Used More Flexibly

A RoIP gateway does not only “pass through” radio audio. In a well-designed system, different radio channels can be organized as communication resources. Dispatchers can select the correct channel according to the incident stage, team type, location, or priority level.

For example, one channel can be dedicated to rescue operations, one to logistics, one to traffic control, and one to emergency command. If different radio standards are used at the scene, the gateway can help bring them into the same dispatch environment so that command staff can manage them more efficiently.

This flexibility is especially valuable when the incident site changes quickly. New teams may arrive, temporary groups may be created, and communication priorities may change. A gateway-based architecture gives the command team a more flexible way to organize field communication without replacing existing radios.

What a Typical System Includes

A practical emergency command vehicle communication architecture usually includes field handheld radios, vehicle radios, a RoIP gateway, local network switches, a router, satellite or 4G/5G backhaul equipment, a dispatch console, and a remote command-center platform. Depending on the project, it may also include video transmission, IP cameras, drone video, public address devices, and recording systems.

The radio side handles local push-to-talk communication. The gateway side converts radio audio and control signals into IP communication. The network side carries the traffic through satellite or mobile network links. The dispatch side allows operators to call, monitor, coordinate, and manage communication resources.

This layered architecture is important because it allows the system to expand. A small vehicle may begin with two or four radio channels. A larger command vehicle or command shelter may connect more channels, more dispatch seats, more backhaul links, and more integrated systems.

Important Design Points Before Deployment

Before deployment, the project team should identify how many radio channels need to be connected, which radio standards are used, whether the radios are handheld units or vehicle-mounted transceivers, and how the gateway will connect to each device. Audio interface, PTT control, channel mapping, cable reliability, power supply, and installation space should all be checked carefully.

Network planning is equally important. The command vehicle should have a stable LAN, secure routing rules, and a reliable backhaul path. If the system depends on satellite, latency and bandwidth should be considered. If it depends on 4G/5G, coverage, signal strength, data plans, and network congestion should be evaluated.

The project should also define communication permissions. Not every dispatcher needs to access every channel. Emergency priority, recording, monitoring, call control, and temporary group rules should be configured according to the command workflow.

Audio Quality and PTT Control Matter

In emergency communication, audio quality is not a small detail. If the audio level is too low, too loud, distorted, delayed, or noisy, field users may miss important instructions. Gateway audio gain, radio volume, microphone level, impedance matching, interface wiring, and codec settings should be tested before the system is delivered.

PTT control must also be stable. The gateway needs to correctly handle push-to-talk behavior between the IP dispatch side and the radio side. If PTT timing is not adjusted properly, the first words of a message may be clipped, or radio transmission may not be triggered reliably.

Acceptance testing should include command-center-to-radio calling, radio-to-command-center reporting, long-duration operation, channel switching, network interruption recovery, satellite link delay, and emergency priority communication. These tests help ensure that the system works in real operations, not only in a demonstration environment.

Why This Matters for Emergency Response

The main purpose of deploying a RoIP gateway on an emergency command vehicle is not to add another device. Its purpose is to make communication more continuous, more coordinated, and more controllable when different teams and different networks are involved.

Field teams can continue using familiar radios. The command vehicle can bridge those radio channels into an IP network. The remote command center can receive field information and issue instructions more directly. This improves the speed and accuracy of emergency communication.

For emergency rescue, military command, public safety operations, utility repair, flood control, wildfire response, and large-event security, this type of architecture can help connect the front line with the command center and reduce the risk of isolated communication islands.

FAQ

Can a RoIP gateway connect different radio standards at the same time?

Yes, depending on the gateway interface and project design. A multi-channel gateway can connect different radios or different channels, but each interface must be matched with the correct radio equipment, cabling, audio level, and PTT control method.

Does an emergency command vehicle always need satellite backhaul?

Not always. Satellite backhaul is useful when public networks are unavailable or damaged. If stable 4G/5G or private network coverage exists, mobile broadband may be enough. Many projects use both methods for redundancy.

Can the command center talk directly to field handheld radios?

Yes. After the radio channel is connected through the RoIP gateway and mapped to the dispatch platform, the command center can call the corresponding radio channel and communicate with field users through their existing radios.

What should be checked before installing the gateway in a vehicle?

The project team should check power supply, grounding, installation space, antenna layout, radio interface cables, network routing, heat dissipation, vibration resistance, and maintenance access inside the vehicle.

Is this architecture only for large emergency vehicles?

No. The same concept can be used in smaller command vehicles, mobile command shelters, temporary field command posts, and fixed emergency dispatch centers. The number of channels and system complexity can be adjusted according to the project scale.
