The problem it is designed to solve

Many traditional systems were built as closed structures. Their hardware, software, interface logic, database format, communication protocol, and expansion method were tightly bound together. This approach can work in a stable and limited environment, but it becomes difficult when the organization needs to add new functions, connect external systems, replace old components, support different vendors, or adapt to new operational workflows.

A closed system often creates dependency. If one module changes, other functions may be affected. If a vendor stops supporting a component, the whole system may become difficult to upgrade. If data cannot be exported through a standard interface, other platforms must use manual entry, file import, or custom conversion. If integration requires deep modification of internal code, every upgrade becomes risky.

Open Architecture technology solves this by separating system capabilities into manageable layers and defining how those layers interact. The internal implementation may still be complex, but the external connection points are made understandable and reusable. A module does not need to know every detail of another module; it only needs to follow the agreed interface, protocol, data format, and permission rule.

This principle is important in long-life systems. Industrial facilities, communication platforms, public infrastructure, transport networks, enterprise systems, healthcare platforms, campus systems, security systems, and government projects may operate for many years. During that time, technology changes, user requirements expand, and integration needs increase. Open Architecture provides a way to evolve without rebuilding everything from the beginning.

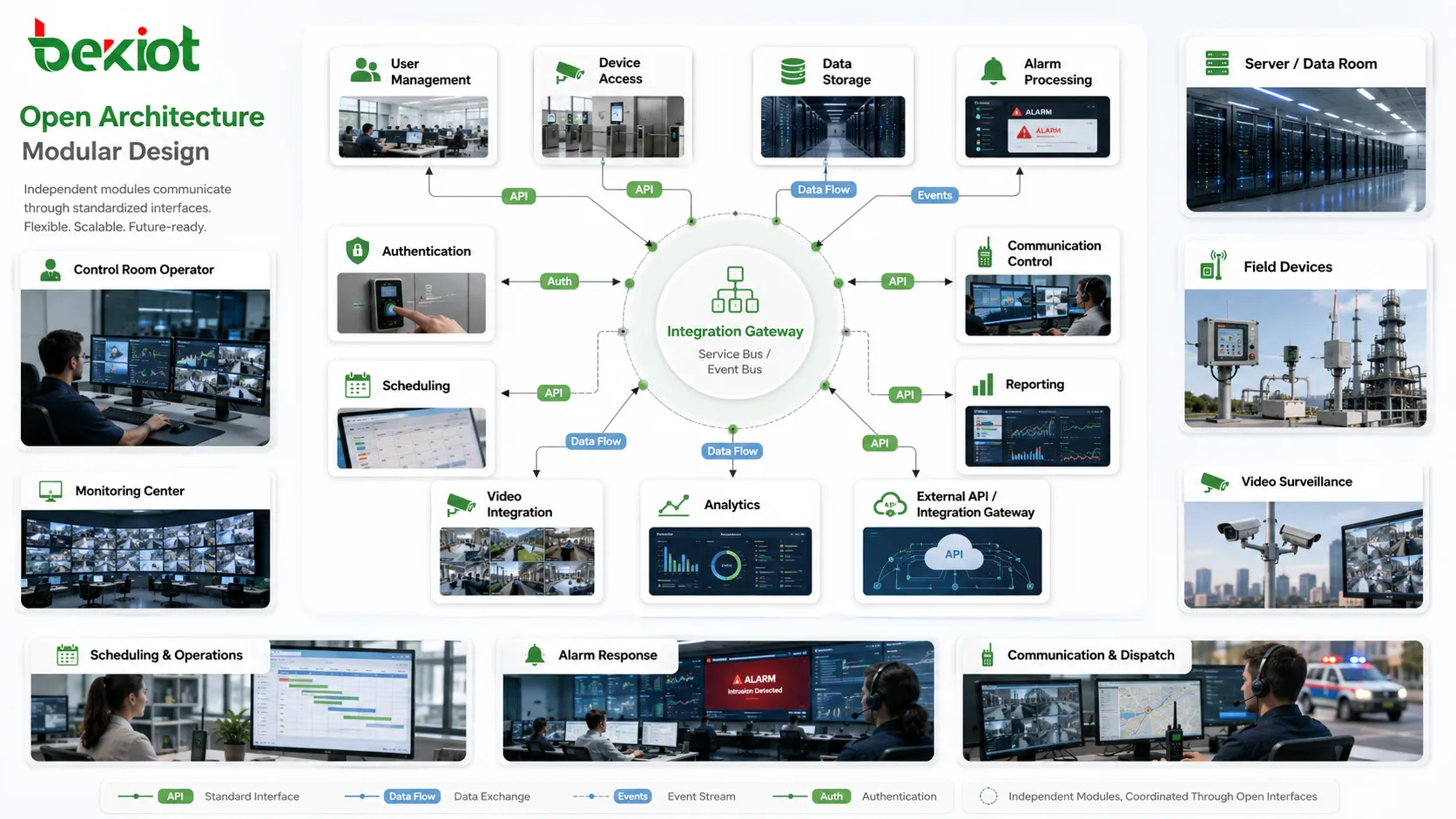

Modular design is the foundation

The first working principle is modular design. A system is divided into functional parts rather than built as one inseparable block. Each module has a defined purpose, such as user management, device access, data storage, alarm processing, communication control, reporting, video integration, scheduling, authentication, analytics, or external interface service. These modules cooperate but should not depend on unnecessary internal details from each other.

Modular design improves maintainability. If one module needs to be upgraded, optimized, replaced, or scaled, the impact on the whole system can be reduced. For example, a reporting module may be improved without changing the device access layer. A notification service may be replaced without rewriting the core database. A new analytics module may be added without changing the user login mechanism.

Modularity also supports specialization. Different modules can be developed by different teams or even different vendors as long as they follow the required interface rules. This is one of the reasons Open Architecture is valuable in large projects. It allows a system to combine specialized components without forcing every function to come from one source.

However, modular design does not mean random separation. The system architect must decide where module boundaries should be placed. If modules are too large, the system remains inflexible. If modules are too small, integration becomes complicated and performance may suffer. Good Open Architecture uses module boundaries that reflect real business functions, technical responsibilities, and lifecycle needs.

Standardized interfaces make cooperation possible

Modular systems need interfaces. An interface defines how one part of the system communicates with another part. It may describe request format, response format, commands, data fields, authentication method, event notification, error code, file exchange method, or protocol behavior. Without interfaces, modules may exist separately but cannot cooperate reliably.

Standardized interfaces are the practical working channel of Open Architecture. They allow different modules and systems to exchange information without exposing all internal logic. A software platform may expose REST APIs, WebSocket channels, message queues, SDKs, database views, or file interfaces. A hardware or industrial system may use protocols, drivers, fieldbus interfaces, network ports, digital input and output, or standardized communication models.

The interface acts as a contract. If the caller sends data according to the contract, the service returns a predictable result. If the service changes internally but keeps the contract stable, external integrations can continue working. This separation is one of the strongest technical advantages of Open Architecture.

Good interface design should be clear, stable, documented, and versioned. It should define required fields, optional fields, data types, response codes, timeout behavior, permission requirements, and compatibility rules. A vague interface may create more problems than a closed system because different integrators may interpret it differently.

Interfaces should also avoid exposing unnecessary internal details. If an API directly mirrors internal database tables, every database change may break external systems. A better design exposes business-oriented functions, such as creating a work order, querying device status, subscribing to alarm events, or updating user permission. This keeps the architecture open without making it fragile.

Layered abstraction reduces dependency

Open Architecture relies heavily on abstraction. Abstraction means hiding unnecessary implementation details behind a stable access layer. A user application does not need to know which database engine stores the records. A monitoring platform does not need to know how each sensor circuit is designed. A dispatch system does not need to understand every internal algorithm of an alarm platform. It only needs a reliable way to request, receive, or send the required information.

Layered abstraction usually separates the presentation layer, service layer, data layer, integration layer, device layer, and infrastructure layer. Each layer has a defined responsibility. The presentation layer handles user interaction. The service layer handles business logic. The data layer stores information. The integration layer connects outside systems. The device layer communicates with physical endpoints. The infrastructure layer provides computing, networking, and security resources.

This separation allows change to happen in one layer without forcing unnecessary change in all other layers. A front-end interface may be redesigned while the backend API remains stable. A database may be optimized while the service layer keeps the same data access behavior. A new device protocol may be added through a gateway without changing the whole application.

Layered abstraction is especially useful in mixed technology environments. An industrial platform may need to connect legacy serial devices, IP devices, cloud services, alarm systems, mobile applications, and management dashboards. Without abstraction, every part would need custom point-to-point logic. With abstraction, different technologies can be normalized through service layers and data models.

The risk is over-abstraction. If too many layers are added without clear purpose, the system becomes difficult to understand and may suffer performance loss. Good Open Architecture uses abstraction to reduce dependency, not to hide every detail behind unnecessary complexity.

Protocols provide common communication language

Open Architecture depends on common communication languages. In digital systems, these languages are protocols. A protocol defines how devices, services, or applications exchange information. It may define message structure, connection behavior, addressing, session control, error handling, security, timing, and data representation.

In software and cloud systems, common methods include HTTP, HTTPS, REST, WebSocket, MQTT, AMQP, SOAP, GraphQL, gRPC, and message queue protocols. In industrial and device environments, systems may use Modbus, OPC UA, BACnet, CAN, PROFIBUS, PROFINET, EtherNet/IP, serial protocols, or vendor-defined interfaces. In communication systems, SIP, RTP, SNMP, LDAP, and other protocols may appear depending on the application.

The role of protocols is to reduce custom dependency. If two systems both support a common protocol correctly, they can exchange information more easily. This does not mean integration is automatic. Data mapping, permission, timing, command behavior, and application logic still need planning. But the protocol provides a shared foundation.

Protocol selection should match the use case. A real-time device telemetry system may prefer lightweight publish-subscribe messaging. A business data platform may use REST APIs. A high-performance internal service may use gRPC. A building automation project may use field-specific protocols. A system designed with Open Architecture should support appropriate protocols rather than forcing every connection into one pattern.

Protocol compatibility should be tested, not assumed. Two products may claim support for the same protocol but implement optional fields, timing behavior, authentication, or data models differently. Open Architecture provides the possibility of interoperability; engineering verification confirms whether it works in the actual project.

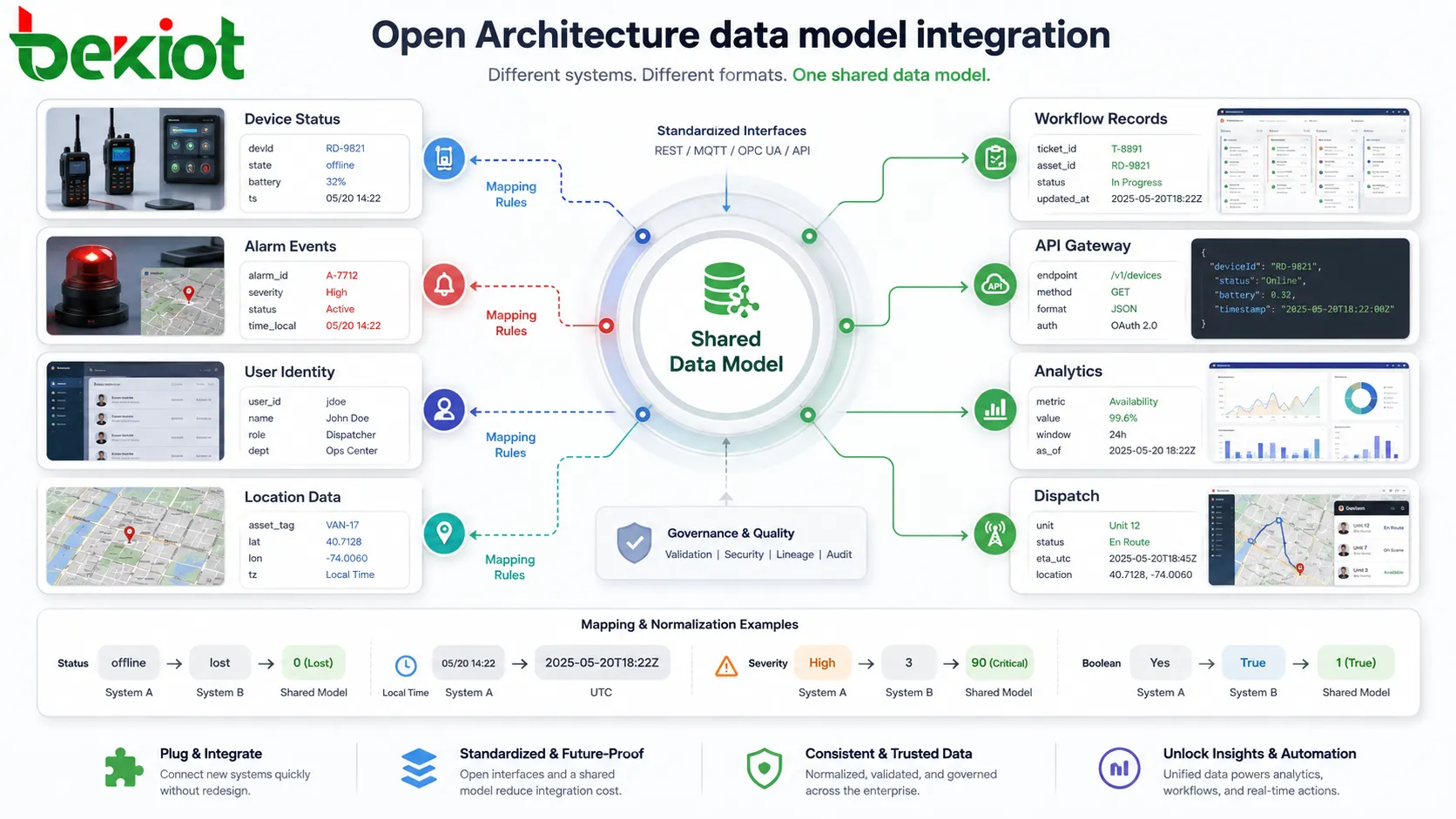

Data models turn information into shared resources

Open Architecture is not only about connecting cables or exposing endpoints. It also requires understandable data. Different systems may use different field names, identifiers, units, status values, time formats, language settings, and classification methods. If data is not mapped correctly, integration may technically connect but still produce wrong business results.

A data model defines how information is structured. It may describe users, devices, alarms, events, locations, permissions, work orders, messages, media records, schedules, assets, departments, or process states. In an open architecture, shared data models or transformation rules allow different modules to understand each other’s information.

For example, one system may call a device state “offline,” another may use “lost,” and another may use a numeric code. A data model or mapping layer defines how these values correspond. One system may store timestamps in local time, while another uses UTC. One system may identify a location by building and floor, while another uses a zone ID. These differences must be handled carefully.

Data ownership is also important. If several systems can update the same field, conflicts may occur. Open Architecture should define which system is the authoritative source for each type of data. A device management platform may own device status. A user directory may own user identity. A dispatch system may own incident records. Clear ownership prevents integration chaos.

Data models also support analytics and reporting. When information from several systems follows a consistent structure, it becomes easier to build dashboards, event timelines, performance reports, maintenance statistics, and decision-support tools. Open Architecture turns isolated information into usable shared resources.

Loose coupling protects system evolution

Loose coupling means that modules depend on each other as little as reasonably possible. They communicate through interfaces and contracts rather than direct internal dependency. This is a central working principle of Open Architecture because it allows each part of the system to evolve with less risk.

In a tightly coupled system, one change can cause many hidden effects. If a database field changes, several applications may fail. If a device protocol changes, the control platform may need large modification. If a service is moved to another server, all clients may need reconfiguration. Tight coupling makes upgrades slow and risky.

Loose coupling reduces this problem. A module can change its internal code, storage method, or deployment environment as long as the interface remains compatible. A system can add new modules without rewriting old ones. A customer can replace one subsystem without abandoning the entire platform. This supports long-term modernization.

Loose coupling is often implemented through APIs, service buses, message brokers, event-driven architecture, adapter layers, drivers, plug-ins, and configuration-based integration. These methods create controlled connection points. Instead of every module directly calling every other module, communication is mediated through stable pathways.

Loose coupling does not mean no dependency. Systems still depend on interface contracts, shared data rules, security policies, and service availability. The difference is that dependencies are visible, documented, and manageable. This is what makes Open Architecture more sustainable than uncontrolled custom integration.

Plug-in and extension mechanisms support new functions

Open Architecture often includes plug-in or extension mechanisms. These allow new functions to be added without changing the core system. A plug-in may add a new device driver, report type, alarm rule, authentication method, communication protocol, workflow connector, visualization widget, or third-party service integration.

The core system provides extension points. These extension points define what the plug-in can access, what events it can receive, what APIs it can call, what data it can read or write, and how it should be installed or updated. This makes expansion more controlled than directly modifying the core code.

Plug-in mechanisms are useful because real projects often need local customization. One customer may need a special alarm report. Another may need a custom device protocol. A third may need integration with a regional platform. If every customization requires core system modification, the product becomes difficult to maintain. Extension points allow customization while preserving the main architecture.

However, plug-ins also require governance. A poorly written plug-in can affect performance, security, or stability. The system should control permissions, resource usage, compatibility versions, logging, error isolation, and update methods. Open extension should not become uncontrolled code injection.

A mature architecture treats extension as a managed lifecycle. Plug-ins should be documented, tested, versioned, monitored, and removable. This keeps the system open while protecting reliability.

Service orchestration coordinates distributed capabilities

Open Architecture often connects many independent services. These services may include user management, alarm processing, device access, notification, video linkage, scheduling, reporting, analytics, storage, and external API services. Service orchestration defines how these capabilities work together to complete a process.

For example, when an alarm occurs, the system may receive the event, verify its type, store the record, notify the operator, open a related video view, trigger a paging message, create a work order, and update the incident timeline. Each step may be handled by a different module or service. Orchestration coordinates the sequence.

Orchestration may be implemented through workflow engines, business process systems, event buses, rules engines, middleware, or service choreography. The method depends on system complexity. The key is that the process should be configurable and observable, not hidden inside scattered custom code.

Service orchestration improves adaptability. If a business process changes, administrators or developers can modify the workflow without replacing every module. If a new service is added, it can be inserted into the process through defined integration points. This is one reason Open Architecture supports long-term evolution.

Orchestration should also include failure handling. If one service fails, the system should define whether to retry, skip, roll back, notify an operator, or continue with a degraded process. Open Architecture does not eliminate failure; it makes failure paths easier to manage.

Security is built into openness

Open Architecture does not mean open access without control. A system can be open in interface and extensibility while still being strict in security. In fact, the more integration points a system provides, the more important security governance becomes.

Security begins with identity. Every external system, user, device, or service should be identified through credentials, certificates, tokens, keys, accounts, or other trusted methods. Anonymous access may be acceptable for public information, but it is not suitable for sensitive data, device control, operational commands, or emergency workflows.

Authorization defines what each caller can do. A third-party application may be allowed to read status but not change configuration. A device gateway may report telemetry but not access user records. A local administrator may manage one site but not another. Role-based, scope-based, and tenant-based permissions help prevent overexposure.

Security also includes encryption, audit logs, rate limiting, input validation, secure coding, vulnerability testing, secret management, network segmentation, and lifecycle review. Open interfaces should not become uncontrolled doors into the system. Each interface should have a purpose, owner, permission model, and monitoring method.

The principle is controlled openness. The system is open enough to integrate, extend, and interoperate, but controlled enough to protect data, operations, users, and infrastructure. This balance is essential for serious Open Architecture deployment.

Governance keeps openness from becoming disorder

Open Architecture gives systems flexibility, but flexibility without governance can create disorder. If every team creates its own interface, data model, permission rule, and integration logic, the system may become more fragmented than a closed platform. Governance provides the rules that keep openness manageable.

Architecture governance includes interface standards, naming rules, version management, data ownership, security policy, integration review, documentation requirements, testing procedures, lifecycle management, and change approval. These rules help ensure that new modules and integrations remain compatible with the larger system.

Version management is especially important. Interfaces change over time. New fields may be added, old fields may be deprecated, authentication methods may improve, and response structures may evolve. Without versioning, an upgrade can break existing integrations. With versioning, old and new clients can transition more safely.

Documentation is also part of governance. Open Architecture is only useful when other teams can understand how to connect. Interface documentation, data dictionaries, workflow descriptions, sample requests, error codes, event definitions, and deployment guides reduce integration cost.

Governance should not become bureaucracy that blocks every improvement. Its purpose is to make openness sustainable. A good governance process allows innovation while preventing uncontrolled technical debt.

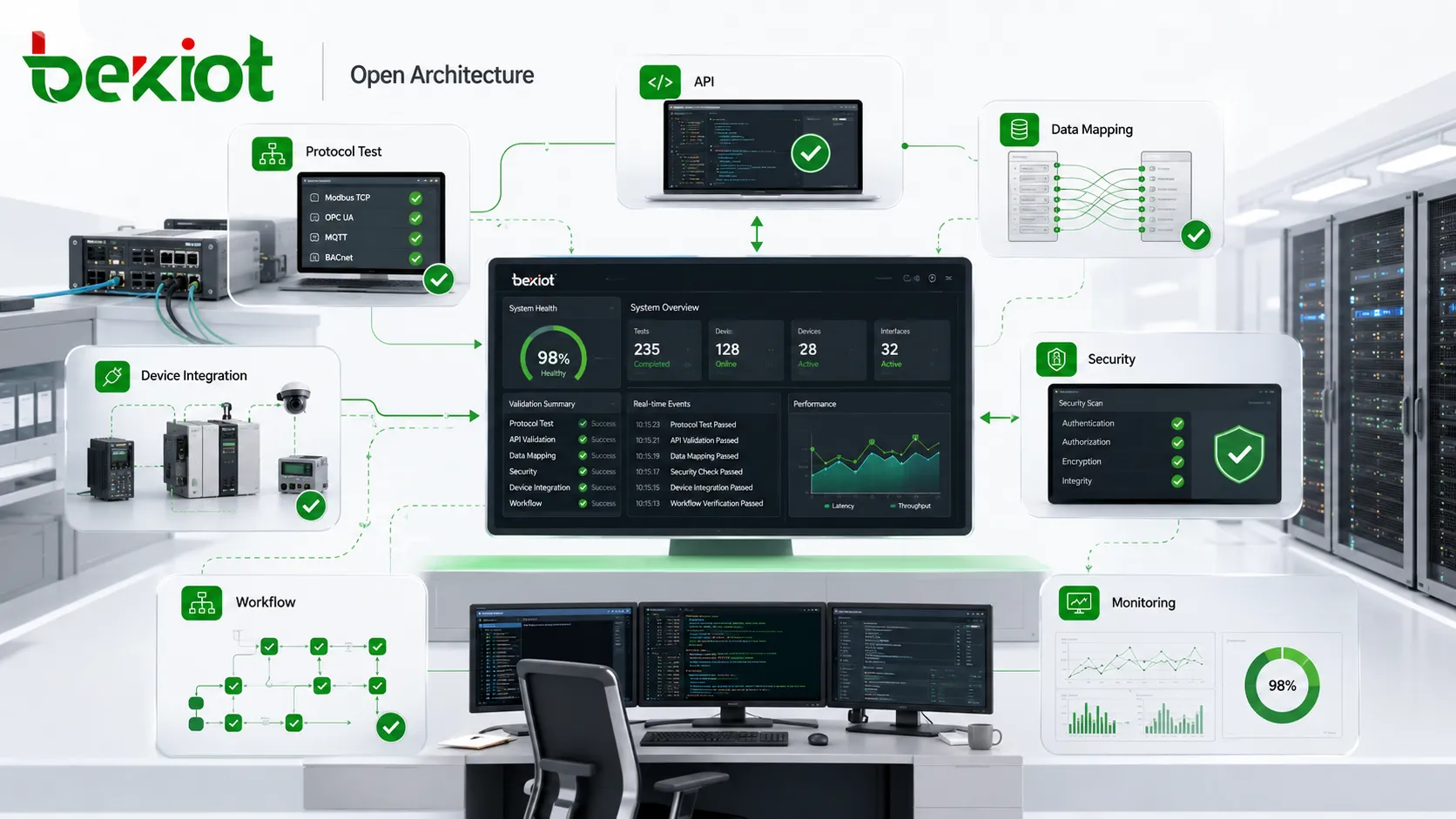

Interoperability depends on testing, not labels

Many products and platforms claim to be open, compatible, or interoperable. These terms are useful only when verified in real integration conditions. Open Architecture provides design principles and interface possibilities, but practical interoperability depends on actual testing.

Testing should check protocol behavior, data fields, authentication, error handling, timeout behavior, event delivery, performance, security, and version compatibility. It should also test abnormal conditions, such as missing data, duplicate events, network delay, expired tokens, service restart, and partial failure.

Device integration requires field testing. A protocol document may say that a device supports a certain command, but the device may respond differently under load, after restart, or during network interruption. Industrial and communication systems should be tested with real equipment, real network conditions, and real operating workflows.

Application integration requires business testing. A customer record may synchronize correctly, but the workflow may still fail if the status mapping is wrong. An alarm event may reach the platform, but the operator may not receive useful location information. A report API may return data, but the receiving system may interpret time zones incorrectly.

Interoperability is therefore not a one-time claim. It is a verification process. Open Architecture reduces barriers, but engineering validation confirms whether the connected system actually works as intended.

Applications in enterprise platforms

Enterprise platforms use Open Architecture to connect CRM, ERP, HR, finance, document management, customer service, workflow, analytics, and reporting systems. Each system may own a different part of the business process. Open Architecture allows them to exchange data and trigger actions without manual re-entry.

For example, a customer order may start in an e-commerce platform, move into an ERP system, generate a finance record, create a logistics task, and update a customer service dashboard. These steps may involve several modules and external systems. Open Architecture makes the process more continuous.

Enterprise applications also need extensibility. A company may add a new approval workflow, connect a new payment platform, introduce a new reporting tool, or integrate a partner portal. If the architecture is open, these changes can be handled through interfaces and modules rather than full redevelopment.

Data governance is critical in enterprise use. Customer identity, contract data, order status, employee records, and financial information must have clear ownership and access control. Open Architecture supports integration, but it must not allow uncontrolled data copying or unauthorized access.

Applications in industrial and automation systems

Industrial and automation systems benefit from Open Architecture because field environments often include equipment from different generations and vendors. A facility may have old PLCs, new sensors, SCADA systems, device gateways, energy meters, safety systems, maintenance platforms, alarm systems, and management dashboards. These systems need to cooperate even if they were not designed at the same time.

Open Architecture allows device drivers, protocol gateways, data platforms, alarm services, and application modules to be connected through defined layers. Legacy equipment can be integrated through adapters. New devices can be added through supported protocols. Management platforms can receive normalized data instead of dealing with every device format directly.

This is useful for predictive maintenance, energy management, production visibility, alarm management, remote monitoring, asset tracking, and operational reporting. The architecture turns scattered field data into structured system information.

Industrial systems must pay attention to reliability and safety. Open integration should not weaken control system stability. Critical control commands may require strict permissions, network isolation, manual confirmation, or safety interlocks. Not every system should have write access to field equipment. Read-only integration is often safer for monitoring and analytics.

Applications in communication and dispatch systems

Communication and dispatch systems often need to connect voice, video, alarms, public address, intercom, access control, GIS, recording, mobile terminals, and command platforms. Open Architecture allows these functions to cooperate as part of one operational workflow.

For example, an emergency call can trigger a dispatch pop-up, show location data, open a nearby camera, start recording, notify a response group, and create an event record. These functions may come from different modules or systems. Open Architecture provides the interface framework that allows them to work together.

In paging and broadcast systems, open interfaces can connect scheduled messages, alarm triggers, zone control, recording platforms, operator consoles, and external management systems. In intercom systems, open architecture may support integration with access control, security platforms, and mobile clients. In dispatch systems, it may connect field terminals, command centers, and incident management workflows.

The system value is faster response and better context. Operators do not need to manually switch between unrelated platforms or copy information from one screen to another. The architecture helps bring relevant information and action controls into one workflow.

Applications in cloud, IoT, and edge computing

Cloud, IoT, and edge computing environments often depend on Open Architecture. Devices may collect data at the edge, gateways may preprocess information, cloud platforms may store and analyze data, and business systems may use the results. These layers must communicate through standard interfaces and controlled data models.

IoT devices may use lightweight protocols to report telemetry. Edge gateways may translate local device protocols into cloud APIs. Cloud services may expose data to dashboards, maintenance platforms, and analytics engines. Business systems may use APIs to create tasks, alerts, reports, or billing records based on device data.

Open Architecture is important because IoT ecosystems change quickly. New device types, sensors, communication networks, analytics tools, and AI services may appear. A closed platform may struggle to adopt them. An open architecture can add adapters, services, and APIs more easily.

Edge computing also benefits from openness because not all processing should happen in the cloud. Some decisions need local latency, local autonomy, or local data filtering. Open interfaces between edge and cloud allow the system to balance local intelligence and centralized management.

Benefits for long-term system value

The most important benefit of Open Architecture is long-term adaptability. A system can continue to evolve after deployment. New modules can be added, old components can be replaced, external platforms can be connected, and business workflows can change without full reconstruction.

Another benefit is vendor flexibility. Open Architecture can reduce dependence on one closed supplier by allowing compatible modules and systems to connect through defined interfaces. This does not mean every component is interchangeable without work, but it gives project owners more options during expansion and maintenance.

Open Architecture also improves innovation. When interfaces are available, internal teams, partners, developers, and integrators can build new applications around the platform. New dashboards, automation workflows, analytics models, mobile tools, or integration services can be created without changing the core system every time.

Operational efficiency improves because data can move automatically. Manual export, repeated entry, isolated records, and delayed status updates can be reduced. Processes become more connected, and staff can make decisions with better information.

Finally, system resilience can improve when architecture supports modular replacement, redundancy, monitoring, and controlled integration. A failure in one module does not always need to bring down the whole system if the architecture is designed with isolation and fallback behavior.

Limitations and risks

Open Architecture is not a guarantee of simplicity. In some projects, it can increase design complexity because more interfaces, modules, permissions, data models, and governance rules must be managed. The benefits appear only when the architecture is planned and maintained properly.

Security risk is one major concern. More integration points mean more possible attack surfaces. APIs, plug-ins, gateways, remote services, and third-party connections all need protection. If openness is implemented without security, the system may become vulnerable.

Compatibility risk also exists. A system may support open standards but still require configuration, mapping, testing, and adaptation. Standards often include optional features, different versions, and implementation differences. Project teams should not assume that all open-standard devices or platforms will work together automatically.

Performance may be affected if integration layers are poorly designed. Too many translation steps, synchronous calls, heavy middleware, excessive abstraction, or inefficient data exchange can create latency and bottlenecks. Architecture should balance openness with performance.

Governance failure is another risk. If many teams add interfaces without documentation, version control, or ownership, the system can become messy. Open Architecture requires discipline. Without it, openness can turn into fragmentation.

How to judge whether an architecture is truly open

A truly open architecture should provide documented interfaces, clear data models, supported protocols, version management, security controls, and a practical integration method. It should not depend on undocumented internal access or one-off customization that only the original vendor understands.

The architecture should support modular expansion. It should be possible to add or replace certain functions without rewriting the entire system. The system should provide extension points, APIs, adapters, drivers, or service interfaces that are stable enough for long-term use.

It should also support interoperability testing. A claim of openness should be verified through real integration with external systems, devices, data sources, or applications. Documentation alone is not enough. The system should prove that external components can connect and operate according to the intended workflow.

Security and governance should be visible. If an architecture is open but has no permission control, audit log, version policy, or integration review process, it may be unsafe for serious use. Controlled openness is more valuable than uncontrolled access.

Finally, the architecture should reduce lifecycle risk. It should make future upgrades, maintenance, expansion, and integration easier. If a system claims to be open but every change still requires deep custom modification, the practical openness is limited.

Implementation principles for real projects

Real projects should begin by defining integration goals. The team should ask which systems need to connect, what data must be exchanged, which functions must be triggered, who owns each data source, which operations are read-only, which operations can change system state, and which workflows require real-time response.

The next step is selecting the right interface methods. Some use cases need synchronous APIs. Some need webhooks. Some need message queues. Some need protocol gateways. Some need file exchange for batch data. Some need plug-ins or SDKs. The method should match the business need rather than follow a single fashionable pattern.

Security should be designed early. Authentication, authorization, encryption, network segmentation, audit logs, and key management should not be added as an afterthought. Each interface should have a defined risk level and access policy.

Documentation and testing should be part of delivery. Interface documents, data dictionaries, sample calls, error definitions, version notes, and integration test cases should be delivered with the system. Without these, future teams may struggle to maintain the architecture.

Long-term operation should include monitoring and review. API usage, device integration status, module health, error rates, performance, security events, and deprecated interfaces should be monitored. Open Architecture is a living structure, not a one-time design diagram.

Final Review

Open Architecture technology relies on modular design, standardized interfaces, layered abstraction, common protocols, shared data models, loose coupling, extension mechanisms, service orchestration, security control, governance, and interoperability testing. These principles allow systems to connect and evolve without being trapped inside a closed technical structure.

Its working logic is based on separation and cooperation. Functions are separated into manageable modules, while cooperation is achieved through defined contracts. Internal implementation can change, but external behavior remains stable enough for integration. This creates a system that can adapt to new devices, applications, workflows, and business requirements over time.

The value of Open Architecture appears when it is applied with discipline. Openness should not mean disorder, insecure access, or uncontrolled customization. A strong open architecture is documented, governed, secure, testable, extensible, and aligned with real operational needs. When these conditions are met, it becomes a foundation for sustainable digital systems, industrial platforms, communication networks, and enterprise integration.

FAQ

Is Open Architecture the same as open source?

No. Open Architecture means the system is designed with accessible interfaces, modular structure, and integration capability. Open source means the source code is made available under a license. A system can use Open Architecture without being open source.

What is the core working principle of Open Architecture?

The core principle is controlled modular cooperation. The system separates functions into modules and allows them to communicate through standardized interfaces, protocols, and data models while maintaining security and governance.

Why are standardized interfaces important?

Standardized interfaces allow different modules, systems, or devices to exchange information in a predictable way. They reduce dependency on internal code and make integration, upgrade, and replacement easier.

Does Open Architecture guarantee compatibility?

No. It improves the possibility of compatibility, but real interoperability still requires protocol matching, data mapping, configuration, security alignment, and testing under actual project conditions.

What risks should be considered when using Open Architecture?

Risks include weak security, poor governance, unclear data ownership, version conflicts, interface instability, excessive complexity, performance bottlenecks, and untested compatibility. These risks can be controlled through planning, documentation, monitoring, and lifecycle management.
