A modern network is no longer a simple collection of computers connected by cables. Enterprises, campuses, hospitals, data centers, carriers, industrial parks, and financial systems all need networks that can forward traffic quickly, separate business zones securely, and route data intelligently between different IP subnets. This is where the Layer 3 switch becomes important.
A Layer 3 switch combines the high-speed forwarding capability of a Layer 2 switch with the routing intelligence of a router. It can forward frames based on MAC addresses inside the same local network, and it can also route packets based on IP addresses between different network segments. In practical network design, this makes it a core device for building efficient, scalable, and manageable network infrastructure.
This article explains Layer 3 switches from a solution and technical architecture perspective. It covers how Layer 3 switches work, why “route once, switch many times” is their key value, how ASIC hardware acceleration improves performance, where Layer 3 switches are deployed, and how future networks are moving toward 400G/800G interfaces, AI-driven traffic optimization, cloud-native management, and network automation.
What Is a Layer 3 Switch?
A Layer 3 switch is a network device that performs both switching and routing. A traditional Layer 2 switch mainly forwards traffic according to MAC addresses. It is suitable for high-speed communication inside the same LAN or VLAN. A router mainly forwards traffic according to IP addresses and is used to connect different networks or subnets.
A Layer 3 switch sits between these two concepts. It keeps the fast local forwarding capability of Layer 2 switching and adds IP routing capability for cross-subnet communication. In simple terms:
A Layer 3 switch can be understood as a high-performance Layer 2 switch with an integrated routing engine.
This does not mean it completely replaces every router. Routers are still important for WAN access, internet edge security, NAT, VPN, and complex service policies. But inside enterprise LANs, campus networks, data centers, and carrier aggregation networks, a Layer 3 switch is often more efficient for high-speed internal routing.
Layer 2 Switch, Router, Hub, and Layer 3 Switch Compared
To understand the value of a Layer 3 switch, it helps to compare several common network devices by their forwarding basis, core function, and typical application.
| Device | Main Forwarding Basis | Core Function | Typical Application |
|---|---|---|---|
| Hub | None | Broadcasts all data to all ports | Legacy networks, now largely obsolete |
| Layer 2 Switch | MAC address | High-speed switching inside the same LAN | Access layer, desktop access, local network connection |
| Router | IP address | Routes traffic across different networks | Subnet interconnection, internet gateway, WAN edge |
| Layer 3 Switch | MAC address and IP address | Integrated switching and routing | Core layer, aggregation layer, data center, campus network |
In home networks, many users are familiar with broadband routers. A home router often integrates routing, switching, Wi-Fi access point, NAT, firewall, and basic LAN functions in one device. In professional networks, these functions are usually separated into different layers and devices so that performance, reliability, security, and management can be controlled more precisely.
The Core Value: Route Once, Switch Many Times
The key design logic of a Layer 3 switch is often summarized as route once, switch many times. This is one of the main reasons Layer 3 switches are widely used in modern LAN and campus architecture.
When traffic crosses from one IP subnet to another for the first time, the Layer 3 switch performs routing calculation like a router. It checks the destination IP address, consults the routing table, determines the correct outgoing interface or next hop, and forwards the packet.
After the first routing decision is made, later traffic with the same forwarding path can be handled through high-speed hardware forwarding. Instead of repeating slow software routing for every packet, the switch can forward subsequent packets almost like Layer 2 switching. This greatly improves cross-subnet communication efficiency.

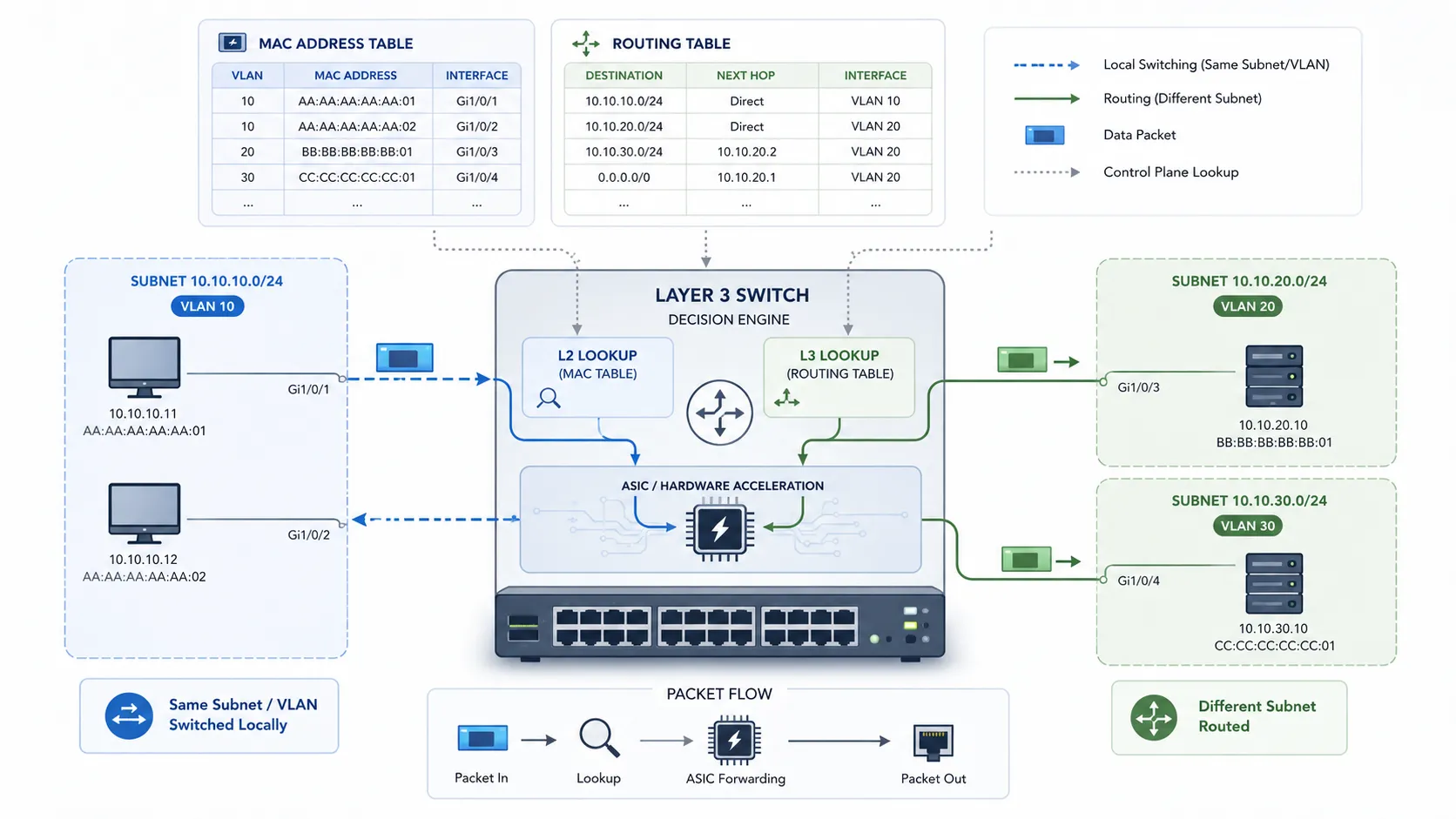

How a Layer 3 Switch Makes Forwarding Decisions
A Layer 3 switch maintains two important data structures: the MAC address table and the routing table. These two tables represent the two sides of its architecture: switching and routing.
MAC Address Table
The MAC address table records the relationship between device MAC addresses and physical switch ports. When devices communicate inside the same VLAN or local network, the switch uses this table to forward frames directly to the correct port instead of flooding all ports.
Routing Table
The routing table records IP network segments, outgoing interfaces, and next-hop addresses. When traffic needs to move from one subnet to another, the Layer 3 switch uses the routing table to determine where the packet should go.
Same Subnet vs. Different Subnet
When a packet arrives, the Layer 3 switch checks whether the destination IP address belongs to the same subnet. If the destination is in the same subnet, the device performs Layer 2 switching based on the MAC table. If the destination is in a different subnet, it performs Layer 3 routing based on the routing table.
This hybrid decision model allows one device to support both high-speed local communication and efficient cross-subnet routing.
Why ASIC Hardware Routing Matters
A major technical advantage of Layer 3 switches is hardware-based routing. Traditional routers often rely more heavily on software processing for routing decisions, especially in older or lower-end designs. Software routing is flexible, but it can become slower under heavy traffic loads.
Layer 3 switches use dedicated switching chips, often referred to as ASICs, to perform forwarding and routing functions in hardware. This reduces routing latency to the microsecond level and allows Layer 3 forwarding performance to approach Layer 2 switching performance.
In high-end Layer 3 switches, Layer 3 forwarding performance can reach wire-speed, which means the device can forward traffic at the maximum physical rate of the interface. For networks carrying large volumes of voice, video, database, virtualization, storage, and AI application traffic, wire-speed forwarding is a critical capability.
Routing Protocols Supported by Layer 3 Switches
A Layer 3 switch is not limited to simple static routing. Many professional models support dynamic routing protocols, allowing them to participate in larger routing architectures.
| Routing Method | Technical Role | Typical Use |
|---|---|---|
| Static Routing | Manually defines fixed forwarding paths | Small networks, stable topology, simple inter-VLAN routing |
| RIP | Distance-vector routing protocol | Legacy or small-scale routing environments |
| OSPF | Link-state routing protocol | Enterprise, campus, data center, and scalable internal routing |
| BGP | Policy-based routing protocol | Carrier networks, large enterprise edge, data center interconnection |
These routing capabilities allow Layer 3 switches to adapt to different scenarios, from small enterprise networks to large-scale carrier and data center environments.
VLAN Segmentation and Network Security
VLAN is another important feature of Layer 3 switching. A VLAN, or Virtual Local Area Network, divides one physical network into multiple logical networks. Different departments, services, or device groups can be separated even if they share the same physical switching infrastructure.
For example, an enterprise may separate office computers, IP phones, surveillance cameras, guest Wi-Fi, production equipment, and management servers into different VLANs. This improves security, reduces broadcast scope, simplifies management, and allows different traffic policies to be applied to different business zones.
When devices in different VLANs need to communicate, the Layer 3 switch can provide inter-VLAN routing. This is one of the most common use cases for Layer 3 switches in enterprise and campus networks.
Where Layer 3 Switches Are Used

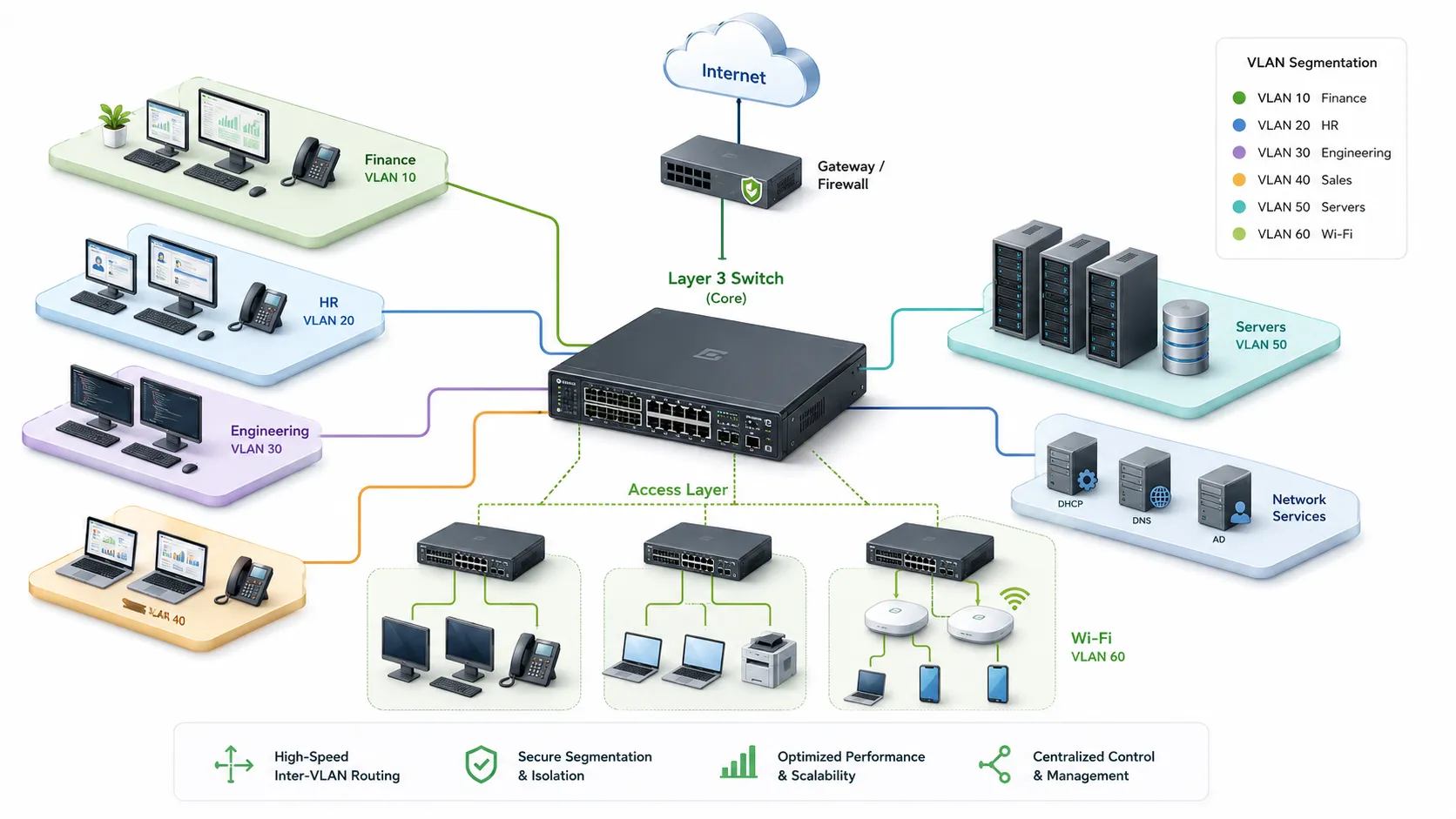

Enterprise Core Networks
In enterprise networks, Layer 3 switches are commonly deployed at the core layer or aggregation layer. They connect different departments, service networks, server areas, wireless networks, and internet exit devices. A typical enterprise design uses a three-layer model: core layer, aggregation layer, and access layer.
In this model, the core layer usually relies on Layer 3 switches for high-speed data exchange and cross-subnet routing. The access layer usually uses Layer 2 switches to connect desktop terminals, IP phones, cameras, printers, wireless access points, and other edge devices.
Carrier and Metro Networks
In carrier networks, Layer 3 switches may be used at metro edge nodes, enterprise leased-line access points, and service aggregation positions. They provide flexible VLAN isolation, policy routing, high-speed forwarding, and scalable access for different customers or service types.
Data Centers
Data centers require low latency, high throughput, and scalable server interconnection. A modern data center may contain thousands of servers, virtualization hosts, storage systems, containers, and service clusters. Layer 3 switches help create flatter network architectures, reduce forwarding hops, and improve traffic efficiency.
In high-performance data center designs, using Layer 3 switching can significantly improve north-south traffic performance. Related industry data shows that data centers using high-performance Layer 3 switches may reduce north-south traffic latency by more than 40%.
Campus, Hospital, and Financial Networks
Campus networks, hospital networks, and financial trading systems usually require high reliability and predictable performance. Layer 3 switches can support redundant links, fast convergence, and QoS policies to protect business continuity and service stability.
In hospitals, network reliability affects medical systems, nurse stations, imaging systems, IP communication, and security systems. In financial environments, latency and stability can affect transaction systems and business continuity. In campus networks, large numbers of users and devices need segmented, manageable, and scalable access.
Layer 3 Switch Deployment Architecture
A well-designed Layer 3 switch deployment should separate network responsibilities into clear layers. This makes the network easier to expand, troubleshoot, secure, and maintain.
Access Layer
The access layer connects end devices such as PCs, IP phones, cameras, wireless access points, printers, industrial terminals, and IoT devices. In many networks, Layer 2 switches are used here because the main task is local device access.
Aggregation Layer
The aggregation layer collects traffic from multiple access switches. It can enforce policies, aggregate VLANs, provide redundant uplinks, and prepare traffic for core routing. Layer 3 switches are commonly used here when inter-VLAN routing or policy control is required.
Core Layer
The core layer is responsible for high-speed forwarding between major network areas. It should be simple, fast, redundant, and stable. Layer 3 switches are often used at this layer because they combine wire-speed forwarding with intelligent routing.
Technical Selection Guide
Choosing a Layer 3 switch should be based on network scale, traffic model, reliability requirements, service type, and future expansion. The following factors are especially important in solution design.
Forwarding Performance
The switch should support enough switching capacity and packet forwarding rate for current and future traffic. For core or data center scenarios, wire-speed Layer 3 forwarding is often required.
Port Speed and Uplink Capacity
Enterprises may use 1G, 10G, 25G, 40G, or 100G interfaces today, while high-performance networks are moving toward 400G/800G interfaces. Uplink capacity should be planned according to server density, user scale, service traffic, and redundancy design.
Routing and VLAN Capability
The device should support required routing protocols, VLAN scale, inter-VLAN routing, ACL policies, multicast functions, and management features. Larger networks may need OSPF, BGP, VRRP, policy routing, and advanced security controls.
QoS and Service Assurance
QoS is important when voice, video, control traffic, and business-critical applications share the same network. Layer 3 switches can classify, prioritize, and protect key traffic so that delay-sensitive services remain stable.
Redundancy and Fast Convergence
Network failures cannot be completely avoided, but the design should reduce service interruption. Redundant links, fast convergence, link aggregation, and proper routing design help keep services available during port, link, or device failures.
Future Direction of Layer 3 Switching
Network size and complexity will continue to grow with 5G, IoT, artificial intelligence, cloud computing, edge computing, video analytics, and industrial digitalization. Layer 3 switches will continue to evolve toward higher speed, stronger intelligence, and easier management.
The first direction is higher bandwidth. Interfaces such as 400G and 800G will become more common in backbone, cloud, and data center networks. The second direction is intelligent optimization. AI-driven traffic analysis can help identify congestion, predict abnormal traffic, optimize routing, and improve network operation efficiency.
The third direction is cloud-native and automated management. Future switches will be managed more through centralized platforms, APIs, telemetry, intent-based networking, and automated configuration systems. This reduces manual configuration errors and improves large-scale operational efficiency.
The future Layer 3 switch will not only forward packets faster. It will also understand traffic patterns better, expose more operational data, and become easier to manage at scale.
Conclusion
A Layer 3 switch is one of the most important devices in modern network infrastructure. It combines Layer 2 switching performance with Layer 3 routing intelligence, allowing networks to handle local traffic and cross-subnet traffic efficiently.
Its core value is “route once, switch many times.” With MAC address tables, routing tables, VLAN segmentation, hardware ASIC forwarding, routing protocol support, and QoS features, a Layer 3 switch can provide high-speed, secure, and scalable communication for enterprise networks, carrier networks, data centers, campuses, hospitals, and financial systems.
As network traffic grows and applications become more complex, Layer 3 switches will continue moving toward wire-speed forwarding, 400G/800G interfaces, AI-driven traffic optimization, cloud-native management, and automated operations. For network architects, understanding Layer 3 switching is essential for building reliable and future-ready network infrastructure.
FAQ
What is a Layer 3 switch?
A Layer 3 switch is a network device that combines Layer 2 switching and Layer 3 routing. It can forward traffic based on MAC addresses inside the same network and route traffic based on IP addresses between different subnets.
What is the main advantage of a Layer 3 switch over a traditional router?
The main advantage is that a Layer 3 switch combines the high performance of Layer 2 switching with the intelligence of Layer 3 routing. It often uses ASIC hardware to perform routing at very low latency and near wire-speed performance.
What does “route once, switch many times” mean?
It means the first cross-subnet packet requires a routing decision, but later packets using the same path can be forwarded through high-speed switching logic. This improves efficiency for repeated cross-subnet communication.
Does a Layer 3 switch support VLANs?
Yes. Layer 3 switches commonly support VLAN segmentation and inter-VLAN routing. This allows one physical network to be divided into multiple logical networks while still allowing controlled communication between them.
Where are Layer 3 switches commonly used?
They are widely used in enterprise core networks, aggregation layers, campus networks, hospitals, financial systems, carrier access networks, and data centers that require high-speed routing and reliable traffic segmentation.
What is the future of Layer 3 switches?
Layer 3 switches are moving toward higher-speed interfaces such as 400G/800G, AI-driven traffic optimization, cloud-native management, telemetry, and automated network operations.
