Laser communication is becoming one of the most promising directions in advanced communication networks. As satellite internet, low-earth-orbit constellations, emergency connectivity, UAV platforms, and space-air-ground integrated networks continue to grow, the demand for high-speed, secure, flexible, and spectrum-efficient transmission is rising quickly.

Unlike traditional radio communication, laser communication uses highly directional laser beams to transmit data through free space. It is also known as Free Space Optical Communication, or FSO. Although the concept is not new, recent progress in satellite networking, optical terminals, precision tracking, and commercial aerospace has made laser communication much more valuable for real-world deployment.

How It Differs from Traditional Wireless Links

Wireless communication is based on electromagnetic waves. Traditional mobile communication, Wi-Fi, microwave links, and two-way radio systems mainly use radio waves. Radio waves have lower frequencies and longer wavelengths, which gives them better diffraction capability and longer coverage in many environments.

Light waves operate at much higher frequencies and much shorter wavelengths. This gives them far larger potential bandwidth, but also makes them more sensitive to atmospheric attenuation, scattering, obstacles, weather, and pointing errors. For this reason, optical transmission was first widely commercialized through fiber-optic communication, where light is confined inside a glass fiber medium.

Fiber-optic communication delivers low-loss, long-distance, high-capacity transmission, but it still depends on a physical cable. This limits flexibility, mobility, and deployment speed in scenarios where laying fiber is difficult, expensive, or impossible. Laser communication extends optical communication into free space, allowing high-speed optical links without a wired medium.

The Main Technical Advantages

The first major advantage of laser communication is bandwidth. The laser frequencies used in this field are typically in the range of about 190 to 360 THz, between terahertz and near-infrared light, and are several orders of magnitude higher than microwave frequencies. This gives laser links the potential to support Gbps and even Tbps-class transmission.

The second advantage is directionality. A laser beam has an extremely small divergence angle and a very narrow beam width. Its energy is highly concentrated, which helps reduce interference and improves transmission efficiency in point-to-point links.

The third advantage is security. Because the beam is highly directional and difficult to intercept without being physically aligned with the link path, laser communication is less exposed than broad radio-frequency transmission. It is also less vulnerable to electromagnetic interference.

Another important benefit is spectrum independence. Laser communication does not need radio-frequency spectrum licensing, does not occupy scarce wireless spectrum resources, and can reduce deployment barriers and operating costs in suitable applications.

Laser terminals can also be compact, lightweight, and relatively low in power consumption. This makes them suitable for platforms where size, weight, and power are highly constrained, including satellites, UAVs, aircraft, vehicles, and mobile terminals.

Where Free-Space Optical Links Make Sense

Laser communication is especially suitable for point-to-point transmission in line-of-sight environments. Typical use cases include inter-satellite links, satellite-to-ground links, satellite-to-aircraft links, satellite-to-ship links, and high-capacity terrestrial backhaul where fiber is not available.

In remote areas, mountains, rivers, lakes, islands, and disaster-affected regions, laying optical fiber may be difficult or too expensive. Laser communication can serve as an enhanced alternative to microwave backhaul, especially when high throughput and rapid deployment are required.

Emergency communication is another important application. After earthquakes, floods, storms, or other disasters, terrestrial networks may be damaged. A rapidly deployed optical wireless link can help restore temporary connectivity for command centers, field teams, and critical infrastructure.

UAV communication is also becoming a meaningful direction. Lightweight laser communication terminals mounted on drones can support high-speed air-to-ground or air-to-air links, enabling efficient flight control, high-definition video return, and temporary aerial network relay.

Satellites Are Driving Industrial Momentum

Among all applications, satellite communication is one of the strongest drivers of laser communication. Low-earth-orbit satellite constellations are accelerating global deployment, and inter-satellite data relay has become a key requirement for scalable satellite internet systems.

Radio-frequency satellite links face limitations in bandwidth, spectrum coordination, and interference management. Laser inter-satellite links can provide high-capacity, low-interference, and secure transmission between satellites, helping create space-based backbone networks.

This is why universities, research institutes, commercial aerospace companies, optical terminal manufacturers, and telecom operators are paying close attention to laser communication. The technology is moving from laboratory research toward in-orbit verification, commercial delivery, and practical network services.

Global Progress Shows Rapid Acceleration

The United States started laser communication research early. As early as the 1970s, NASA began exploring laser communication technology and developed early optical communication terminals. In 1975, NASA completed a lunar-to-Earth laser communication experiment between the Apollo 15 command module and a ground station.

In 2014, NASA conducted a 50 Mbps one-way downlink laser communication test from the International Space Station to the ground. In May 2022, NASA and MIT used a small CubeSat carrying the TeraByte InfraRed Delivery system, known as TBIRD, to demonstrate a satellite-to-ground laser communication link at up to 100 Gbps, more than 1,000 times faster than traditional radio-frequency links in that experiment.

In 2023, NASA’s Deep Space Optical Communications project demonstrated deep-space optical transmission. When the spacecraft was about 31 million kilometers from Earth, it sent ultra-high-definition video back at 267 Mbps. NASA’s Laser Communications Relay Demonstration also completed its first year of in-orbit testing in the same period.

Commercial activity is also accelerating. SpaceX tested laser links between Starlink satellites in 2020 and transmitted hundreds of gigabytes of data, proving the value of optical inter-satellite networking. Another industry milestone involved an aircraft-mounted optical communication terminal establishing a two-way high-speed laser communication link with a low-earth-orbit satellite at a distance of about 5,470 kilometers, reaching up to 2.5 Gbps.

Europe and China Are Building Strong Capabilities

Europe also began research early. After successful coherent laser communication experiments in orbit, the European Space Agency launched the European Data Relay System. In 2019, EDRS-A and EDRS-C achieved a 1.8 Gbps communication rate over a link distance of about 45,000 kilometers.

In 2024, ESA carried out a deep-space laser communication experiment and achieved 10 Mbps transmission over a distance of 1 AU, roughly the average distance between Earth and the Sun. Germany, France, Italy, and other European countries have also launched national-level laser communication programs in recent years.

China started later but has developed rapidly. In 2011, China completed its first domestic satellite-to-ground laser communication test on the Haiyang-2 satellite. In 2017, the Shijian-13 satellite completed high-orbit satellite-to-ground two-way laser communication at 5 Gbps.

In 2018, the Micius quantum satellite completed satellite-to-ground laser communication combined with quantum key distribution, drawing global attention. In 2020, China conducted its first low-earth-orbit inter-satellite laser communication technology test, with a communication distance of more than 3,000 kilometers and a rate of up to 100 Mbps.

In May 2024, a laser communication payload developed by the Shanghai Institute of Optics and Fine Mechanics was launched with the Smart SkyNet-1 01 satellite, supporting high-speed interconnection at a medium-earth-orbit distance of more than 10,000 kilometers.

In January, a 500 mm aperture satellite-to-ground laser communication system independently developed by the Chinese Academy of Sciences achieved a stable 120 Gbps satellite-to-ground link with the AIRSAT-02 satellite. The experiment achieved second-level fast acquisition, a link success rate above 93%, and a longest continuous stable communication time of 108 seconds, setting a domestic record.

Commercial Companies Are Expanding the Ecosystem

As the market grows, commercial companies are becoming a major force in laser communication. In China, representative private companies include BlueStar Optical Space and Jiguang Xingtong. These companies are helping move the industry from experimental verification to product delivery and in-orbit application.

BlueStar Optical Space is recognized as one of the first Chinese commercial aerospace companies to complete delivery and in-orbit verification of a spaceborne laser communication terminal. Its production and incubation base in Changshu, Jiangsu, has been reported to have an annual terminal production capacity of around 1,000 units.

In February 2025, BlueStar Optical Space and China Unicom completed field acceptance of a cross-domain short-distance free-space optical communication device and opened China Unicom’s first FSO bearer service.

Jiguang Xingtong is also among the leading domestic teams in high-speed inter-satellite laser communication. In March 2025, it used the “Guangchuan 01/02” experimental satellites to complete China’s first in-orbit inter-satellite 400 Gbps ultra-high-speed laser communication data transmission test.

How Spaceborne Laser Terminals Work

A spaceborne laser communication terminal is a complex system that integrates optics, electronics, control algorithms, signal processing, mechanical structures, and communication modules. Its common components may include FPGA processing units, optical fiber amplifiers, optical transceiver modules, modems, star sensors, acquisition sensors, visible-light cameras, and optical transceiver antennas.

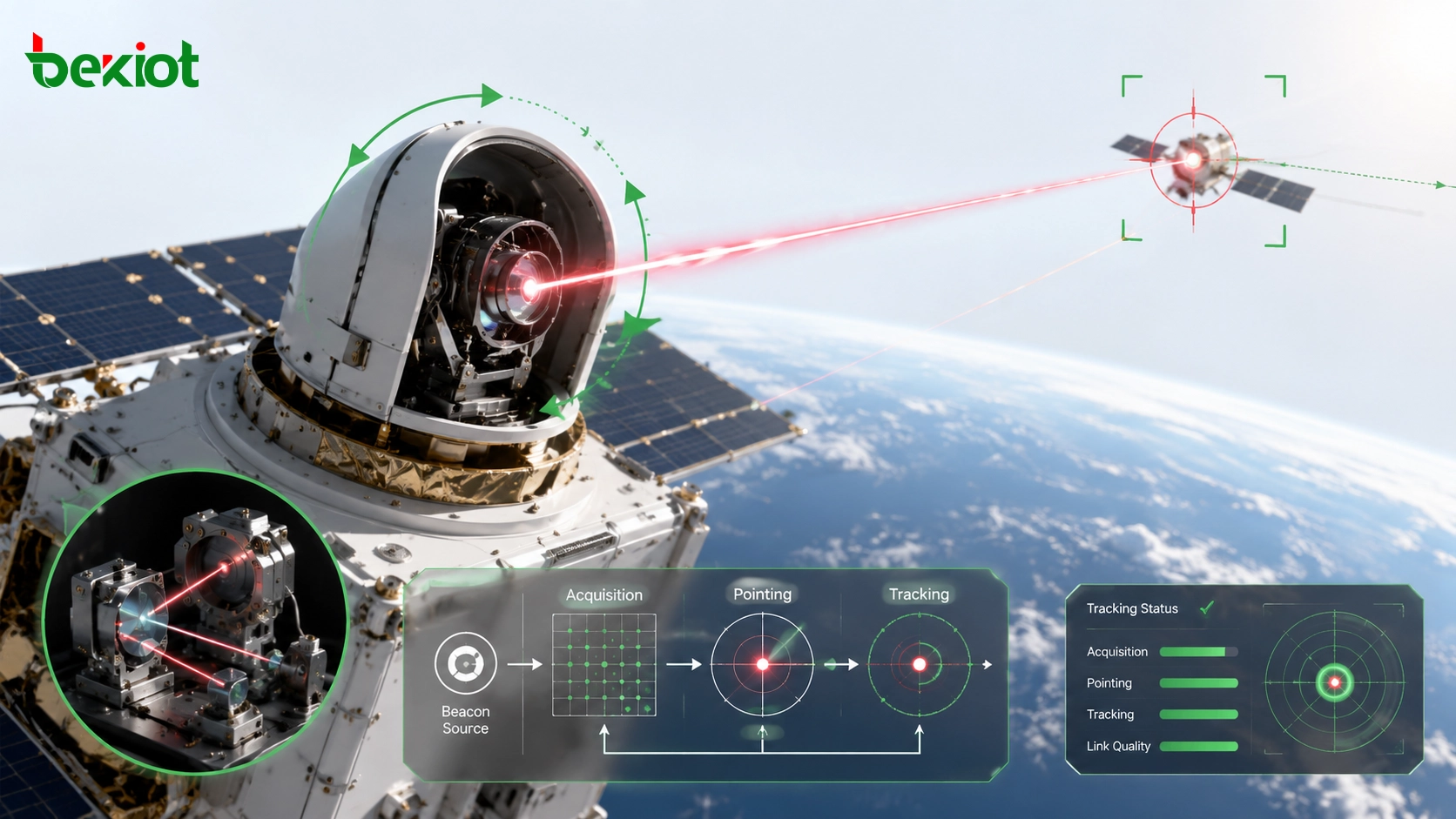

The most important part is the APT system, which stands for acquisition, pointing, and tracking. Before communication begins, the terminal must acquire the optical beam, point accurately toward the other terminal, and maintain alignment during transmission.

Because laser beams are extremely narrow, even a small pointing error can break the link. The APT system must achieve micro-radian-level pointing precision and maintain stable tracking as satellites move at high speed relative to each other or relative to the ground station.

At the transmitting end, the laser transmitter generates the optical beam, and the communication module modulates the data onto it. The control system drives optical components such as fast steering mirrors and variable-focus lenses to adjust beam direction and beam waist size according to link conditions.

At the receiving end, the terminal uses coarse pointing mechanisms and orbital information to scan the possible acquisition area. After the beacon beam is captured, background light is filtered. The system then calculates the pointing error based on the detected spot and drives fast steering mirrors for high-precision tracking. The received optical signal is converted into an electrical signal and demodulated to recover the data.

Precision Tracking Is the Core Challenge

Laser communication has strong advantages, but practical deployment is technically difficult. In space-air-ground-sea communication scenarios, the link may appear unobstructed, but the transmission distance can be extremely long. The system must deal with atmospheric absorption, scattering, turbulence, background light, and weather-related attenuation.

Cloud, rain, fog, snow, and dust can scatter or absorb optical signals, causing signal degradation or even link interruption. Ultra-long-distance laser communication experiments over thousands or tens of thousands of kilometers also require extremely high transmit power control, receiver sensitivity, pointing accuracy, and anti-interference capability.

Industry solutions include adaptive optics compensation, multi-beam cooperative transmission, intelligent tracking algorithm optimization, and variable divergence-angle optical systems. These technologies help improve acquisition speed, link stability, and environmental adaptability.

A variable divergence-angle optical system is especially useful. During scanning and acquisition, a larger divergence angle can cover the uncertain target area faster, reducing link establishment time. In short-distance communication, the divergence angle can also be increased to avoid receiver saturation and protect the camera or optical communication system.

Why the Market Outlook Is Strong

Laser communication is gaining attention not only because of technical performance, but also because of market growth. According to the space laser communication market research report cited in the original article, the global space laser communication market is expected to reach RMB 9.075 billion in 2025, while China’s market is expected to reach RMB 1.226 billion.

By 2032, the global market size is projected to reach RMB 72.703 billion, with a compound annual growth rate of 34.62%. These figures show that the industry is moving from a niche research direction toward a fast-growing commercial sector.

The long-term driver is the construction of integrated space-air-ground-sea communication networks. As satellite internet, remote sensing, UAV networking, emergency communication, aircraft connectivity, maritime connectivity, and high-speed backhaul continue to develop, laser communication will play a larger role in high-capacity wireless optical transmission.

What Project Teams Should Consider

Laser communication is not a universal replacement for radio-frequency systems or fiber-optic networks. It is best used where its strengths match the project requirements: high throughput, line-of-sight transmission, strong directionality, fast deployment, spectrum-free operation, and secure point-to-point links.

Before deployment, project teams should evaluate link distance, visibility, weather conditions, platform motion, pointing stability, redundancy requirements, terminal size, power consumption, installation environment, and network integration. For satellite and airborne platforms, size, weight, power, thermal control, and vibration resistance are also critical.

The most successful applications will likely combine laser communication with other technologies rather than use it alone. Fiber, microwave, cellular, satellite RF, and laser links can each play a role in a resilient, multi-layer communication architecture.

A Technology Worth Watching

Laser communication combines the bandwidth advantage of optical communication with the flexibility of wireless transmission. It can deliver high-speed, secure, license-free, and compact point-to-point connectivity for satellites, UAVs, aircraft, ships, ground stations, emergency systems, and remote backhaul.

The technology still faces challenges, especially in weather resistance, acquisition, pointing, tracking, atmospheric effects, and large-scale commercial operation. However, the speed of technical progress and commercial investment suggests that laser communication will become an increasingly important part of future communication infrastructure.

As global networks move toward space-air-ground-sea integration, laser communication deserves close attention from telecom operators, aerospace companies, system integrators, emergency communication planners, and high-capacity network builders.

FAQ

Can laser communication work through clouds or heavy fog?

Performance can be significantly affected by clouds, fog, rain, snow, and dust. In demanding projects, laser links often need route planning, weather monitoring, backup paths, or hybrid communication systems to improve availability.

Is laser communication safer than radio communication?

Laser communication has strong confidentiality advantages because the beam is narrow and difficult to intercept without alignment. However, overall security still depends on encryption, authentication, terminal protection, and system-level cybersecurity design.

Does laser communication need spectrum approval?

In general, free-space optical communication does not occupy traditional radio-frequency spectrum, which reduces the burden of spectrum licensing. However, installation, optical safety, aviation safety, and local regulatory requirements may still need to be considered.

Can laser communication replace fiber-optic networks?

No. Fiber remains the best choice for many stable, high-capacity terrestrial networks. Laser communication is more useful where fiber is difficult to deploy, where mobility is required, or where rapid point-to-point wireless optical transmission is needed.

What is the biggest engineering difficulty in satellite laser links?

One of the biggest difficulties is maintaining accurate acquisition, pointing, and tracking between fast-moving terminals. The optical beam is extremely narrow, so the system must keep alignment with very high precision throughout the communication session.
