Zone 2 is a hazardous area classification used for places where an explosive atmosphere made up of flammable gas, vapor, or mist is not likely to occur in normal operation and, if it does occur, will exist only for a short period. It is a lower-risk gas hazardous area than Zone 0 and Zone 1, but it still requires controlled equipment selection, correct installation practices, and disciplined maintenance.
In practical engineering terms, Zone 2 is common around process equipment, transfer points, vent outlets, pump areas, solvent handling spaces, fuel systems, and other locations where a release is not expected as part of routine operation but can appear under abnormal or infrequent conditions. Because the probability and duration of an explosive gas atmosphere are lower, the protection approach is different from that used in higher-risk zones, yet it remains firmly regulated by international standards and local legislation.

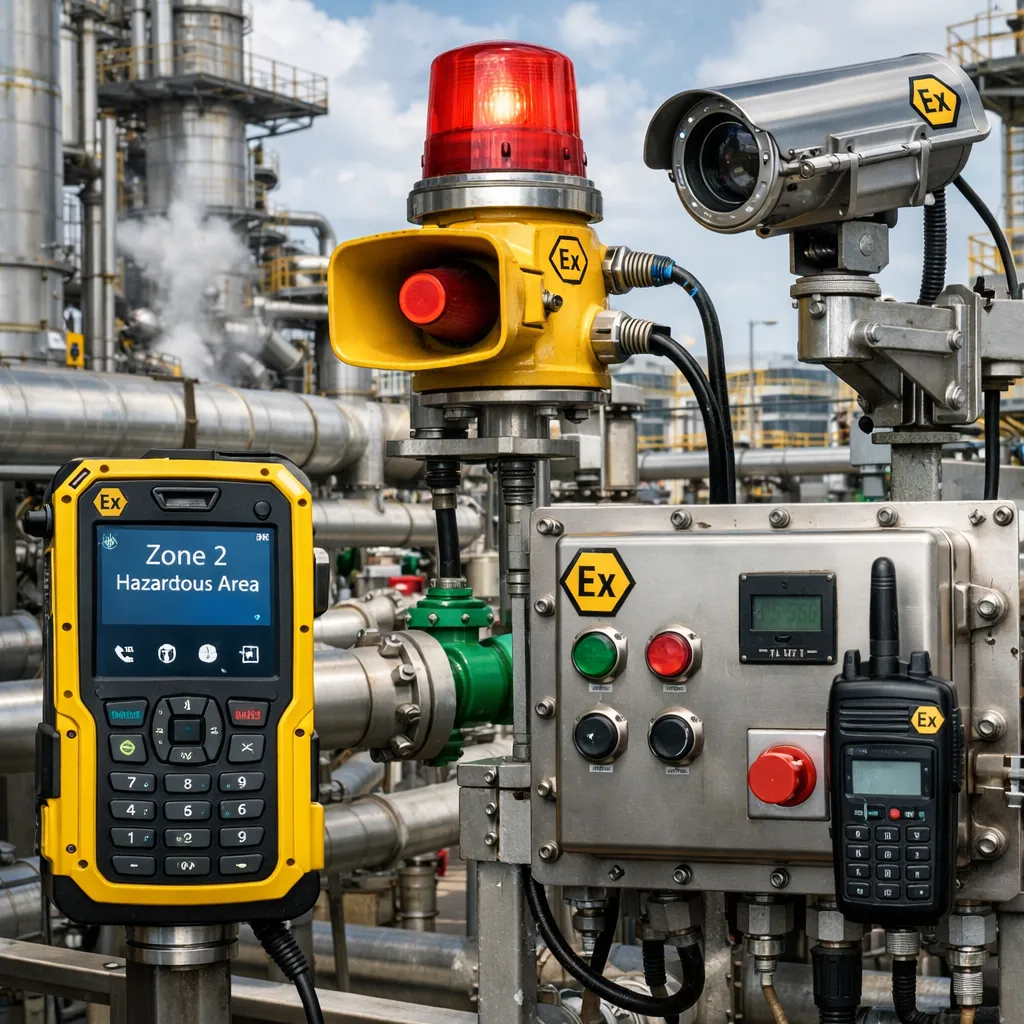

Zone 2 typically covers gas or vapor release areas where an explosive atmosphere is not expected in normal operation but may appear briefly if an abnormal release occurs.
What Is a Zone 2 Hazardous Area?
A Zone 2 hazardous area is defined for gas, vapor, or mist atmospheres. It does not apply to combustible dust hazards, which are classified separately as Zones 20, 21, and 22. The key idea behind Zone 2 is frequency and duration. The area is not expected to contain an explosive gas atmosphere during normal operating conditions, but if a loss of containment, upset, or unusual process event occurs, a flammable mixture may be present for a short time.
This definition matters because hazardous area classification is not only about whether flammable materials exist on a site. It is about how often they can form an ignitable atmosphere in air, how long that atmosphere can remain, and how equipment should be chosen so it does not become an ignition source. Zone 2 therefore represents a controlled but still hazardous environment, not a general-purpose industrial area.
How Zone 2 differs from Zone 0 and Zone 1
Zone 0 is the highest gas hazard level, where an explosive gas atmosphere is present continuously, for long periods, or frequently. Zone 1 is an area where an explosive gas atmosphere is likely to occur occasionally in normal operation. Zone 2 is the least severe of the gas zones because the explosive atmosphere is not likely during normal operation and, if it does occur, only lasts briefly.
Even though Zone 2 is the lowest gas-zone classification, it should never be treated as a non-hazardous area. Equipment still needs a suitable level of explosion protection, and decisions about enclosures, cable entries, connectors, temperature class, gas group, and inspection intervals still matter. In many projects, errors occur when people assume a low-probability zone can be managed with ordinary industrial hardware. That is not the intent of the standards.
How Zone 2 Areas Are Identified
Zone 2 classification is established through a hazardous area assessment, not by guesswork or by copying another site. Engineers evaluate the flammable substance, release sources, release grade, ventilation conditions, site layout, congestion, and the possible dispersion of gas or vapor. This process determines whether a hazardous atmosphere can form and how large the classified extent should be.
In many cases, Zone 2 appears at the periphery of a higher-risk area or around equipment where a release is possible but infrequent. Typical examples include the area around solvent transfer pumps, breathing vents on storage systems, loading skids, paint mixing systems, gas analyzer shelters, LPG or LNG ancillary equipment, compressor packages, and parts of fuel handling systems. The exact boundary always depends on the process and ventilation, so there is no universal fixed distance that applies to every installation.
Standards That Govern Zone 2 Hazardous Areas
Zone 2 design and equipment selection are usually shaped by a combination of hazardous area classification standards, equipment construction standards, installation rules, inspection practices, and legal directives. The most widely referenced framework is the IEC 60079 series, often adopted directly or through regional standards. In Europe, ATEX legislation adds workplace and product obligations.
IEC 60079-10-1: Classification of gas hazardous areas
IEC 60079-10-1 is the central standard for classifying places where explosive gas atmospheres may be present. It provides the formal basis for identifying Zone 0, Zone 1, and Zone 2 areas and assessing release characteristics and ventilation. When engineers determine that a location is Zone 2, this classification typically comes from an assessment aligned with this standard or a regional equivalent derived from it.
IEC 60079-0: General requirements for Ex equipment
IEC 60079-0 sets the general requirements for equipment intended for explosive atmospheres. It covers marking, construction principles, testing fundamentals, and core rules that apply across multiple protection concepts. When you read a hazardous area product nameplate, many of the marking conventions are tied back to this general framework.
IEC 60079-14 and IEC 60079-17: Installation and maintenance
Choosing a correctly certified device is only part of compliance. IEC 60079-14 addresses selection and installation, while IEC 60079-17 addresses inspection and maintenance. These standards are especially important in Zone 2 projects because cable glands, sealing methods, earthing, mechanical protection, enclosure integrity, and inspection routines can determine whether a certified device remains safe in service.
ATEX directives in Europe
Within the European framework, Directive 1999/92/EC addresses worker protection and the classification of hazardous workplaces, while Directive 2014/34/EU covers equipment and protective systems intended for use in potentially explosive atmospheres. In practice, this means employers must classify hazardous areas and manage workplace risk, while manufacturers must ensure that equipment placed on the market is suitable for its intended hazardous environment.

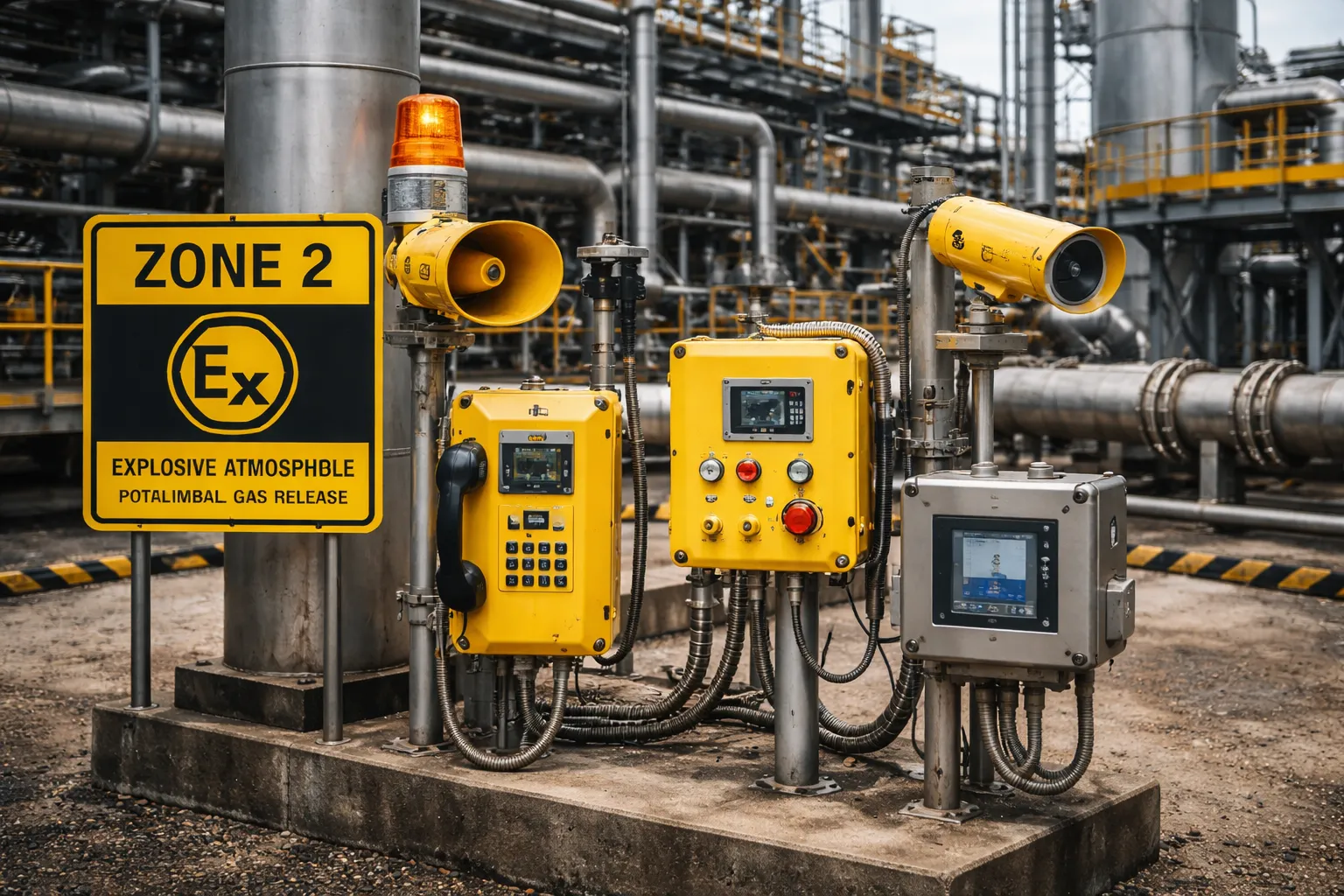

Zone 2 equipment is commonly selected by checking its hazardous area marking, gas group, temperature class, and the intended equipment protection level.
Protection Ratings and Markings for Zone 2 Equipment
When people discuss Zone 2 protection ratings, they may be referring to more than one thing. In hazardous area work, the most important ratings include the equipment category or EPL, gas group, temperature class, and the specific protection concept used by the device. In many projects, the IP rating is also reviewed because enclosure resistance to dust and water affects reliability and long-term safety, even though IP rating alone is not explosion protection.
Equipment category and EPL
Under ATEX marking practice, equipment intended for Zone 2 gas areas is commonly associated with Group II Category 3G. In IECEx-style marking, the corresponding equipment protection level is usually Gc. This indicates a level of protection intended for places where an explosive gas atmosphere is not likely in normal operation and, if it occurs, exists only briefly.
Engineers should remember that the marking must match the actual hazard. A Zone 2 location involving hydrogen, for example, may demand equipment suitable for gas group IIC, while a less demanding hydrocarbon service may fall into IIA or IIB. Zone suitability cannot be judged from the zone number alone.
Gas groups
Gas groups help define how easily a gas can be ignited and how severe the ignition risk may be. For Group II surface industries, equipment is often marked IIA, IIB, or IIC. IIC generally represents the most demanding gas grouping of the three. A device marked for IIC can typically be applied to IIB and IIA services as well, but the reverse is not true. This is why gas composition must be checked early in the selection process.
Temperature classes
Temperature class limits the maximum surface temperature the equipment can reach. Common classes range from T1 through T6, with lower maximum temperatures as the class number increases. Matching the temperature class to the ignition temperature of the gas or vapor is essential. If a device can run hotter than the atmosphere allows, it may become an ignition source even when its electrical design is otherwise suitable.
Common protection concepts in Zone 2
Many Zone 2 devices use protection concepts intended for lower-probability hazardous atmospheres. Depending on the equipment type and applicable standards, markings may include concepts such as increased safety, intrinsic safety for lower EPL use, or other Zone 2-oriented methods. In modern products, markings such as Ex ec or Ex ic are common examples for appropriate applications. Older or legacy equipment may still carry Ex n-type markings, depending on the certification basis and service history.
The important point is not to rely on the shorthand alone. Always review the full marking string, ambient temperature range, installation restrictions, and any certificate conditions. Two products may both be described as suitable for Zone 2, yet differ significantly in gas group, surface temperature, enclosure requirements, or cable termination conditions.
IP ratings and enclosure integrity
IP ratings defined by IEC 60529 classify enclosure protection against ingress of solids and water. In hazardous area projects, ratings such as IP65, IP66, or IP67 are often specified to improve durability in washdown, outdoor, dusty, or corrosive environments. However, IP rating and explosion protection are not the same thing. A high IP enclosure is useful, but it does not by itself make equipment suitable for Zone 2.
This distinction is especially important in engineering reviews. A product may be rugged and weather-resistant yet completely unsuitable for installation in a hazardous gas area if it lacks the required Ex certification and marking. Conversely, certified Zone 2 equipment still needs an enclosure rating that matches the environmental conditions of the site.
Typical Applications of Zone 2 Hazardous Areas
Zone 2 areas are common across industries that handle flammable gases, vapors, or volatile liquids but do not maintain a continuously explosive atmosphere in the classified space. The applications below are typical examples, though the exact zoning always depends on the actual process design and ventilation conditions.
Oil and gas facilities
On upstream, midstream, and downstream sites, Zone 2 often appears around skids, manifolds, loading points, sample stations, valve assemblies, compressor auxiliaries, and utility spaces adjacent to process equipment. These are places where a gas release is not expected during normal conditions but may occur briefly because of leakage, maintenance disturbance, or abnormal operation.
Chemical and petrochemical plants
Solvent handling areas, blending systems, drum filling stations, reactor support zones, transfer pump areas, and vent discharge surroundings may be classified as Zone 2. The classification helps define suitable motors, junction boxes, signaling devices, telephones, cameras, lighting, and control interfaces.
Fuel handling and storage
Tank farms, fueling systems, loading gantries, dispensing skids, and enclosed spaces near volatile liquid equipment often include Zone 2 regions. The extent depends on venting behavior, product volatility, layout, and natural or forced ventilation. Even where the hazardous extent is limited, the correct device marking remains necessary.
Industrial utilities and special process rooms
Battery rooms with hydrogen release potential, gas analyzer shelters, biogas systems, waste treatment installations, and certain pharmaceutical or food-process solvent areas may include Zone 2 classification. In these environments, supporting equipment such as alarm beacons, field telephones, intercom terminals, instrumentation, and network devices may all need appropriate protection.
Zone 2 classifications are widely used in oil and gas, chemical processing, fuel systems, utility rooms, and other locations where brief abnormal gas releases are possible.
How to Select Equipment for Zone 2
Good equipment selection starts with the area classification dossier, gas data, and site environmental requirements. The goal is not simply to find a label that says Zone 2, but to verify that the equipment matches the real hazard and service conditions of the project.
Confirm that the area is classified for gas, vapor, or mist rather than combustible dust.
Check the required gas group such as IIA, IIB, or IIC.
Match the temperature class to the ignition temperature of the hazardous substance.
Verify the intended EPL or ATEX category, commonly Gc or II 3G for Zone 2 applications.
Review ambient temperature limits, certificate conditions, and cable entry requirements.
Choose an IP rating and enclosure material suitable for rain, washdown, corrosion, dust, or outdoor exposure.
Ensure installation, inspection, and maintenance practices follow the relevant Ex standards.
For field devices such as industrial telephones, speakers, signaling units, network cameras, and operator stations, mechanical durability also matters. Offshore, marine, and chemical environments may need corrosion-resistant housings, stable seals, and robust cable management in addition to hazardous area certification. This is where specification mistakes often happen: the Ex marking is correct, but the environmental protection level is too low for the real site.
Common Misunderstandings About Zone 2
Zone 2 does not mean safe for ordinary equipment. It is still a hazardous area and requires suitable certified or appropriately approved equipment.
IP66 is not a substitute for Ex certification. IP addresses ingress protection, not ignition risk control.
One Zone 2 certificate does not fit every gas service. Gas group and temperature class still need to be checked.
Area boundaries are not universal. The size of a Zone 2 area depends on release characteristics, process conditions, and ventilation.
Installation quality matters as much as nameplate marking. Poor cable entries, damaged seals, or incorrect maintenance can undermine a compliant design.
FAQ
Is Zone 2 the same as Zone 22?
No. Zone 2 is used for flammable gas, vapor, or mist atmospheres. Zone 22 is used for combustible dust atmospheres. They are governed by related but different classification approaches and equipment markings.
Can ordinary industrial equipment be used in Zone 2?
Not as a general rule. Zone 2 is still a hazardous area. Equipment should be specifically suitable for that classified environment and installed according to the relevant standards and local regulations.
What marking is commonly seen on equipment for Zone 2?
In many applications, Zone 2 equipment is commonly associated with ATEX Group II Category 3G and IECEx EPL Gc, together with the appropriate gas group and temperature class. The full marking must always be checked rather than relying on one element alone.
Does a higher IP rating mean better explosion protection?
No. A higher IP rating can improve environmental sealing against dust and water, but it does not replace the explosion protection concept, certification, gas group, or temperature class required for hazardous areas.
Who should determine whether an area is Zone 2?
The classification should be determined through a formal hazardous area assessment by competent professionals using the applicable standards, process data, and site-specific conditions. It should never be based on assumption or copied without review.
Conclusion
Zone 2 hazardous areas are lower-probability gas hazardous locations, but they still demand disciplined engineering. The classification applies where explosive gas atmospheres are not likely in normal operation and, if they do occur, exist only briefly. From a project perspective, that means the standards, markings, gas group, temperature class, installation method, and environmental protection level all need to line up.
When Zone 2 is correctly understood, it becomes easier to select practical and compliant equipment for real industrial applications, from process plants and fuel systems to utility rooms and outdoor skids. The safest approach is always to connect the article-level concept to the actual site assessment: classify the area correctly, verify the marking carefully, and install the equipment exactly as the relevant Ex standards require.
