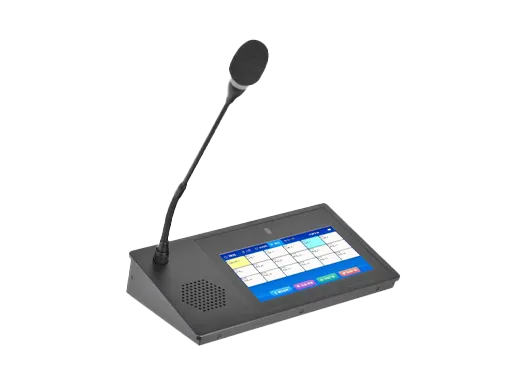

The Becke GP600V is a desktop SIP paging microphone designed for live paging, zone-based announcements, scheduled audio tasks and two-way intercom in IP public address systems. A 7-inch touchscreen provides direct access to terminals and paging zones, while programmable shortcut keys support frequently used broadcast tasks.
The GP600V can address individual terminals, selected zones, multiple zones or authorized all-zone groups. It also supports offline paging and intercom functions using locally stored terminal information and scheduled tasks, helping maintain local communication when the central service is temporarily unavailable.
Operators can select a single terminal, multiple terminals, one zone, multiple zones or an authorized full-zone group directly from the touchscreen. This allows the same paging microphone to handle routine announcements, targeted notifications and wider broadcast tasks without requiring separate operating terminals.
Four customizable broadcast shortcut keys can be assigned to commonly used paging tasks. A long press can trigger the configured task, reducing the number of operating steps required for frequently used announcements.

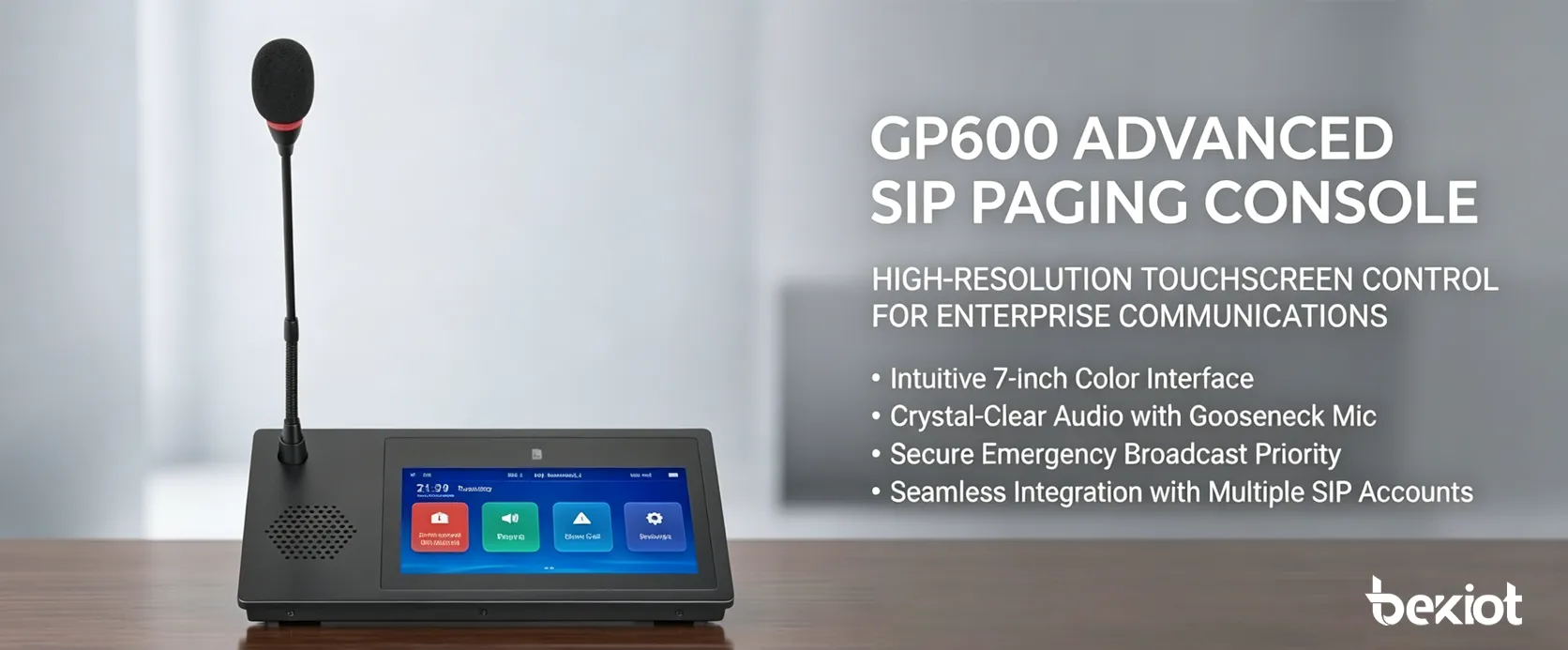

The GP600V uses a 7-inch true-color capacitive touchscreen with a resolution of at least 800 × 480. Terminal lists, zones and available paging functions can be presented through the local operating interface so that operators can select the required destination without manually entering addresses each time.
User permissions can be configured so that operators only see the terminals and zones assigned to them. A 6-digit screen-lock password provides an additional level of local operation control.
Terminal information and scheduled tasks can be downloaded to the GP600V for local use. When offline mode is configured, the microphone can continue supported local paging, intercom and scheduled task playback without relying continuously on the central service.
This function is useful for sites where selected communication functions need to remain available within the local network during temporary server maintenance or upstream network interruptions.
A built-in 2MP camera and 3W speaker allow the GP600V to support two-way video intercom with compatible terminals. Operators can select a target terminal from the touchscreen and use the same desktop device for paging and supported intercom communication.
Automatic and manual answering modes are available, allowing the answering method to be selected according to the site's operating procedure.
The GP600V provides a 3.5 mm line input for external audio sources and supports USB storage media for audio playback. A 3.5 mm line output can connect the paging microphone to external amplification equipment when local audio output or additional system integration is required.
The device also provides dry contact input and output interfaces for supported linkage with external systems. Actual alarm, access-control or control logic depends on the configured project architecture and connected equipment.
Combining a touchscreen, gooseneck microphone and programmable broadcast keys in one desktop terminal gives operators a direct interface for daily paging. Frequently used zones and tasks can be accessed without repeatedly navigating through multiple system menus.
Offline paging, intercom and scheduled task playback provide an additional local operating option for projects that do not want every routine broadcast function to depend entirely on continuous communication with the central server.
Terminal visibility, zone access and screen locking can be configured around different operator responsibilities. This is particularly useful where several departments share the same paging system but should not have identical broadcast authority.
Network connectivity, line-level audio interfaces, USB media playback and dry contact I/O allow the GP600V to operate as more than a standalone microphone. It can serve as an operator-side paging endpoint within a wider IP public address and intercom system.
A campus operator can select individual buildings, teaching areas or other configured zones for daily announcements and scheduled audio tasks. Where wider notification is required, authorized operators can initiate multi-zone or full-zone paging from the same microphone.
Factories, warehouses and industrial parks can place the GP600V in a control room, security office or operations center for routine production announcements, shift notifications and communication with compatible intercom terminals.
The line output can also be used where the paging terminal needs to feed compatible external amplification equipment as part of the site's PA architecture.
Transportation facilities, commercial buildings, hospitals and other public environments can use zone-based paging to separate announcements by operational area. User permissions help restrict each operator to the destinations relevant to their responsibilities.

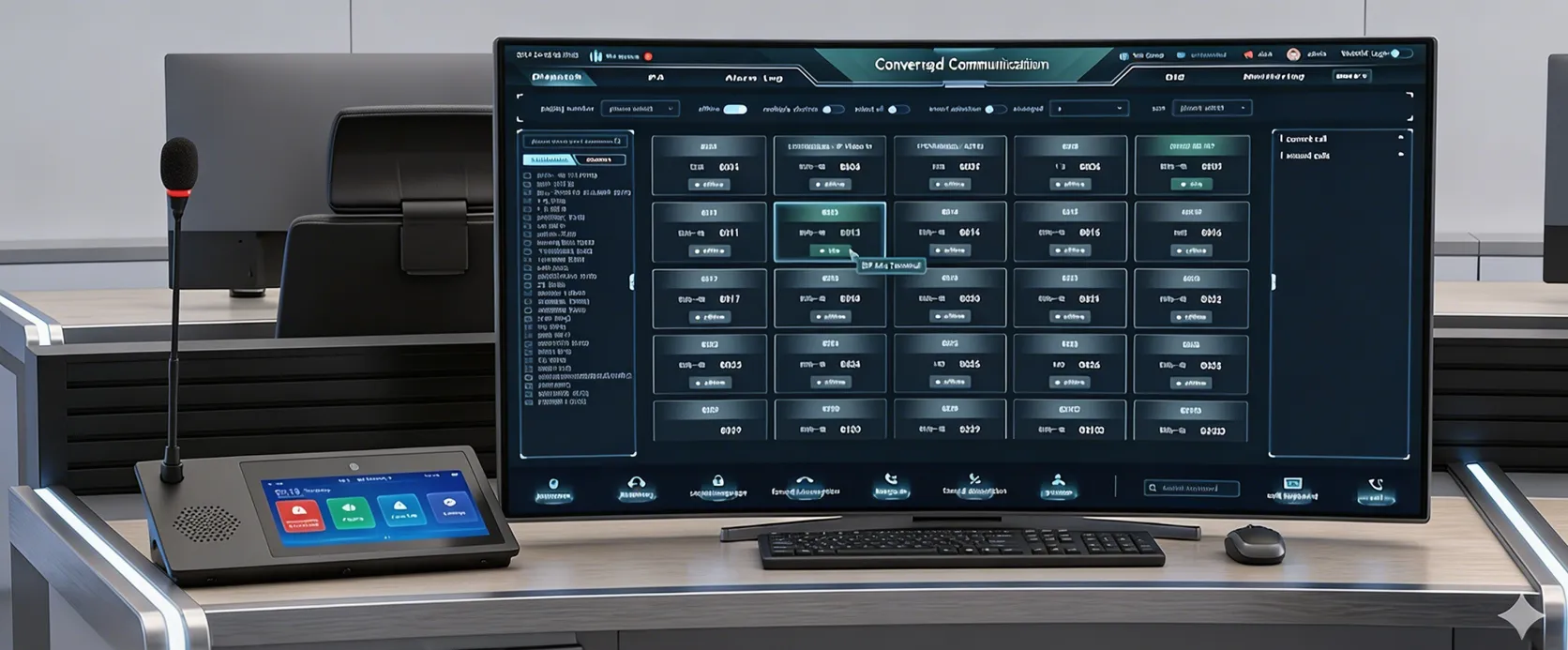

Where paging and intercom functions are handled from a staffed control position, the GP600V provides a compact desktop interface for selecting destinations, making announcements, handling supported video intercom calls and triggering configured broadcast tasks.
The GP600V connects to the IP network through a 10/100M RJ45 Ethernet interface. Within a configured paging system, terminal and zone information can be synchronized with the server and presented on the local touchscreen.
In addition to network communication, the microphone includes line-level audio input and output, USB media support and dry contact I/O. These interfaces allow it to participate in paging architectures that combine IP endpoints with amplifiers, external audio sources or supported third-party control equipment.
Broadcast latency is specified at less than 100 ms under the supported system configuration. Actual end-to-end performance can also depend on network conditions, terminal configuration and the equipment receiving the page.
| Product Model | GP600V SIP Paging Microphone |
| Design | Desktop paging microphone with anodized aluminum alloy panel and full-metal bottom housing |
| Display | 7-inch true-color capacitive touchscreen, resolution ≥ 800 × 480 |
| Processor | ARM Cortex-A7 dual-core 1.2 GHz MCU |
| Operating System | Linux |
| Paging | Single terminal, multiple terminals, single zone, multiple zones and authorized full-zone paging |
| Offline Mode | Supports locally stored terminal information and scheduled tasks for supported offline paging, intercom and task playback |
| Emergency Paging | Optional red emergency button for one-key authorized full-zone broadcast |
| Video Intercom | Built-in 2MP camera, two-way video intercom, 3W speaker and selectable automatic/manual answering |
| Broadcast Delay | < 100 ms under supported system configuration |
| Broadcast Hotkeys | 4 customizable keys for preset broadcast tasks |
| User Authority | Displays authorized terminals and zones according to configured user permissions |
| Password Protection | 6-digit screen-lock password |
| Prompt Tone | Broadcast prompt tone can be enabled or disabled |
| Broadcast Reception | Incoming broadcast reception can be enabled or disabled manually |
| Network | 1 × 10/100M RJ45 Ethernet port |
| Network Protocols | TCP/IP, UDP, ARP, ICMP, IGMP |
| Audio Input | ≥ 1 × 3.5 mm line input |
| Audio Output | ≥ 1 × 3.5 mm line output for external audio equipment |
| Dry Contact I/O | ≥ 1 dry contact input and ≥ 1 dry contact output |
| Media Playback | Supports USB storage media playback |
| Audio Format | WAV |
| Camera | 2.0 Megapixel |
| Power Supply | DC 12V / 1.5A |
| Dimensions | 270 × 150 × 60 mm (L × W × H, including feet) |
| Gooseneck Length | 310 mm |
Yes. The GP600V supports paging to single terminals, multiple terminals, individual zones, multiple zones and authorized full-zone groups. Available destinations depend on the system configuration and operator permissions.
Yes. Terminal information and scheduled tasks can be stored locally for supported offline paging, intercom and scheduled task playback. The exact functions available during an interruption depend on the deployed network and system configuration.
Yes. User permissions can control which terminals and paging zones are visible to an operator, helping separate paging responsibilities between different departments or operating positions.
Yes. The GP600V includes a 2MP camera and a built-in 3W speaker and supports two-way video intercom with compatible terminals within the configured system.
| Item | Specification |
|---|---|
| Product Model | GP600V SIP Microphone |
| Design & Housing | Desktop microphone design, anodized aluminum alloy panel, full metal bottom case |
| Display | 7-inch true color capacitive touch screen, resolution ≥ 800*480 |
| MCU Chip | ARM Cortex-A7 dual-core 1.2GHz domestic MCU chip |
| Operating System | Linux system with high stability, security and portability |
| Parameter Configuration | Support modifying network, audio and configuration parameters via browser by logging in the microphone IP |
| Firmware Update | Support updating microphone program version via browser by logging in the microphone address |
| Broadcast Call | Support touch-based broadcast to single/multiple terminals, single/multiple zones and full zone |
| Offline Mode | Support offline mode; terminal info and timed tasks can be downloaded locally for offline broadcast, intercom and task playback |
| Emergency Broadcast | Optional red emergency button for one-key full zone broadcast to authorized terminals |
| Video Intercom | Built-in 2MP camera module; support two-way video intercom; built-in 3W speaker; switchable auto/manual answer |
| Broadcast Performance | Sync terminal/zone info with server; broadcast delay < 100ms; support line-in collection and U-disk broadcast |
| User Authority | Support user permission configuration, only display authorized terminals and zones |
| Broadcast Hotkeys | 4 customizable broadcast hotkeys, long press to trigger preset broadcast tasks |
| Password Protection | Support 6-digit lock screen password for operation verification |
| Broadcast Prompt Tone | Support enabling or disabling broadcast prompt tones |
| Broadcast Reception | Support manually enabling or disabling broadcast reception |
| Network Interface | 1×10/100M RJ45 port, support LAN and Internet access |
| Audio Interface | ≥1 channel 3.5mm line input for audio collection; ≥1 channel 3.5mm line output for external power amplifiers |
| Dry Contact Interface | ≥1 channel dry contact output and ≥1 channel dry contact input |
| Power Supply | DC12V/1.5A |
| Audio Coding | WAV |
| Camera Resolution | 2.0 Megapixel |
| Network Protocols | TCP/IP, UDP, ARP, ICMP, IGMP |
| Dimensions | 270(L)*150(W)*60(H) mm (height including feet); gooseneck length: 310mm |
