This article outlines a PAGA solution for underground utility tunnels, where reliable communication is essential for both daily O&M and emergency response. The system integrates public address, zoned paging, general alarm, emergency intercom, live and pre-recorded voice broadcasting, fault monitoring, and event logging. It can also link with fire alarm, gas detection, ventilation, CCTV, access control, SCADA, and SIP/industrial telephony to improve coordination, evacuation guidance, and underground safety management.
Underground utility tunnels require reliable voice communication systems to support both routine operation and emergency response. Across main corridors, cable chambers, pipeline chambers, ventilation rooms, pump rooms, access shafts, cross passages, and control centers, operators need a unified platform that can deliver routine announcements, zoned paging, general alarm, and evacuation guidance clearly and quickly. In these underground environments, communication is not only a support tool for daily maintenance. It is also a critical part of personnel safety, restricted-area management, and incident response.
A professional PAGA system combines public address, paging, and general alarm into one centralized communication platform. For underground utility tunnels, this platform helps operators issue maintenance notices, safety reminders, work coordination messages, emergency warnings, and live command instructions across different tunnel sections and equipment areas. Instead of relying on fragmented local devices, the solution creates one coordinated framework for underground operation, fault response, and evacuation support.
Becke Telcom provides industrial communication solutions for harsh and mission-critical environments. For underground utility tunnels, the solution can integrate PAGA, emergency intercom, industrial telephones, SIP communication, dispatch coordination, and third-party system linkage into a scalable underground safety communication network designed for routine O&M and emergency events.

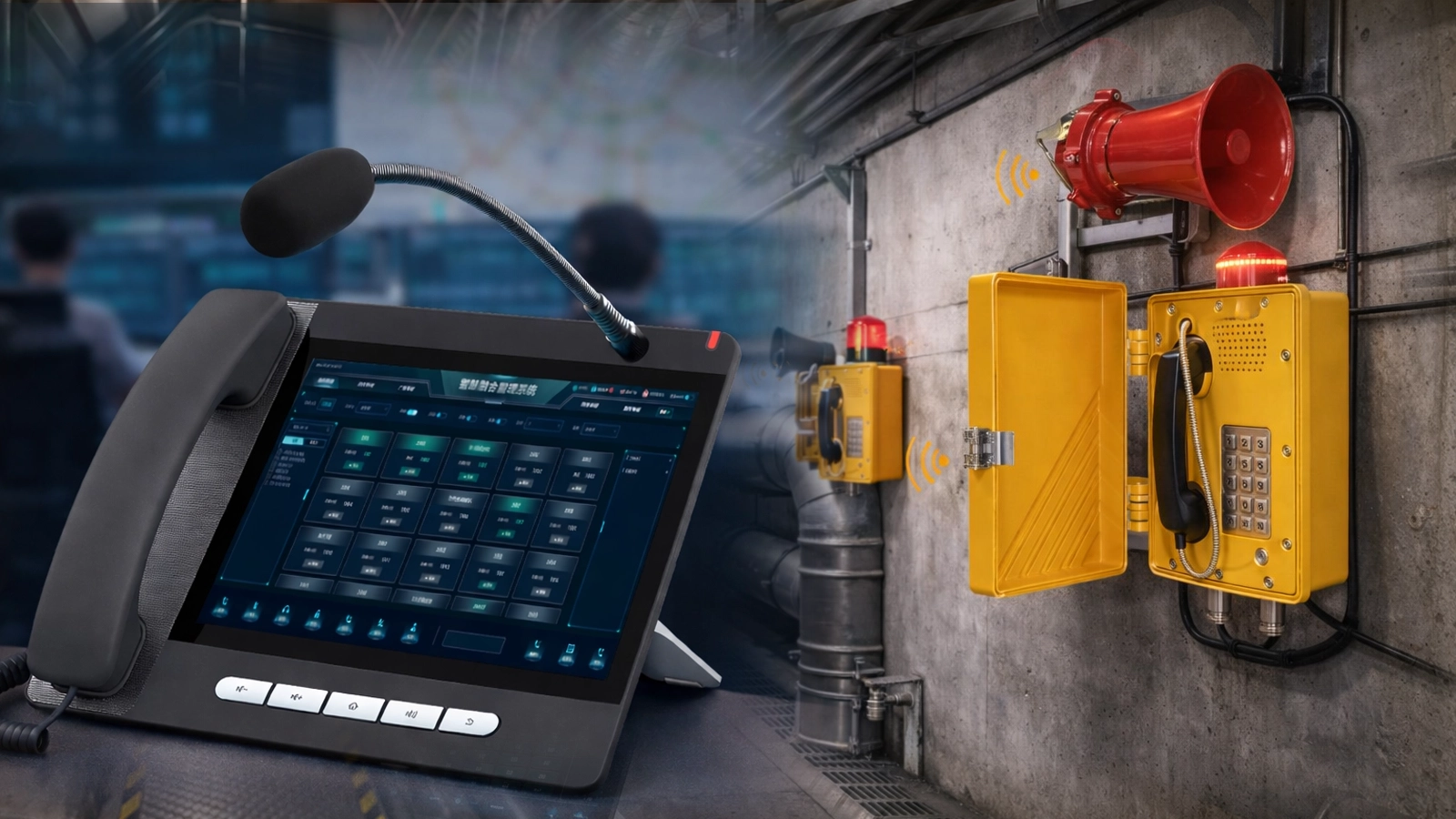

A unified PAGA architecture helps connect the control center, underground corridors, technical chambers, and emergency communication points through one coordinated voice and alarm platform.
Why Underground Utility Tunnels Need an Integrated PAGA System
Underground utility tunnels are different from public transport tunnels or ordinary building corridors. They are technical underground environments built to carry critical utilities such as power cables, communication cables, water pipelines, drainage systems, and other municipal or industrial services depending on project design. Because multiple lifeline services may share one underground corridor system, the communication platform must support both daily operation and abnormal event response with higher discipline and clearer area control.
Routine work in underground utility tunnels often includes patrol inspection, maintenance coordination, permit-based access, equipment servicing, and contractor activity across different sections of the corridor. At the same time, underground operation involves confined or semi-confined space conditions, restricted visibility, long evacuation paths, and possible exposure to smoke, heat, gas, flooding, or ventilation-related risk. These realities make a basic loudspeaker system insufficient. The site needs a platform that can warn, guide, coordinate, and enable two-way communication during changing conditions.
Long underground corridors with multiple technical sections and access points
Need for routine O&M communication across distributed underground zones
Possible risk of smoke, gas, heat, flooding, or ventilation-related incidents
Restricted visibility and limited evacuation routes in underground spaces
Requirement for both one-to-many broadcasting and two-way emergency communication
Need to integrate with fire alarm, gas detection, ventilation, CCTV, and SCADA platforms
In underground utility tunnels, communication must not only reach people. It must help them understand where the risk is, what action to take, and how to move safely under time pressure.
System Positioning in Underground O&M and Safety Communication
The PAGA system serves as a centralized voice communication backbone for routine tunnel operation and emergency response. It supports routine public address, zoned paging, general alarm activation, pre-recorded emergency messages, and live operator announcements from the control center. This helps tunnel operators deliver the right information to the right underground section with the right priority.
In practical deployment, the PAGA platform is typically part of a broader underground tunnel management framework. It can work together with fire alarm systems, gas detection devices, ventilation control, CCTV, access control, industrial telephones, SIP communication, SCADA, and dispatch platforms. This integrated approach allows underground communication to follow real tunnel events rather than functioning as a standalone audio layer.
Core Components of the Solution
Central Control Platform
The central control platform manages zone configuration, audio routing, announcement scheduling, priority logic, event handling, and system supervision. It is usually installed in the utility tunnel control room, monitoring center, or designated operation room. For critical projects, the control layer can be designed with redundancy to improve availability and reduce single-point failure risks.
Paging Consoles and Operator Workstations
Paging consoles allow authorized personnel to make live announcements to selected tunnel zones or to the full utility corridor network. Operator workstations may also support event review, alarm handling, call supervision, and communication management. These terminals are useful for both routine work coordination and emergency voice command.
Industrial Amplifiers and Speaker Network
The audio output layer includes industrial amplifiers and distributed loudspeakers. Depending on project requirements, the system may use corridor speakers, wall-mounted speakers, horn speakers, or other industrial speaker types suitable for underground environments. Proper zone planning helps improve speech audibility and reduce unnecessary sound spill between unrelated sections.
Emergency Communication Terminals
Emergency communication endpoints such as SOS intercom stations, industrial telephones, or SIP-based communication terminals can be installed at access shafts, cross passages, pump rooms, ventilation rooms, technical chambers, refuge points, and other critical underground locations. These devices support direct voice communication between field personnel and the control center.
Recording and Management Modules
The system can record live announcements, paging sessions, emergency calls, alarm activations, and selected operator actions. These records help support incident review, training, maintenance validation, and communication traceability.
Interface and Integration Modules
Interface modules connect the PAGA platform with other tunnel systems such as fire alarm, gas detection, ventilation, CCTV, access control, SCADA, BMS, industrial telephony, and dispatch tools. This makes the communication system more responsive to actual underground operating conditions.
Component
Main Role
Typical Deployment
Central Control Platform
Zone control, audio routing, priority management, system supervision
Control room, monitoring center, operation room
Paging Console
Live announcements, zoned paging, emergency voice command
Main corridor, equipment chamber, access route, technical room
Emergency Communication Terminal
Two-way communication and emergency call access
Access shaft, cross passage, pump room, refuge point, service area
Interface Module
Integration with fire alarm, gas detection, ventilation, CCTV, and SCADA
System layer, equipment room, control platform
Key Functions of the PAGA System
Routine Public Address
The system supports daily underground operation through routine voice broadcasting. Typical applications include inspection notices, maintenance coordination, safety reminders, temporary access restrictions, work permit announcements, and area-based operational messages. This helps improve communication order across technical underground spaces that are otherwise difficult to supervise by voice alone.
Zoned Paging
Different tunnel sections often need different messages. The solution therefore supports zone-based paging so that operators can communicate only with the relevant corridor, chamber, or work area. This improves communication accuracy and reduces unnecessary disturbance elsewhere.
Typical broadcast and paging zones may include:
Main utility corridor
Cable chamber
Pipeline chamber
Pump room
Ventilation room
Access shaft and entry point
Cross passage
Equipment room
Control room
Emergency assembly point
General Alarm
When a serious event occurs, the system can trigger a tunnel-wide or area-specific general alarm. This may be used for fire, smoke spread, abnormal gas detection, ventilation-related warning, flooding, electrical fault, restricted-area control, or organized evacuation. General alarm capability is essential because underground environments often require rapid, structured, and highly directional response.
Emergency Voice Broadcasting
The solution supports both pre-recorded emergency messages and live operator announcements. Pre-recorded messages provide speed and consistency, while live paging allows more specific guidance when the situation changes. Typical emergency voice content may include evacuation instruction, hazard warning, access restriction notice, gas alarm message, ventilation-related warning, and rescue coordination guidance.
Two-Way Emergency Communication
Two-way communication is especially important in underground utility tunnels. Field personnel may need to call for help, confirm local conditions, or receive direct instructions from the control center. The system can support emergency intercom or help point communication between underground locations and the master communication position, improving response speed and reducing uncertainty during incidents.
Live Paging from the Control Center
Authorized operators can issue live messages from the control center or dispatch room to one zone, multiple zones, or the full tunnel system. This is valuable when incidents change rapidly and standard recorded messages are not enough. Live paging helps operators coordinate evacuation, restrict access, manage maintenance response, and support underground rescue actions more effectively.
Priority Management
The system can assign different priorities to routine announcements, live paging, emergency calls, and alarm messages. High-priority alarm content automatically overrides lower-priority routine audio, ensuring that urgent instructions are delivered without delay.
Recording and Playback
Announcement records, emergency calls, and alarm logs can be stored for audit, training, and post-event review. Playback functions help operators verify communication actions and improve tunnel emergency procedures over time.
Fault Monitoring and Status Supervision
The solution can supervise amplifiers, speaker lines, key terminals, network links, and important broadcast zones. Centralized monitoring improves maintenance efficiency and supports stronger communication readiness across the underground network.

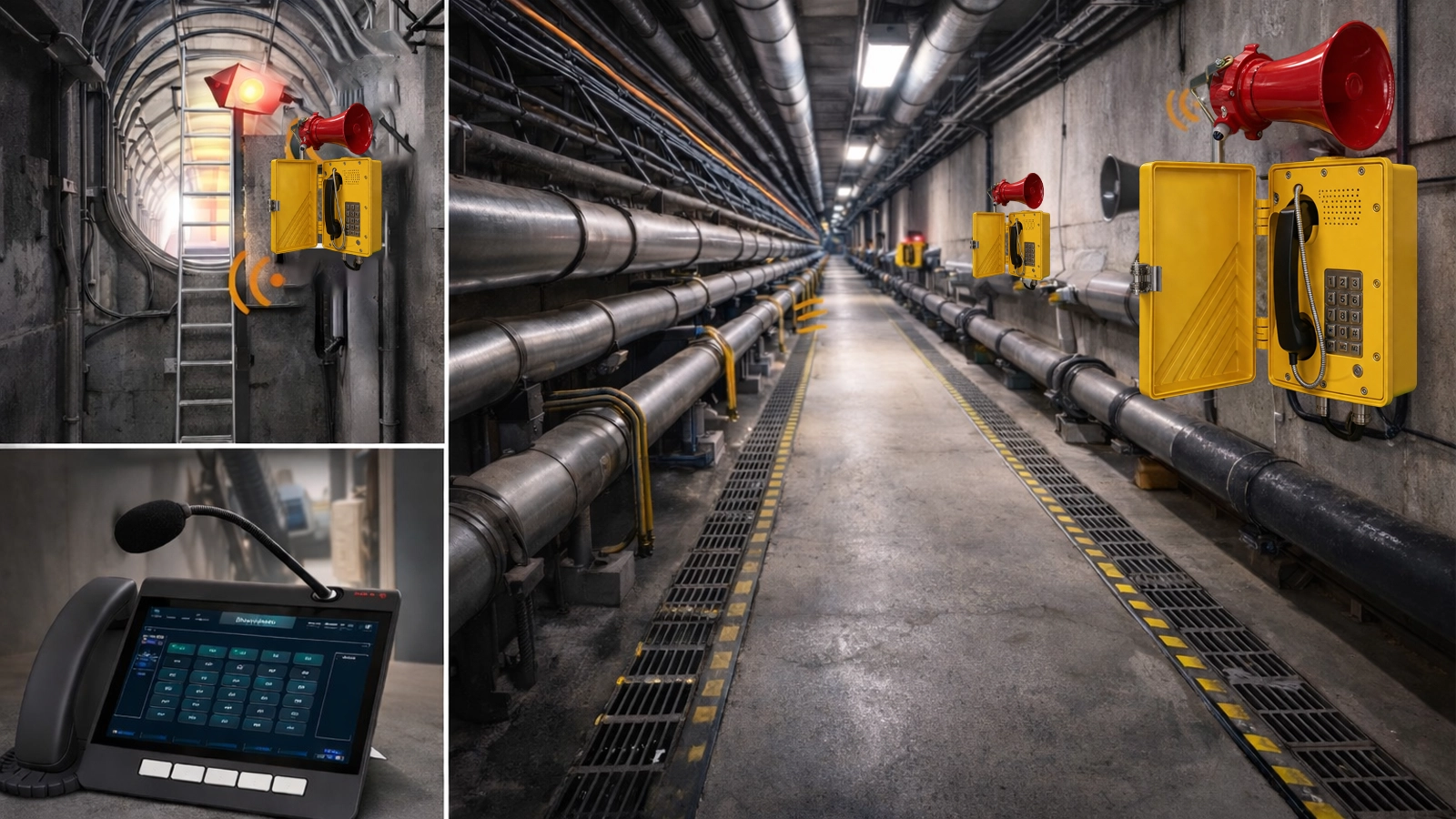

Two-way emergency communication and zoned broadcasting help underground operators guide personnel, confirm conditions, and coordinate response in difficult tunnel environments.
Typical Deployment Areas in Underground Utility Tunnels
Deployment planning should follow tunnel layout, utility distribution, O&M workflow, atmospheric risk profile, access control, and emergency route design. In underground utility tunnels, communication coverage should focus on the places where people work, enter, inspect, isolate equipment, and evacuate during abnormal conditions.
Main Corridors and Technical Chambers
Typical deployment areas include the main utility corridor, cable chambers, pipeline chambers, equipment rooms, and technical corridors. These are the core operational spaces where daily inspection and maintenance activity takes place.
Access and Transition Areas
Access shafts, entry points, cross passages, stair access sections, and controlled transition areas are important because they influence both personnel movement and emergency withdrawal. These locations benefit from clear broadcasting and direct communication capability.
Support and Safety Areas
Pump rooms, ventilation rooms, sump areas, maintenance staging spaces, control rooms, and emergency assembly points also require communication support. In emergency conditions, these zones may become coordination or temporary refuge areas.
Targeted operational communication and incident reporting
Broadcast support and direct communication terminal
Control Room / Assembly Point
Centralized command and organized personnel guidance
Paging console, supervision, alarm management
Integration with Fire Alarm, Gas Detection, Ventilation, and SCADA
The value of an underground utility tunnel PAGA solution increases significantly when it is integrated with other tunnel safety and control systems. This turns the platform into part of a coordinated underground response framework instead of a standalone announcement system.
Fire alarm integration: emergency voice messages can be triggered automatically in affected tunnel sections
Gas detection integration: abnormal gas conditions can activate warning broadcasts and evacuation guidance
Ventilation integration: voice instructions can support smoke control, airflow management, and restricted-area procedures
CCTV integration: operators can verify underground conditions visually while issuing announcements
Access control integration: area-based communication can support temporary isolation and controlled movement
SCADA or BMS integration: facility events and equipment status can be linked with communication actions
Industrial telephony or SIP integration: voice communication can extend into a wider O&M network
For example, if a gas detector identifies an abnormal condition in one tunnel section, the system can automatically trigger a zone-specific voice warning, notify the control center, and support live follow-up instructions while ventilation and access control actions are coordinated at the same time. This kind of linkage improves speed, clarity, and safety during underground incidents.

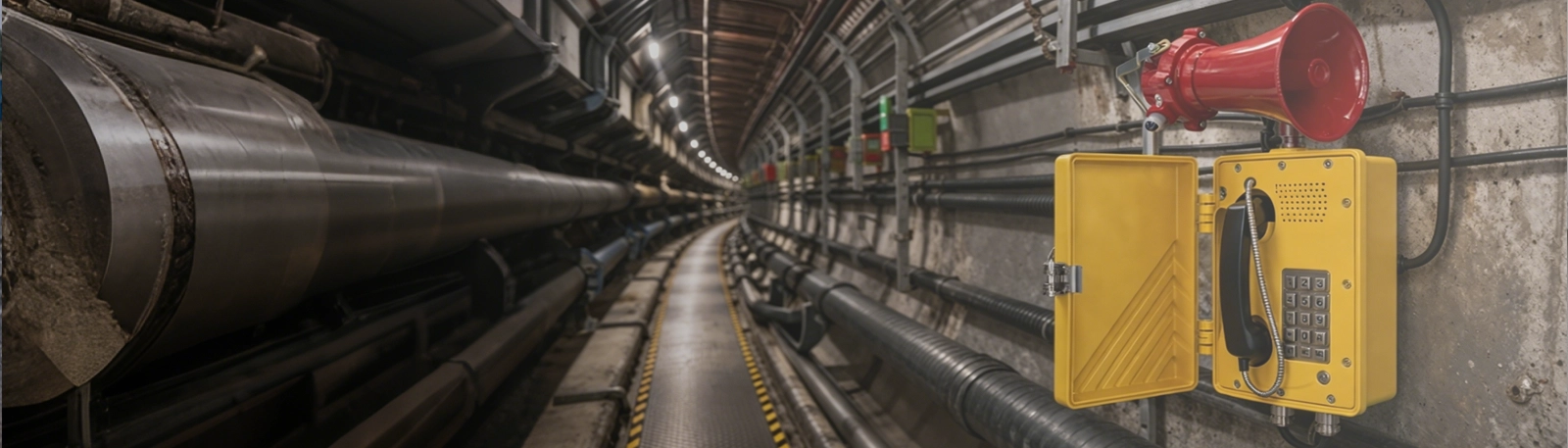

Integrated alarm, ventilation, and voice communication functions help underground operators respond faster and guide personnel more clearly during tunnel emergencies.
Design Considerations for Underground Utility Tunnel Projects
Speech Intelligibility in Confined Underground Spaces
In underground corridors and equipment chambers, communication must remain understandable under real acoustic conditions. System design should therefore focus on practical speech intelligibility, not only on audio output level.
Harsh Underground Environment Adaptation
Devices may be exposed to humidity, condensation, dust, corrosion, temperature variation, and difficult maintenance conditions. Equipment selection should reflect underground suitability as well as communication performance.
Two-Way Emergency Communication
Because tunnel personnel may need to report local conditions or request immediate help, the system should support fast and dependable two-way emergency communication between the field and the control center.
Wide-Area Coverage with Zoned Control
Utility tunnels are often long, segmented, and functionally diverse. The communication platform should support broad corridor coverage while preserving accurate zone-based control.
Fast Emergency Response
The system should support rapid alarm activation, immediate playback of emergency messages, and live operator takeover when conditions change. This is especially important in underground spaces where evacuation time may be limited.
Event Logging and Traceability
Recorded announcements, emergency calls, alarm logs, and operator actions help support review, training, and communication traceability in safety-critical underground infrastructure.
A strong PAGA solution for underground utility tunnels is not just about broadcasting sound. It is about giving operators a dependable way to warn, guide, coordinate, and communicate with people in confined underground environments.
How Becke Telcom Supports Underground Utility Tunnel Projects
Becke Telcom focuses on industrial communication solutions for harsh and high-risk environments. In underground utility tunnels, its PAGA solution is designed to support both routine O&M communication and emergency response through a unified and scalable architecture.
The solution can integrate public address, general alarm, emergency intercom, industrial telephony, SIP communication, distributed speaker systems, and control-center coordination into one manageable platform. This helps tunnel operators improve voice communication efficiency, maintain stronger area control, and support safer underground operation.
Unified architecture for public address, alarm, intercom, telephony, and coordination
Flexible zone-based communication for corridors, chambers, shafts, and control areas
Integration support for fire alarm, gas detection, ventilation, CCTV, and SCADA
Reliable communication design for humid, confined, and maintenance-intensive underground environments
Scalable deployment for municipal, campus, industrial, or infrastructure utility tunnel projects
Practical Value of the Solution
For utility tunnel operators, EPC contractors, municipal infrastructure managers, and system integrators, a professional PAGA solution provides value in both daily underground management and emergency control.
Improves underground O&M voice communication efficiency
Supports unified management of routine broadcasting and emergency alarm
Enhances response speed during gas, fire, flooding, and evacuation scenarios
Strengthens coordination between control centers and field personnel
Reduces delay, confusion, and missed instructions in underground spaces
Supports safer and more manageable utility tunnel operation
Conclusion
A PAGA Solution for Underground Utility Tunnels is an essential part of modern underground infrastructure safety communication. In environments where confined space conditions, long evacuation paths, atmospheric risk, and limited visibility all affect communication quality, a unified platform for public address, paging, and general alarm provides a more dependable way to support both routine work and abnormal event response.
By combining routine broadcasting, zoned paging, general alarm, two-way emergency communication, live voice command, and integration with fire alarm, gas detection, ventilation, and SCADA into one coordinated architecture, utility tunnel operators can improve communication efficiency, strengthen safety procedures, and build an underground voice framework better suited to complex O&M environments.
FAQ
What is a PAGA system for underground utility tunnels?
It is an integrated communication system that combines public address, paging, and general alarm to support routine broadcasting, area-based voice communication, and emergency warning across underground utility corridors and chambers.
Why is two-way emergency communication important in utility tunnels?
Because underground personnel may need to report local conditions, request help, or receive direct instructions quickly during abnormal events. Two-way communication improves response speed and situational clarity.
Can the system support emergency evacuation guidance?
Yes. The solution can provide evacuation instructions through pre-recorded messages or live operator announcements, depending on the event and tunnel operating procedure.
Can this solution integrate with other tunnel systems?
Yes. It can integrate with fire alarm systems, gas detection systems, ventilation controls, CCTV, access control, SCADA, and telephony platforms for more coordinated underground communication and response.
