SIP Industrial Phone TR-069 Configuration and Support Guide

Overview

TR-069

TR-069 is the CPE WAN Management Protocol developed by the DSL Forum. It defines a secure framework for an ACS to automatically configure and centrally manage CPE devices.
TR-069
    Figure 1-1 TR-069 design diagram

Applicable Models

This document applies to access control devices and phone devices.

Target Audience

This document is intended for R&D and test engineers who need to understand TR-069 configuration, RPC methods, TR-111 extensions and parameter models.

ACS / CPE

ACS  Auto-Configuration Server
CPE  Customer Premises Equipment

Configuring TR-069 on the Phone

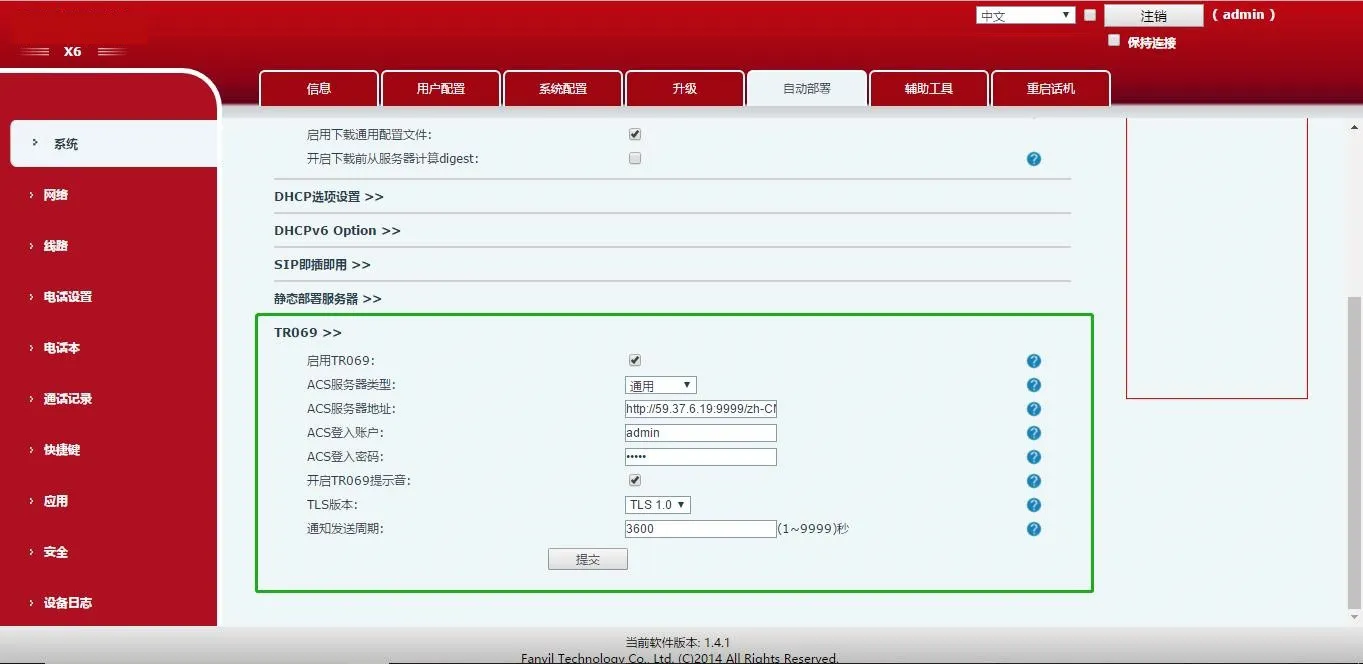

TR-069 is disabled by default. Log in to the web page as administrator, open System → Auto Provision → TR069, and configure parameters in the corresponding area.
TR-069 configuration  Figure 2-1

NameDescription
Enable TR069enable status
ACS Server Typeconfiguration item
ACS Server Addressserver address or URL
ACS Login Accountuser name
ACS Login Passwordpassword
STUN Server AddressSTUN related parameter
Enable STUNenable status

TR-069 RPC Methods Supported by the Phone

RPC methods provide bidirectional communication between the CPE and ACS. The ACS can get, set, monitor and maintain device parameters through RPC.

RPCNode Description
GetRPCMethodsRPC function description
SetParameterValuesRPC function description
GetParameterValuesRPC function description
GetParameterNamesRPC function description
GetParameterAttributesRPC function description
SetParameterAttributesRPC function description
DownloadRPC function description
FactoryResetRPC function description
RebootRPC function description

Support for TR-111

TR-111 extends the TR-069 family with device-gateway association and NAT connection request mechanisms, helping the ACS manage LAN-side devices.

Device-Gateway Association

TR-111 supports gateway association so that the ACS can identify the gateway used by a LAN-side device.

NAT Connection Request

TR-111 supports UDP/STUN based connection requests for CPE devices located behind NAT gateways.

TR-069 Protocol Parameter Model

The architecture includes Internet Gateway Device and LAN Device data models. Parameter names use a dotted tree hierarchy and parameter types are based on SOAP data types.

  1. Internet Gateway Device

  2. LAN Device

  3. Parameter names use a dotted tree hierarchy.

  4. Parameter types are based on SOAP data types.

Node NameTypeNode Description
InternetGatewayDevice.DeviceInfo.Objectdevice information
InternetGatewayDevice.DeviceInfo.ManufacturerStringdevice manufacturer
InternetGatewayDevice.DeviceInfo.ManufacturerOUIStringdevice manufacturer
InternetGatewayDevice.DeviceInfo.ModelNameStringproduct model
InternetGatewayDevice.DeviceInfo.DescriptionStringdevice information
InternetGatewayDevice.DeviceInfo.ProductClassStringproduct model
InternetGatewayDevice.DeviceInfo.SerialNumberStringdevice information
InternetGatewayDevice.DeviceInfo.SoftwareVersionStringversion information
InternetGatewayDevice.DeviceInfo.HardwareVersionStringversion information
InternetGatewayDevice.DeviceInfo.SpecVersionStringversion information
InternetGatewayDevice.DeviceInfo.ProvisioningCodeStringconfiguration item
InternetGatewayDevice.DeviceInfo.UpTimeStringtime parameter
InternetGatewayDevice.DeviceInfo.DeviceLogStringdevice information
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.Objectconfiguration item
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.NameStringconfiguration item
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.VersionStringversion information
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.DateStringtime parameter
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.DescriptionStringconfiguration item
InternetGatewayDevice.ManagementServer.Objectdevice information
InternetGatewayDevice.ManagementServer.URLStringserver address or URL
InternetGatewayDevice.ManagementServer.UsernameStringuser name
InternetGatewayDevice.ManagementServer.PasswordStringpassword
InternetGatewayDevice.ManagementServer.PeriodicInformEnableStringenable status
InternetGatewayDevice.ManagementServer.PeriodicInformIntervalStringtime parameter
InternetGatewayDevice.ManagementServer.PeriodicInformTimeStringtime parameter
InternetGatewayDevice.ManagementServer.ParameterKeyStringconfiguration item
InternetGatewayDevice.ManagementServer.ConnectionRequestURLStringserver address or URL
InternetGatewayDevice.ManagementServer.ConnectionRequestUsernameStringuser name
InternetGatewayDevice.ManagementServer.ConnectionRequestPasswordStringpassword
InternetGatewayDevice.ManagementServer.UDPConnectionRequestAddressStringserver address or URL
InternetGatewayDevice.ManagementServer.UDPConnectionRequestAddressNotificationLimitStringtime parameter
InternetGatewayDevice.ManagementServer.STUNEnableStringSTUN related parameter
InternetGatewayDevice.ManagementServer.STUNServerAddressStringSTUN related parameter
InternetGatewayDevice.ManagementServer.STUNServerPortStringSTUN related parameter
InternetGatewayDevice.ManagementServer.STUNUsernameStringuser name
InternetGatewayDevice.ManagementServer.STUNPasswordStringpassword
InternetGatewayDevice.ManagementServer.STUNMaximumKeepAlivePeriodStringSTUN related parameter
InternetGatewayDevice.ManagementServer.STUNMinimumKeepAlivePeriodStringSTUN related parameter
InternetGatewayDevice.ManagementServer.NATDetectedStringSTUN related parameter
InternetGatewayDevice.ManagementServer.KickURLStringserver address or URL
InternetGatewayDevice.ManagementServer.UpgradesManagedStringenable status
InternetGatewayDevice.Time.objecttime parameter
InternetGatewayDevice.Time.EnableBooleanenable status
InternetGatewayDevice.Time.NTPServer1stringserver address or URL
InternetGatewayDevice.Time.NTPServer2stringserver address or URL
InternetGatewayDevice.Time.CurrentLocalTimedateTimetime parameter
InternetGatewayDevice.Time.LocalTimeZoneStringtime parameter
InternetGatewayDevice.Time.LocalTimeZoneNameStringtime parameter
InternetGatewayDevice.Layer3Forwarding.Objectrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.ForwardNumberOfEntriesUnsignedrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.objectrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.Forwarding.1.Enablestringenable status
InternetGatewayDevice.Layer3Forwarding.Forwarding.1.Statusstringrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.Forwarding.1.Typestringrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.DestIPAddressstringrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.DestSubnetMaskstringrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.SourceIPAddressstringrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.SourceSubnetMaskstringrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.GatewayIPAddressstringrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.Interfacestringrouting or forwarding parameter
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.ForwardingMetricstringrouting or forwarding parameter
InternetGatewayDevice.UserInterface.Objectuser interface information
InternetGatewayDevice.UserInterface.UpgradeAvailableStringuser interface information
InternetGatewayDevice.UserInterface.CurrentLanguageStringuser interface information
InternetGatewayDevice.Services.VoiceService.{i}.objectVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceServiceNumberOfEntriesunsignedIntVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfileNumberOfEntriesunsignedIntVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.objectVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.MaxProfileCountstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.MaxLineCountstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.MaxSessionCountstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SignalingProtocolsstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.FaxT38booleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.FaxPassThroughbooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.ModemPassThroughbooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.ToneGenerationbooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.RingGenerationbooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.VoiceLineTestsbooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.objectSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.RolestringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.ExtensionsstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TransportsstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.URISchemesstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.EventSubscriptionbooleanSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.ResponseMapbooleanSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TLSAuthenticationProtocolsstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TLSAuthenticationKeySizestringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TLSEncryptionProtocolsstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.H323.objectVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.H323.FastStartbooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.H323.H235AuthenticationMethodsstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.CodecsobjectVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.Codecs.{i}.EntryIdunsignedIntVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.Codecs.{i}.CodecstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.Codecs.{i}.BitRateunsignedIntVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.objectVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.ResetbooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.NumberOfLinesunsignedIntVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.NamestringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SignalingProtocolstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.MaxSessionsunsignedIntVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.DTMFMethodstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.STUNEnablebooleanSTUN related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.STUNServerstringSTUN related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.objectRTP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.LocalPortMinunsignedIntRTP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.LocalPortMaxunsignedIntRTP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.DSCPMarkstringRTP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.TelephoneEventPayloadTypestringRTP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.objectSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.Enablebooleanenable status
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.DirectoryNumberstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.StatusstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallStatestringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.RingMuteStatusstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.RingVolumeStatusstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.objectSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.AuthUserNamestringuser name
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.AuthPasswordstringpassword
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.objectVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallWaitingEnablebooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardUnconditionalEnablebooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardUnconditionalNumberstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnBusyEnablebooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnBusyNumberstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnNoAnswerEnablebooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnNoAnswerNumberstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallTransferEnablebooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.MWIEnablebooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.MessageWaitingstringVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.AnonymousCallEnablebooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.DoNotDisturbEnablebooleanVoIP capability or line parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.objectSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServerstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServerPortstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServerTransportstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServerstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServerPortstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServerTransportstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentDomainstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentPortstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentTransportstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.OrganizationstringSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegisterRetryIntervalstringtime parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegisterExpiresstringtime parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.DSCPMarkunsignedIntSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.VLANIDMarkintSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.EthernetPriorityMarkintSIP related parameter
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.X_ATP_OptionTime.objecttime parameter
InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.6.SIP.X_ATP_OptionTime.IntervalTimetUnsignedtime parameter
InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.6.SIP.X_ATP_OptionTime.OptionsTypeunsignedIntSIP related parameter







catalogue
customer service Phone
We use cookie to improve your online experience. By continuing to browse this website, you agree to our use of cookie.

Cookies

This Cookie Policy explains how we use cookies and similar technologies when you access or use our website and related services. Please read this Policy together with our Terms and Conditions and Privacy Policy so that you understand how we collect, use, and protect information.

By continuing to access or use our Services, you acknowledge that cookies and similar technologies may be used as described in this Policy, subject to applicable law and your available choices.

Updates to This Cookie Policy

We may revise this Cookie Policy from time to time to reflect changes in legal requirements, technology, or our business practices. When we make updates, the revised version will be posted on this page and will become effective from the date of publication unless otherwise required by law.

Where required, we will provide additional notice or request your consent before applying material changes that affect your rights or choices.

What Are Cookies?

Cookies are small text files placed on your device when you visit a website or interact with certain online content. They help websites recognize your browser or device, remember your preferences, support essential functionality, and improve the overall user experience.

In this Cookie Policy, the term “cookies” also includes similar technologies such as pixels, tags, web beacons, and other tracking tools that perform comparable functions.

Why We Use Cookies

We use cookies to help our website function properly, remember user preferences, enhance website performance, understand how visitors interact with our pages, and support security, analytics, and marketing activities where permitted by law.

We use cookies to keep our website functional, secure, efficient, and more relevant to your browsing experience.

Categories of Cookies We Use

Strictly Necessary Cookies

These cookies are essential for the operation of the website and cannot be disabled in our systems where they are required to provide the service you request. They are typically set in response to actions such as setting privacy preferences, signing in, or submitting forms.

Without these cookies, certain parts of the website may not function correctly.

Functional Cookies

Functional cookies enable enhanced features and personalization, such as remembering your preferences, language settings, or previously selected options. These cookies may be set by us or by third-party providers whose services are integrated into our website.

If you disable these cookies, some services or features may not work as intended.

Performance and Analytics Cookies

These cookies help us understand how visitors use our website by collecting information such as traffic sources, page visits, navigation behavior, and general interaction patterns. In many cases, this information is aggregated and does not directly identify individual users.

We use this information to improve website performance, usability, and content relevance.

Targeting and Advertising Cookies

These cookies may be placed by our advertising or marketing partners to help deliver more relevant ads and measure the effectiveness of campaigns. They may use information about your browsing activity across different websites and services to build a profile of your interests.

These cookies generally do not store directly identifying personal information, but they may identify your browser or device.

First-Party and Third-Party Cookies

Some cookies are set directly by our website and are referred to as first-party cookies. Other cookies are set by third-party services, such as analytics providers, embedded content providers, or advertising partners, and are referred to as third-party cookies.

Third-party providers may use their own cookies in accordance with their own privacy and cookie policies.

Information Collected Through Cookies

Depending on the type of cookie used, the information collected may include browser type, device type, IP address, referring website, pages viewed, time spent on pages, clickstream behavior, and general usage patterns.

This information helps us maintain the website, improve performance, enhance security, and provide a better user experience.

Your Cookie Choices

You can control or disable cookies through your browser settings and, where available, through our cookie consent or preference management tools. Depending on your location, you may also have the right to accept or reject certain categories of cookies, especially those used for analytics, personalization, or advertising purposes.

Please note that blocking or deleting certain cookies may affect the availability, functionality, or performance of some parts of the website.

Restricting cookies may limit certain features and reduce the quality of your experience on the website.

Cookies in Mobile Applications

Where our mobile applications use cookie-like technologies, they are generally limited to those required for core functionality, security, and service delivery. Disabling these essential technologies may affect the normal operation of the application.

We do not use essential mobile application cookies to store unnecessary personal information.

How to Manage Cookies

Most web browsers allow you to manage cookies through browser settings. You can usually choose to block, delete, or receive alerts before cookies are stored. Because browser controls vary, please refer to your browser provider’s support documentation for details on how to manage cookie settings.

Contact Us

If you have any questions about this Cookie Policy or our use of cookies and similar technologies, please contact us at support@becke.cc .
