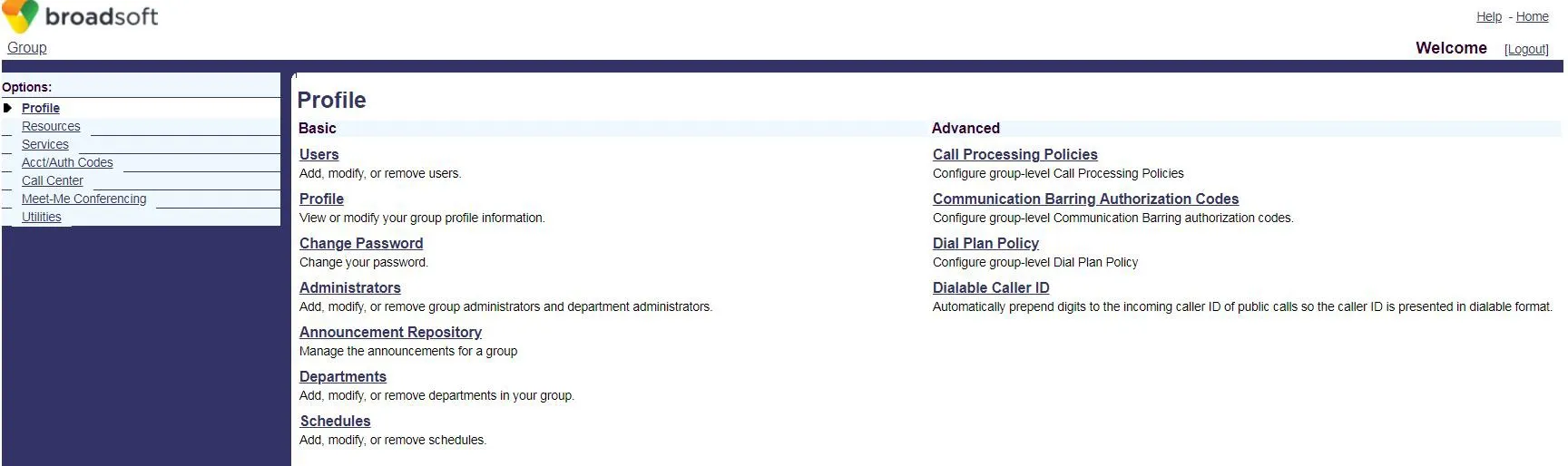

2. Click

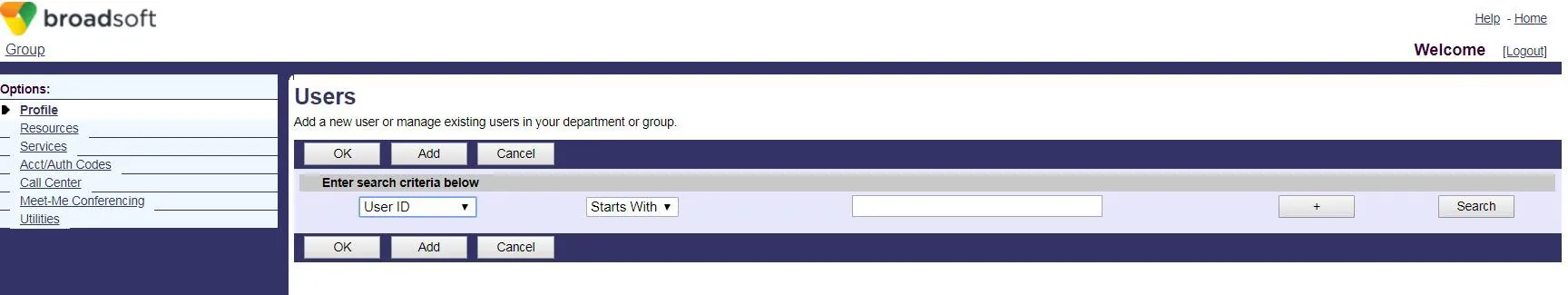

3. If accounts exist, click

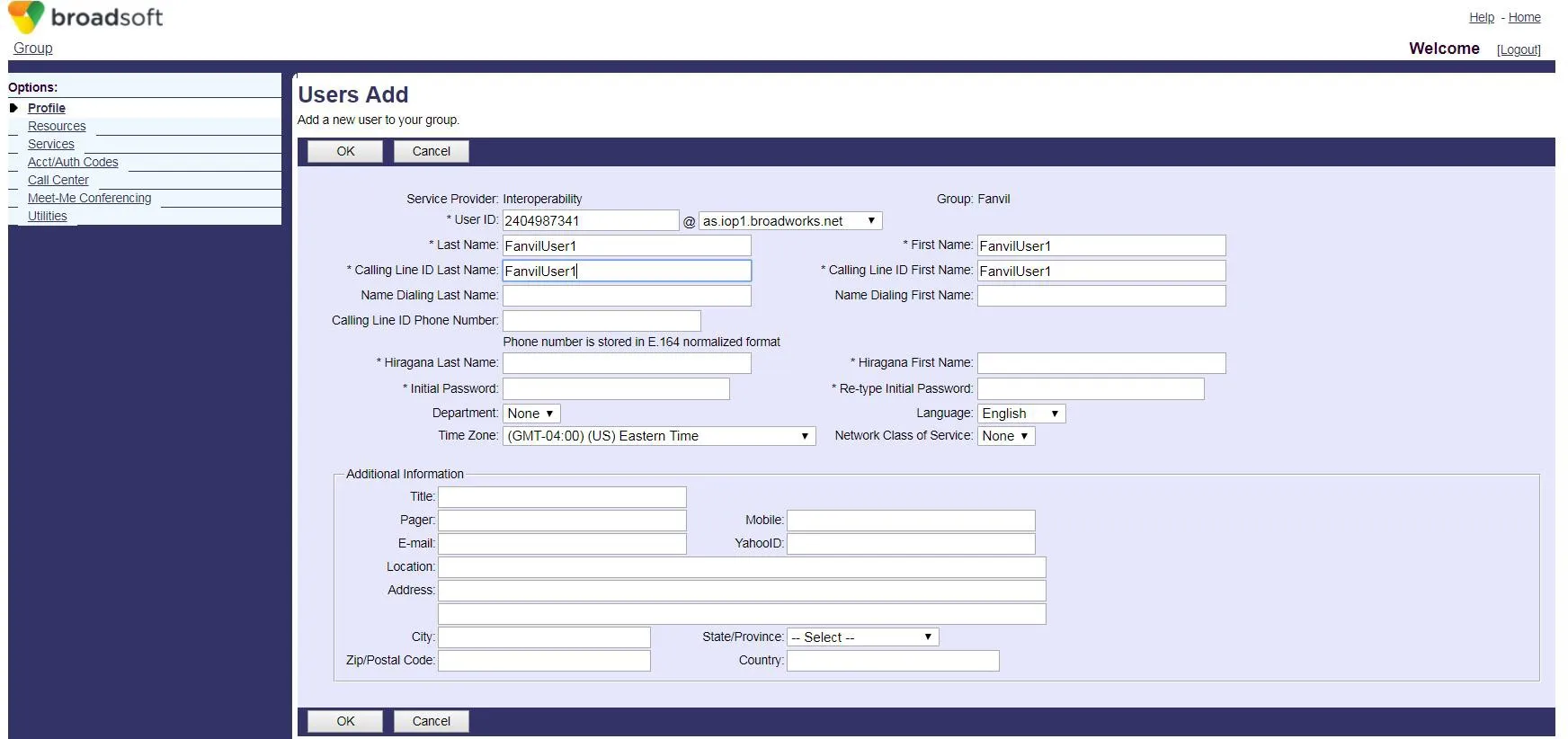

4. Create a new BroadWorks account.

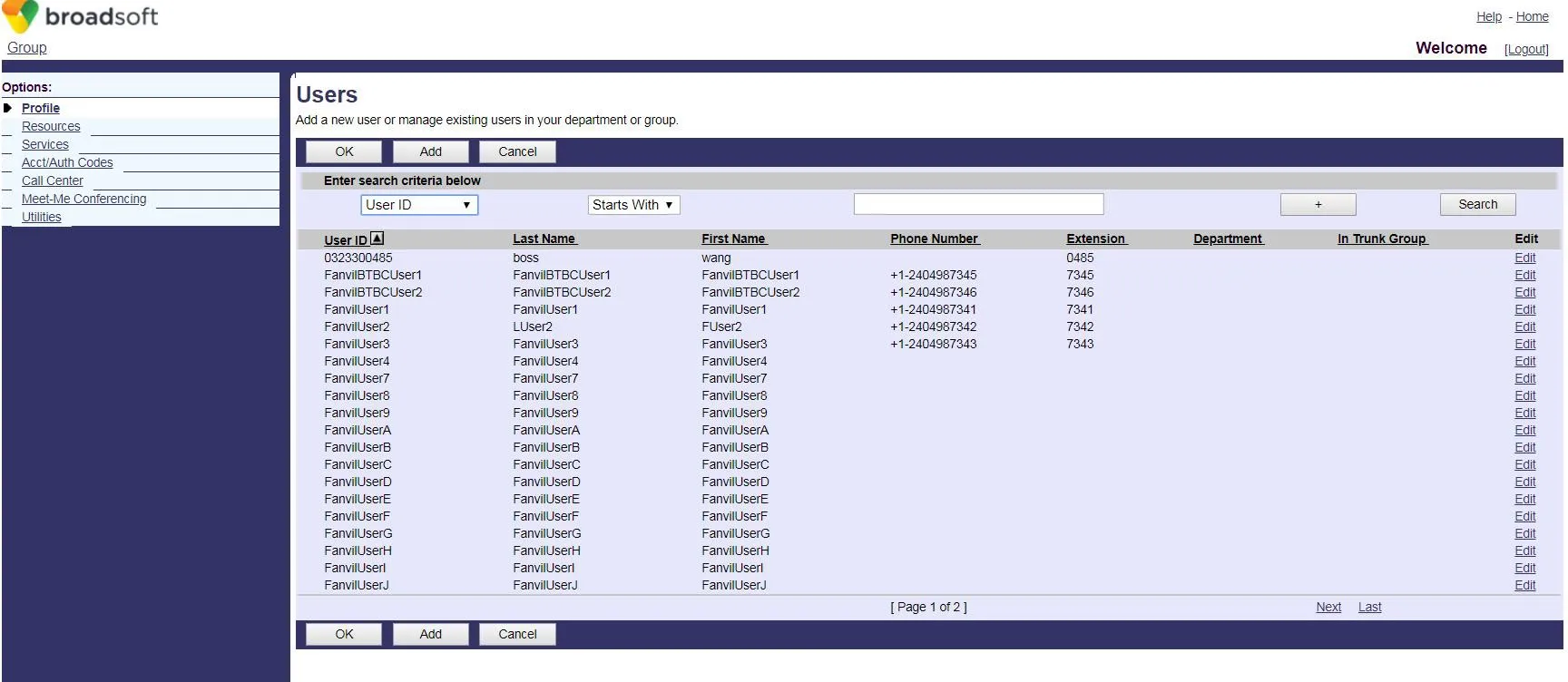

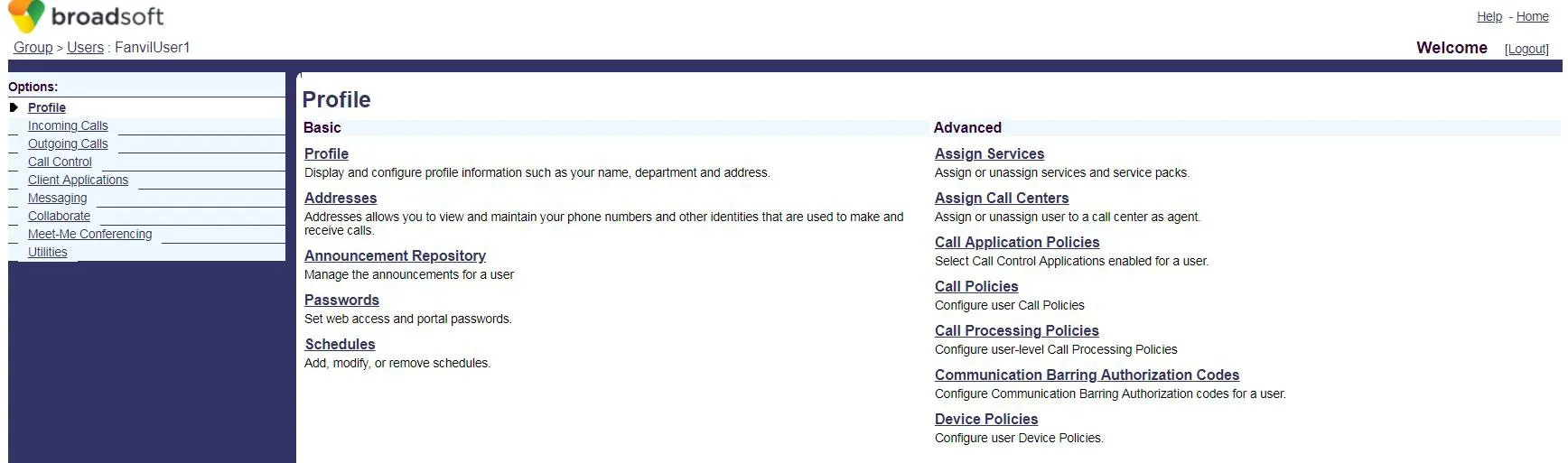

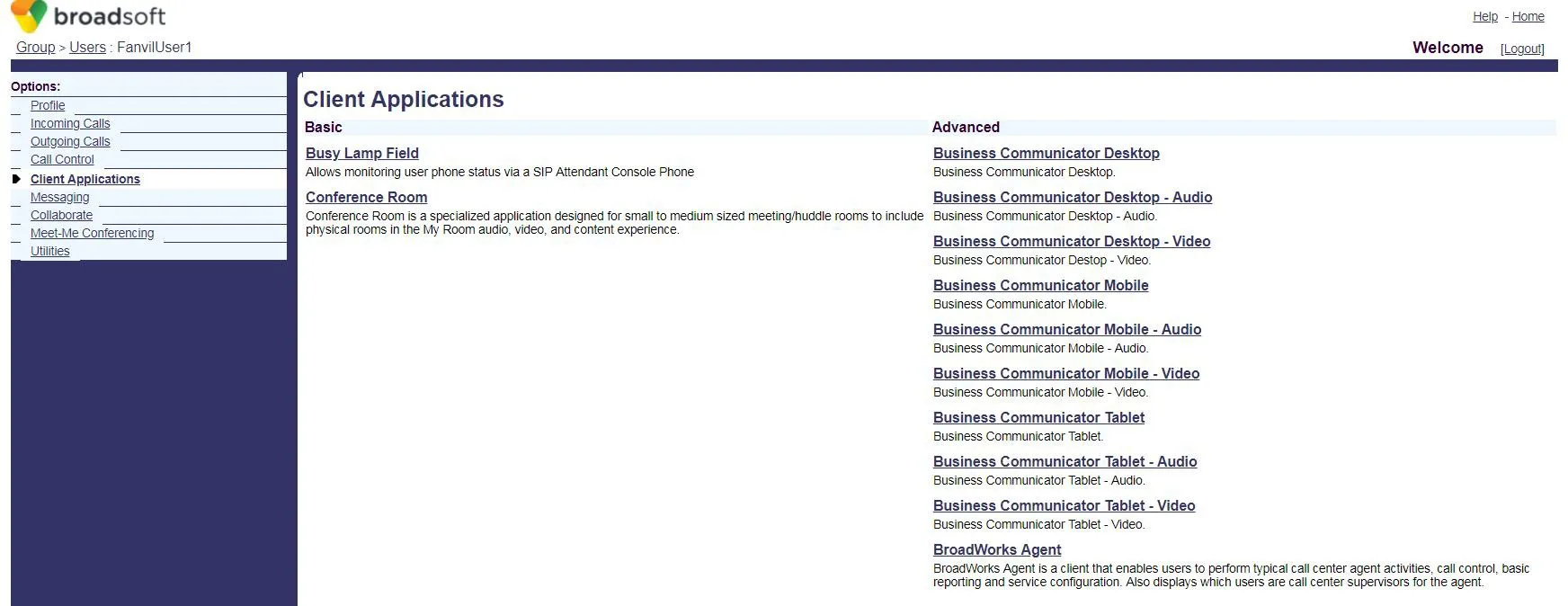

5. Enter the configuration page of the selected account (FanvilUser1).
6. Click
7. Click

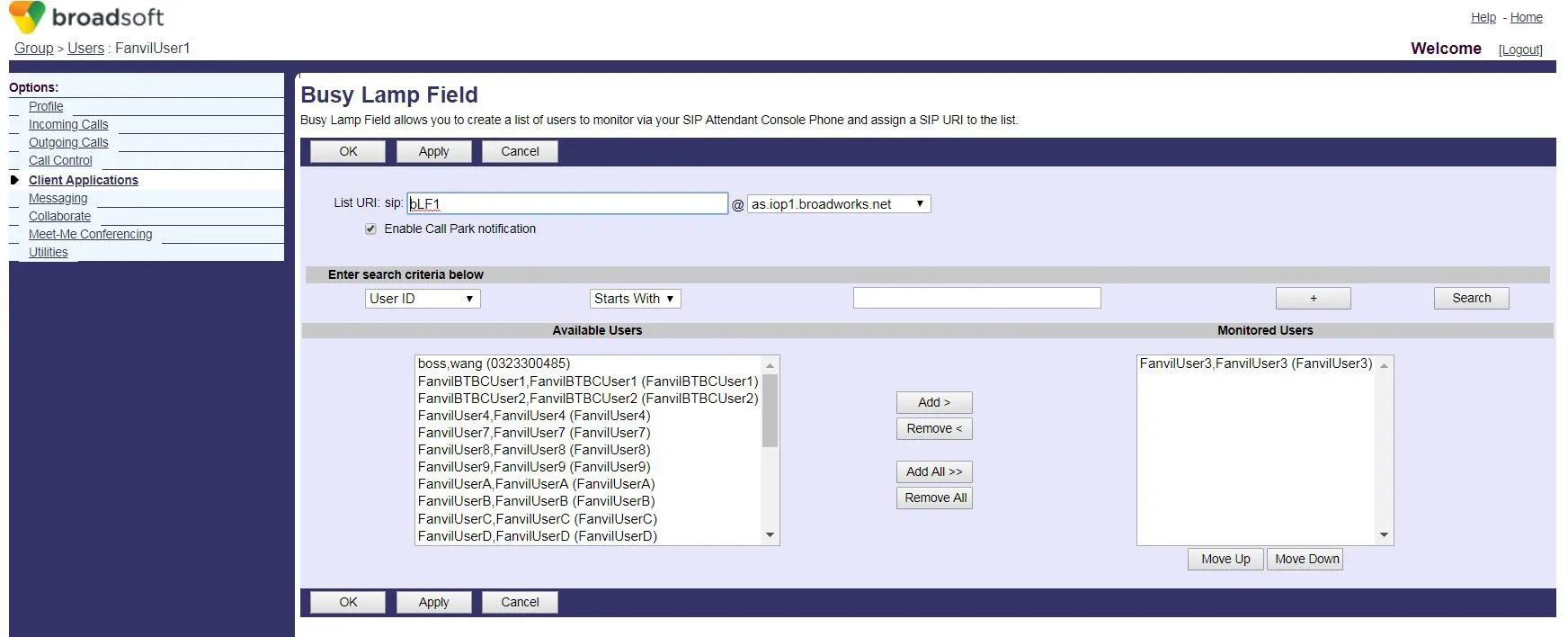

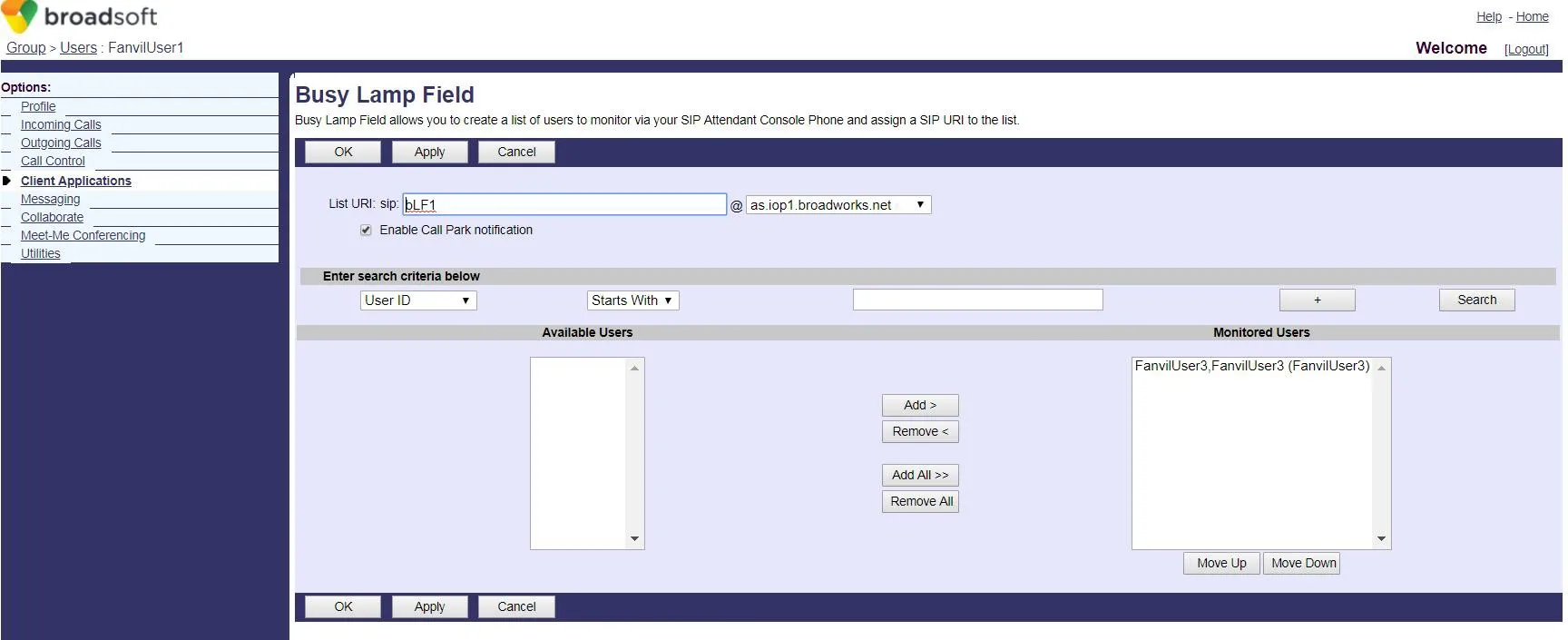

8. Enter a List URI (e.g., blf1). This value must match the BLF List Number on the phone.
Click

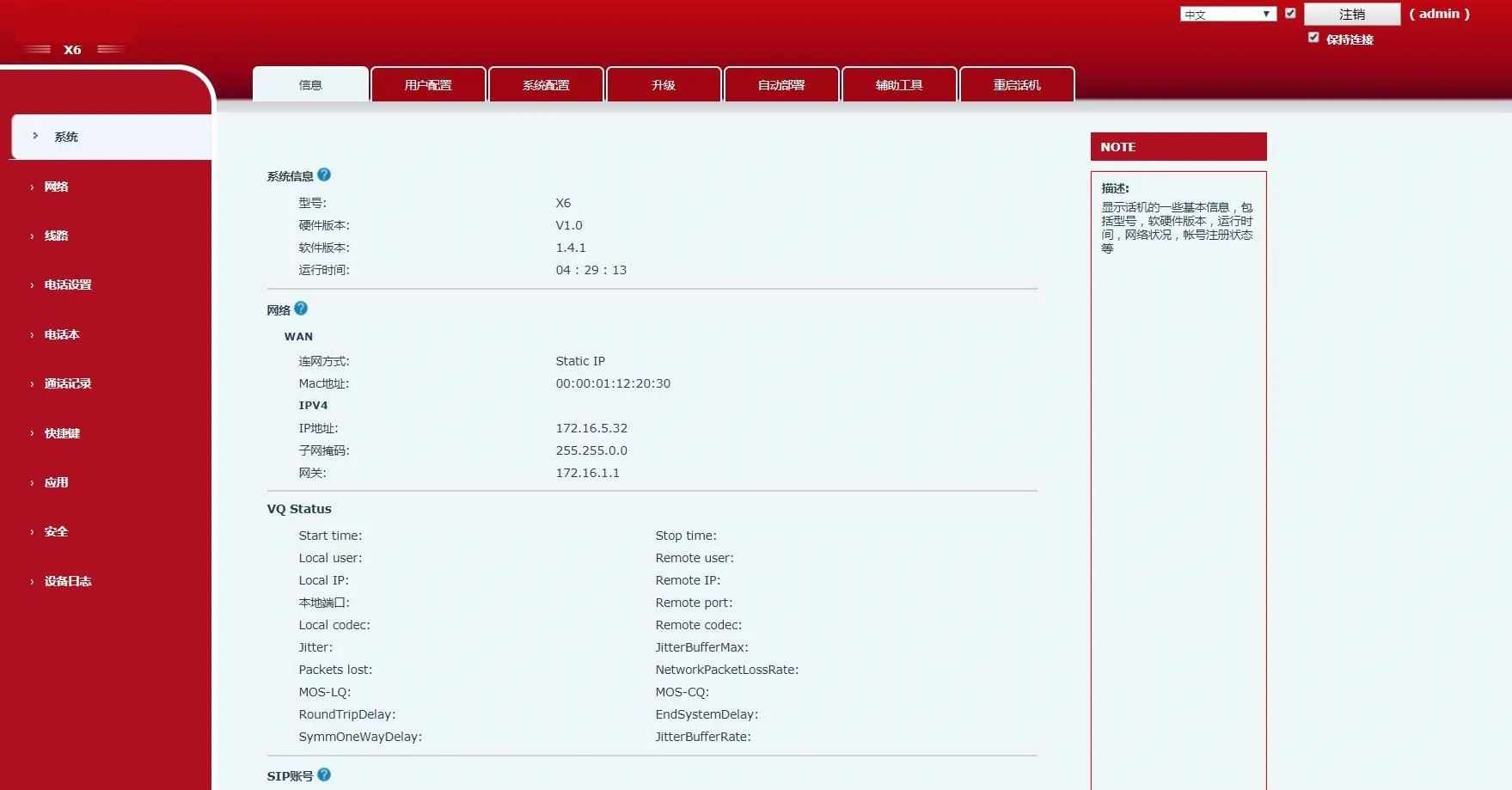

9. Log in to the phone Web UI (default username/password:

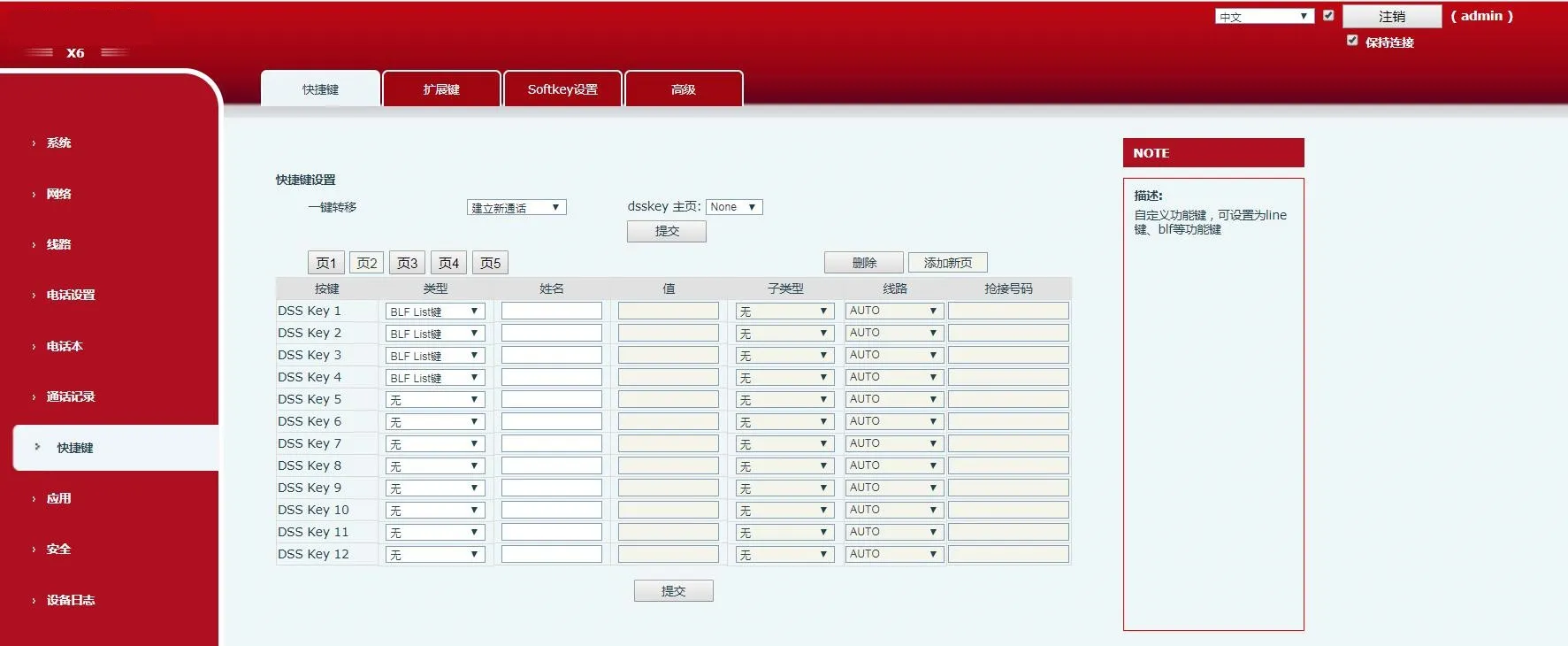

10. Go to Shortcuts in the left menu.
Set DSSKey Type to BLF List. Each key maps to one monitored number.
If the list has more extensions than BLF List keys, the phone assigns them to DSSkeys with Type None.
Click

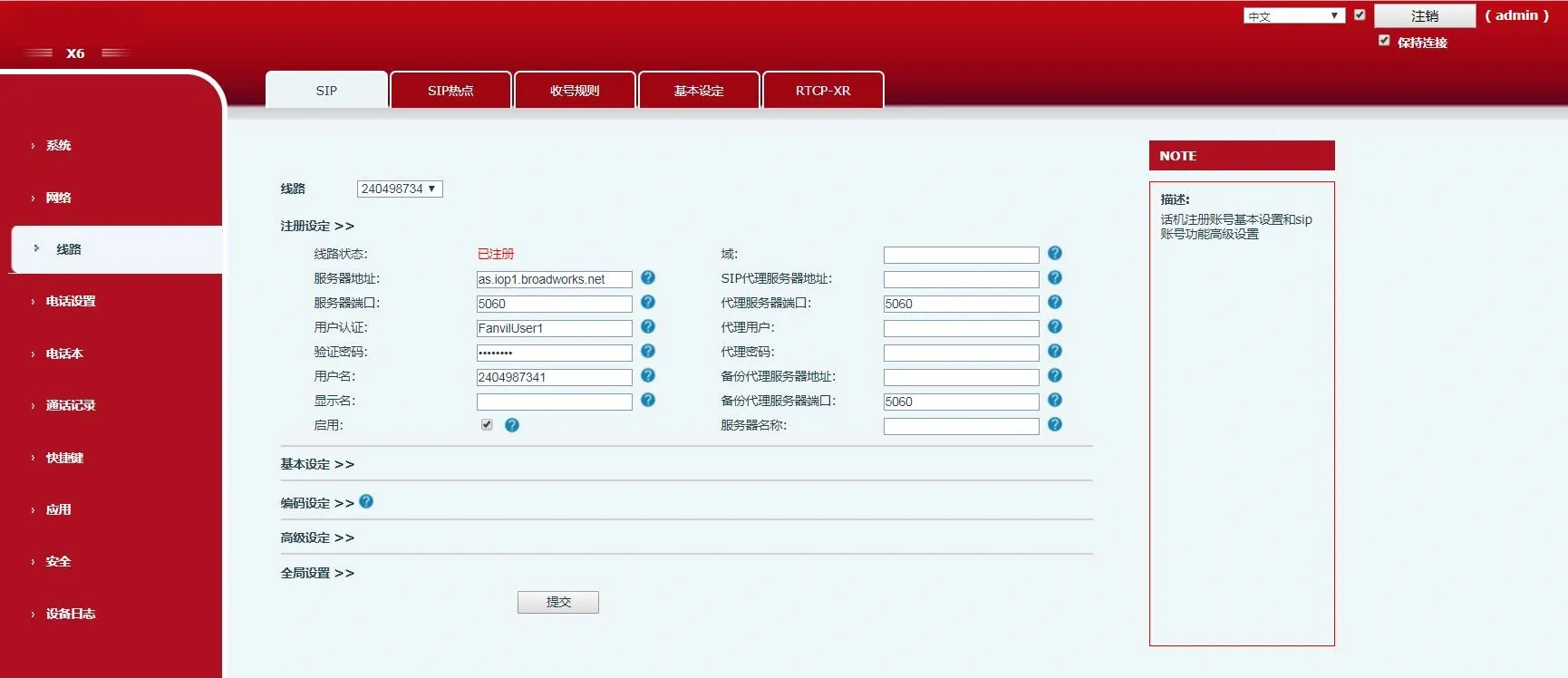

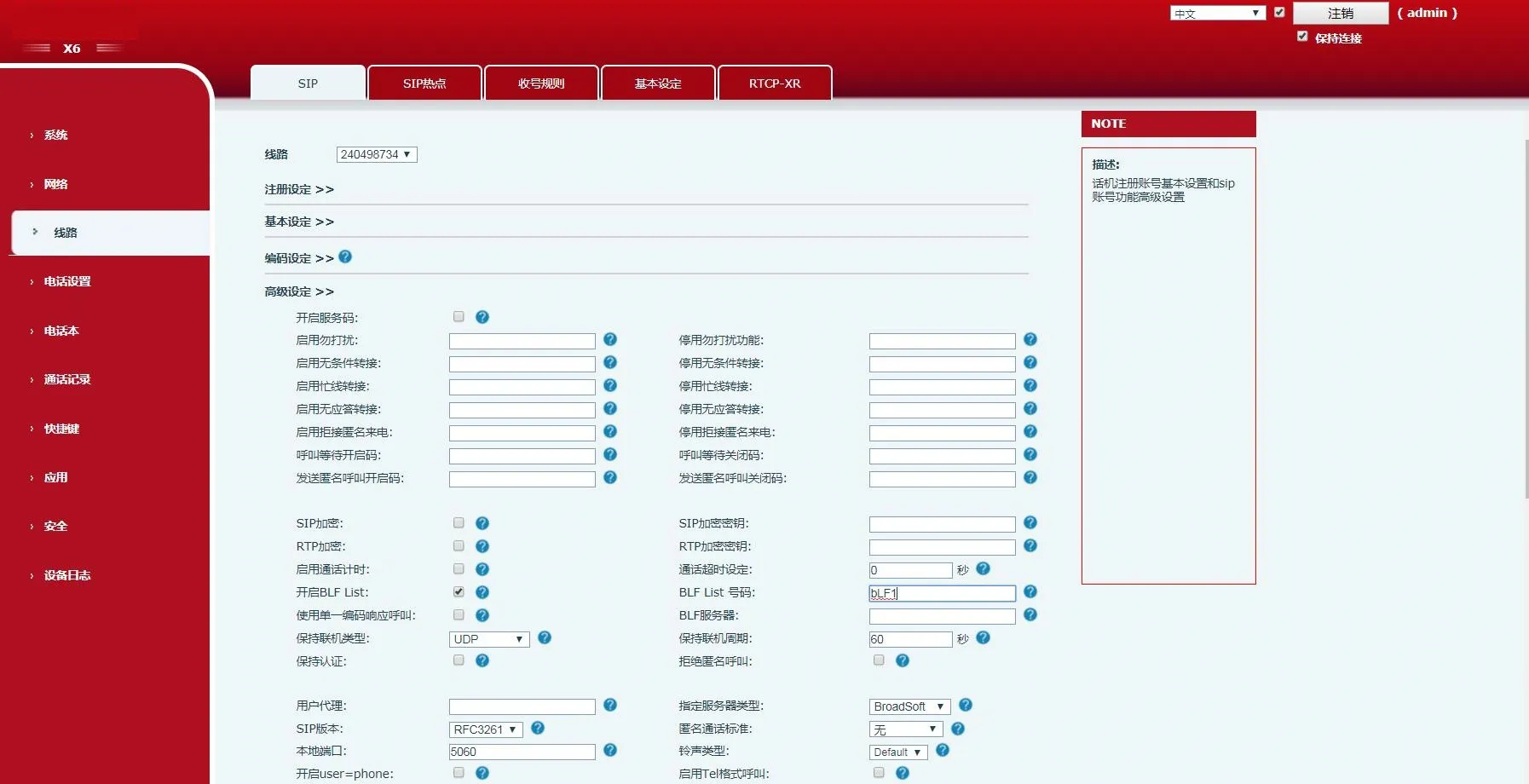

11. Go to Line in the left menu.
Configure the BroadWorks account (FanvilUser1) to the corresponding phone line.
12. Go to
13. Check the DSSkey LEDs on the phone.
Solid LED means successful configuration.
Make a call to the monitored extension — the corresponding LED will change status.
