This document details the configuration method for Android IP phones (BF600S, BA32, GP32i, GP32V, BX7A) to preview real-time video from intercom or access control cameras. It includes preparation tools, network connection guides, and step-by-step shortcuts setup for video stream URL configuration.
When using an Android IP phone, you can follow the configuration method in this document to preview the video from the working intercom or access control camera.
BF600S, BA32,GP32i, GP32V,BX7A
① One of the following devices:BF600S, BA32,GP32i, GP32V,BX7A; one camera-equipped intercom or access control device (e.g.BHP-SOS16V); one POE switch (or DC power supply). Connect all devices to the switch.
② One debugging computer connected to the same switch to ensure network connectivity between the computer and the IP phone.

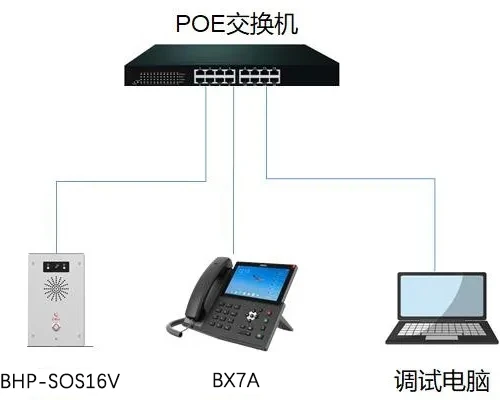

Connect the devices to the switch and the computer to the same switch to ensure network communication between the computer and devices. The connection diagram is shown in Figure 1.
Figure 1

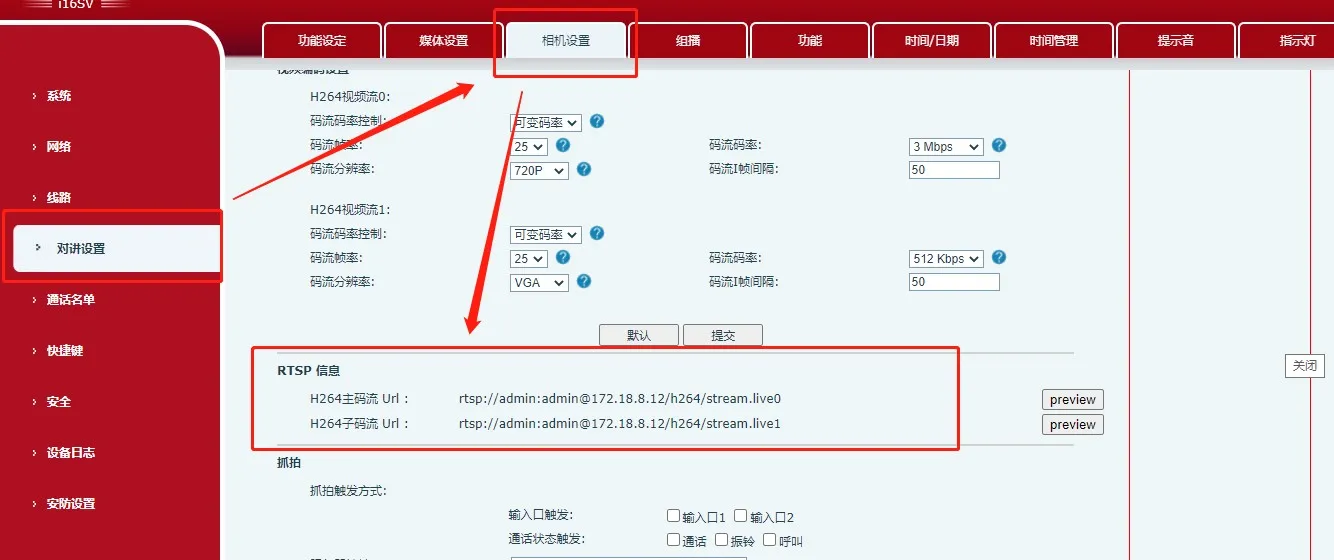

① After obtaining the IP address of the intercom, access the intercom configuration webpage and navigate to the Intercom Settings - Camera Settings page to get the device's video stream URL, as shown in Figure 2.
Figure 2

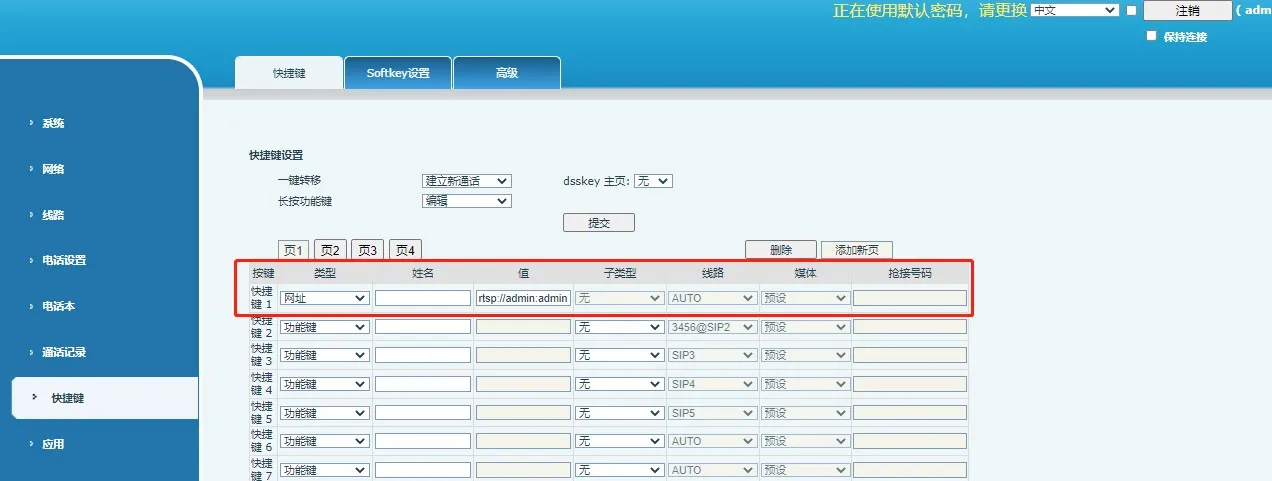

② After obtaining the IP address of the IP phone, access the phone configuration webpage and go to the Shortcuts page to configure the video preview shortcut. Set the type to URL and the value to the video stream URL obtained in Step ①, as shown in Figure 3.
Figure 3
