Basic Rate Interface, commonly known as BRI, is a type of Integrated Services Digital Network (ISDN) access designed to deliver digital voice and data services over traditional telephone infrastructure. It was created as a standardized way to provide digital communication for homes, small offices, branch locations, and professional users that needed more reliable and flexible service than ordinary analog telephone lines.

The core idea of BRI is simple: instead of carrying only one analog voice call, the line provides multiple digital channels. A standard BRI line contains two bearer channels, usually called B channels, and one data or signaling channel, usually called the D channel. This structure is often written as 2B+D. Each B channel carries 64 kbps, while the D channel carries 16 kbps. Together, they form a compact digital access service for voice, data, fax, video, and signaling.

Although many modern networks have moved toward IP-based broadband, SIP trunks, fiber, mobile data, and cloud communications, BRI remains an important concept in telecommunications history and legacy system integration. Understanding BRI helps explain how digital telephony evolved, why channelized access mattered, and how many older PBX, video conferencing, remote access, and voice communication systems were designed.

What Is Basic Rate Interface (BRI)?

Definition and Core Meaning

Basic Rate Interface is an ISDN service interface that provides two 64 kbps B channels and one 16 kbps D channel over a digital telephone connection. The B channels are used for user traffic such as voice calls, data transmission, fax, or video communication. The D channel is used mainly for signaling and control information, such as call setup, call release, caller identification, and service coordination.

The term “basic rate” indicates that BRI is the lower-capacity ISDN access option compared with Primary Rate Interface, or PRI. BRI was designed for smaller users, including homes, small businesses, remote offices, and individual professional workstations. PRI, by contrast, was designed for larger organizations needing many simultaneous channels.

In practical terms, BRI provided a digital alternative to analog telephone service. It allowed users to make two simultaneous voice calls, combine channels for higher data throughput, or use one channel for voice while another carried data. This made it more flexible than a single analog line.

BRI is best understood as a small-capacity digital access service that uses two bearer channels for communication and one signaling channel for control.

Why BRI Was Developed

BRI was developed to support the shift from analog telephone service to digital communication. Traditional analog lines were useful for voice, but they had limitations for data services, call control, and integration with digital equipment. As businesses and users began to need fax, computer communication, early internet access, videoconferencing, and more advanced PBX functions, a more structured digital interface became valuable.

ISDN and BRI provided a way to carry multiple types of services over a standardized digital network. Voice, data, fax, and signaling could share the same access method. This was a major step toward integrated communication, even before modern IP networks became dominant.

BRI also improved call setup speed and service control compared with many analog arrangements. Because signaling was separated into the D channel, the network could manage calls more efficiently and support supplementary services more cleanly.

Core Structure of BRI

The 2B+D Channel Model

The most important concept in BRI is the 2B+D channel model. The two B channels are the primary channels used to carry user information. Each B channel provides 64 kbps, which is suitable for one digital voice call or a data connection. Because there are two B channels, a BRI line can support two simultaneous voice calls or two separate data sessions.

The D channel provides 16 kbps and is mainly used for signaling. It carries information needed to establish, manage, and disconnect calls. It may also carry small amounts of packet data in some cases, but its main function is control rather than user payload.

This separation between bearer traffic and signaling was one of the strengths of ISDN. It allowed calls to be controlled through a dedicated signaling path while the B channels remained available for user communication.

Bandwidth and Practical Capacity

A standard BRI service provides 144 kbps of user-related channel capacity: 64 kbps for the first B channel, 64 kbps for the second B channel, and 16 kbps for the D channel. In the physical layer, additional overhead may be used for framing, synchronization, maintenance, and line coding, so the total line rate may be higher than the simple 144 kbps channel figure.

For voice communication, each B channel can carry one digital voice call. For data communication, the channels may be used separately or bonded together. When the two B channels are combined, the user can obtain a 128 kbps data connection, which was valuable in the period before widespread DSL, cable broadband, fiber, and mobile broadband.

By today’s standards, this capacity is very small. However, at the time BRI was introduced and widely used, it represented a meaningful improvement over many analog dial-up options.

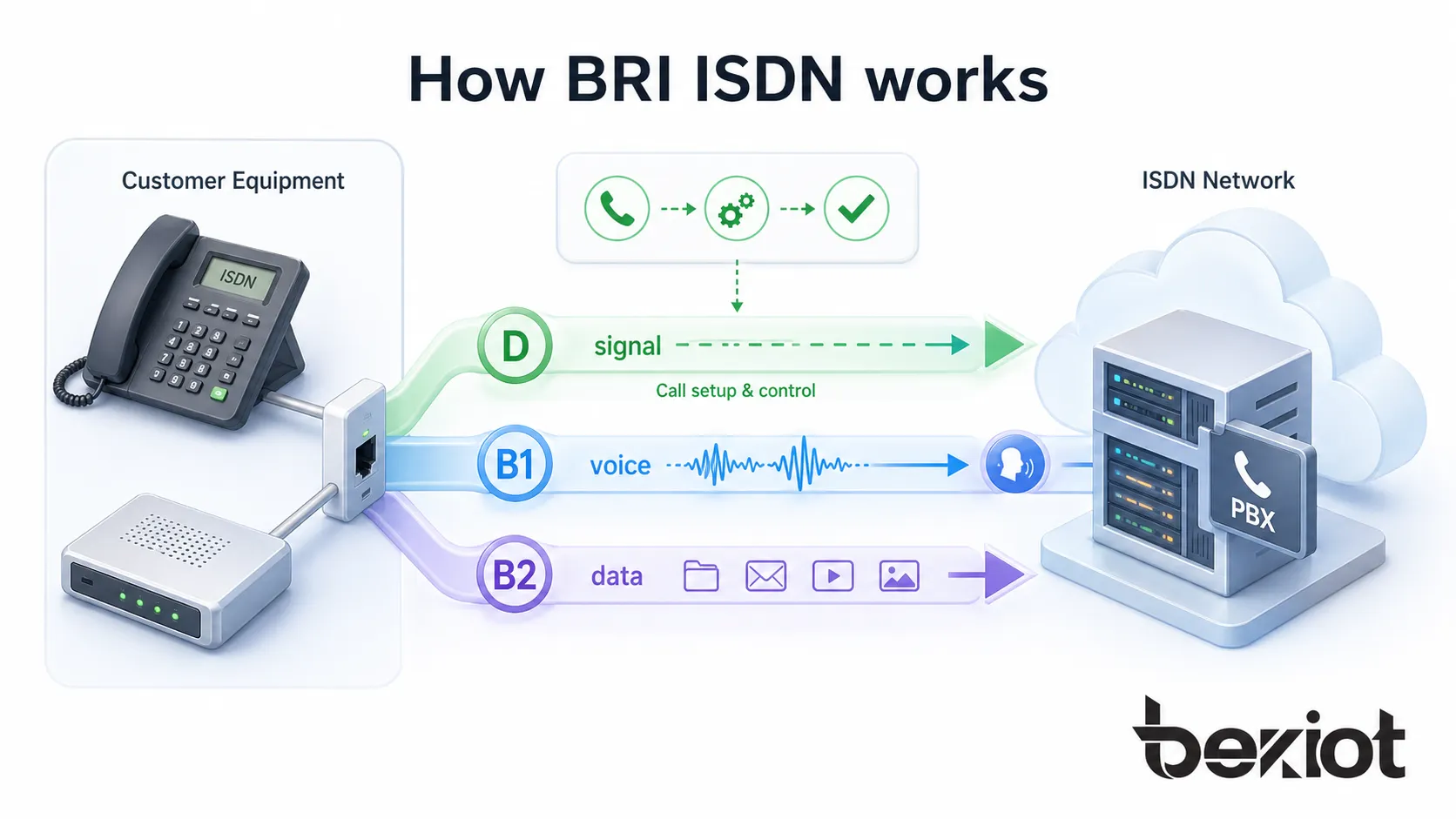

How BRI Works

Digital Connection Between User Equipment and Network

BRI works by providing a digital link between customer equipment and the ISDN network. The customer side may include an ISDN telephone, terminal adapter, router, video conferencing device, fax equipment, or PBX interface. The network side provides the ISDN service from the carrier or telecommunications provider.

When a user places a call, the equipment sends signaling information through the D channel. The network processes the request, sets up the call, and assigns one of the B channels for the actual voice or data session. Once the call is established, user information travels through the B channel while signaling remains separated.

This separation makes BRI different from a basic analog line, where signaling and voice share the same general circuit behavior. In BRI, call control is more structured and digital from the beginning.

Call Setup and Channel Allocation

When a BRI device initiates a call, the D channel carries the call setup request. This request may include the called number, service type, caller information, and other signaling details. The ISDN network then determines whether the call can be completed and which B channel should be used.

If one B channel is free, the network can allocate it for the call. If both B channels are available, the user may place two independent calls at the same time. If both channels are already occupied, another call may be blocked, forwarded, or handled according to service configuration.

This channel allocation model gives BRI its practical flexibility. The line is not limited to one fixed use. It can support different combinations of voice and data depending on channel availability.

In BRI, the D channel controls the call, while the B channels carry the actual voice or data communication.

Important Interfaces and Devices in BRI

Network Termination and Terminal Equipment

BRI systems often involve several interface concepts between the network and the user equipment. A network termination device may convert the carrier line into an interface suitable for customer equipment. Terminal equipment may include ISDN phones, adapters, routers, videoconferencing terminals, or PBX cards.

In many deployments, customer devices connect through an S/T interface, while the carrier side may use a U interface depending on the region and network architecture. The exact arrangement varies by country, service provider, and equipment type. These interface differences are one reason ISDN installations often required careful configuration.

The main point is that BRI is not only a service plan. It is also a physical and logical interface between network equipment and customer communication devices.

Terminal Adapter and ISDN Router

A terminal adapter is a device that allows non-ISDN equipment to use an ISDN BRI line. For example, a computer or analog device might connect through an adapter that handles ISDN signaling and channel use. This made BRI more useful for users who wanted digital access without replacing every device.

ISDN routers were also widely used to provide data connectivity over BRI. Before broadband became common, small offices and remote workers could use ISDN routers for dial-on-demand data connections. The router could bring up one B channel for a data session and add the second B channel when more bandwidth was needed.

These devices show how BRI was used as a bridge between traditional telephony, computer networking, and early digital communication services.

BRI Versus PRI

Capacity Differences

BRI and PRI are both ISDN access methods, but they serve different capacity needs. BRI provides two B channels and one D channel, making it suitable for small-scale access. PRI provides many more B channels and one D channel, making it suitable for larger organizations, PBX trunks, call centers, hotels, campuses, and enterprise voice systems.

In many regions, PRI over T1 includes 23 B channels and one D channel. In E1-based regions, PRI commonly includes 30 B channels and one D channel. This gives PRI much higher simultaneous call capacity than BRI.

The difference is therefore not only technical but also practical. BRI is a small access service. PRI is a trunk-level service for larger voice and data requirements.

Deployment Use Cases

BRI was commonly used for individual users, small offices, remote branches, backup lines, videoconferencing endpoints, and small PBX systems. It provided enough capacity for limited simultaneous communication without the cost or complexity of a PRI service.

PRI was used where many calls had to be handled at once. A company PBX, call center, hospital, hotel, or enterprise office might use PRI to connect many internal extensions to the public network. In such cases, BRI would usually be too small.

Understanding the difference between BRI and PRI helps explain why ISDN had both small-scale and large-scale access models.

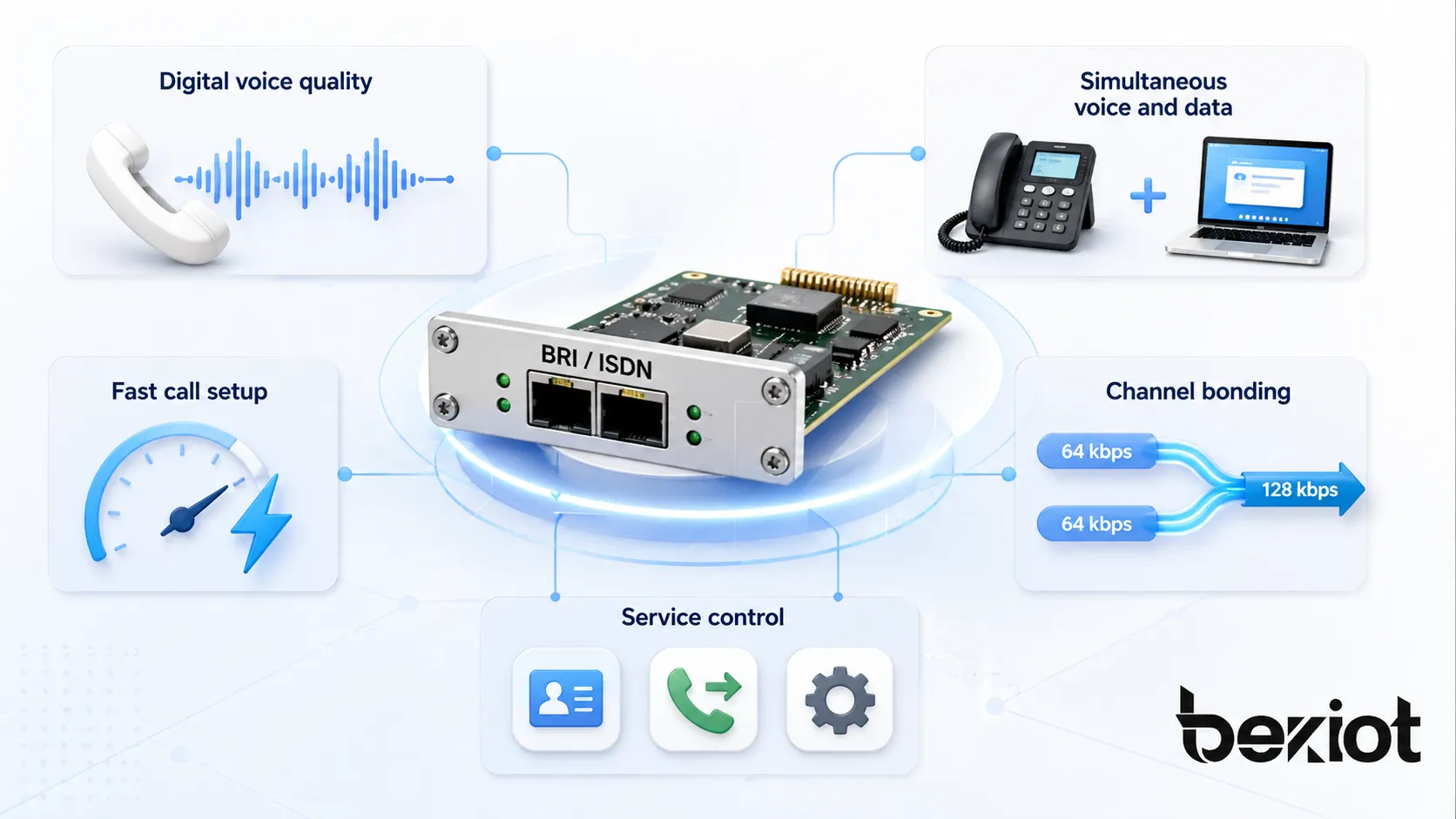

Main Features of BRI

Digital Voice Quality

One important feature of BRI was digital voice quality. Because the connection used digital channels, voice could be carried in a more consistent format than many analog lines. This helped reduce some of the noise and signal degradation associated with analog transmission.

Each B channel could carry a standard digital voice call. For business users, this supported clearer communication and more predictable call behavior. It also made integration with digital PBX systems more straightforward than purely analog trunks.

Although modern VoIP and HD voice technologies have moved far beyond traditional ISDN quality, BRI was an important step in the transition from analog to digital telephony.

Simultaneous Voice and Data

BRI allowed users to run voice and data services at the same time. For example, one B channel could be used for a voice call while the other B channel carried data. Alternatively, both B channels could be used for two voice calls, or both could be combined for a faster data connection.

This flexibility was valuable for small offices. A business could support a phone call and a data connection over one BRI service, or use both channels for communication when needed. This was more efficient than having separate analog lines for every possible function.

The ability to combine or separate channels made BRI a practical multi-service access method in its era.

Fast Call Setup and Signaling Control

Because BRI used a dedicated D channel for signaling, call setup could be faster and more structured than many analog call arrangements. The signaling channel carried call control information separately from the B channels, allowing the network to manage call states more efficiently.

This also supported supplementary services such as caller identification, multiple subscriber numbers, call forwarding, call waiting, and other network-based functions depending on the carrier and equipment.

These features helped make ISDN more advanced than basic analog telephone service, especially for business and professional communication users.

Benefits of BRI

More Flexible Than a Single Analog Line

A single analog line generally supports one call or one data session at a time. BRI provides two B channels, allowing more flexible use. A user may make two calls, run a call and a data session, or bond channels for improved data speed.

This made BRI attractive for small businesses that needed more than a basic phone line but did not require a large trunk service. It also supported professional users who needed reliable digital access for remote work, early internet connectivity, or video communication.

The benefit was not only higher capacity, but also better control over how that capacity could be used.

Integrated Voice and Data Services

BRI supported the ISDN vision of integrated services. Instead of using completely separate systems for voice, fax, video, and data, users could access several digital services through one standardized interface. This was a major concept at a time when telecommunications and computer networking were becoming more connected.

For small offices, integrated access could reduce the need for multiple separate lines. For service providers, ISDN offered a standardized way to deliver digital services over existing network infrastructure.

Although modern IP networks now provide much broader integration, BRI was one of the earlier practical examples of multi-service digital access.

Reliable Legacy Connectivity

In some environments, BRI remained useful for legacy connectivity long after newer broadband services became available. Certain PBX systems, alarms, video conferencing devices, remote access systems, and specialized communication terminals were designed around ISDN interfaces.

For organizations maintaining older systems, understanding BRI is important for troubleshooting, migration planning, and interoperability. Even when BRI service is being retired, its role in existing systems may need to be considered carefully before replacement.

This legacy value is one reason BRI remains relevant as a technical concept, even if it is no longer the preferred modern access technology.

Applications of BRI

Small Office and Home Office Communication

One of the traditional applications of BRI was small office and home office communication. A small business could use BRI for two digital voice lines, or for one voice line and one data connection. This provided more flexibility than a single analog line without requiring a high-capacity trunk.

BRI was also used by professionals who needed reliable dial-up digital access before broadband was widely available. In some cases, the two B channels could be bonded to create a 128 kbps data connection for remote work or early internet access.

For its time, this was a useful option for users who needed better performance and service control than analog dial-up.

PBX and Business Telephony

BRI was used in small PBX systems to connect office telephones to the public network. A small organization could use one or more BRI lines to support several users, depending on call volume. The PBX could manage internal extensions while the BRI line provided outside network access.

Some PBX systems also used BRI for backup, overflow, or specific service functions. Because BRI provided digital signaling, it could support more advanced call control than basic analog trunks in many cases.

While larger organizations usually preferred PRI or later SIP trunks, BRI filled an important role for smaller sites and branch offices.

Video Conferencing and Remote Access

Before broadband and IP video became common, ISDN BRI was widely used for video conferencing. Multiple BRI lines could be combined to provide enough bandwidth for video calls. Although the video quality was limited compared with modern standards, ISDN video conferencing was an important business tool in its time.

BRI was also used for remote network access. Remote offices, field staff, and professional users could dial into corporate systems using ISDN routers or terminal adapters. The connection was more predictable than many analog modem links.

These applications show how BRI supported early forms of digital collaboration and remote connectivity before modern broadband became common.

Fax, Alarm, and Specialized Equipment

Some fax, alarm, point-of-sale, control, and specialized communication systems used BRI or ISDN-compatible interfaces. In certain professional and industrial environments, ISDN offered a stable and standardized digital service that could be used for specific equipment requirements.

However, as carriers retire ISDN services in many regions, these applications may need migration planning. Organizations may need to replace old equipment, use gateways, or move services to IP-based alternatives.

Understanding the original BRI application helps ensure that migration does not accidentally break dependent services.

Limitations of BRI

Low Bandwidth by Modern Standards

The most obvious limitation of BRI is bandwidth. Two 64 kbps B channels were useful in the past, but they are extremely limited compared with modern broadband, fiber, LTE, 5G, and Ethernet services. A bonded 128 kbps data connection is no longer sufficient for modern web applications, cloud services, video meetings, large file transfers, or software updates.

This limitation is one of the main reasons BRI has been replaced in many environments. Modern applications need far more capacity and more flexible packet-based networking than BRI can provide.

BRI remains useful mainly as a legacy concept, a historical access technology, or a migration consideration.

Service Availability and Carrier Retirement

Another limitation is service availability. Many telecommunications providers have reduced or retired ISDN services as networks move toward IP, fiber, and all-digital packet infrastructure. In some regions, ordering new BRI service may be difficult or impossible.

Organizations that still depend on BRI should check carrier plans and service timelines. If a provider intends to retire ISDN, the organization may need to migrate to SIP trunks, IP telephony, broadband access, cellular backup, or another suitable alternative.

Waiting until service withdrawal can create operational risk, especially if the BRI line supports important voice, fax, alarm, or control functions.

Complexity Compared With Modern IP Services

BRI can also be complex compared with modern IP services. It may involve specific interface types, termination devices, signaling settings, numbering plans, service profiles, and regional variations. Troubleshooting may require knowledge of ISDN protocols and carrier configuration.

Modern IP services are not always simple, but they are more aligned with current networking skills and infrastructure. SIP, Ethernet, broadband, and cloud communication platforms usually integrate more naturally with current IT environments.

This makes BRI less attractive for new deployments, even where it is technically still available.

BRI in Modern Migration Planning

Why Organizations Still Need to Understand BRI

Even though BRI is no longer a leading access technology, organizations may still encounter it in legacy systems. A building may have an old PBX connected through BRI. A video conferencing room may still have ISDN configuration. A fax or alarm system may depend on an ISDN terminal adapter. A remote site may still use BRI as a backup line.

Understanding BRI helps administrators identify what the line does, which devices depend on it, and what must be replaced before the service is removed. Without this understanding, a migration project may overlook small but important services.

BRI knowledge is therefore useful for audits, telecom inventory, system modernization, and risk reduction during migration.

Common Replacement Options

Common replacements for BRI include SIP trunks, hosted voice services, IP PBX systems, fiber broadband, Ethernet access, mobile data backup, cloud communication platforms, and specialized gateways. The best replacement depends on what the BRI service was originally used for.

If the BRI line supported voice trunks, SIP trunking or hosted voice may be appropriate. If it supported data access, broadband or Ethernet may be the better option. If it supported a legacy fax or alarm device, the migration may require equipment replacement or a carefully tested gateway.

Migration should focus on service function rather than only line replacement. The goal is to preserve or improve the original communication purpose using modern infrastructure.

BRI migration should begin with a service audit: what uses the line, why it exists, and what modern technology can replace that function safely.

BRI Versus Modern IP Communication

Channelized Circuits Versus Packet-Based Networks

BRI is based on channelized digital circuits. Each B channel provides a defined 64 kbps path for a call or data session. This model is predictable but limited. Modern IP communication uses packet-based networks, where voice, video, data, messaging, and applications share network capacity dynamically.

Packet-based communication is far more scalable and flexible. It can support many sessions, higher bandwidth, advanced codecs, cloud integration, remote management, and unified communication features. It also aligns with Ethernet, broadband, Wi-Fi, mobile networks, and data center architecture.

The transition from BRI to IP communication reflects the wider shift from circuit-switched networks to packet-switched networks.

Why BRI Still Matters Conceptually

BRI still matters conceptually because it illustrates several important telecommunications principles. It shows how voice and data were integrated before modern IP networks. It demonstrates the value of separate signaling and bearer channels. It also explains why digital access services were so important in the transition away from analog telephony.

For engineers, system integrators, and telecom planners, BRI knowledge helps when reading old system documentation, troubleshooting legacy PBX connections, planning ISDN retirement, or interpreting historical network designs.

BRI may no longer be the future of communication access, but it remains part of the foundation that shaped digital telephony.

Maintenance and Troubleshooting Considerations

Check Channel Status and Line Synchronization

When troubleshooting BRI, technicians often check line synchronization, B channel status, D channel signaling, terminal configuration, and network termination status. If the D channel is not working, call setup may fail even if the physical line appears active. If one B channel is unavailable, the line may only support one call instead of two.

Equipment logs and carrier diagnostics can help identify whether the problem is on the customer equipment side, the network termination side, or the provider side. Because BRI involves both local equipment and carrier service, troubleshooting may require coordination with the service provider.

Proper documentation of line numbers, service profiles, connected devices, and interface types makes troubleshooting easier.

Document Legacy Dependencies

For organizations still using BRI, documentation is especially important. The line may support a small but important function that is easy to overlook, such as a fax path, alarm connection, backup voice line, or old video conferencing device.

Maintenance teams should document what the BRI line connects to, who uses it, what numbers are assigned, what service features are enabled, and what would happen if the line failed. This information is valuable for both troubleshooting and migration planning.

Legacy technologies often become risky when nobody remembers exactly why they are still installed. Clear documentation reduces that risk.

Conclusion

Basic Rate Interface (BRI) is an ISDN access method that provides two 64 kbps B channels and one 16 kbps D channel, commonly described as 2B+D. The B channels carry user traffic such as voice, data, fax, or video, while the D channel carries signaling and control information. This design allowed small users to access digital communication services through a structured and flexible interface.

BRI was historically important for small offices, home offices, PBX connections, early data access, video conferencing, fax, remote access, and specialized communication systems. Its main benefits included digital voice quality, simultaneous voice and data, faster signaling, channel bonding, and integrated service support.

Today, BRI has largely been replaced by broadband, SIP trunks, Ethernet access, fiber, mobile data, and cloud communication platforms. However, it remains important for understanding legacy telecom systems and planning safe migration away from ISDN-based services. A comprehensive understanding of BRI helps organizations maintain older systems, identify hidden dependencies, and transition toward modern IP communication with fewer risks.

FAQ

What is BRI in simple terms?

BRI, or Basic Rate Interface, is an ISDN service that provides two 64 kbps channels for voice or data and one 16 kbps channel for signaling.

It was commonly used for small-office digital voice, data, fax, and early remote access services.

What does 2B+D mean in BRI?

2B+D means two B channels and one D channel. The B channels carry user traffic such as voice or data. The D channel carries signaling information used for call setup, call control, and service management.

This channel structure is the core design of Basic Rate Interface.

Is BRI still used today?

BRI is still found in some legacy systems, but it has been replaced in many regions by IP-based services, SIP trunks, broadband, fiber, and cloud communication platforms.

Organizations that still depend on BRI should document its use and plan migration before carrier ISDN retirement affects service.
