PAGA System for Mining Applications

Introduction

Mining operations require robust communication systems to ensure safety, coordination, and efficiency. A SIP-based PAGA (Public Address and General Alarm) system is an integrated communications solution tailored for mining environments. PAGA systems combine public address, general alarm, and intercom functionality into a single networked platform, leveraging Voice over IP (VoIP) technology. In mining, such a system provides a reliable voice communication backbone for operations ranging from daily announcements to emergency response. This report outlines the technical design of a SIP PAGA system for mining applications, including its architecture, components, features, hardware/network requirements, compliance standards, deployment considerations, and case studies demonstrating its benefits.

System Architecture

The SIP PAGA system is designed as a distributed network that can cover large mine sites, from underground tunnels to surface facilities. The architecture typically consists of central servers (PAGA hosts), remote control stations, and various terminal devices spread across the mine. These components are interconnected via a local area network (LAN) or dedicated IP infrastructure, ensuring secure and high-bandwidth communication even in harsh environments.

1、System Components

The PAGA system can be broken down into three main parts :

• PAGA Host (Server) – The core of the system is one or more servers that function as the PAGA controller. This host runs the SIP-based PAGA software and may include IP PBX (Private Branch Exchange) capabilities to manage calls and broadcasts. It provides interfaces for the control stations and integrates with the network infrastructure. In a typical configuration, the PAGA host includes an audio/media module and a power amplifier module, all rack-mounted for ease of deployment . The host may also support redundant units for failover, ensuring continuous operation in case of a server failure . The host typically has a dual-redundant architecture with two servers for continuous operation.
• Operating Stations (Control Consoles) – These are the user interfaces through which personnel manage the PAGA system. The system can have a main control station (e.g. at the mine control center) and additional remote control stations (e.g. at a surface office or underground command post). Operating stations typically include a computer or console with a graphical user interface (GUI) for configuration and control. They provide access to features such as microphone paging, zone selection, and emergency alarm triggering. In some systems, the operating station can be a PC running the PAGA software, or a dedicated dispatcher console. The control station is often connected via the network to the PAGA host and includes features like a dispatch microphone, speaker, and buttons for zone selection and emergency activation . It may also support integration with existing mine systems, such as connecting to video surveillance or safety monitoring displays.
• Terminal Devices – These are the endpoints that users interact with or that receive audio signals. Terminal devices include intercom phones, speakers, emergency alarm units, and announcement microphones. In a mining context, these devices are ruggedized and may be explosion-proof to meet hazardous area requirements. Key terminal devices include:

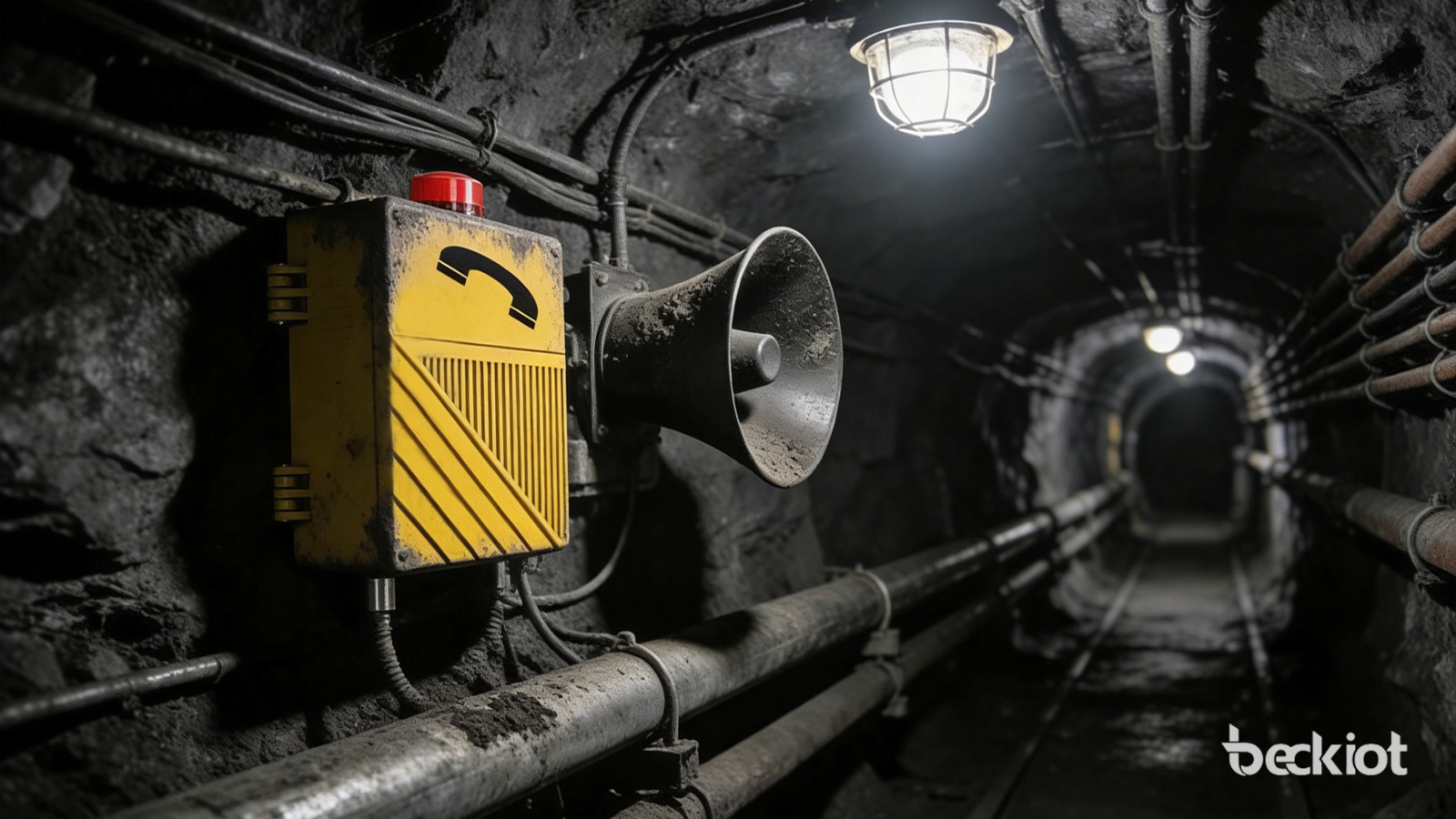

  • IP Intercom Phones – Wired or wireless IP-based phones installed throughout the mine. These phones can be used for two-way communication (handset and speakerphone modes) and often include a loudspeaker for group calls. They may have features like speed-dial, hotline buttons, and emergency call buttons. For example, a SIP-compatible mining phone might support RJ45 networking and PoE power, with a built-in microphone and speaker, and a visual alarm indicator when called . These phones allow miners to initiate calls to the control center or to other phones, and they can receive emergency broadcasts.
  • Speakers (PA Loudspeakers) – Distributed speakers (with amplifiers) for public address. These can be ceiling speakers, horn speakers, or directional speakers placed in strategic locations. They receive audio from the PAGA system and broadcast it to the area. In hazardous zones, speakers are typically explosion-proof (Ex) and rated for the appropriate gas or dust environment. They are often rated for 70V or 100V line distribution for easy zone control . The PAGA system can be configured to broadcast to individual zones or groups of zones, allowing targeted announcements.
  • Emergency Alarm Units – Devices that combine audible and visual alarms for general emergency notifications. These are usually standalone units or integrated with speakers. An emergency alarm might include a high-decibel siren and strobe light to alert personnel. In a SIP PAGA system, these units can be network-enabled and triggered remotely or via wired inputs. For example, a wall-mounted alarm station might have a push-button to trigger an alarm signal, which the PAGA system will broadcast. The PAGA host can store pre-recorded alarm tones or messages (e.g. fire alarm, gas alarm tones) and play them out through the speakers . These alarms are crucial for evacuations and safety alerts.
  • Announcement Microphones – Microphones used by dispatchers or supervisors to make announcements. Typically, a unidirectional dynamic microphone is provided at the central control station for public address . This microphone is connected to the PAGA system and can be used to broadcast messages to the entire mine or specific zones. Some systems also allow for remote microphones at other locations (e.g. on a mobile device) that can trigger announcements . The microphones are often mounted on stands or brackets and have a built-in on/off switch for convenience .

The components are interconnected via a network. The PAGA host and control stations run on standard IP networks (LAN or WAN) using Ethernet switches. The terminal devices are typically connected via IP (with PoE power) or via analog lines (with IP gateways). The system is designed to be scalable, so additional devices (phones, speakers, amplifiers) can be added as needed.

2、Communication Protocols

The PAGA system is built on Voice over IP (VoIP) technology, using the Session Initiation Protocol (SIP) for call signaling and Real-Time Transport Protocol (RTP) for media streaming. SIP is an open standard that allows devices to register, dial, and communicate in a network, making it ideal for a converged communications system. The use of SIP means the PAGA system can integrate with other SIP-based systems (such as standard VoIP phones or SIP trunking) and can leverage IP network features like Quality of Service (QoS) for voice traffic.
In addition to SIP, the system may incorporate other protocols for integration:

• SIP Trunking and Interoperability – The PAGA host can function as an IP PBX, providing SIP trunking capability to connect with external telephone networks. This allows the mine to have SIP-compatible intercom phones that can also call external landlines or mobile phones if needed. Some systems support bridging with other SIP-based PBX systems (e.g. Cisco, Avaya, 3CX) to enable cross-network calling . This interoperability ensures that dispatchers can communicate with outside parties or other mines when necessary.
• Analog Interfaces – To support legacy equipment, the system may include analog-to-digital gateways. For example, if a mine still uses analog extension phones or external communication devices, these can be connected via analog lines and an IAD (Integrated Access Device) that converts analog signals to SIP. Some PAGA systems include analog voice cards or gateways to interface with traditional mine phones or public telephones . This flexibility ensures the system can coexist with existing infrastructure.
• Integration with Other Systems – The PAGA system is designed to integrate with safety and monitoring systems in the mine. For instance, it can be linked with fire detection panels, gas sensors, or personnel tracking systems. A common integration is with fire alarm systems: when a fire alarm is triggered, the PAGA host can receive an input signal and automatically play a pre-recorded evacuation alarm or message . Similarly, the system can receive inputs from mine ventilation controls or emergency shutdown systems to initiate alarms or announcements. Such integration is typically done via relay contacts or I/O modules that connect to the PAGA host, allowing “trigger-and-broadcast” functionality . The PAGA system provides multiple I/O interfaces for connecting to other systems, enabling a wide range of emergency scenarios . Additionally, the PAGA host can have API or software interfaces to communicate with SCADA or monitoring software, allowing for coordinated responses (e.g. stopping machinery or locking doors when an alarm is triggered).

Overall, the architecture is modular and scalable, with a clear separation between core control, user interfaces, and end devices. This design ensures that the system can be deployed in phases and can grow with the mine’s needs. The next section details the functional specifications of the SIP PAGA system, including how these components work together to deliver various communication services.

Functional Specifications

The SIP PAGA system offers a suite of communication services tailored to mining operations. Key functionalities include public address (PA) announcements, conference calling, trunked intercom capabilities, emergency alarm triggering, and integration with safety systems. Below is a detailed breakdown of each functional area:

1、Public Address (PA) System

The public address function is the primary use of the PAGA system, enabling clear and reliable voice announcements across the mine. Users (typically dispatchers or supervisors) can broadcast messages to one or more zones or to the entire mine. The system supports single-point or zone-based announcements . For example, a dispatcher can select a specific section of the mine or a group of speakers and make an announcement that only those areas hear. Conversely, a general announcement can be made to all zones simultaneously.
Announcements can be made in real-time via a microphone or via pre-recorded audio files. A unidirectional dynamic microphone at the control station is provided for immediate announcements . The microphone is connected to the PAGA host and has an on/off switch for easy use . When activated, the microphone captures the speaker’s voice and streams it via SIP to the relevant speakers. The system ensures that the voice is amplified and delivered at sufficient volume to be heard in noisy environments. It also provides tone generators for chimes or alert tones. For instance, when a remote microphone is activated (like a hand-held unit), a configurable chime (single-tone, two-tone, or four-tone) can be generated to alert that an announcement is being made .
Additionally, the system supports playback of recorded audio files. The PAGA host can store audio files (e.g. safety messages, music for shifts, or emergency tones) and schedule or trigger them to play out. This is useful for regular announcements or for emergency messages that are repeated. The system allows scheduled broadcasting – for example, a daily safety briefing can be set to play at a specific time . The system may also provide remote playback capability: personnel at remote locations can use mobile devices (e.g. smartphones or tablets) running an app to play out pre-recorded audio messages to the PA system . This flexibility ensures that announcements can be made from anywhere on the network.
Sound quality and coverage are critical in PA systems. The system is designed to ensure that the broadcast sound pressure level (SPL) is sufficiently high to be heard over ambient noise. It also avoids acoustic feedback by using proper audio processing and ensuring speakers are placed appropriately. The audio system is engineered to provide a clear and intelligible broadcast, meeting the requirements of speech intelligibility in industrial settings. All speakers are connected with appropriate transformers to prevent overloading and to ensure even volume distribution . The system includes monitor panels for each zone to allow visual monitoring of output levels, ensuring the broadcast is not too quiet or too loud .

2、Conference Functionality

The PAGA system supports conference calling and group communication features, enabling multiple users to communicate simultaneously. This is useful for meetings, team briefings, or emergency coordination. Users can initiate a conference call to a group of intercom devices or phones. For example, a dispatcher can hold a conference between the control center and several remote locations or between multiple mine sites. The system allows group paging intercom – all terminals in the system can be grouped into separate conference groups for discussion or broadcast . The maximum number of members per group and the number of groups are often configurable (for instance, up to 30 members per group and 20 groups in some systems) . This flexibility allows the system to accommodate different team sizes and scenarios.
Each user in the conference can speak and be heard by others, with the audio mixed at the PAGA host. The system supports full-duplex audio so that all participants can talk and listen at the same time, much like a conference call on a standard phone system. The PAGA host can manage conference sessions, allowing users to join, leave, or be added to the conference as needed. The system also provides features such as conference hold, mute, and transfer, depending on the configuration.
For example, during a mine emergency, a conference can be set up between the control center and several remote locations to coordinate an evacuation. Each miner at those locations can hear the dispatcher’s instructions and can also communicate among themselves. This real-time communication helps in quick decision-making and ensures everyone is on the same page. The conference functionality is integrated with the intercom system, meaning that any intercom phone or terminal can join or initiate a conference call. The PAGA host may also support bridging with external SIP devices, enabling conference calls with outside personnel (such as emergency responders or contractors).

3、Trunked Intercom Features

Trunked intercom refers to the ability to manage multiple calls and users efficiently on a shared network. In a mining context, trunking is valuable because it allows many users (miners, vehicles, equipment operators) to communicate without tying up separate channels. The SIP PAGA system can function as an IP-PBX with trunking capabilities, providing features like call routing, call waiting, call transfer, and call queuing for multiple users.
Key trunked intercom features include:

• Multi-User Communication – The system can handle simultaneous calls to different users or groups. For instance, a dispatcher can be on a call with one miner while another miner calls in for assistance, and the system will route both calls appropriately. It can support multiple concurrent calls and even multi-party conferences. The PAGA host’s architecture is designed to scale to large numbers of users (typically hundreds of phones and devices can be supported in a networked system).
• Call Queuing and Agent Handling – In a call center or dispatch scenario, the system can manage a call queue. If the control center is busy, incoming calls from miners can be placed in a queue and an available dispatcher can pick them up. The system can also provide features like call transfer (one user’s call can be transferred to another) and call park (a call can be parked at a certain extension for later retrieval).
• Call Routing and Prioritization – The PAGA system can route calls based on predefined rules. For example, calls from certain high-priority zones (like emergency buttons) can be routed directly to the control center, bypassing queues. The system can implement emergency call prioritization, ensuring that critical calls (such as an alarm or an emergency call button press) take precedence over routine calls. This is often done via SIP priority signaling or by dedicated emergency lines.
• Voice Mail and Recording – Many SIP PBX systems include voicemail functionality. The PAGA system can be configured to allow users to leave voicemail messages for each other. This is useful if someone is not available to take a call immediately. The system also typically provides call recording features. All calls and announcements can be recorded for compliance, training, or auditing purposes . The recordings can be stored on the PAGA server and accessed by authorized personnel.
• Remote User Access – If the mine has remote personnel (e.g. managers at an office or emergency responders at a base camp), the PAGA system can allow them to connect via SIP softphones. This means they can participate in conferences, receive announcements, or make calls as if they were physically on-site. The system supports integration with standard SIP clients (like softphones on computers or smartphones) and can provide remote access features with proper security (e.g. VPN or secure credentials).

By combining these features, the PAGA system provides a trunked intercom network that is scalable and efficient. It can handle the high volume of communications in a mining operation, from routine check-ins to emergency calls, all on a single IP network. The trunking capabilities ensure that communication resources are utilized optimally, and that critical communications are not lost or delayed.

4、Alarm and Emergency Features

One of the most crucial aspects of the PAGA system is its ability to handle emergency situations. The system acts as a general alarm system that can be triggered by both manual and automatic inputs. It supports both general alarm (GA) and emergency call functions, enabling rapid communication of critical events.
Manual Alarm Activation: Operators at the control station can manually trigger alarms for specific zones or for the entire mine. The system provides dedicated alarm buttons on the control console for different types of emergencies (e.g. fire, gas leak, abandon mine) . Each button can be programmed to play a specific alarm tone or message. For example, pressing the “Fire Alarm” button might trigger a pre-recorded alarm tone (such as a continuous 110 Hz tone) and an evacuation message . Similarly, a “Gas Leak” button could play a different tone or message. The system can also allow remote manual activation: emergency buttons located at strategic points (like in underground tunnels or at surface equipment) can be wired to the PAGA system and will trigger an alarm when pressed. These remote alarm stations might include a strobe light and siren as well to alert nearby personnel that an alarm has been triggered.
Automatic Alarm Triggering: The PAGA system is designed to integrate with other safety systems to initiate alarms automatically. This is a key feature for emergency response. For instance, if a fire detection panel detects smoke or heat, it can send a signal (via a dry contact or I/O interface) to the PAGA host, which then triggers the fire alarm tone and announcement . Similarly, gas detectors can send signals when gas levels exceed safe limits, prompting the system to play an evacuation alarm. The PAGA host stores a library of alarm sounds (often dozens of different tones and messages) to cover various scenarios . These can be configured to be played automatically when specific inputs are received. The system can also be set up to broadcast a generic alarm (e.g. “Emergency: Evacuate Now”) whenever any emergency input is detected, regardless of the type of hazard.
Emergency Call and Evacuation: In addition to general alarms, the PAGA system supports emergency call functionality. Miners can have dedicated emergency call buttons on their phones or devices. Pressing the emergency button on a phone will typically alert the control center immediately and can initiate a call or broadcast. The system can be configured so that an emergency call from any miner takes precedence over other calls (often called “priority” or “emergency call” mode). When an emergency call is received, the control center’s console will ring or flash to indicate a critical call. The dispatcher can then pick up the call and communicate with the miner in distress. The PAGA system can also be used to broadcast an evacuation order to all areas when an emergency is declared. This might involve stopping any ongoing announcements and playing a standard evacuation message (e.g. “Attention: Evacuation order, proceed to nearest exit”). The system ensures that the evacuation message is heard clearly and that all speakers are activated simultaneously.
Interoperability with Safety Systems: The integration with other safety systems (like fire, gas, ventilation, etc.) is crucial for coordinated emergency response. The PAGA system provides multiple interfaces (digital I/O ports, relays) that can be connected to these systems. For example, it can interface with mine ventilation control systems – if ventilation is compromised, the PAGA system can trigger an alarm or an announcement to evacuate. It can also interface with emergency shutdown systems (ESD) – if an ESD is activated due to a hazard, the PAGA system can broadcast an emergency alert. The system can be programmed to play different messages for different triggers. For instance, it might play a different tone and message for a gas leak versus a roof fall, though often a general evacuation tone is used for any major emergency. The PAGA host may also support integration with external security or alarm systems via standard protocols (such as MODBUS or SNMP) to receive and send alarm statuses . This comprehensive integration ensures that the PAGA system is a central part of the mine’s emergency management.
Redundancy and Reliability: In an emergency, reliability is paramount. The PAGA system is designed with redundancy to ensure continuous operation. It typically uses dual controllers (main and backup) that are synchronized . If the main server fails, the backup server can take over immediately, preventing any interruption in service. All critical communications (alarms, calls) are logged and mirrored between the servers. Additionally, the network and terminal devices are often redundant. For example, each zone might have dual speakers or amplifiers so that if one fails, the other can still broadcast. Some systems include backup power for the servers and network switches, so that even if the mine power fails, the PAGA system can continue to operate for a certain period (e.g. via battery backup or UPS) to allow evacuation announcements. The system also includes diagnostic features: it can perform self-checks on all speakers and devices, and if any component fails, it can alert the control center (e.g. a “speaker fault” message can be displayed). This proactive monitoring helps in maintaining the system’s readiness for emergencies.
Overall, the alarm and emergency features of the SIP PAGA system ensure that the mine can quickly alert and communicate with personnel in case of any hazard. By integrating with safety sensors and providing multiple channels (audio, visual, wired, wireless), the system enhances response times and improves the safety of all mine operations.

5、Additional Features

In addition to the core PA, conference, intercom, and alarm functions, the SIP PAGA system offers several other useful features:

• Voice Mail and Messaging: As mentioned earlier, the system can support voicemail. Users can leave messages for each other, which can be accessed later. This is useful for non-urgent communications or for situations where a dispatcher is unavailable. Some systems allow text-to-speech (TTS) conversion of messages, which can be read aloud to users who may not have a phone handy.
• Integration with CCTV: Many modern PAGA systems can integrate with video surveillance systems. For example, when an emergency call is received, the system can automatically switch on relevant cameras and display the video feed on the control console . This visual confirmation helps dispatchers assess the situation. Similarly, if a miner triggers an alarm, the system can show the location on a digital map and pop up the camera view for that area.
• Logging and Reporting: The system maintains detailed logs of all calls, announcements, and alarm events. This is important for compliance and incident analysis. The logs can record timestamps, durations, participants, and the status of each event. Some systems provide graphical dashboards or reports that can be used to monitor communication patterns or to generate reports for safety audits.
• Maintenance and Diagnostics: The PAGA system includes diagnostic tools to monitor the health of the system. For instance, it can check the status of each speaker (online/offline), the signal strength of wireless devices, and the performance of the network. If a device is offline or a fault is detected, it can send an alert to the control console. This helps maintenance teams keep the system in good working order. The system also often includes a test mode, allowing periodic testing of speakers and alarms without triggering a real emergency.
• Scalability and Flexibility: The system is designed to be scalable and adaptable. New intercom devices can be added to the network by simply connecting them to the IP network. The PAGA host can support a large number of devices (hundreds of endpoints) and can be expanded by adding more servers or audio amplifiers. This flexibility means the system can grow with the mine’s expansion. It can also be configured to different layouts: for example, an underground mine might have a different set of zones than a surface processing plant, and the system can be tailored to those needs.
• Mobile Accessibility: In some implementations, the PAGA system can be accessed via mobile devices. This can be through an app that allows users to initiate calls or play announcements from their smartphones, or through a web interface that can be accessed on a tablet or phone. This is particularly useful for remote workers or for emergencies where a dispatcher might be on the move.

These additional features enhance the overall functionality of the SIP PAGA system, making it a comprehensive communications solution for mining. The next section discusses the hardware and network requirements necessary to support this system in a mining environment.

Hardware and Network Requirements

Implementing a SIP PAGA system in a mining operation requires careful consideration of both hardware components and network infrastructure. The hardware must be rugged and meet safety standards, while the network must be reliable and robust enough to handle voice traffic in harsh conditions. Below are the key requirements for hardware and network:

1、Hardware Components

PAGA Host Server: The PAGA host is the central server that runs the SIP PAGA software. It should be a high-performance industrial-grade server. In a mine, it’s typically installed in a climate-controlled server room or a protected equipment rack. The server must have sufficient processing power to handle multiple concurrent calls and media streams, as well as storage for recorded audio and logs. It should be redundant (with a backup server) to ensure continuous operation . The server’s operating system is often a real-time or Linux-based OS optimized for VoIP, and it runs the PAGA software (which may include PBX functionality). The host may also include an audio media module that provides analog audio outputs for connecting to amplifiers, and a power amplifier module to drive the PA speakers . The entire host unit is typically 19-inch rack-mountable for easy installation . In some configurations, the PAGA host can be powered by the mine’s electrical supply with an uninterruptible power supply (UPS) for backup power during outages .
Control Stations: The operating stations (consoles) are typically desktop computers or touch-screen panels running the PAGA software. These should be located in areas like the mine control center, shift office, or surface administration building. They are connected to the network and to the PAGA host via Ethernet. The control station hardware requirements are modest – a standard PC with sufficient CPU and memory to run the GUI and handle SIP calls. However, the control station should have good audio capabilities: a microphone (for announcements) and a speaker (for monitoring audio). Some systems use specialized dispatch consoles with integrated microphone and speaker units. The control station may also include an alarm annunciator panel or screen to display zone status and alarm events.
Intercom Terminals: The intercom phones and devices are the endpoints that miners and personnel use. These must be rugged and suitable for the mine environment. Key requirements for intercom terminals:

• Rugged and Reliable: They should be designed to withstand dust, moisture, and shock. They may be encased in metal or robust plastic. For underground mines, they should be explosion-proof if operating in gas or dust hazardous atmospheres . In surface areas, they need to be weather-resistant. Many mining phones are IP-rated (e.g. IP65 or higher) to protect against ingress of dust and water .
• Handset and Speakerphone: Each phone should have a handset (with a microphone and speaker) for private communication, as well as a speakerphone mode for group calls or announcements. The speaker should be loud enough to be heard in noisy conditions (typically rated 85 dB or more). The handset should be comfortable and easy to hold, even for miners wearing gloves.
• Emergency Features: Many intercom phones have dedicated emergency call buttons. These buttons are typically large and easy to press, and they are often illuminated or have a red color to stand out. Pressing the emergency button should trigger an immediate alert to the control center. Some phones may also have a “panic” or “abandon” button that initiates a specific alarm.
• Network Connectivity: Most modern mining phones use an RJ45 Ethernet connection. Many support PoE (Power over Ethernet) for easy installation – a single cable provides both data and power. This is convenient in mines where running separate power lines is impractical. The phones are often SIP-compliant, meaning they register with the PAGA host server and can be configured via a web interface. They should support standard SIP features like speed dial, hotline, and auto-answer.
• Display and Keypad: Some phones may have a small display or LED indicators to show call status (e.g. incoming call, busy, offline). A numeric keypad is provided for dialing extensions. In some cases, the phone may have additional buttons for quick dialing or for triggering different functions.
• Audio Quality: The audio codec used (e.g. G.711, Opus) should be chosen for good voice quality and low latency. The phones should also have noise-cancellation technology to filter out background noise (common in mining equipment) so that speech is clear.

Speakers and Amplifiers: The speakers and amplifiers are the devices that broadcast the audio. Key requirements:

• Explosion-Proof Rating: In underground mines, speakers in areas where explosive gas or dust may be present must be certified for hazardous locations. They are typically marked with an “Ex” symbol (e.g. Ex d IIC T6 for gas, or Ex t D A20 for dust) indicating they meet the necessary explosion-proof standards . These ratings ensure the speaker can be used in the designated zone without causing an explosion. For example, a gas-rated speaker (Ex d IIC T6) can be used in Zone 1 (where flammable gas might be present) as long as its surface temperature remains below the ignition temperature of the gas . Similarly, dust-rated speakers are used in dusty environments.
• Coverage and SPL: The speakers should be chosen based on the coverage area and required sound level. For instance, in a noisy underground area, a speaker with a higher wattage or higher SPL rating is needed to be heard. Horn speakers are commonly used for outdoor or large areas due to their directional and high-output capabilities. The system typically uses a distributed amplifier system (e.g. 70V or 100V line) so that multiple speakers can be driven from a central amplifier. Each zone can have its own amplifier and speakers. The amplifiers should be rated for the combined power of all speakers in that zone and should have volume controls for each zone . Volume attenuators may be installed in certain areas (like meeting rooms or offices) so that users can adjust local volume .
• Durability: Speakers should be able to withstand vibration, temperature fluctuations, and dust. They are often mounted on walls or poles and should be secured to prevent damage. In corrosive environments (e.g. near chemical plants), stainless steel or corrosion-resistant speakers may be used.
• Maintenance Features: Some speakers come with built-in diagnostic features. For example, a speaker might have an LED indicator that shows if it is online and playing audio. If a speaker fails (e.g. blown speaker or disconnected cable), the system should detect it and alert the control center. This can be achieved by the speaker sending a periodic heartbeat signal or by monitoring the audio output. The system should also include a monitoring panel for each zone to allow operators to see the output level of each speaker zone .

Emergency Alarm Units: These units combine a siren and strobe light with the audio. Requirements:

• Sound Level: The siren should be very loud – typically 110 dB or more at 1 meter. It should be capable of producing a distinct alarm tone (e.g. a continuous tone or a series of beeps) that is easily recognizable as an emergency. The strobe light should be bright enough to be seen in most lighting conditions, including daylight. It may be rated for a certain flash rate or be adjustable.
• Explosion-Proof Rating: Like speakers, emergency alarm units used in hazardous areas must be explosion-proof. They are often mounted on walls or ceilings in areas like entrances, tunnels, or equipment areas. The unit may be integrated with a speaker so that both audio and visual alerts are provided. Some units have a built-in speaker that can play messages or tones, while others rely on external speakers. In any case, the unit should be IP-rated for dust and water resistance.
• Control: Emergency alarm units can be triggered by the PAGA system via wired or wireless inputs. They may have a manual activation button (for manual emergency activation) and also be connected to the PAGA system’s alarm matrix. When activated, the siren and strobe should operate continuously until manually stopped or until the emergency is resolved.
• Power Supply: These units often require a separate power supply (since sirens draw significant current). They should be wired to a dedicated power circuit and may have backup batteries for emergency use (so that they continue to operate if the main power fails).

Network Switches and Infrastructure: The network hardware must be robust and redundant. In a mine, the network backbone is typically fiber optic to provide high bandwidth and protection from interference. Each area (surface, underground, equipment areas) should have a reliable Ethernet switch. The switches should be industrial-grade, with rugged enclosures and support for PoE if used. Redundant switches (with ring or mesh topology) are recommended to ensure network continuity – if one switch fails, traffic can reroute through another path. The network should be segregated if possible (e.g. a separate IP network for the PAGA system to ensure it is not affected by other mine systems or external networks). All cables should be properly installed, protected from damage (e.g. underground cables should be in conduit and protected from mining equipment), and have sufficient bandwidth for the expected traffic. Given the importance of the system, it’s common to use a high-speed network (1 Gbps or higher) and implement QoS to prioritize voice traffic over other data.
Power and Backup: The entire system must have a reliable power supply. Mine operations typically have 480V or 600V three-phase power. The PAGA host, switches, and other electronics should be powered via a stable source. A UPS is recommended for the PAGA host and critical network devices to provide backup power in case of power outages. For underground areas, where mains power might be intermittent or not available, alternative power sources (like battery packs or solar-powered systems) might be used for certain devices. However, for the PAGA host and main amplifiers, it’s preferable to have grid power with UPS backup. In some cases, diesel generators can be used as a long-term backup. It’s important to ensure that if power is lost, the PAGA system can still broadcast emergency messages (for example, by having battery-powered speakers or amplifiers that can be activated automatically when power fails).
By meeting these hardware requirements, the SIP PAGA system can be deployed in a manner that is reliable and safe for the mine environment. The next section covers the compliance standards that the system must adhere to, ensuring it meets the necessary safety and quality criteria for mining operations.

Compliance Standards

Implementing a SIP PAGA system in a mining application requires adherence to various international and regional standards. These standards ensure that the system is safe, reliable, and meets the performance requirements for hazardous environments. Below are the key compliance standards and requirements:
International Electrotechnical Commission (IEC) Standards: Many mining communications systems follow IEC standards, especially for hazardous area equipment. For example, explosion-proof equipment must comply with IEC 60079 series standards. The IEC 60079 series covers electrical equipment for explosive gas atmospheres (e.g. IEC 60079-1 for general requirements, IEC 60079-7 for intrinsically safe equipment, IEC 60079-15 for flameproof enclosures, etc.). Similarly, for dust explosive atmospheres, standards like IEC 61241 (for dust-ignition-proof equipment) apply. The SIP PAGA system’s components (speakers, phones, amplifiers) used in explosive zones must be certified to the relevant IECEx or ATEX standards . For instance, an intercom phone marked “Ex d IIC T6” is certified for use in gas explosive atmospheres (Zone 1/2) with a maximum surface temperature of 85°C . These certifications are internationally recognized and allow the equipment to be used in mining operations worldwide . The system may also need to comply with IEC 60079-25 for intrinsic safety of the entire system.
ATEX (Europe) and IECEx (Global) Certification: In Europe, the ATEX Directive (94/9/EC) is applicable for equipment used in explosive atmospheres. ATEX-certified equipment (often marked with the ATEX logo) is approved for use in Zone 1, 2, 21, or 22 areas . For global markets, the IECEx system provides a harmonized certification process so that equipment can be used in multiple countries under one certificate. The SIP PAGA system’s hazardous area components must have valid IECEx or ATEX certificates for the specific zones in which they are installed . This ensures that the equipment has been tested and meets the safety standards for gas or dust explosions. The system integrator or manufacturer should provide documentation of these certifications.
North American Standards (UL, CSA, MSHA): In North America, mining communications equipment must comply with standards set by the Mine Safety and Health Administration (MSHA) and other agencies. MSHA requires that electrical equipment used in underground mines be “permissible,” meaning it will not cause an explosion. This typically means equipment is either explosion-proof (XP) or intrinsically safe (IS) . Explosion-proof equipment is designed to contain an internal explosion without igniting the surrounding gas. Intrinsically safe equipment is designed to not release enough energy to ignite the gas, even if a fault occurs. The PAGA system’s underground components (phones, speakers, amplifiers) must be MSHA-approved as permissible. For example, the PAGA host (if located underground) might need to be in an explosion-proof enclosure. Phones and speakers must be MSHA-certified for the specific mine classification (e.g. Class I, Division 1 for gas, or Class II, Division 1 for dust). The system may also need to comply with Underwriters Laboratories (UL) standards for fire alarm systems (UL 268) if it is used as a fire alarm communication system, or UL 1971 for emergency notification systems . Additionally, Canadian Standards Association (CSA) standards are applicable for Canadian mines.
ISO and IEC Safety Standards: The system should also meet general safety and quality standards. For example, the audio quality and performance should meet or exceed ISO 21510 standards for speech intelligibility in noise, and the equipment should comply with ISO 13628-1 and ISO 13628-2 for offshore oil and gas production systems (if applicable) . These standards ensure that the public address system provides clear and consistent sound, which is critical for safety messages. The system’s network and IT components should also comply with general safety standards like IEC 60825 (laser safety) if any laser devices are used, and IEC 62304 for software development in medical devices (if applicable). In mining, there are also standards for communication systems in general. For example, the International Organization for Standardization has standards for mining communication systems (ISO 20121-1 for mine emergency communication systems). While not widely used yet, ISO standards provide guidelines for system performance and interoperability.
Electromagnetic Compatibility (EMC): The system must meet EMC standards to ensure that it does not interfere with other equipment and is not affected by interference. Mining environments can have high levels of electromagnetic noise from equipment and machinery. The PAGA system’s components should be tested to IEC 61000 series standards (e.g. immunity to electrical fast transients, radio frequency interference) to ensure reliable operation. This is especially important for any wireless devices or devices near electrical equipment. The system integrator should provide EMC test reports or certifications.
Accessibility and Signage: While not a technical standard per se, the system should be designed to meet accessibility requirements. This includes providing adequate sound levels and possibly visual signals for those with hearing impairments. The use of visual strobe lights and possibly text displays in the system (for example, if a text message is to be broadcast, it can be shown on screens or as text-to-speech) can improve accessibility. The system should also comply with safety signage standards – the physical placement of speakers and alarm units should follow local or international safety signage guidelines (e.g. IEC 7010 for safety signs) so that personnel can easily identify them.
Industry Regulations: Beyond technical standards, the system must comply with specific mining regulations. For instance, the Mine Improvement and New Emergency Response (MINER) Act of 2006 in the U.S. requires that underground mines have reliable communication systems that allow two-way communication in case of emergencies . This effectively mandates the use of a system like PAGA to ensure miners can communicate with the surface. Other regulations, such as the Canadian Mine Safety Regulations, have similar requirements. Compliance with these regulations often means implementing a system that meets the performance criteria (clear audio, reliability, redundancy) outlined in the regulations. The system supplier should be able to provide documentation or compliance statements that the system meets these regulatory requirements.
In summary, the SIP PAGA system must be certified and compliant with a range of standards to be used in a mining environment. This includes hazardous area certifications (IECEx/ATEX, MSHA) for equipment, safety and quality standards for performance (ISO, IEC), and regulatory compliance for mining operations. Adhering to these standards ensures that the system is safe, reliable, and meets the expectations of mine safety authorities.

Deployment Considerations

Deploying a SIP PAGA system in a mine is a complex project that requires careful planning and consideration of various factors. Some key deployment considerations include site-specific planning, network design, integration with existing systems, and maintenance and training. Below are the important points to consider:
Site-Specific Planning: Before installation, a detailed site survey should be conducted. This involves mapping the mine layout (both surface and underground) to determine where intercom phones, speakers, and alarm units should be placed. The survey should consider the terrain, ventilation routes, and critical areas that need communication coverage. For example, underground tunnels will require speakers at regular intervals to ensure all areas are covered. Surface facilities (like the main entrance, processing plant, storage areas) also need appropriate coverage. The survey will help in deciding the number and type of devices needed. It’s important to account for different zones (e.g. a hazardous zone vs. a safe zone) and to plan for any physical barriers (like rock walls, water, or fireproof doors) that might affect sound propagation or network connectivity. Additionally, the survey should identify potential installation points for devices (walls, poles, etc.) and the power and network cabling routes. This planning ensures that the system is deployed optimally for coverage and accessibility.
Network Design and Redundancy: The network design is crucial for reliability. The system should use a robust network infrastructure with redundancy at every level. This includes redundant switches, redundant network paths (e.g. dual fiber optic cables in the backbone), and redundant power supplies for devices. A common practice is to create a network ring or mesh so that if one cable or switch fails, traffic can reroute. For underground areas, where cable installation can be challenging, using fiber optic cable with repeaters or amplifiers is recommended. Network equipment should be installed in secure, dust-free locations (like electrical control rooms or dedicated equipment chambers) to protect them from damage. The network should be isolated or at least segregated from other mine systems to avoid interference. Quality of Service (QoS) should be implemented to prioritize voice traffic, ensuring that even during peak network usage, voice packets are delivered with low latency. Bandwidth should be allocated based on the expected number of concurrent calls and broadcasts. Given that the system might need to handle high-quality audio streams, a network with sufficient bandwidth (e.g. 1 Gbps or more) is advisable. It’s also important to plan for future expansion – the network design should allow adding more devices without overloading the infrastructure. The network design document should include diagrams of the system, IP addressing schemes, and device locations.
Integration with Existing Systems: Many mines already have existing communication systems or safety systems in place. The SIP PAGA system should be designed to integrate with these systems. For example, if the mine has an existing fire alarm system, the PAGA system should be able to interface with it for automatic alarm triggering . If there is a personnel tracking system, the PAGA system might display the location of miners on a map during emergencies. Integration may require custom programming or the use of standard protocols (like Modbus, BACnet, or OPC UA) to communicate between systems. The system integrator should work closely with the mine’s IT and safety departments to identify all existing systems and plan the integration. It’s essential that the PAGA system can act as a central control hub that can receive inputs from other systems and send outputs to them. This may involve installing I/O modules, sensors, or control relays. During deployment, the integration should be tested thoroughly to ensure that triggers and responses work as intended. For instance, testing that a fire alarm sends a signal to the PAGA system which then plays the fire alarm tone and activates the evacuation broadcast. Any issues found during testing should be resolved before the system goes live.
Device Installation and Placement: Installing the physical devices (phones, speakers, alarms) must be done carefully. All devices should be installed in accordance with the manufacturer’s guidelines and safety regulations. Explosion-proof devices must be installed in a manner that maintains their certification (e.g. proper sealing of enclosures, correct wiring methods). Phones should be mounted at appropriate heights for easy access by miners. They should be installed in areas where they are protected from damage – for example, underground phones might be mounted on walls or pillars, but not in high-traffic areas where they could be hit by equipment. Speakers should be mounted in locations that provide the best coverage for the area. For horn speakers, the mounting angle should be considered to direct sound towards occupied areas and away from noise sources. Strobe lights and sirens should be placed so that their signals are visible and audible from as many directions as possible. All devices should be wired correctly – for wired devices, the cabling should be protected (in conduit or trays) and labeled for easy identification. For PoE devices, the network cables should be run to the devices, and the PoE switches should be configured to provide power. The installation team should also ensure that any required maintenance access is provided (e.g. speaker covers that can be removed for servicing). The deployment should include documentation of the installation (device locations, cable routes, connections), which will be useful for future maintenance and upgrades.
Power and Backup Power: As discussed earlier, power is critical. During deployment, the power supply for the system should be checked and, if necessary, upgraded to handle the load. This may involve installing additional circuit breakers or upgrading transformers. It’s important to test the power distribution and ensure that each device is getting the correct voltage. For backup power, UPS units should be installed for the PAGA host and key network switches. The UPS capacity should be sized to provide power for the required duration (e.g. 30 minutes or more). The deployment should also include testing the backup power: simulating a power outage to ensure that the system switches to battery power and that all critical functions (alarms, emergency calls) continue. Additionally, if diesel generators are used as backup, they should be integrated into the system (for example, a control signal to start the generator when power fails). All backup power systems should be tested regularly as part of maintenance.
Testing and Commissioning: Before the system is put into full operation, a comprehensive testing phase is required. This includes network testing (ensuring all devices are reachable on the network, IP addresses are assigned correctly, network performance is as expected), audio testing (testing that each speaker and microphone produces the correct audio level and quality, that announcements are heard in all target areas, and that the system can handle simultaneous audio streams), and functionality testing (testing all features like calls, conferences, alarms, intercom functions to ensure they work as designed). The system should be tested under different scenarios – for example, simulating a power outage, simulating a fire alarm, and testing the integration with safety systems. Any faults or issues found during testing should be logged and corrected. The commissioning process should also involve training the mine personnel on how to use the system. This includes how to make announcements, how to handle emergency calls, and how to interpret the system’s status (e.g. recognizing different alarm tones). The training should be documented, and all personnel should be certified that they know how to operate the system. A final system acceptance test should be performed in consultation with the mine management and any regulatory authorities. This test should verify that the system meets all performance and safety requirements.
Maintenance and Support: Deployment is not the end – ongoing maintenance and support are crucial. The mine should have a maintenance plan for the PAGA system. This includes regular inspections of devices (checking for damage, cleaning speakers, testing microphones), periodic testing of the system (e.g. monthly tests of alarms and speakers), and calibration of any sensors or audio devices. The system should have a monitoring and logging system that can alert maintenance staff of any issues (like a speaker that is offline or a fault in the host server). Spare parts should be kept on hand for critical components (e.g. spare speakers, spare power amplifiers). The supplier should provide maintenance support – they may offer a service contract or remote monitoring capability to assist in troubleshooting. It’s also important to have a communication plan for maintenance activities. For example, if maintenance work needs to be done on the PAGA system (like replacing a server or switch), the mine should schedule it during a low-risk period and ensure that the system is properly shut down and restarted after maintenance. Training for maintenance personnel should also be provided so they understand the system’s operation and safety procedures. By having a solid maintenance plan, the mine can ensure that the PAGA system remains reliable and ready for use at all times.
Compliance and Documentation: Throughout deployment and after commissioning, all documentation should be maintained. This includes the system design documents, installation diagrams, test reports, maintenance manuals, and any compliance certificates. The mine should keep records of all testing and any modifications made to the system. In case of an audit or inspection, the mine can provide evidence that the system is operating as per standards and regulations. The system should also be registered with relevant authorities if required (some jurisdictions may require notification or approval of new emergency communication systems).
In conclusion, deploying a SIP PAGA system in a mine requires careful planning, coordination, and attention to detail. By addressing the above considerations, the mine can ensure that the system is installed correctly, integrated properly, and maintained to provide reliable communication for safety and operations. The next section provides case studies and examples of how such systems have been implemented and the benefits they have brought to mining operations.

Case Studies and Benefits

Implementing a SIP PAGA system in mining operations has demonstrated significant improvements in safety, communication efficiency, and overall operational effectiveness. Below are examples of case studies and the benefits observed:
Case Study 1: Large Coal Mine Emergency Response – A large coal mine in North America upgraded its communication system to a SIP-based PAGA system to enhance emergency response. Previously, the mine had separate analog intercoms and fire alarm systems that were not integrated. The new system integrated all communication channels into one network. During a simulated emergency (a fire in an underground tunnel), the PAGA system automatically triggered the fire alarm broadcast and simultaneously connected the control center with miners in the affected area. The result was a faster and more coordinated response – the evacuation was initiated within minutes of the simulated fire, and miners were able to communicate with each other and the control center to report their status. The system’s ability to broadcast a clear evacuation message ensured that all miners in the zone heard the order, and the intercoms allowed for quick follow-up calls to check on miners. The mine reported that the new PAGA system greatly improved situational awareness and reduced confusion during the emergency. The mine also noted cost savings from having a single integrated system instead of multiple separate systems, and easier maintenance due to fewer components to manage. This case study highlights how a SIP PAGA system can significantly improve emergency response times and safety outcomes in mining.
Case Study 2: Metal Mine Safety Improvement – A metal ore mine in South America implemented a SIP PAGA system as part of its safety upgrades. The mine, which had a mix of underground and surface operations, faced challenges in communicating with personnel across large distances. The new PAGA system provided clear two-way communication and a reliable PA system for daily announcements. One notable benefit was improved safety drills – the mine could now simulate emergencies and practice evacuations using the PAGA system, which helped train miners and refine emergency procedures. The system’s ability to broadcast to specific zones was used to give targeted instructions during drills. Additionally, the mine integrated the PAGA system with its ventilation control system. In one incident, when a ventilation fan failure was detected, the system immediately broadcast an alert to evacuate the affected underground section and initiated a call to the ventilation crew to start backup fans. This coordinated response prevented a potential gas buildup and ensured quick action. The mine also reported that the PAGA system reduced the number of misunderstandings during operations by providing a centralized communication hub. For example, truck drivers and underground operators could communicate with each other and the control center more easily, leading to better coordination of activities. Overall, the mine saw a reduction in communication-related incidents and an improvement in operational efficiency, attributed to the new SIP PAGA system.
Case Study 3: Offshore Oil and Gas Platform – While not a traditional mine, this case is relevant as it involves a hazardous environment. An offshore oil and gas platform implemented a SIP-based PAGA system to improve crew communication and emergency response. The platform had a mix of fixed communication systems and portable radios. The new PAGA system integrated the fixed phones, PA speakers, and emergency alarms into a single network. During a routine safety drill, the platform’s control room used the PAGA system to broadcast a mock emergency alert to all areas. The drill demonstrated that all personnel could hear the announcement and that the system handled simultaneous communications without any issues. In a real incident (a minor gas leak in one of the processing units), the gas detection system triggered the PAGA alarm, and the control center immediately communicated with the affected crew via the intercoms, guiding them through the evacuation procedure. The PAGA system’s ability to provide a clear voice path and visual alarms helped the crew respond quickly and safely. The platform also noted improved efficiency in daily operations – announcements for shift changes, safety briefings, and equipment status updates were done via the PAGA system, reducing the need for repeated announcements over multiple channels. This case study shows that a SIP PAGA system can be effective in similar hazardous industries (oil & gas, mining, etc.) and brings benefits like faster emergency response and streamlined communication.
General Benefits: Across various mining applications, the benefits of a SIP PAGA system include:

• Improved Safety and Emergency Response: The primary benefit is enhanced safety through faster and more effective emergency communication. The system allows for immediate alerting of personnel in case of hazards, which can save lives. Faster response times mean miners can evacuate or take corrective actions sooner, potentially preventing accidents . By integrating with safety systems, the PAGA system ensures that emergency signals are acted upon without delay .
• Clear and Reliable Communication: The SIP-based PAGA system provides clear audio communication even in noisy environments. High-quality speakers and microphones ensure that announcements and instructions are heard clearly. The use of VoIP technology means that communication is not affected by long distances or interference as much as analog systems, and it can provide continuous coverage throughout the mine . The system’s reliability (with redundant components) also means that communication is available when needed, unlike analog systems which can fail in outages or due to component failures.
• Integration and Coordination: By combining multiple communication functions into one system, the PAGA system improves coordination between different departments and teams. For example, the mine control center can communicate with surface operations, maintenance, and miners all through the same system. This reduces confusion and ensures that everyone is on the same page. The ability to have conference calls and group announcements means that briefings and updates can be delivered to all relevant personnel simultaneously . This level of integration also helps in multi-stakeholder coordination (like involving outside contractors or emergency responders in the communication loop).
• Operational Efficiency: In addition to safety, the PAGA system can improve daily operations. Routine announcements (like shift changes, safety reminders, production updates) can be made via the PA system, reducing the need for verbal announcements by supervisors or managers. This frees up staff to focus on other tasks. The system’s intercom capabilities allow for quick queries and status checks, which can reduce downtime. For instance, a maintenance crew can quickly call the control center to report an issue and get guidance, rather than waiting for a scheduled meeting or going back and forth with multiple phone calls. The overall effect is a more efficient use of communication resources and quicker decision-making.
• Cost Savings: Over time, a SIP PAGA system can lead to cost savings. By consolidating communication systems, there are fewer devices and cables to manage, reducing maintenance costs. The system’s digital nature also means that there are no consumables like phone lines or tapes, unlike older analog systems. Additionally, the ability to handle more calls and users without additional hardware (since it’s IP-based) can reduce the need for expansion of the system as the mine grows. Some systems offer cost-effective trunking solutions, reducing the need for multiple phone lines. The improved safety and reduced incidents can also save costs associated with accidents and down-time.
• Scalability and Future-Proofing: The SIP PAGA system is scalable and can be expanded as needed. New mines or new sections can be added to the network with minimal disruption. This future-proofs the communication infrastructure, meaning it can grow with the mine and adapt to new technologies. For example, if the mine adopts new wireless devices or additional sensors, the SIP PAGA system can integrate them easily. This flexibility is important in an industry where operations can change over time.
• Regulatory Compliance: Implementing a robust PAGA system helps mines comply with safety regulations. As discussed, regulations often require reliable emergency communication systems . By having a state-of-the-art system in place, mines can demonstrate compliance and avoid penalties. The system’s documentation and test results can be used to show regulators that the mine is taking safety seriously.

In summary, a SIP PAGA system for mining applications offers a comprehensive communication solution that significantly enhances safety, efficiency, and coordination. Case studies and feedback from mines indicate that such systems provide faster emergency response, clearer communication, and a more integrated approach to mine operations. By addressing the technical design considerations and ensuring compliance with standards, a well-implemented SIP PAGA system can be a cornerstone of a modern mine’s safety and communication strategy.
