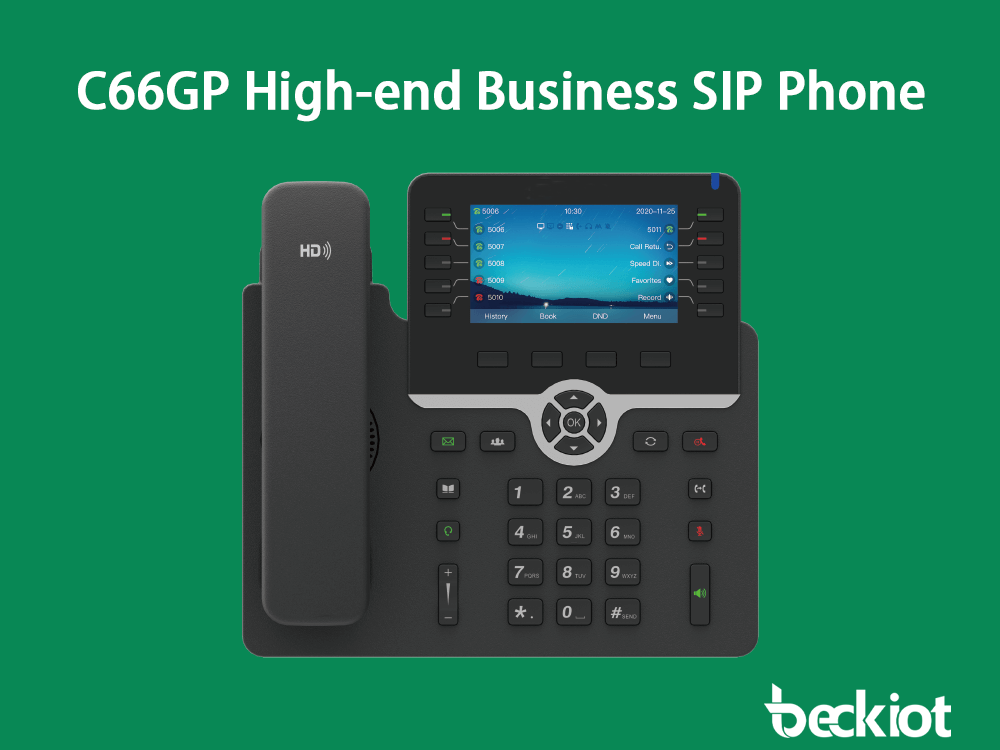

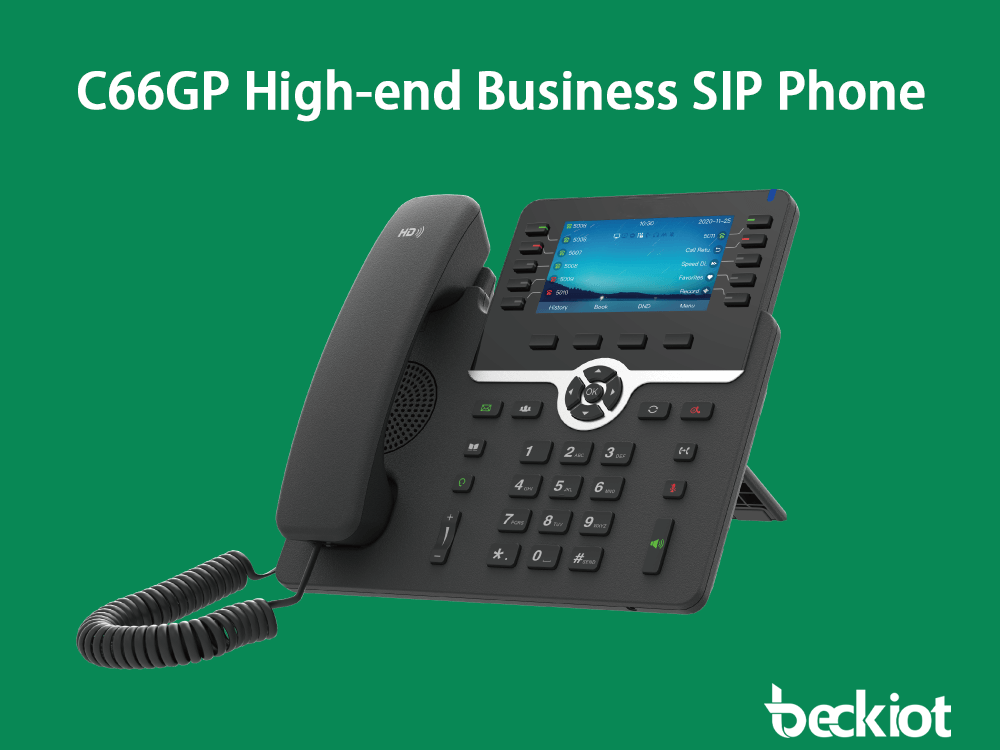

C66GP High-end Business SIP Phone

bekiot-C66GP

C66G/C66GP: multi-functional HD IP phone for high-end pros. 4.3-inch color display, dual Gigabit ports, 20 SIP accounts, 6-way conference. Easy to install/configure, suits various IP systems.......

Datasheet instructions

Product Introduction

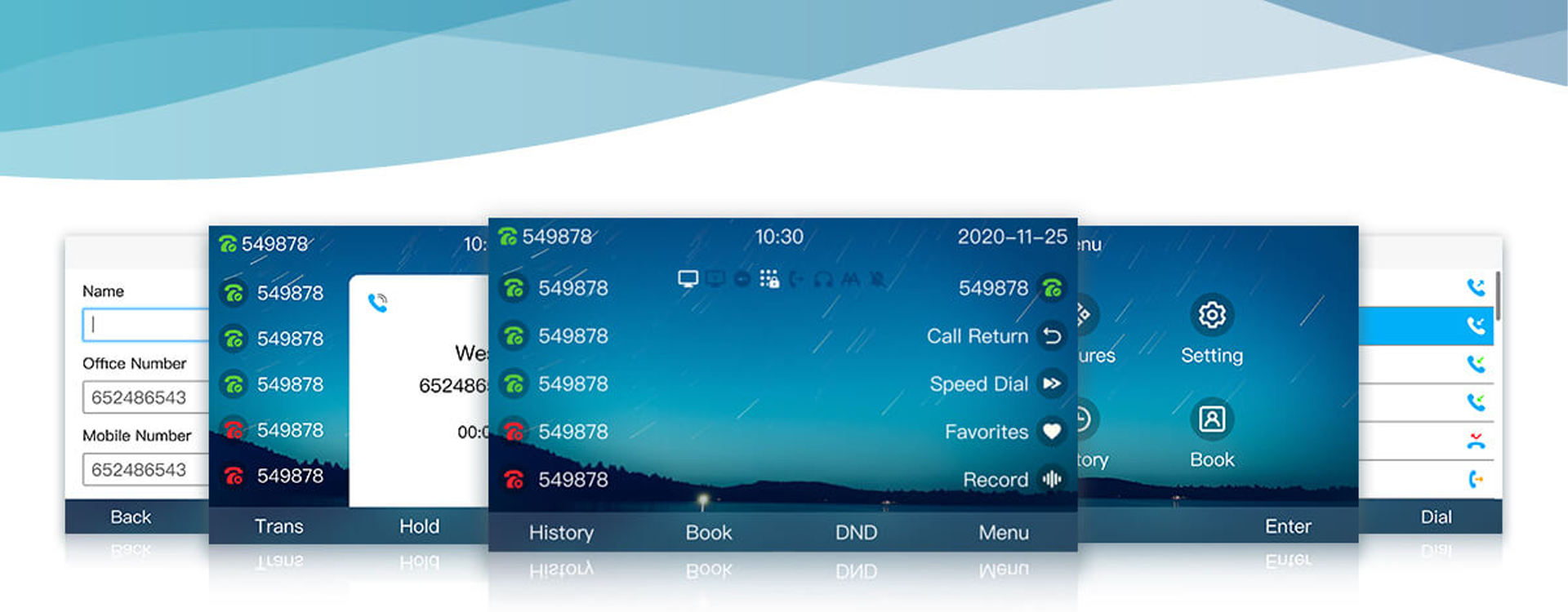

The C66G/C66GP is a multi-functional high-definition IP voice phone designed specifically for high-end business professionals. It features an elegant appearance and excellent performance, equipped with a 4.3-inch backlit color LCD display with a maximum resolution of 480x272, bringing users a good visual experience along with outstanding high-definition voice quality and a rich set of telephone system calling functions. With dual Gigabit Ethernet ports, it boasts the characteristics of easy installation, simple configuration and user-friendliness. Supporting up to 20 SIP accounts and 6-way conference calling, it can fully meet the diverse needs of users. It is suitable for various IP voice telephone systems.

High-definition Audio

Full duplex speaker and microphone

Digital signal processor (DSP)

Wideband codec: G.722,OPUS-WB

Echo cancellation/Dynamic jitter

Voice activity detection(VAD)

Comfort noise generation(CNG)

6-way Conferences

C66G/C66GP IP Phone facilitates 6-way audio conferencing.allowing the conference organizer to invite up to 5participants. This enhances collaboration across variousdepartments or organizations, improving efficiency.

Support 3rd-party EHS Headsets

C66G/C66GP IP Phone is compatible with third-party EHS

wireless headsets (Plantronics, jabra, and Sennheiser),making it an ideal choice for call center professionals. Thisfeature allows employees to multitask while engaged in audiocommunication, significantly enhancing overall work efficiency.

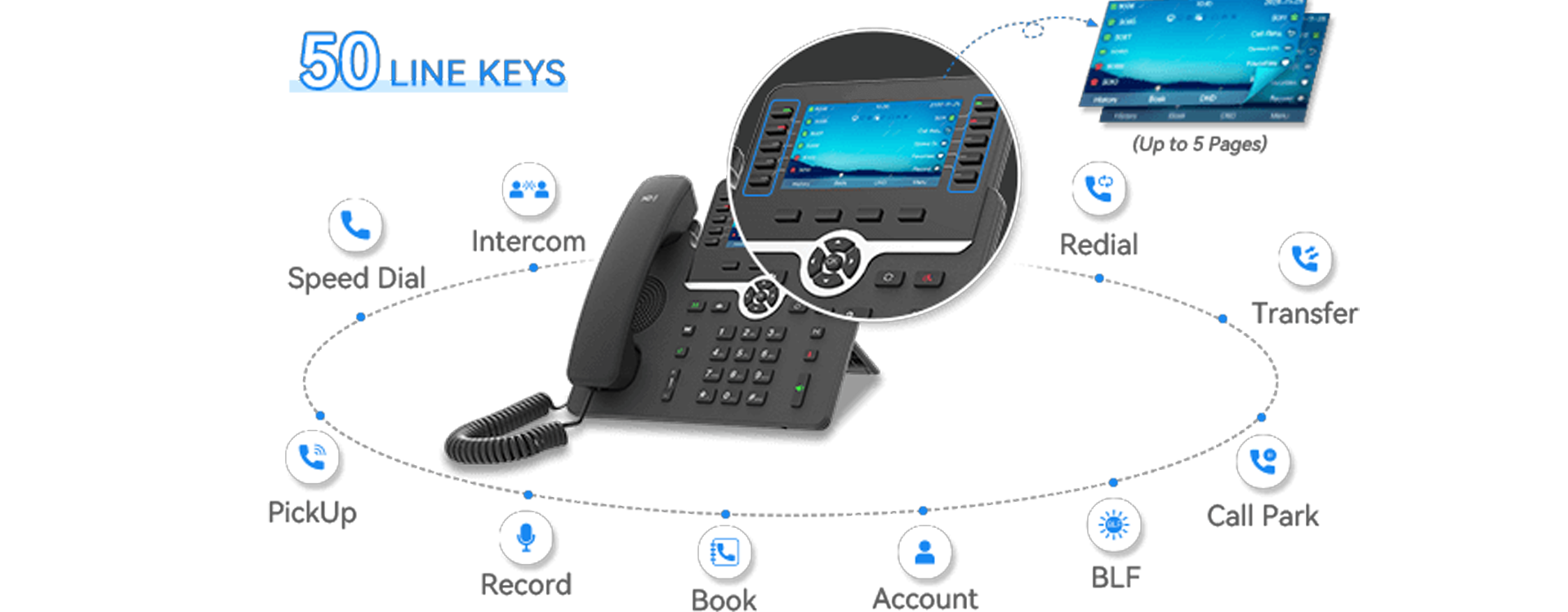

Multiple Programmable Keys

Featuring 50 Line Keys, 4 Soft Keys, and 6 Function Keys, all

fully programmable, C66G/C66GP IP Phone provides onetouch access to frequently used features like speed dialing.call transfer, and conference calling, boosting productivity byenabling users to customize functions, ensuring efficient andpersonalized usage.

Easy Management

Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
Intuitive web GUl NMS (Network Management System)

Configuration via device button
Software upgrade via web

Network capture

Product parameters

HD high-definition voice
Broadband voice coding: G.722, OPUS-WB
Narrowband voice coding: PCMA, PCMU, G.729, G723, G726, AMR, OPUS, iLBC
Echo cancellation/dynamic jitter buffer
Voice activity detection (VAD)
Comfort noise generation (CNG)
Full-duplex hands-free
480x272 pixel LCD color backlit display (4.3 inches)
Power adapter: AC 100-240V@DC 5V1A
PoE IEEE802.3af
1xRJ9 handset interface
1xRJ9 headset interface
1xRJ12 expansion board interface
2xRJ45 10/100/1000M Ethernet interfaces
Phone dimensions: 238x223x42mm
Packaging dimensions: 360x265x80mm
Total weight: approximately 1.5kg
Wall-mountable, desktop stand supports two angles

Featured Features

IP-PBX features
Short message, voice mail, message waiting indicator (MWI)
Call hold music, intercom
Call pickup, group call pickup
Anonymous call
Anonymous call rejection

Phone features
20 SIP accounts
Call waiting
Call transfer
Busy transfer/consultative transfer
Call hold, mute, do not disturb
Speed dial, hotline
Redial, callback
Auto redial, auto answer
IP address call
Dialing rules
6-way conference
Volume adjustment
Configurable ring modes
XML browser
Action URL/URI
Key lock
Phonebook: 1000 entries
Blacklist: 100 entries
Call logs: 100 entries
Maximum support for 5 remote phonebook URLs
LDAP
Multi-language support
Peer-to-peer call
USB 2.0 interface: Bluetooth headset, WIFI function, USB recording
