SIP Page Stations A308I

A308i

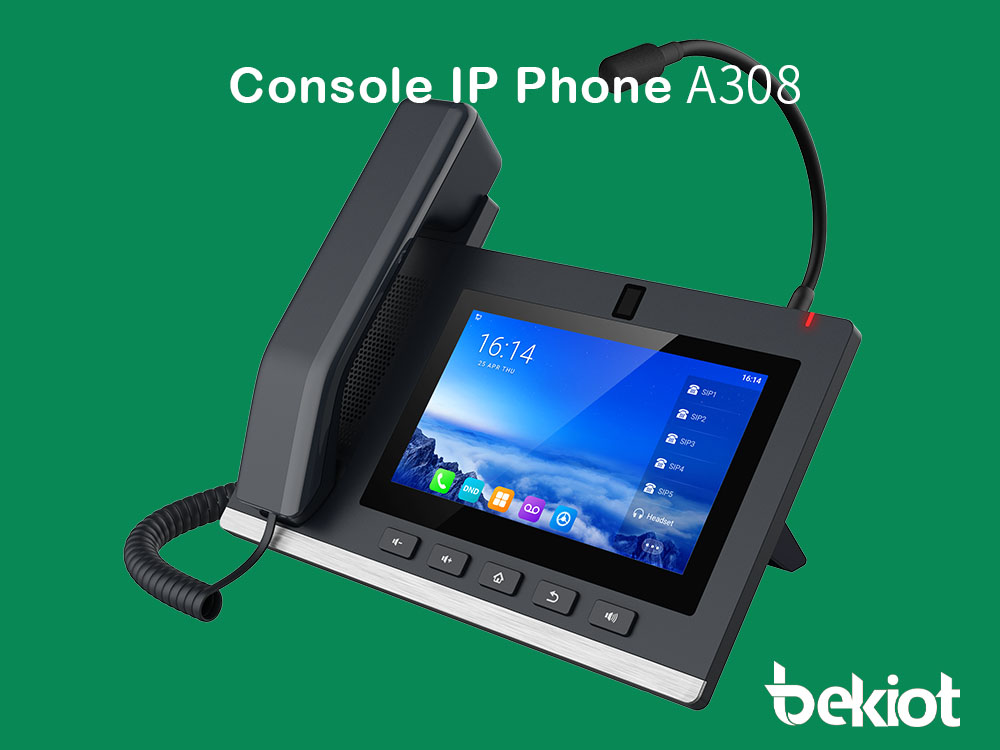

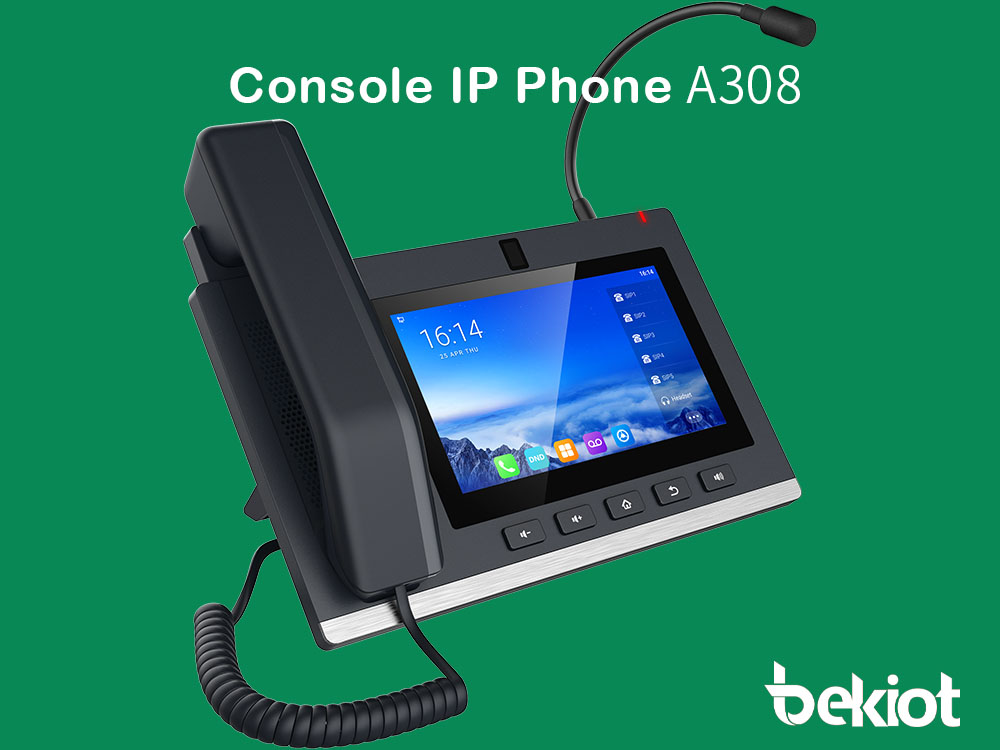

bekIOT A308i is an Android console IP phone that integrates audio and video applications. Running on Android 9.0, it supports third-party app installations. Featuring an intelligent speech algorithm and a gooseneck microphone, the A308i enables full-duplex voice calls with a maximum volume of 90dB. Its built-in 5 mega-pixel adjustable camera offers high-definition audio and video calling. Additionally, the A308i is equipped with a versatile bracket for both desktop and wall-mounted installations, accommodating various setup requirements.......

Datasheet instructions

Product Introduction

High-sensitivity Gooseneck Microphone Capture Every Detail

bekIOT A308i is equipped with a high-sensitivity gooseneck microphone, allowing users to adjust the angle as needed for precise voice pickup.

90dB Full Duplex Hands-Free Calling

bekIOT A308i utilizes inteligent voice algorithms to deliver exceptional full-duplex hands-free calling with a high volume of up to 90dB, ensuring fast and accurate communication.
90dB Full Duplex Hands-Free Calling

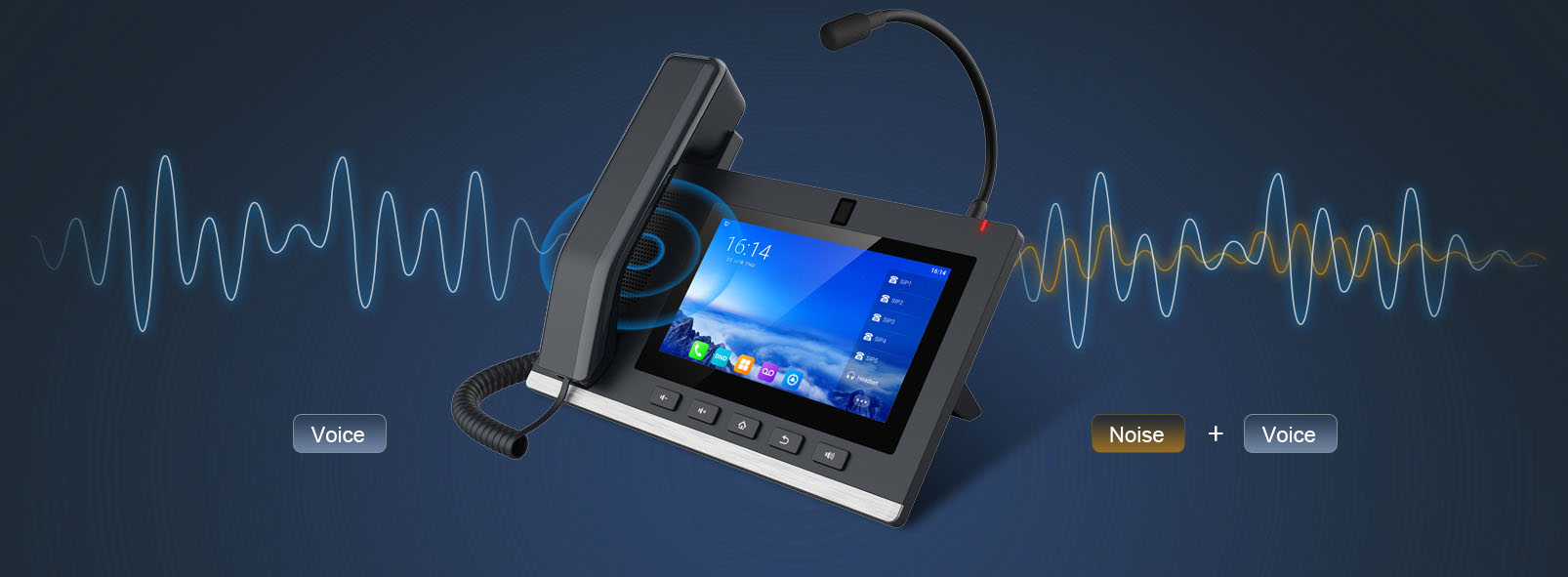

Background Noise Reduction

With its powerful noise reduction technology, the bekIOT A308i ensures clear voice transmission even in noisy environments such as workshops and downtown areas, enhancing overall communication efficiency.

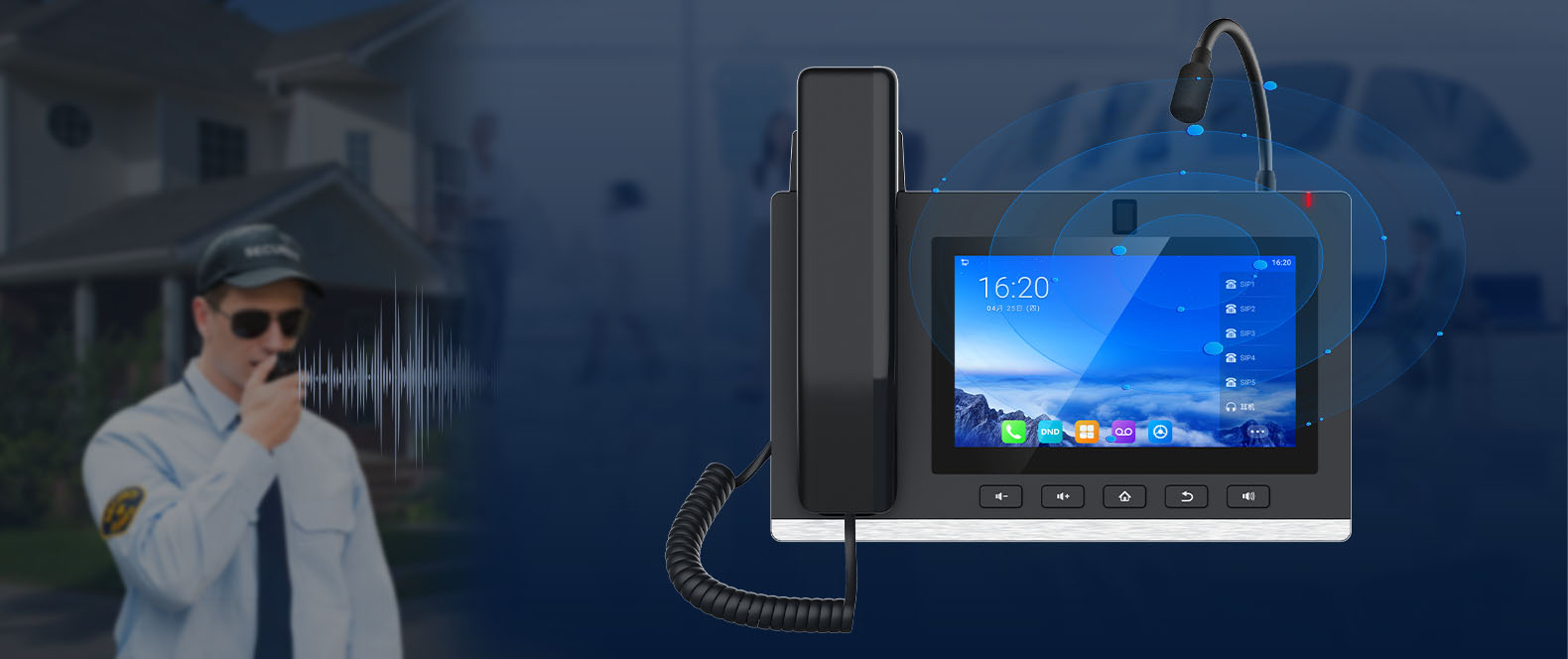

Built-in bekIOT Broadcast &Intercom System

bekIOT A308i has a built in broadcast & intercom system that combines emergency broadcasting, caling, and speed dial functions. lt can also be integrated with broadcast gateways and speakers, enabling rich and flexible system management.

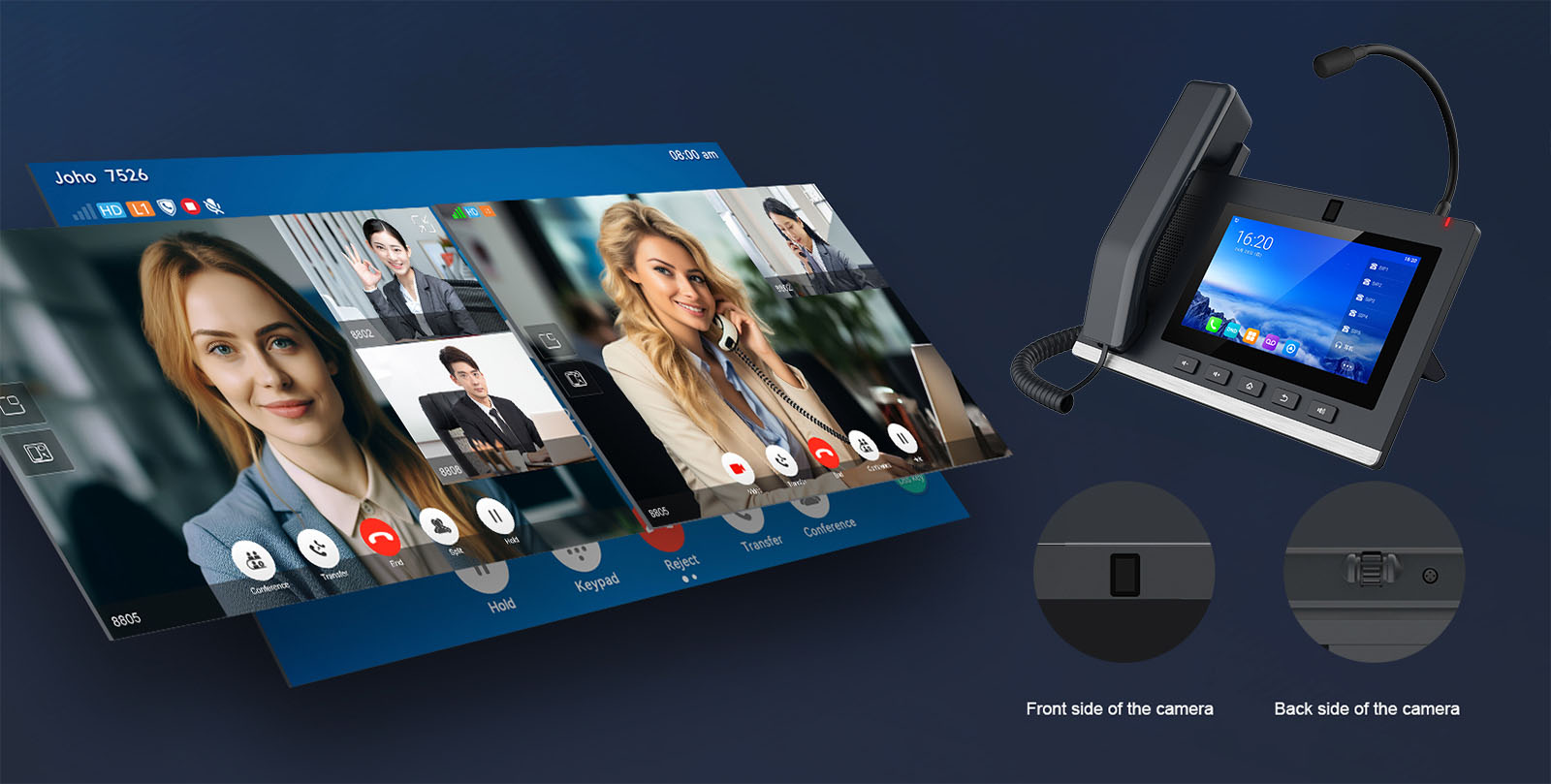

Built-in Adjustable Camera

for Enhanced Privacy bekIOT A308i has a built-in 5 mega-pixel HD camera with a scroll wheel to adjust the camera angle for privacy protection It supports video codec H.264 and 3-way video conferencing providing users with a premium calling experience.

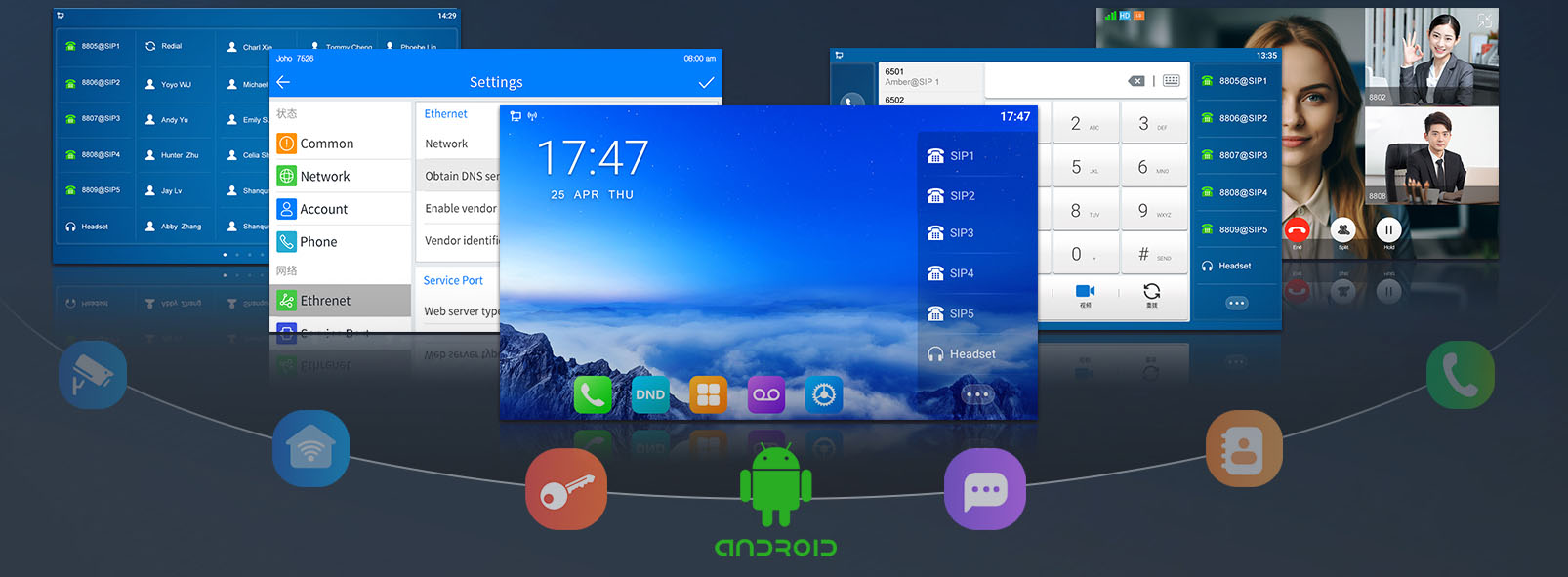

Powerful Android 9.0 System

Android 9.0 0S in bekIOTA308i ensures the stable operaion of software and supports the instaation of third-party apps, providing greatel compatibility and scalability.

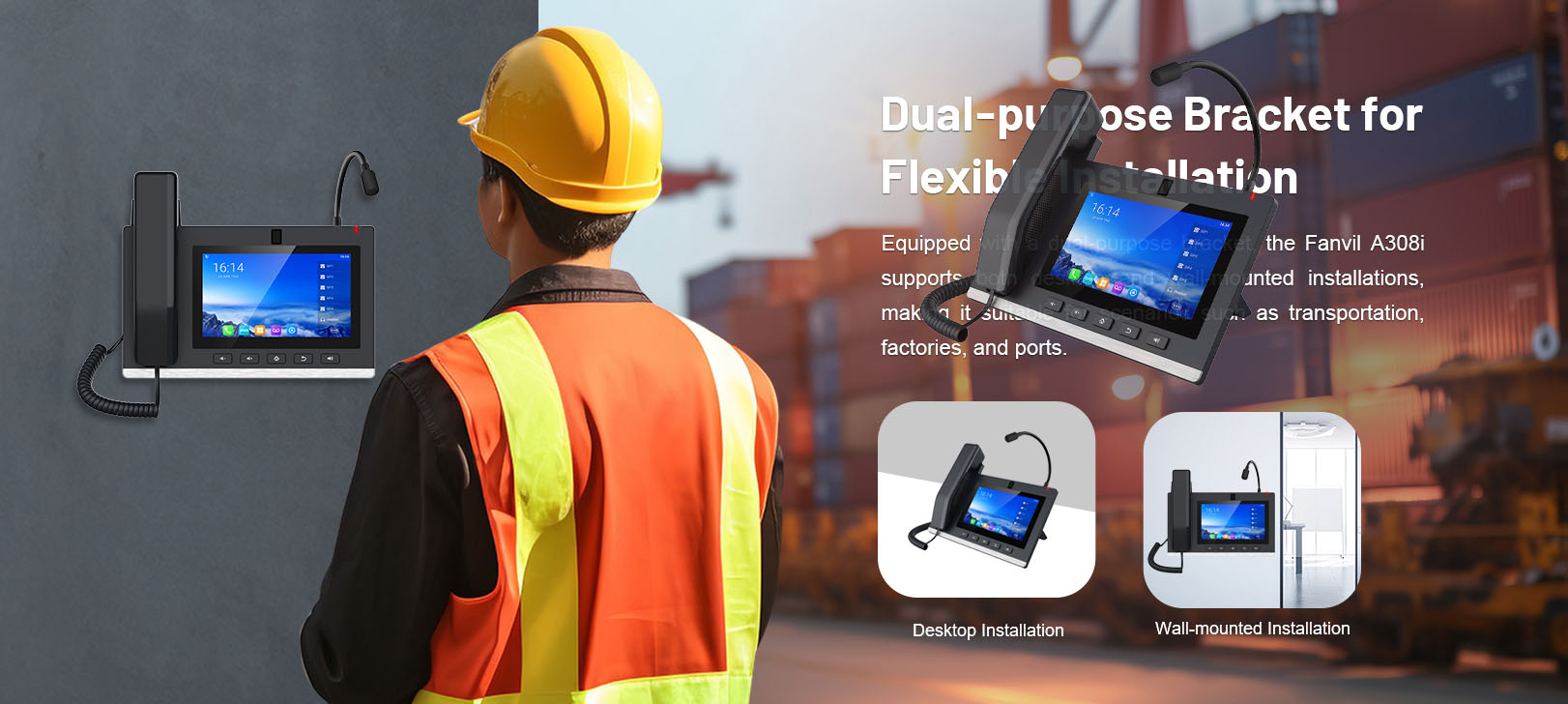

Dual-purpose Bracket for Flexible Installation

Equipped with a dual-purpose bracket, the bekIOT A308i supports both desktop and wall-mounted installations.making it suitable for scenarios such as transportation,factories, and ports.

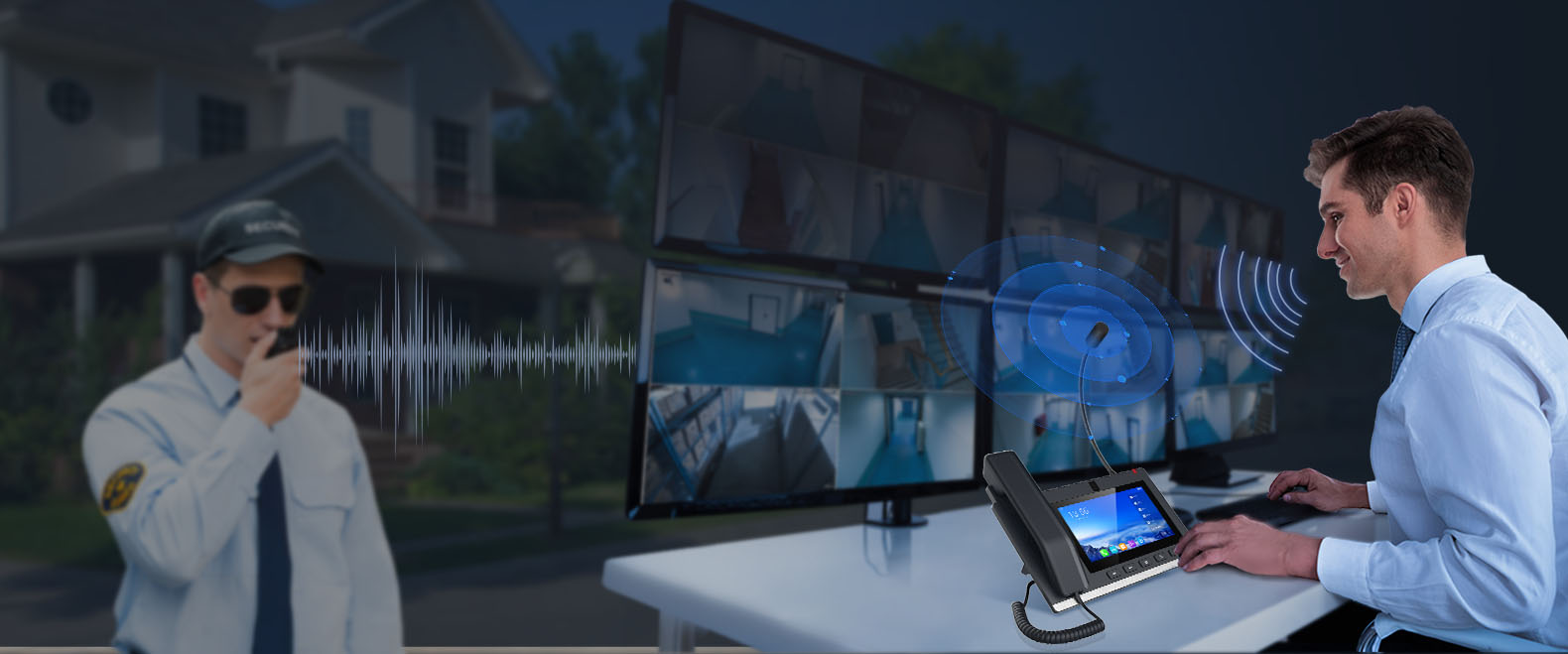

Application Scenarios

Product parameters

Generic

20SIPLines

Gooseneckmicrophone

Fullduplexcall

HDVideoCall

10-partyaudioconference,3-partyvideoconference

Handset/Hands-free/Headsetmode

7-inch(1024x600)colortouchscreen

116IntelligentDSSKeys(Programmable)

Desktopandwall-mountedinstallationsupported

DualGigabitports,PoEpowersupplysupported

2.4G/5GdualbandWi-Fi

OperationSystem

3-partyapplicationssupported

APIforsecondarydevelopment

Android9.0OSwithhighersecurityandbettercompatibility

Built-inapplications:

Files,Calendar,Gallery,Browser,Email,Calculator,Notepad,

SoundRecorder,Clock,Video,Music

PhoneFeatures

Localphonebook(2000entries)

Remotephonebook(XML/LDAP,2000entries)

IntelligentsearchforcontactsandcallLog

Calllogs(In/out/missed,1000entries)

Blocked/AllowedList

Screensaver

Voicemessagewaitingindication(VMWI)

ProgrammableDSS/Softkeys

Networktimesynchronization

Built-indualbandWi-Fi

2.4GHz

5GHz

ActionURL/ActiveURI

UaCSTA

Audio/Videorecording

SIPHotspot

Multicast

Actionplan

Listening

CallFeatures

Callout/Answer/Reject

Mute/Unmute(Microphone)

CallHold/Resume

CallWaiting

Highlights

Model Screen Network PoE

A308i 7-inch 10/100/1000Mbps

QoS

Caller ID Display

SpeedDial

AnonymousCall(Hide Caller ID)

CallForwarding (Always/Busy/No Answer)

CallTransfer (Attended/Unattended)

CallParking/Pick-up (Depending on server)

Redial

Do-Not-Disturb

Auto-Answering

VoiceMessage(Onserver)

10-party audio conference,3-party video conference

HotLine

Hotdesking

BLF

Vide

Videodecoding: H.264,H.265(optional)

Videocall resolution: CIF/VGA/4CIF/720P/1080P

Imageformat: JPEG/PNG/BMP

Videoformat: MP4

Bandwidthselection: 64kbps~4Mbps

Framerateselection: 5~30fps

Videofromremotesite can be displayed in full screen

Videocall

VideoPreview

Camera

5mega-pixel(Adjustable Angle)

Aud

HDVoiceMicrophone/Speaker (Handset/Hands-free, 0 ~ 7KHz

Frequency Response)

HAChandset

WidebandADC/DAC16KHzSampling

NarrowbandCodec: G.711a/u, G.729AB, iLBC

WidebandCodec:G.722, Opus

Full-duplex Acoustic Echo Canceller (AEC)

NoiseReduction (NR)

PacketLoss Concealment (PLC)

DynamicAdaptive Jitter Buffer

DTMF:In-band,Out-of-Band– DTMF-Relay(RFC2833) / SIP INFO

Net

work

Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC

bypass

IPMode:IPv4

IPConfiguration: Static / DHCP

NetworkAccess Control: 802.1x

VPN:OpenVPN(Requires third-party app support)

VLAN

LLDP

CDP

Pro

tocols

SIP2.0over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

CDP

LLDP

802.1x

OpenVPN(Requires third-party app support)

SNTP

FTP/TFTP

HTTP/HTTPS

TR-069

Dep loyment & Management

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069

WebManagementPortal

Supports Web,Telnet

Supports encrypted configuration files download with AES

Supports Webupgrade

Supports factory reset data

sical Specifications

Color: Grey

LCDx1:7-inch (1024x600) color touch screen

Physical keys x5: Volume-/Volume +/Home/Hands-free/Return

HDHandset(RJ9) x1

StandardRJ9 Handset Wire x1

1.5MCAT5Ethernet Cable x1

Installation bracket x1

RJ9Portx2:Connect with Handset, Headset

RJ45Portx2: Network x1, PCx1(Bridged to Network)

USB2.0: TypeAx1,connect with USB card

Safety Keyhole x1

Power:12V/1Aor PoE

PowerConsumption (PoE): 3.52~ 10.76W

PowerConsumption (Adapter): 2.38~8.6W

WorkingTemperature: 0~45℃

WorkingHumidity: 10~95%

Installation: Desktop, Wall-mounted

DeviceDimensions

DesktopStand(45°):265 x 172.1x 145.2mm

DesktopStand(50°):265 x 161.7x 154.5mm

Gift BoxDimensions: 337 x 218 x 81mm

OuterCTNDimensions: 456 x 430x 357mm(10PCS

Featured Features

7-inch touch screen, 116 DSS keys
Full duplex call supported, speaker up to 90dB
Gooseneck microphone presents sound with good reproduction
20 SIP Lines
Support 10-way audio conference and 3-way video conference
Built-in adjustable 5 mega-pixel camera
Support Android 9.0 OS for the installation of third-party Android application
Built-in Fanvil broadcast & intercom system can achieve rich and flexible
broadcast application and management
Support HD audio with G.722 and Opus
Support video codec H.264, providing premium HD video calls
Built-in 2.4G/5G Wi-Fi
Dual Gigabit ports, Integrated PoE
Desktop/wall-mounted installation
