SIP Radio Gateway

bk-w712

KN-RW是基于ROIP技术和SIP协议的无线集群接入网关，它具有体积小、话音处理效果好、延迟低、兼容性强等诸多优点，既可以将各种无线电台通信系统接入到应急指挥融合通信平台中，使之实现与传统的模拟/数字对讲系统的互联互通，又可以在没有融合通信平台的情况下单独使用。......

Datasheet instructions

Product Introduction

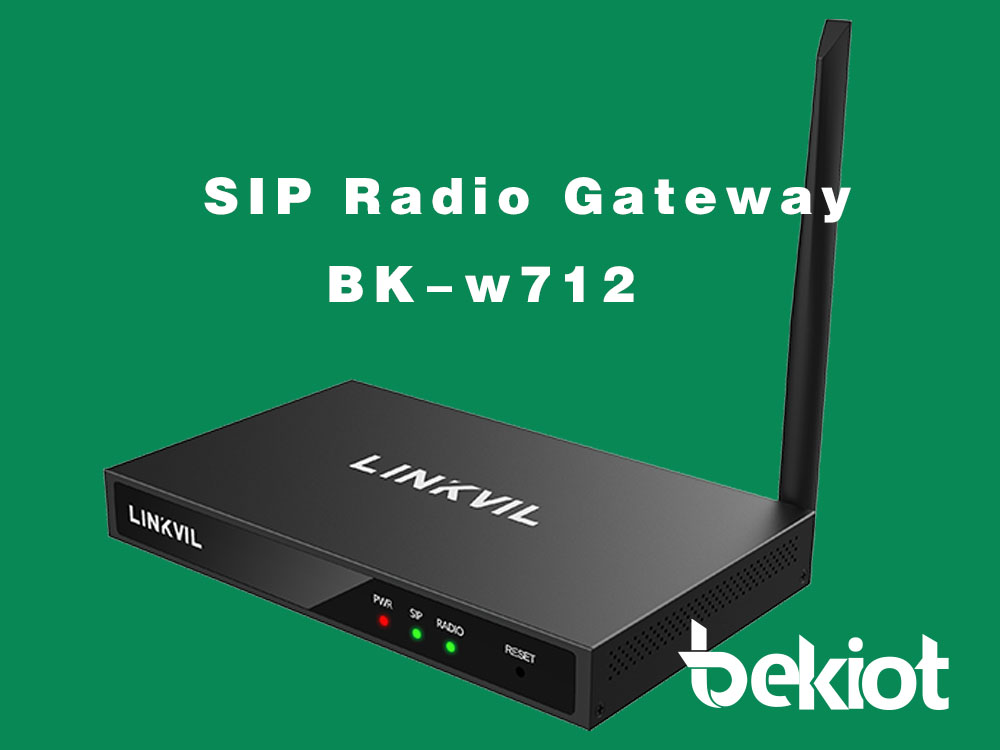

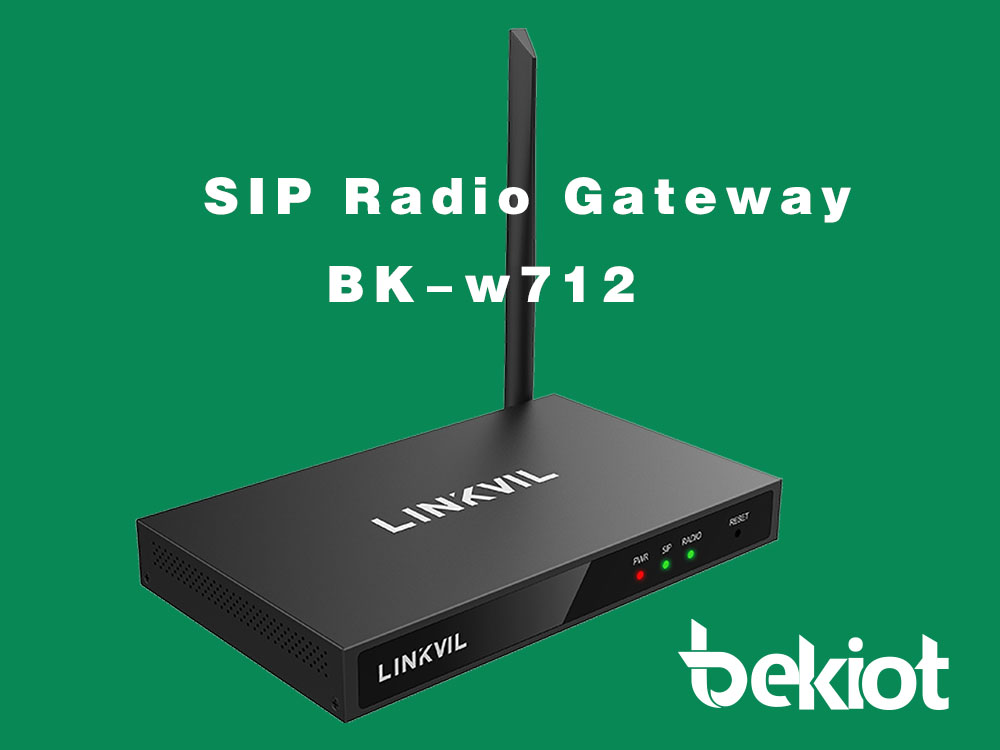

bekIOT W712 is a RoIP gateway with built-in radio and SIP modules, which enables interconnection between analog/digital two-way radios and SIP communication devices. Small, portable and powerful, W712 gateway is compatible with mainstream analog/DMR II digital two-way radios and easy to deploy and manage. W712 helps to build an interconnected communication system without changing the existing analog and digital communication systems. It is suitable for internal communication in different scenarios, such as community security, industrial parks, supermarkets,hospitality, campus security, etc.

Product Application

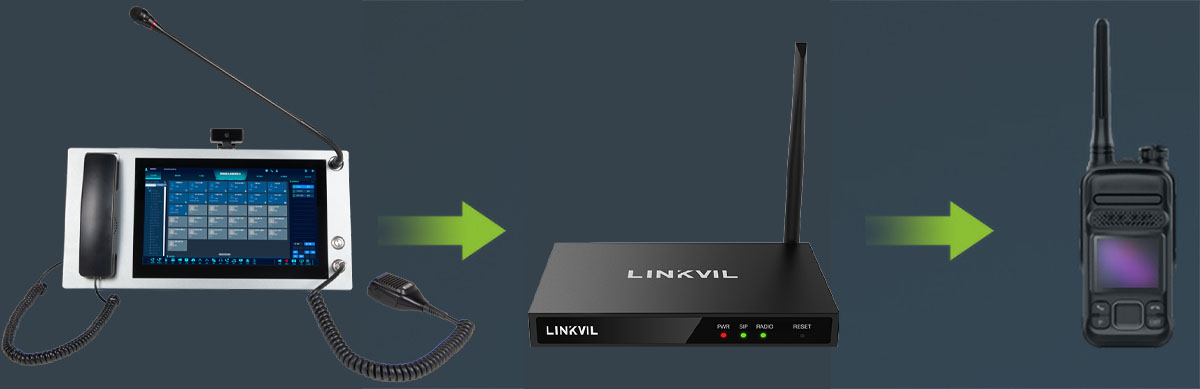

Single Call

W712 supports 1 connection of analog/DMR ll digital radio and 1 connection of SlP call.

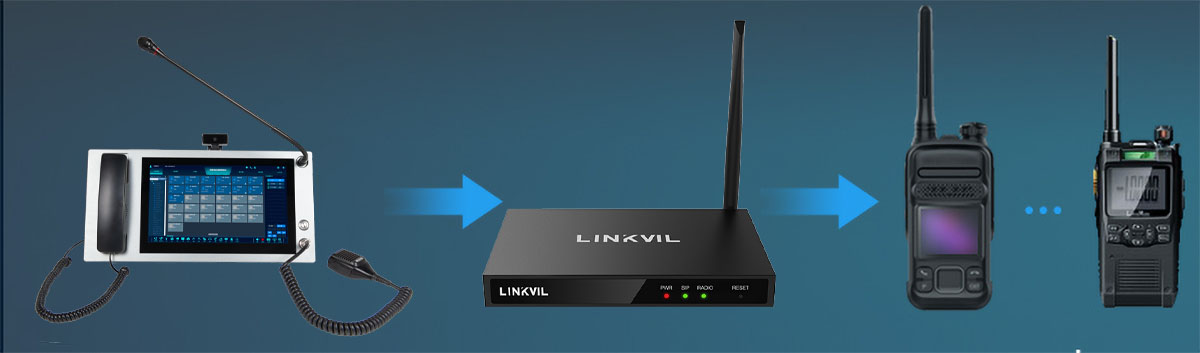

Group Call

W712 supports group calls between analog/digital intercom and SlP phones

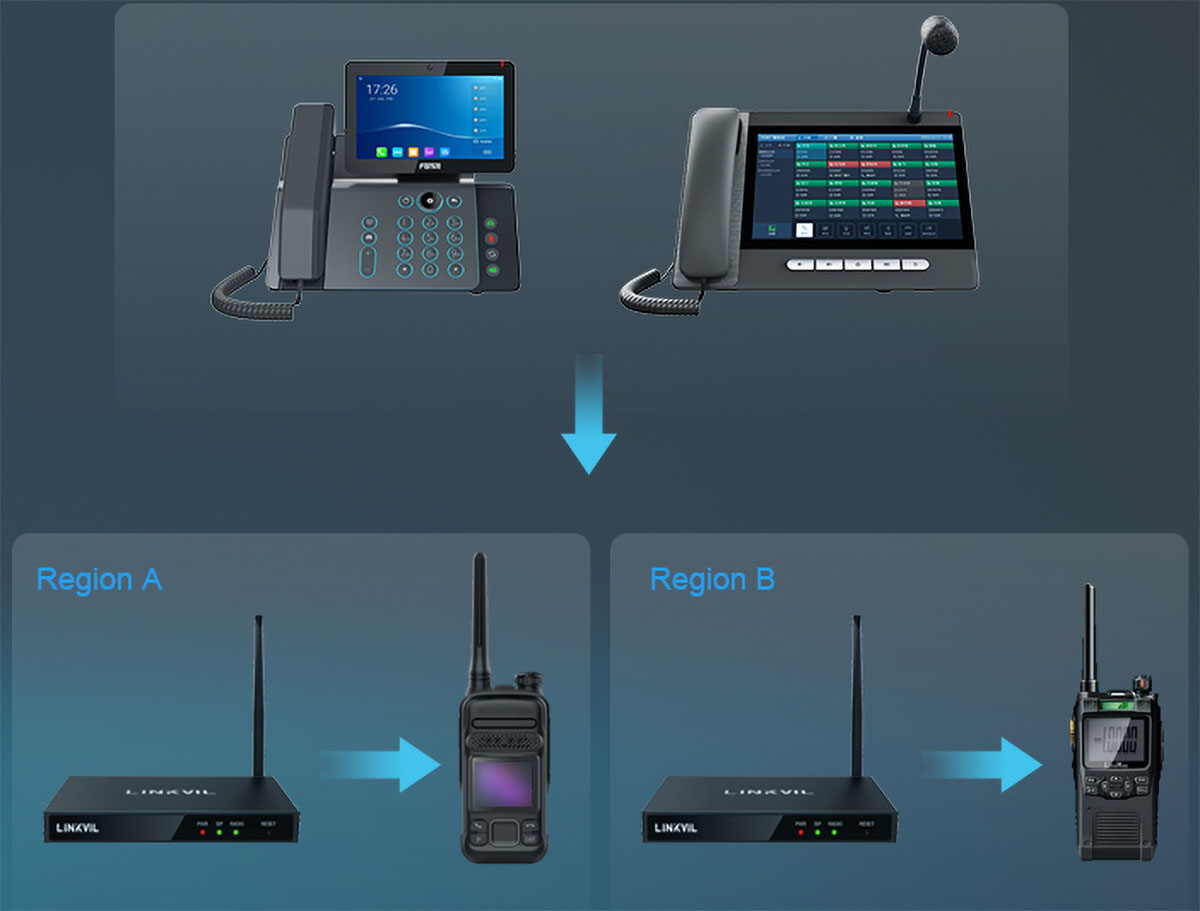

Trans-regional Communication

Multiple DSS keys on SlP phones can be used as speeddial keys for different groups

Product parameters

Generic

Support 1 connection of analog/ DMR II digital radio, 1

connection of SIP call

Supportcallrecording

2SIPlines

SupportSIPhotspot

Support traditional analog/digital intercom and SIP products (frequency band: 400~470Mhz)

Audio

SupportSIPstandard protocol

Support HD audio Voice activity Detection / with noise reduction

Narrowband codec: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K

Widebandcodec:G.722, Opus

Radio Specification

Radiofrequency: UHF 400~470 MHz

Communicationdistance: 1~3 km in urban open area

(depending on the actual environment)

Device Functions

Auto-answering

Speeddials

Networktimesynchronization

Dynamicmulticast function

Blockedcall list

Call logs(600pieces for SIP phones/ Radios)

ActionURL/Active URI

Network

Dual10/100MbpsEthernet

IPmode:IPv4/IPv6/IPv4&IPv6

IPconfiguration: Static IP / DHCP / PPPoE

VPN:L2TP/OpenVPN

VLAN

Tel: +86-755-2640-2199

E-mail: sales@fanvil.com

Protocols

SIPv1(RFC2543), v2(RFC3261) over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

IPv6

PPPoE

L2TP

OpenVPN

SNTP

FTP/TFTP

HTTP/HTTPS

TR-069

Deployment & Maintenance

Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP

OPT66/SIP PNP/TR-069

Webmanagementportal

Web-basedpacket-dump

Configuration export / import

Firmwareupgrade

Syslog

Physical Specifications

Color:black

Physicalkey: 1 reset key

Indicatorlights x3: (status of power, SIP call and radio call)

DCinterfacex1: DC 12V/2A

RJ45interfacesx2: connecting WAN and LAN

PoEenabled:Class4, 802.3at, via WAN interface

TFinterface x1: connecting TF card (128G max)

USB 2.0 interface x1: Standard A, for connecting USB

card, recording storage, software upgrade.

Workingtemperature:-10℃ ~ 50℃

Storagetemperature:- 20℃ ~ 60℃

Workinghumidity: 10%~95%

Installation: Desktop stand / Wall-mounted

N.W/CTN：8.8kg

G.W/CTN：9.5kg

Devicedimension: 209x126x26.3 mm

Giftboxdimension: 225x202x99 mm

OuterCTNdimension: 424x320x245 mm (10 PCS

Featured Features

Integrate 400~470 MHz radio modules to connect the analog/DMR II digital radios
Compatible with SIP protocol to connect SIP communication devices
High compatibility with Motorola, Hytera and other mainstream analog/digital radios
Support HD audio with G.722 and Opus
Support USB 2.0 interface and TF card interface for data storage or offline upgrade
Support call recording and call logs of two-way radios and SIP phones
Dual Megabit Ethernet for network transmission
Supports the power supply via DC 12V PSU and PoE (at)
Supports the Web management for devices
Support desktop and wall-mounted installation
