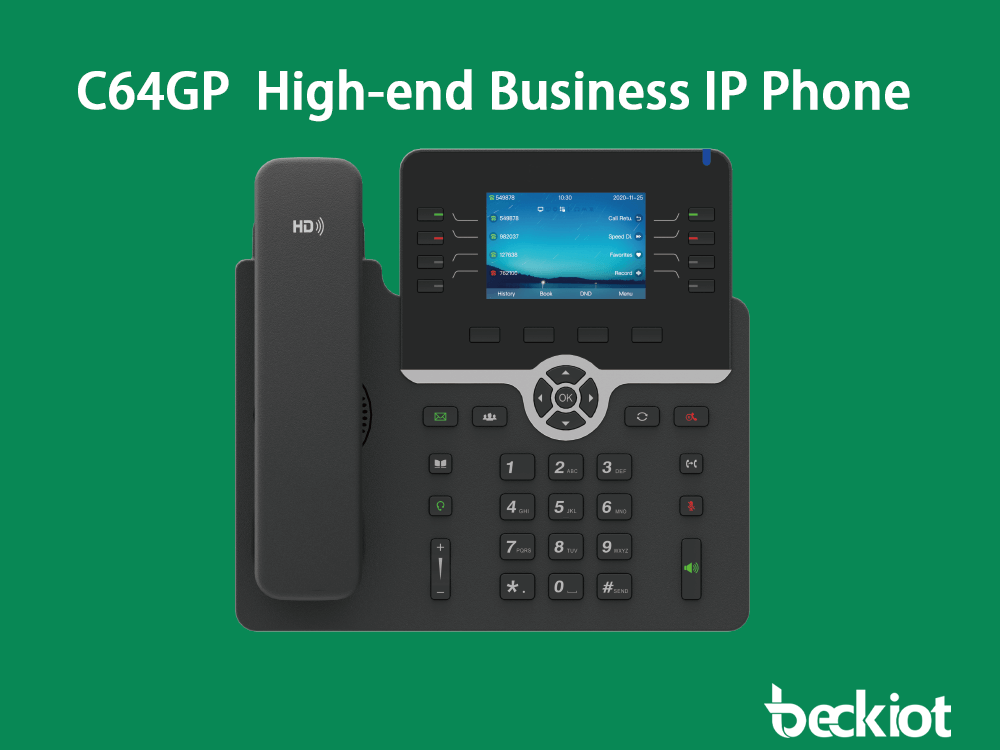

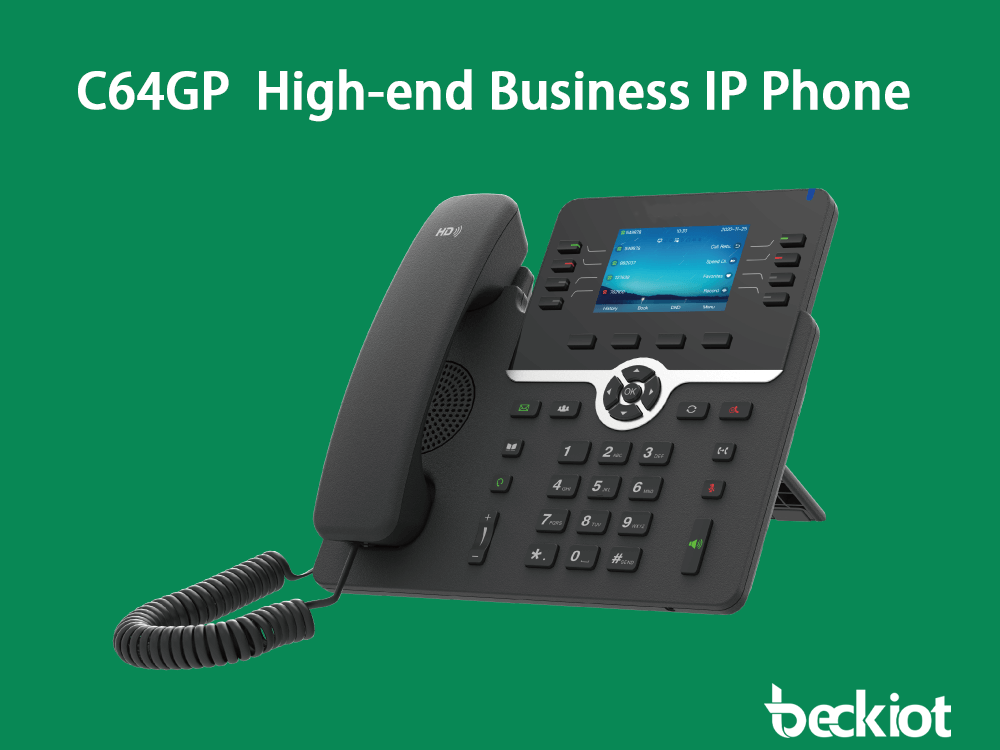

C64GP High-end Business IP Phone

bekiot-C64GP

The C64G/C64GP is a multifunctional HD IP voice phone for business users. With dual Gigabit Ethernet ports, it’s easy to install and configure. It supports 16 SIP accounts and 6 - way conferencing. Its 3.5 - inch color display (320x480) offers great visuals. Boasting excellent voice quality and rich calling features, it fits various IP systems and works well with IPPBX.......

Datasheet instructions

Product Introduction

C64G/C64GP is a multi-functional high-definition IP voice phone designed specifically for business professionals. It features dual Gigabit Ethernet ports, with characteristics of easy installation, simple configuration and user-friendliness. Equipped with a 3.5-inch backlit color LCD display with a maximum resolution of 320x480, it delivers excellent visual experience, outstanding high-definition voice quality and a rich set of telephone system calling functions. Supporting 16 SIP accounts and 6-way conference calling, it can fully meet the needs of different users. It is suitable for various IP voice telephone systems and can achieve rich call service functions through perfect cooperation with IP-PBX.

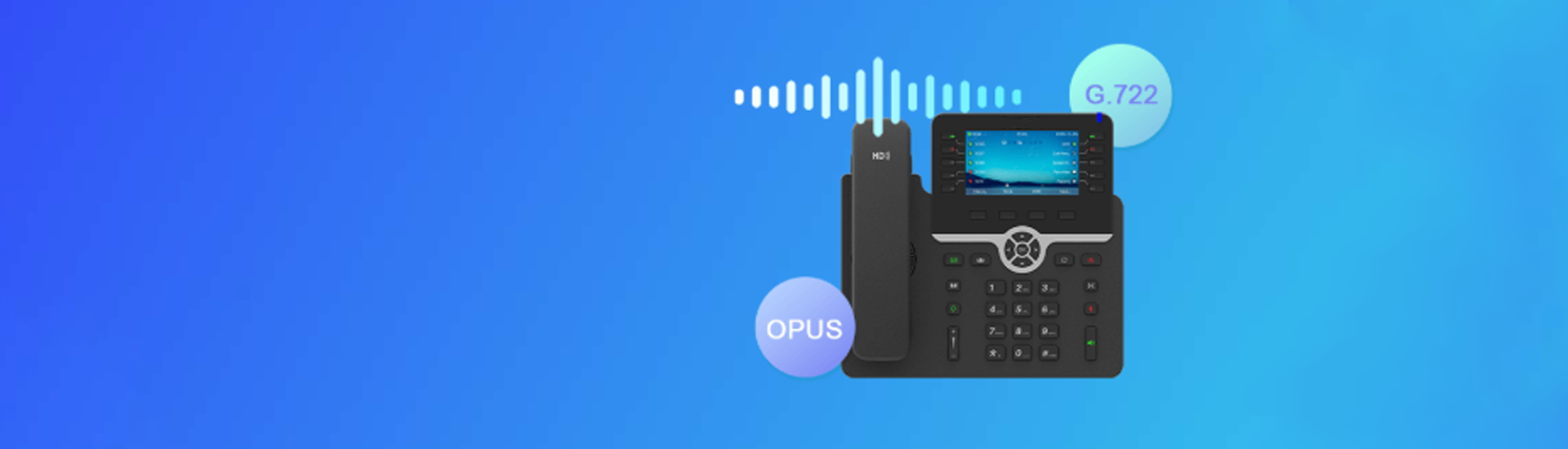

High-definition Audio

Full duplex speaker and microphone

Digital signal processor (DSP)

Wideband codec: G.722,OPUS-WB

Echo cancellation/Dynamic jitter

Voice activity detection(VAD)

Comfort noise generation(CNG)

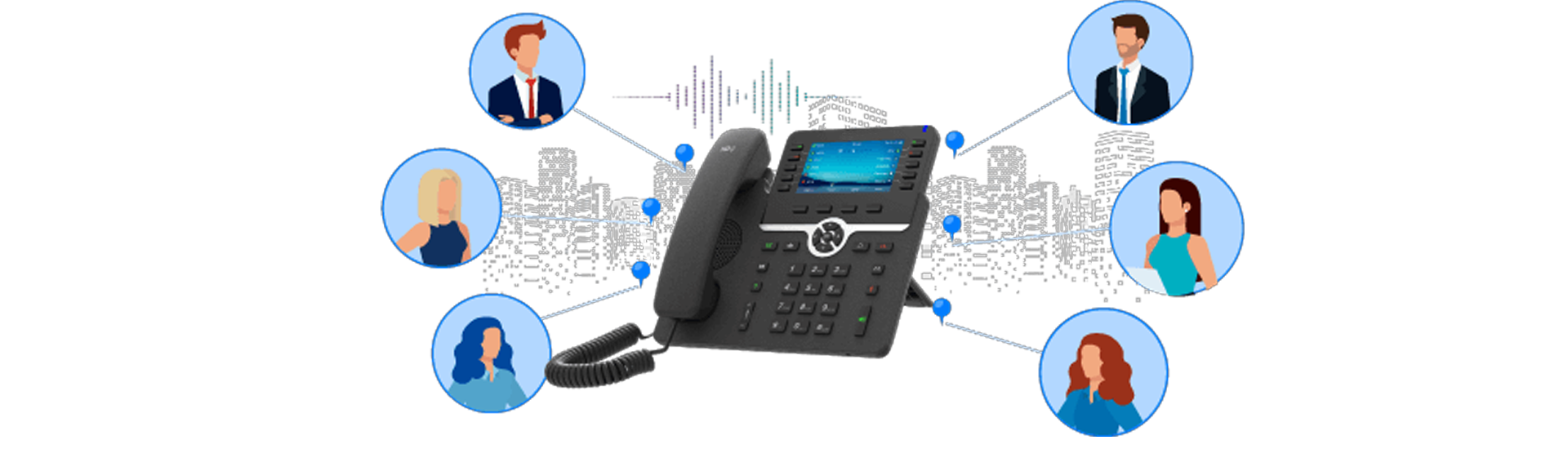

6-way Conferences

C64 Series IP Phone facilitates 6-way audio conferencing,allowing the conference organizer to invite up to 5participants. This enhances collaboration across variousdepartments or organizations, improving efficiency.

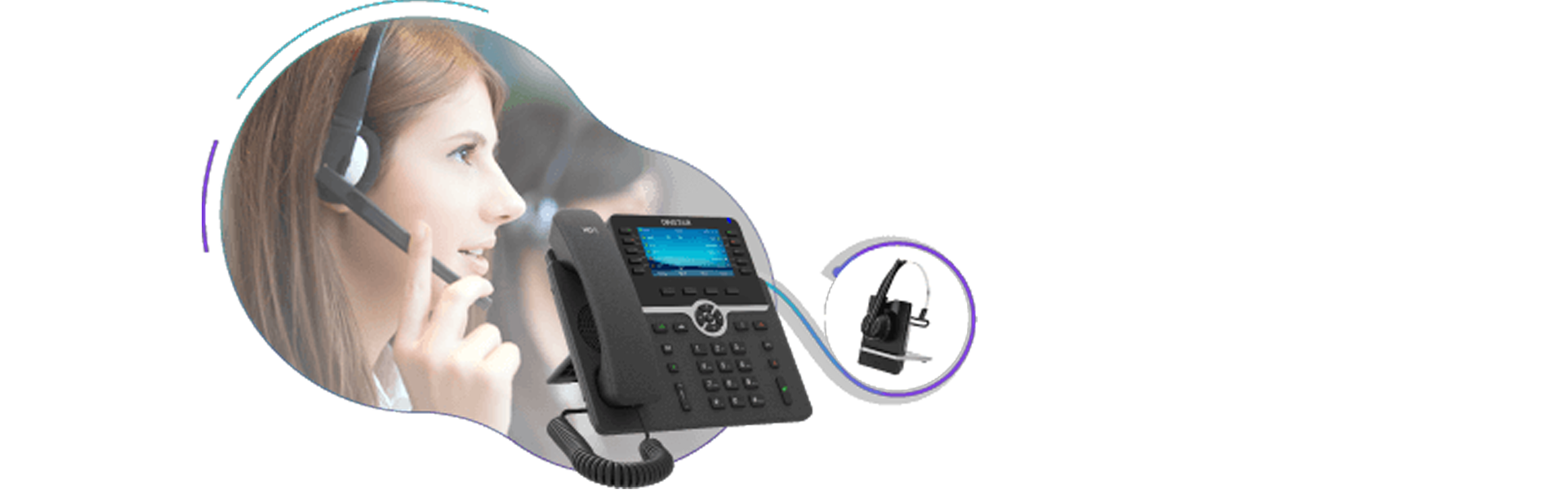

Support 3rd-party EHS Headsets

C64 Series IP Phone is compatible with third-party EHSwireless headsets (Plantronics, Jabra, and Sennheiser),making it an ideal choice for call center professionals. Thisfeature allows employees to multitask while engaged inaudio communication, significantly enhancing overall workefficiency.

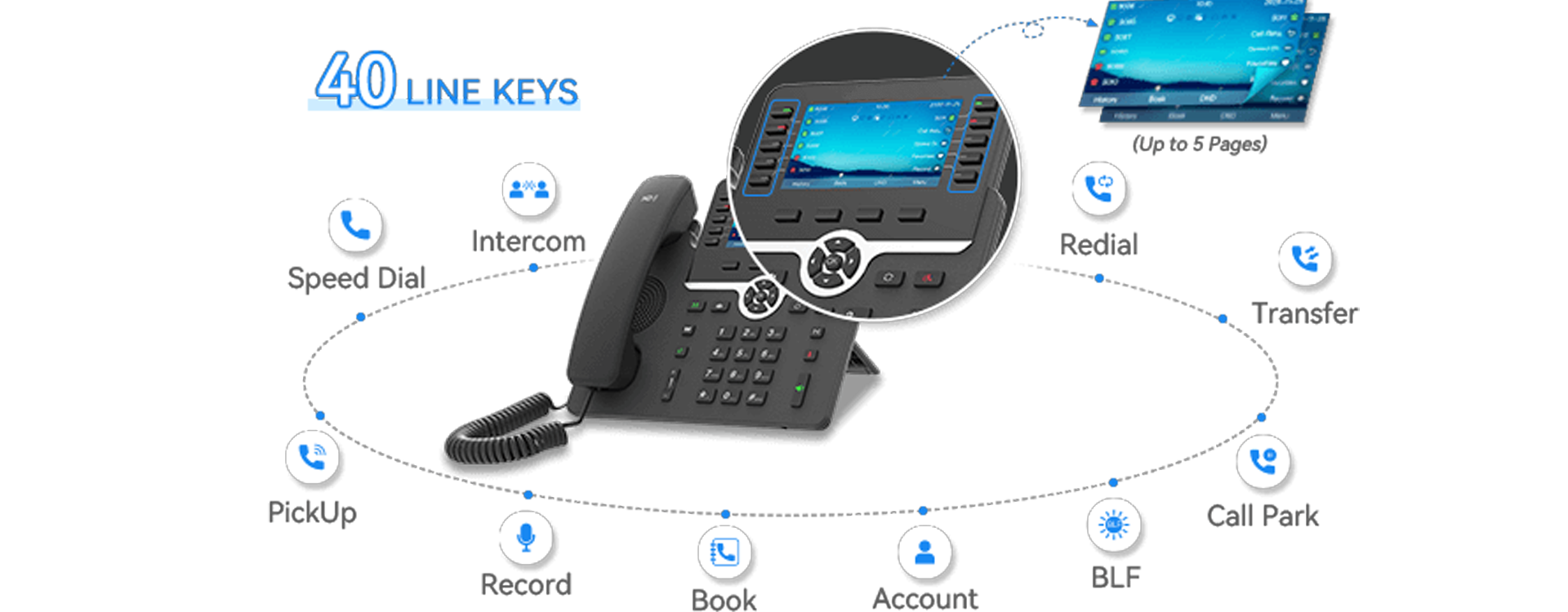

Multiple Programmable Keys

Featuring 40 Line Keys, 4 Soft Keys, and 6 Function Keys, allfully programmable, C64G/C64GP IP Phone provides one-

touch access to frequently used features like speed dialing,call transfer, and conference calling, boosting productivity by

enabling users to customize functions, ensuring efficient and

personalized usage.

Easy Management

Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP

Intuitive web GUl

NMS (Network Management System)

Configuration via device button

Software upgrade via web

Network capture

Product parameters

HD high-definition voice
Broadband voice coding: G.722, OPUS-WB
Narrowband voice coding: PCMA, PCMU, G.729, G723, G726, AMR, OPUS, iLBC
Echo cancellation/dynamic jitter buffer
Voice activity detection (VAD)
Comfort noise generation (CNG)
Full-duplex hands-free
SIP v1 (RFC2543), SIP v2 (RFC3261)
SIP TLS, SRTP encryption
TCP/IP/UDP
RTP/RTCP, RFC2198, RFC1889
HTTP/HTTPS/FTP/TFTP
ARP/RARP/ICMP/NTP/DHCP
DNS SRV/ A Query/NATPR Query
STUN, Session Refresh (RFC4028)
DTMF modes: In-Band, RFC2833, SIP INFO

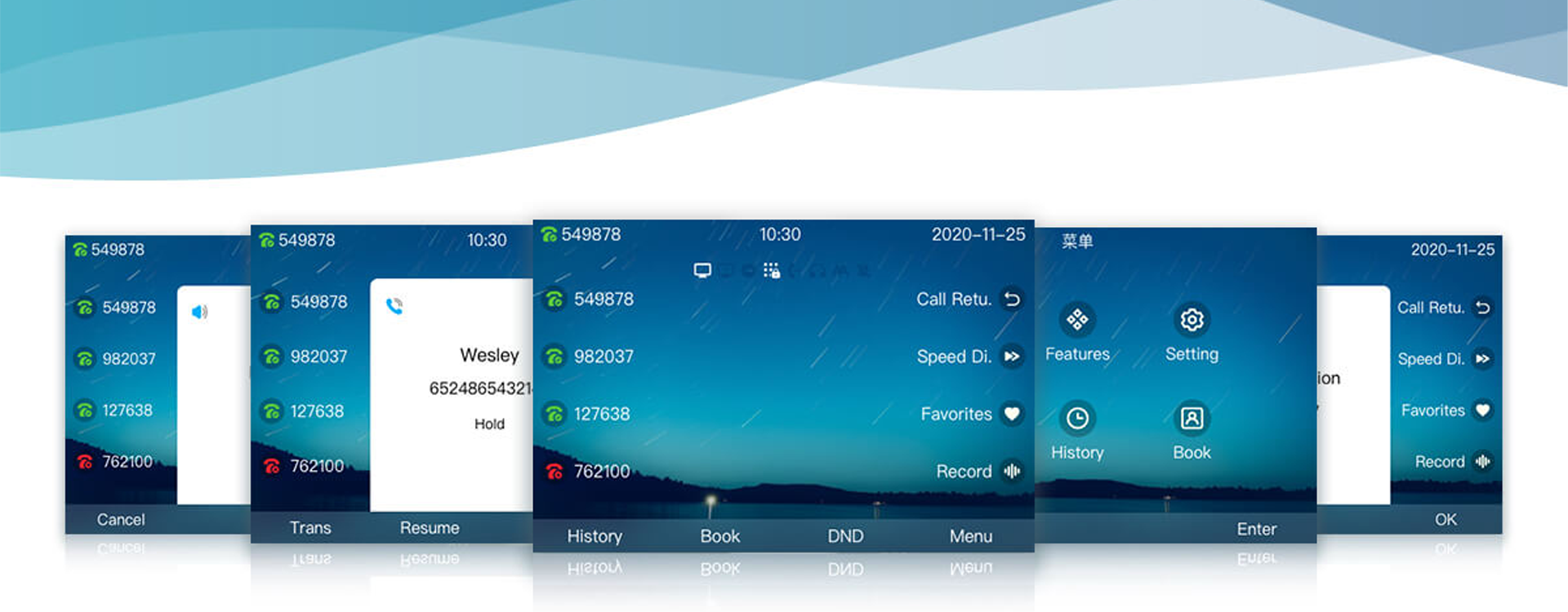

320x480 pixel LCD color backlit display (3.5 inches)
Power adapter: AC 100-240V@DC 5V1A
PoE IEEE802.3af
1xRJ9 handset interface
1xRJ9 headset interface
1xRJ12 expansion board interface
2xRJ45 10/100/1000M Ethernet interfaces
Phone dimensions: 238x223x42mm
Packaging dimensions: 360x265x80mm
Total weight: approximately 1.50kg
Wall-mountable, desktop stand supports two angles

Featured Features

IP-PBX features
Short message, voice mail, message waiting indicator (MWI)
Call hold music, intercom
Call pickup, group call pickup
Anonymous call
Anonymous call rejection

Phone features
16 SIP accounts
Call waiting
Call transfer
Busy transfer/consultative transfer
Call hold, mute, do not disturb
Speed dial, hotline
Redial, callback
Auto redial, auto answer
IP address call
Dialing rules
6-way conference
Volume adjustment
Configurable ring modes
XML browser
Action URL/URI
Key lock
Phonebook: 1000 entries
Blacklist: 100 entries
Call logs: 100 entries
Maximum support for 5 remote phonebook URLs
LDAP
Multi-language support
Peer-to-peer call
USB 2.0 interface: Bluetooth headset, WIFI function, USB recording
