C63GP Color Screen IP Phone-Bek Industrial Communications

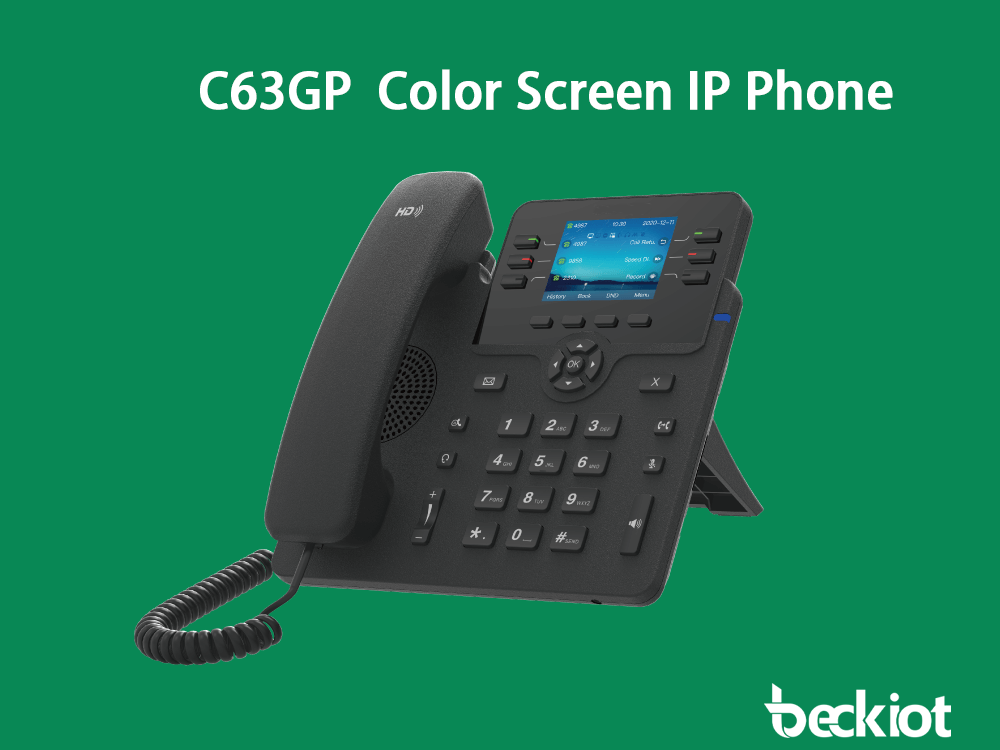

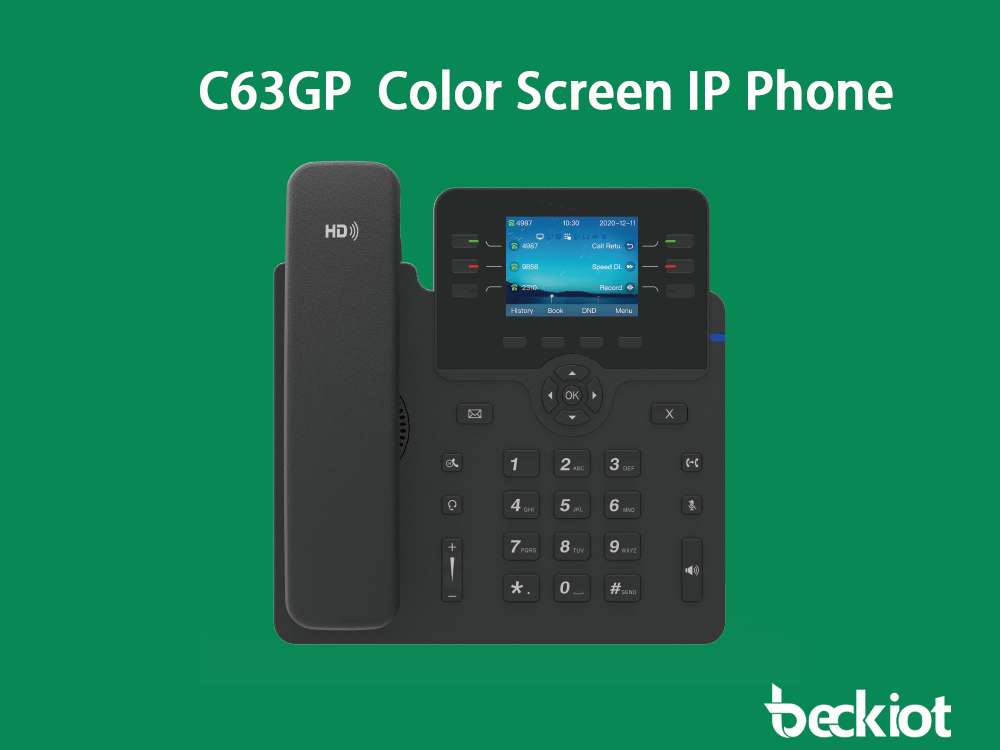

C63GP Color Screen IP Phone

bekiot-C63GP

The C63G/C63GP is an entry-level multi-functional HD IP voice phone. It offers excellent voice quality and is user-friendly, fitting various IP phone systems. With a 320x240 color display, Gigabit Ethernet, 6 SIP accounts, and 5-way conferencing, it works well with IPPBX for rich call features, meeting the demands of SMEs, call centers, and IP voice users.......

Datasheet instructions

Product Introduction

C63G/C63GP is an entry-level multi-functional high-definition IP voice phone with excellent HD voice quality, simple and easy to use, suitable for various IP voice telephone systems. The phone adopts a 320x240 resolution color backlit LCD screen, supports Gigabit Ethernet, 6 SIP accounts, and 5-way conference calling. By perfectly cooperating with IP-PBX, it realizes rich call service functions. It can fully meet the needs of small and medium-sized enterprises, call centers and users in the IP voice communication industry.

High-definition Audio

Full duplex speaker and microphone
Digital signal processor (DSP)
Wideband codec: G.722, OPUS-WB

Echo cancellation/Dynamic jitter

Voice activity detection(VAD)

Comfort noise generation(CNG)

5-way Conferences

C63 Series IP Phone facilitates 5-way audio conferencing,allowing the conference organizer to invite up to 4participants.This enhances collaboration across variousdepartments or organizations, improving efficiency.

Support 3rd-party EHS Headsets

C63 Series IP Phone is compatible with third-party EHSwireless headsets (Plantronics, jabra, and Sennheiser),making it an ideal choice for call center professionals. Thisfeature allows employees to multitask while engaged inaudio communication, significantly enhancing overall workefficiency.

Multiple Programmable Keys

Featuring 30 Line Keys, 4 Soft Keys, and 6 Function Keys, allfully programmable, C63G/C63GP IP Phone provides one-touch access to frequently used features like speed dialing.call transfer, and conference calling, boosting productivity byenabling users to customize functions, ensuring efficient andpersonalized usage.

Easy Management

Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
Intuitive web GUl
Dinstar NMS (Network Management System)

Configuration via device button
Software upgrade via web

Network capture

Product parameters

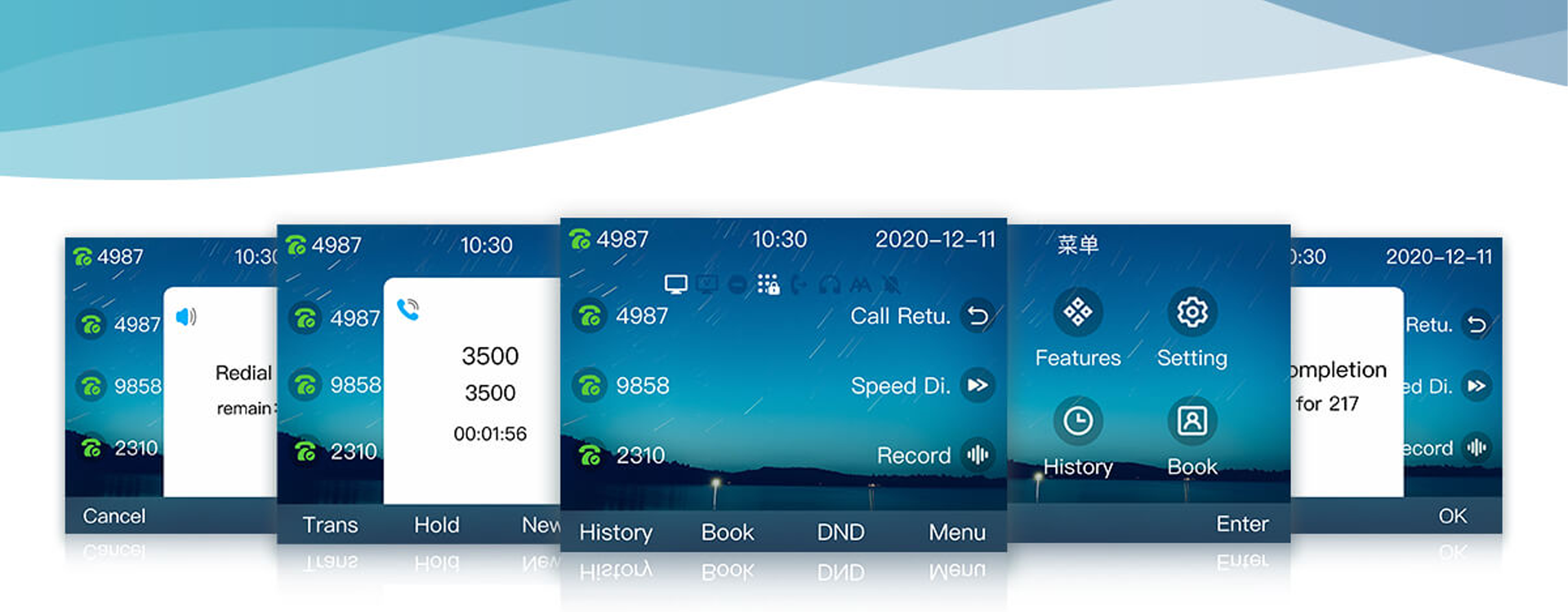

320x240 pixel LCD color backlit display (2.8 inches)
Power adapter: AC 100-240V@DC 5V1A
PoE IEEE802.3af
1xRJ9 handset interface
1xRJ9 headset interface
2xRJ45 10/100M/1000M Ethernet interfaces
Wall-mountable
Phone dimensions: 201x203x42.5mm
Net weight: approximately 0.55kg
Packaging dimensions: 220x215x100mm
Total weight: approximately 1.36kg

Featured Features

IP-PBX Features:
Short Message, Voicemail, Message Waiting Indicator (MWI), Call Hold Music, Intercom
Call Pickup, Group Pickup
Anonymous Call
Anonymous Call Rejection

Phone Features:
6 SIP Accounts
Call Waiting
Call Transfer
Busy/Advisory Transfer
Call Hold, Mute, Do Not Disturb
Speed Dial, Hotline
Redial, Callback
Auto Redial, Auto Answer
IP Address Dialing
Dialing Rules
5-Way Conference
Volume Adjustment
Configurable Ring Tones
XML Browser
Action URL/URI
Keypad Lock
Phonebook: 1000 Entries
Blacklist: 100 Entries
Call Log: 100 Entries
Up to 5 Remote Phonebook URLs
LDAP
Multi-Language Support
Peer-to-Peer Calling
