SIP Video Intercom Access Control i64

bekIOT-i64

The i64 is a tech-savvy, high-quality outdoor SIP audio/video access control terminal, integrating access control, intercom, and security features. It boasts a mechanical keypad and high IP66/IK07 ratings for outdoor use.......

Datasheet instructions

Product Introduction

bekIOT i64 is an SIP audio/video outdoor access control terminal that integrates access control, intercom, and security functions. It features a highly technological design and premium manufacturing craftsmanship, equipped with a full-keyboard mechanical keypad. With IP66 and IK07 high protection ratings, it is suitable for outdoor environments.

The i64 offers multiple door-opening methods for intelligent access control management, and is equipped with a 2MP pixel camera for one-touch audio/video calls. It supports SIP and ONVIF protocols, enables integration with security devices, is compatible with major mainstream platforms, and can be customized for various scene-specific solutions. It is applicable to high-end apartment buildings, office buildings, communities, and industrial

parks.Robust and Elegant

Designed with aluminum alloy outlook, i64 combinestechnology and art. The nureric keypad with blue bbacklightenables users to see clearly even in lowlight conditio

Strong and Durable

Featuring highly waterproof and dustproof, anti-collision grade,i64 has great perforrance in diferent cutdoor environments.Anti-tamperwill alam and report to the control center whenthe cover is unauthorized opened.

Real-time Access Control

Create a seamless experience for residents to stay informed about every visitor. with the link App, residnts can
instantly connect to door phone calls, ensuring, effortless control over every visitor

Thoughtful and Helpful

i64 is able to be integrated with induction loop antenna, providingthe more humanized service for the users with hearingimpairment.

*The hearing aid needs to be ordered separately

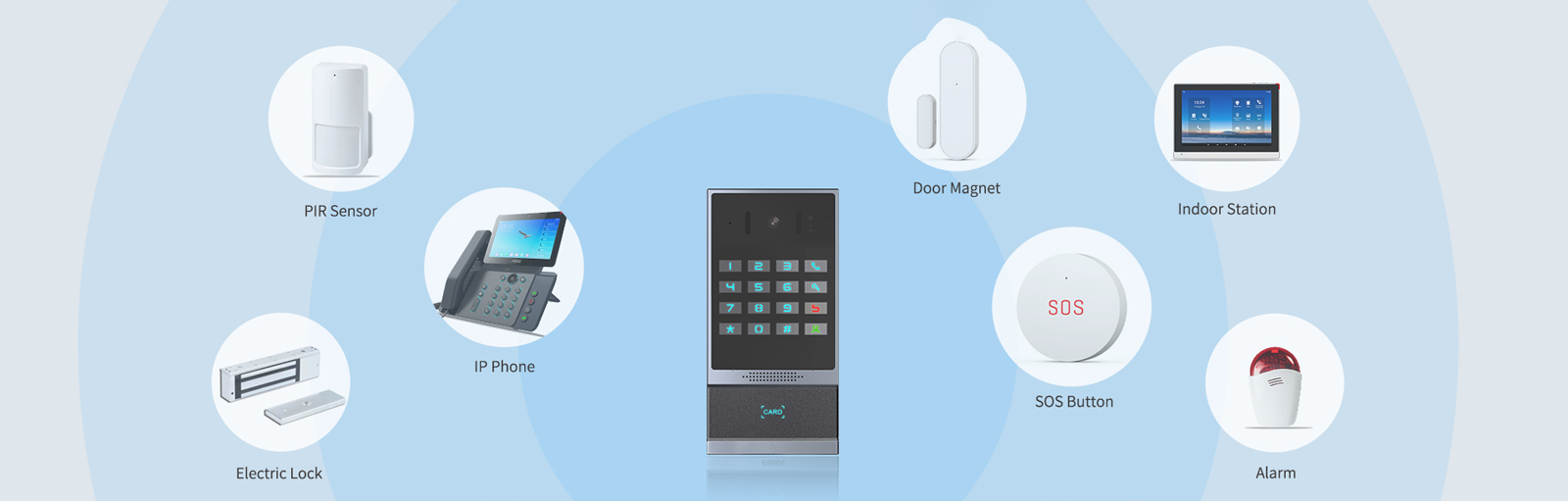

Linkage with Security System

With rich input and output interfaces, i64 can be connected with 3rd party devices. it is easy to be integrated with securityproducts in dlfferent solutions, reducing investment cost and safeguarding the security of communitles.

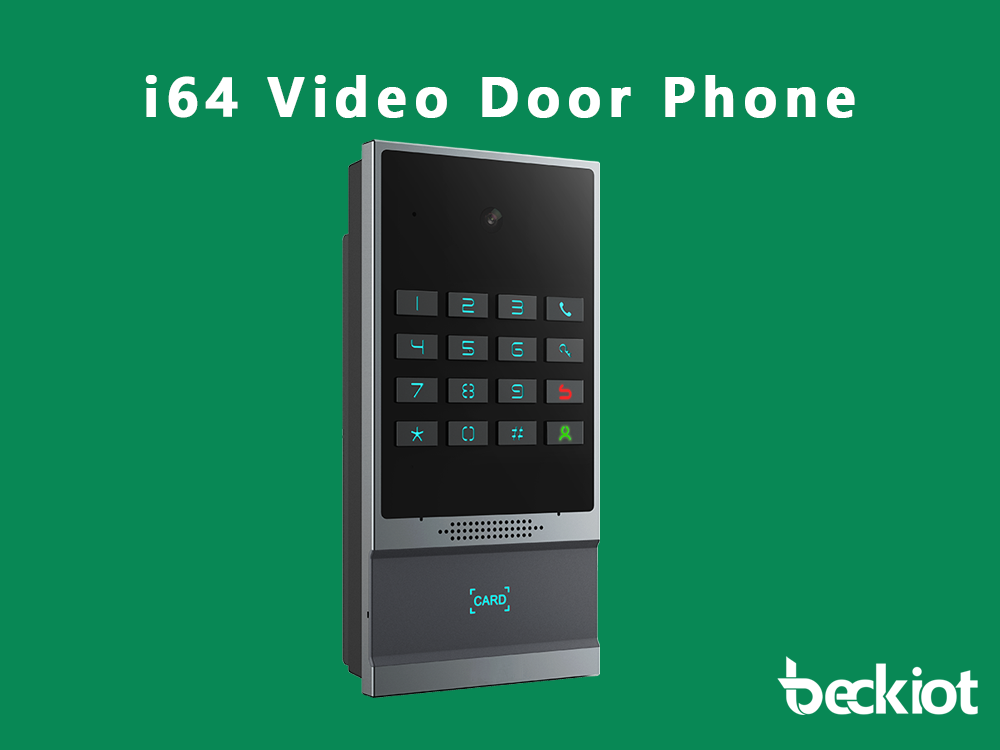

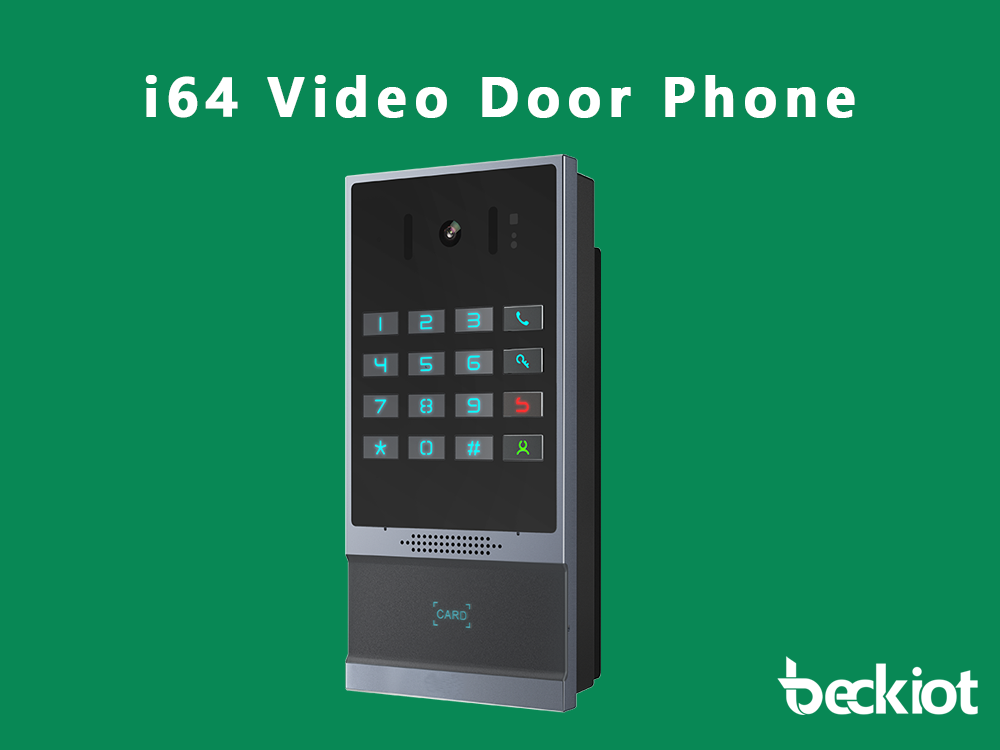

i64 Video Door Phone

High protection lewel of lP66 and lK07, wide temperature range from 40°C to 70^CSupport to open daor with password, RFlD/C cards, indoor switch, remoteDTMF and Timed open door

Aluminum alloy design and a numeric keypad

Built in 2 Mega pixel wide angle camcra: 120"(H}, 60"Vy with infrared night vision fcature-Compatible with ONMF protocol

Builtin 3 short-in detect ports and 2 short-out contrel ports, can be integrated withinduction loop antenna

Built in maximum 128cB capacity TF card slot for image storageHD voice speech quality with built-in 2.5W speaker and Acoustic Echo Canceller

Product parameters

Specifications

Panel Type ：Multi-apartment，Community，Hotel
Screen/Keyboard ：12 Numeric keys+4 Function keys，Color backlight
Body ：Aluminum
Colors ：Gunmetal
Sensor ；1/2.9-inch，CMOS
Camera ：2 Mpx,Support infrared
Viewing Angle ：120°(Horizontal) 60°(Vertical)
Output video ：H.264 (Baseline,Main Profile)
Light Sensitivity ：0.1Lux
Card Storage ：1,0000
Power Consumption ：PoE: 1.71~6.96W ；Adapter: 1.52~6.26W
Power Supply ：DC 12V / 1A ；PoE 802.3af Class 3
Working Temperature ：-40℃~+70℃
Storage temperature ；-40℃~+70℃
Size of the Panel (LWH) ；177.4x88x36.15mm
IP / IK Level ：IP66 / IK07
Installation ：Wall-mounted ；Flush-mounted(Need to Purchase Accessories Separately：EX102)

Functional Capabilities

Supported Protocols ：SIP 2.0 over UDP/TCP/TLS
Lock Opening ：IC/ID Card，By DTMF Code，Remote door opening
Interface ：Wiegand Input/Output ；Short Circuit Input/Output ；RS485 (Reserve)
Line out for induction loop
Supported Wiegand ：26, 34 bit
Supported ONVIF Types ；Profile S
Supported Standards ；Mifare Classic 1K/4K，Mifare DESFire，Mifare Ultralight，Mifare Plus
Cards 13.56 MHz，Cards 125 kHz
Talking Mode ：Full duplex (High-definition Audio)
Additionally ；Built-in relay，Open API，Motion detection，Tamper Alarm，TF Card

Featured Features

Waterproof and dustproof grade IP66, anti-vandal grade IK07, operating temperature -40°C~70°C, adapting to harsh outdoor environments.
Supports multiple door-opening methods: password, RFID/IC card, NFC, indoor switch, DTMF remote door opening, timed door opening.
Premium-grade aluminum alloy frame with intelligent manufacturing process, stylish full-keyboard mechanical keypad.
Equipped with a 2MP wide-angle camera (120° horizontal, 60° vertical), offering clearer and broader vision, and supporting night vision.
Anti-tamper design for the front cover: alarms are reported to the control center when tampering is detected.
Supports SIP and ONVIF protocols.
Built-in 3-way short-circuit input and 2-way short-circuit output interfaces; the Line Out interface can connect to hearing aid auxiliary devices.
Built-in TF card slot, supporting up to 128G for image storage.
Built-in 2.5W speaker and AEC algorithm to achieve high-quality two-way hands-free calls.
