i63 Video Door Phone-Bek Industrial Communications

i63 Video Door Phone

bekIOT-i63

The i63 is an SIP-powered intelligent access control product integrating access control, intercom, and security. With a tech-savvy design and premium craftsmanship, it features 5 quick-dial buttons with indicators. Rated IP66 and IK07 for outdoor use, it offers multiple smart unlocking methods and a 2MP camera for one-touch audio/video calls.......

Datasheet instructions

Product Introduction

The bekIOT i63 is an SIP-enabled intelligent access control product integrating access control, intercom, and security functions. It features a highly technological design and premium intelligent manufacturing craftsmanship, equipped with 5 quick-dial buttons with indicator lights. With IP66 and IK07 high protection ratings, it is suitable for outdoor scenarios.

The i63 supports multiple door-opening methods for intelligent access control management and is equipped with a 2MP pixel camera for one-touch audio/video calls. It supports SIP and ONVIF protocols, enables linkage with security devices, is compatible with major mainstream platforms, and can be customized into various scene-specific solutions. It is applicable to high-end apartment buildings, office buildings, communities, and industrial parks.

Robust and Elegant

Designed with aluminum alloy outlook, i63 combines technol-ogy and art. The 5 speed-dial buttons with blue backlightenable users to see cleartyeven in low light conditions

Strong and Durable

Featuring highly waterproof and dustproof, anti.collisiongrade, i63 has great perfommance in diferent outdoor environ-ments. Antitamper will alarm and report to the control centerwhen the cover is unauthorized opened.

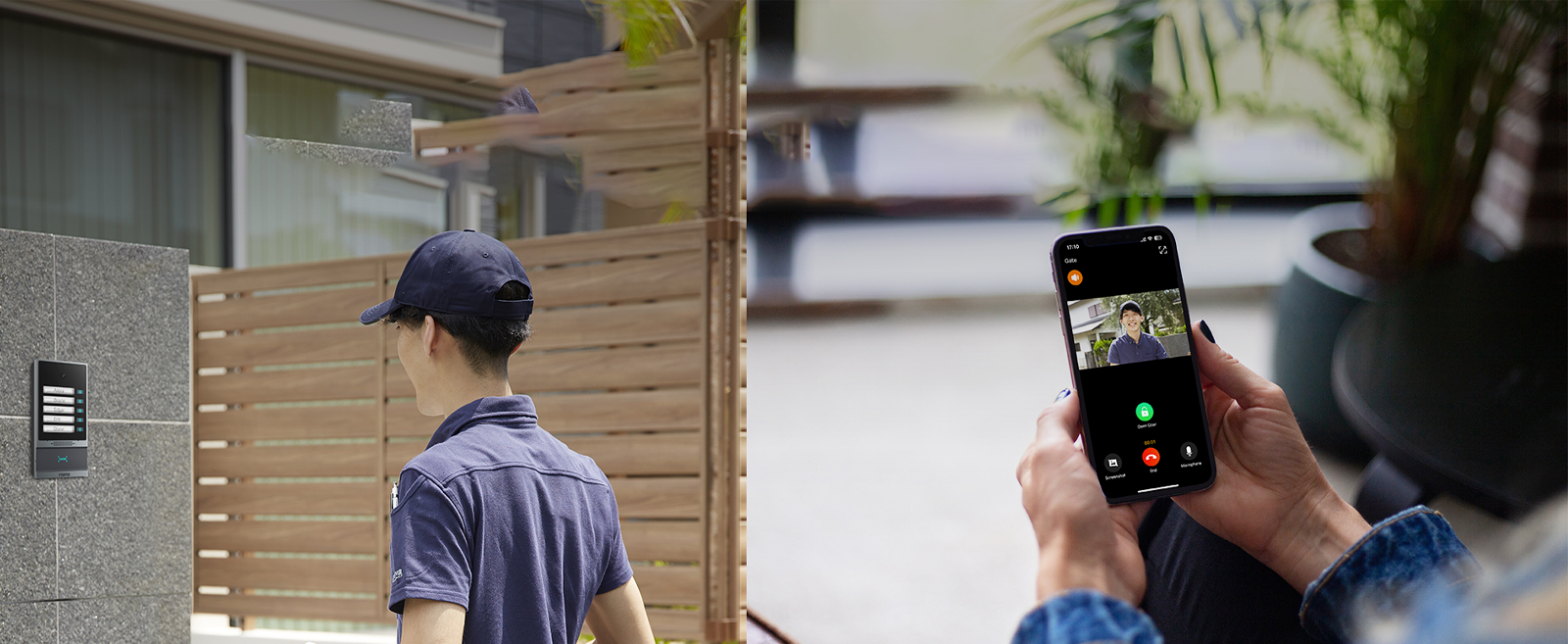

Real-time Access Control

Create a seamless experience for residents to stay informed about every visitor. With the link App, residents caninstantly connect to door phone calls, ensuring effortless control over every visitor

Efficient and Convenient

i63 alloxs users to achieve access control with RFD/C cards,indoor switch, remote DTMF and Timed open door. lt providesclear video image even in dark with an infrared night-visioncamera.

Thoughtful and Helpful

i63 is able to be integrated with induction loop antenna, providingthe more humanized service for the users with hearing impairment

*lhe henring aid needs to be ordered saparatehy

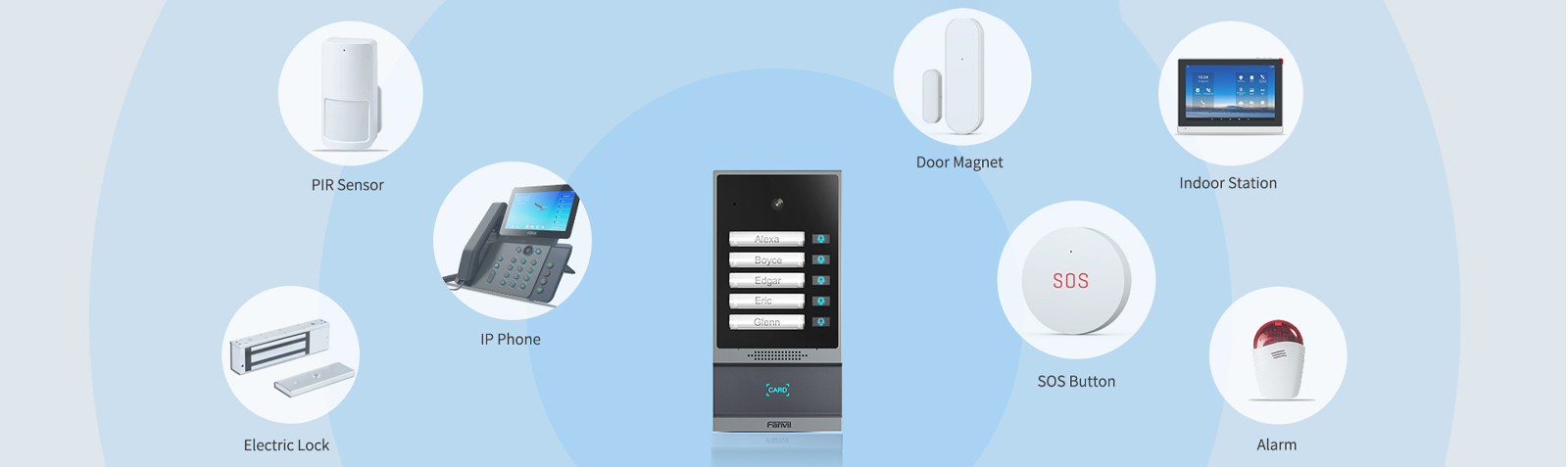

Linkage with Security System

With rich input and output interfaces, i63 can be connected with 3rd party devices, it is easy to be intograted with securityproducts in different solutions, reducing investment cost and safeguarding the security of communities.

i63 SlP Doorphone

High protection level of lP66 and lK07, wide temperature range from -40'C to 70°CSupport to open door with RFlD/lC cards, indoor switch, remote DTMF and Timed open doorAluminum alloy design and S speed.dial buttons

Built-in 2 Mega-pixel wide-angle camera: 120°(H), 60°(V) with infrared night-vision featureCompatible with ÃNMF protocol

Built-in 3 shortin detect ports and 2 short-out control ports, can be integrated withinduction loop antenna

Built-in maximum 128GB capacityTF card slot for image storageHD voice specch quality with built-in 2.5W speaker and Acoustic Echo Canceller

Product parameters

Specifications

Panel Type ：Townhouse, Office, Small apartment
Screen/Keyboard ；Quick call button ×5, Custom label
Body ：Aluminum
Colors ：Gunmetal
Sensor ：1/2.9-inch，CMOS
Camera ：2 Mpx,Support infrared
Viewing Angle ：120°(Horizontal) 60°(Vertical)
Output Video ；H.264 (Baseline, Main Profile)
Light Sensitivity ：0.1Lux
Card Storage ：10,000
Power Consumption ：PoE: 1.70~6.94W ；Adapter: 1.50~6.02W
Power Supply ：DC 12V / 1A ；POE 802.3af Class 3
Working Temperature ；-40℃~+70℃
Storage Temperature ；-40℃~+70℃
Size of the Panel (LWH) ：177.4x88x36.15mm
IP / IK Level ：IP66 / IK07
Installation ：Wall-mounted ；Flush-mounted(Need to purchase accessories separately：EX102)

Functional Capabilities

Supported Protocols ：SIP 2.0 over UDP/TCP/TLS
Lock Opening ：IC/ID Card, By DTMF Code, Remote door opening
Interface ：Wiegand Input/Output ；Short Circuit Input/Output ；RS485 (Reserve) ；Line out for induction loop
Supported Wiegand ：26, 34 bit
Supported ONVIF Types ：Profile S
Supported Standards ：Mifare Classic 1K/4K, Mifare DESFire, Mifare Ultralight, Mifare Plus ；Cards 13.56 MHz, Cards 125 kHz
Talking Mode ：Full duplex (High-definition Audio)
Additionally ：Built-in relay, Open API, Motion detection, Tamper alarm, TF Card

Featured Features

IP66 waterproof/dustproof, IK07 anti-vandal rating, -40°C~70°C operating temperature for harsh outdoor environments.
Supports RFID/IC card, NFC, indoor switch, DTMF remote, timed unlocking methods.
Premium aluminum alloy frame with 5 mechanical buttons (w/ indicators) via smart craftsmanship.
2MP wide-angle camera (120°H/60°V) with night vision for clear, broad views.
Anti-tamper front cover triggers alarms to the control center when breached.
Compatible with SIP & ONVIF protocols.
Built-in 3 short-circuit inputs/2 outputs, Line Out for hearing aids, 128G TF slot (image storage).
2.5W speaker + AEC algorithm enable high-quality hands-free two-way audio.
