i62 Video Door Phone-Bek Industrial Communications

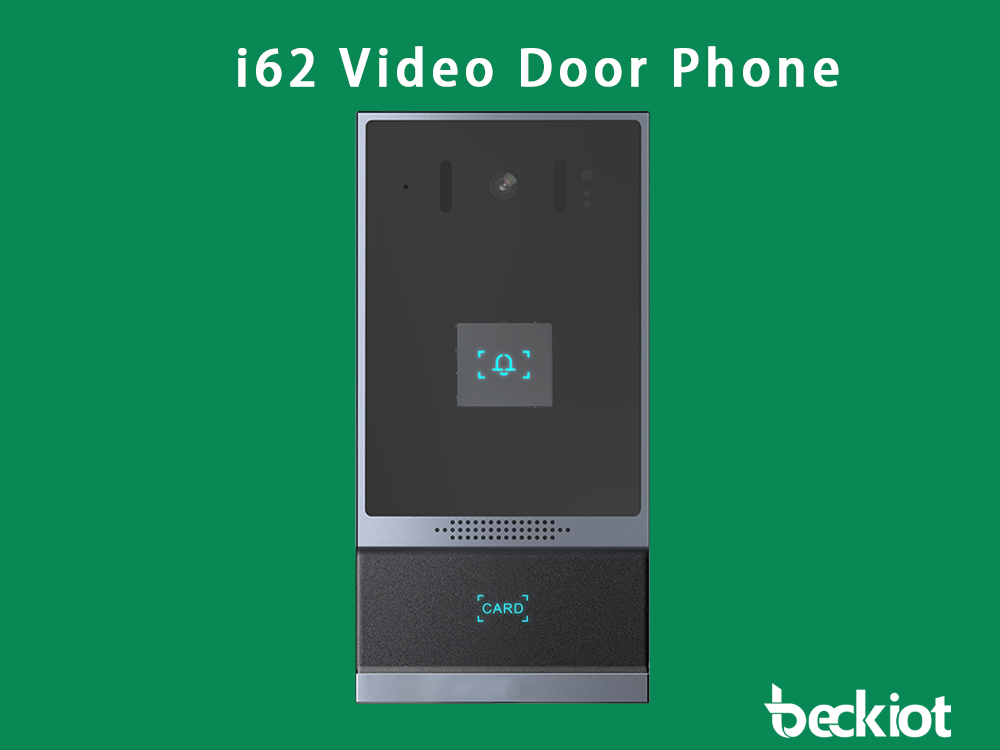

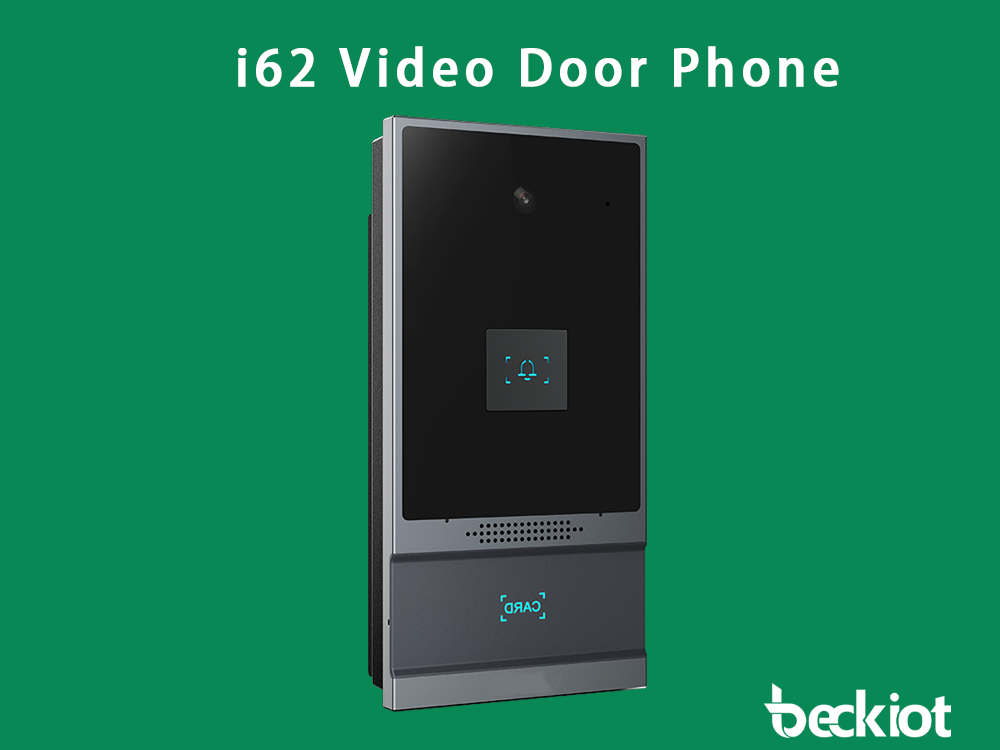

i62 Video Door Phone

bekiot-i62

The i62 is a specialized SIP outdoor intercom with high reliability and quality for security needs. It features a tech-savvy design, superior AV, and one quick-dial button with an indicator. With IP66 and IK07 ratings, it‘s perfect for outdoor use. It supports multiple door opening methods and intelligent management, equipped with a 200W camera for easy AV calling. The i62 is compatible with SIP and ONVIF, integrating with major platforms, and customizable for various solutions, ideal for premium residences, offices, communities, and industrial parks.......

Datasheet instructions

Product Introduction

The i62 is a dedicated SIP audio/video outdoor intercom terminal product developed for the security industry, featuring high reliability, superior audio/video quality, and more. It boasts a cutting-edge design and luxurious craftsmanship, equipped with one quick-dial button with an indicator light. It has achieved IP66 and IK07 high protection ratings, making it suitable for outdoor environments. The i62 supports various door opening methods, realizing intelligent door management. It is equipped with a 200W pixel camera for one-touch audio and video calls. Supporting SIP and ONVIF protocols, the i62 also facilitates integration with other security devices, is compatible with most mainstream platforms, and can be customized for various scene solutions. It is ideal for use in high-end apartment buildings, office buildings, communities, and industrial parks.

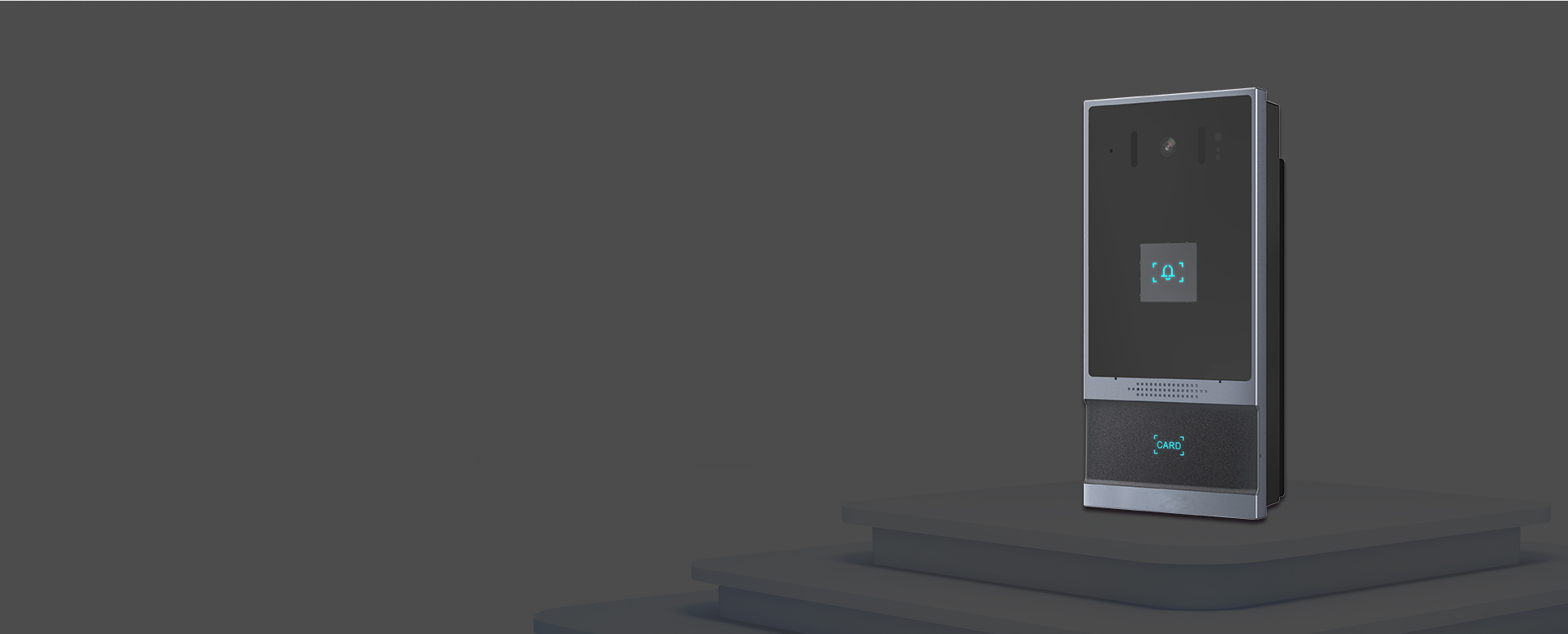

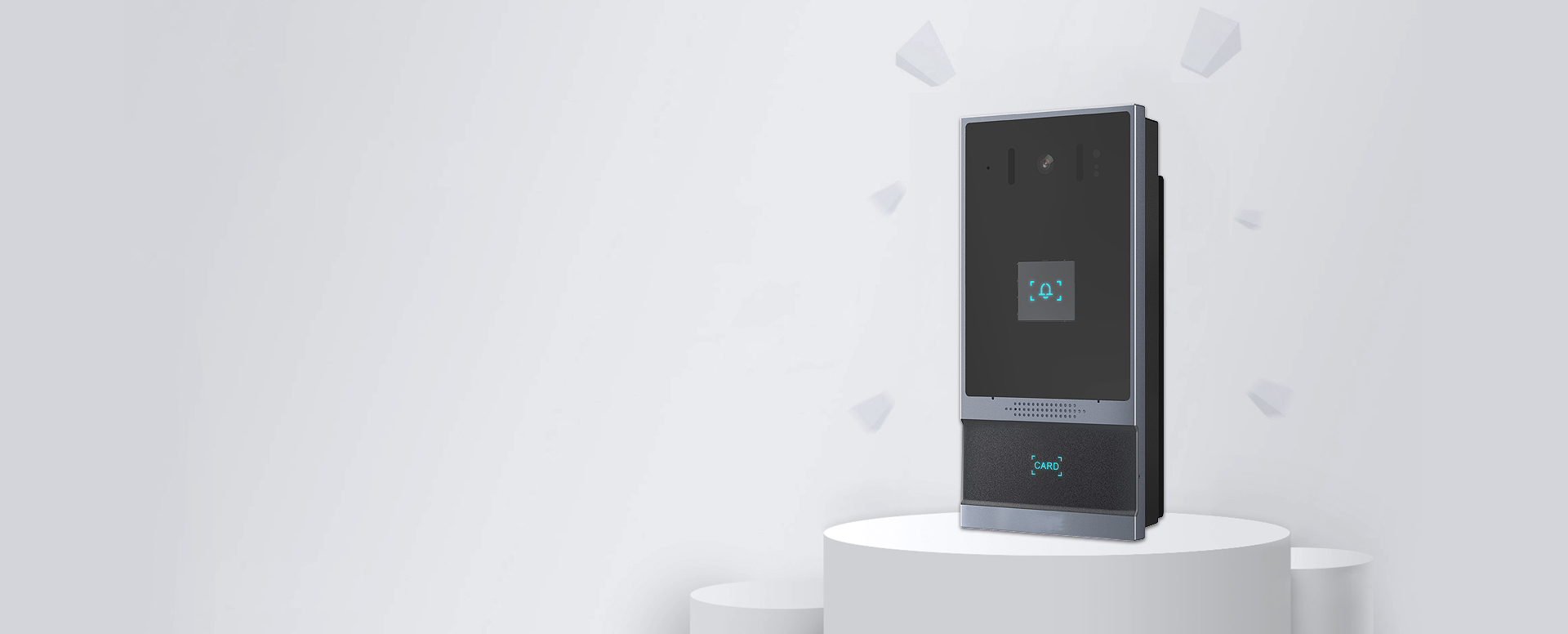

Robust and Elegant

Designed with aluminum alloy outlook, i62 combines technol-ogy and art, The single speed-dial button with blue backlightenables users to see clearly even in low light conditions.

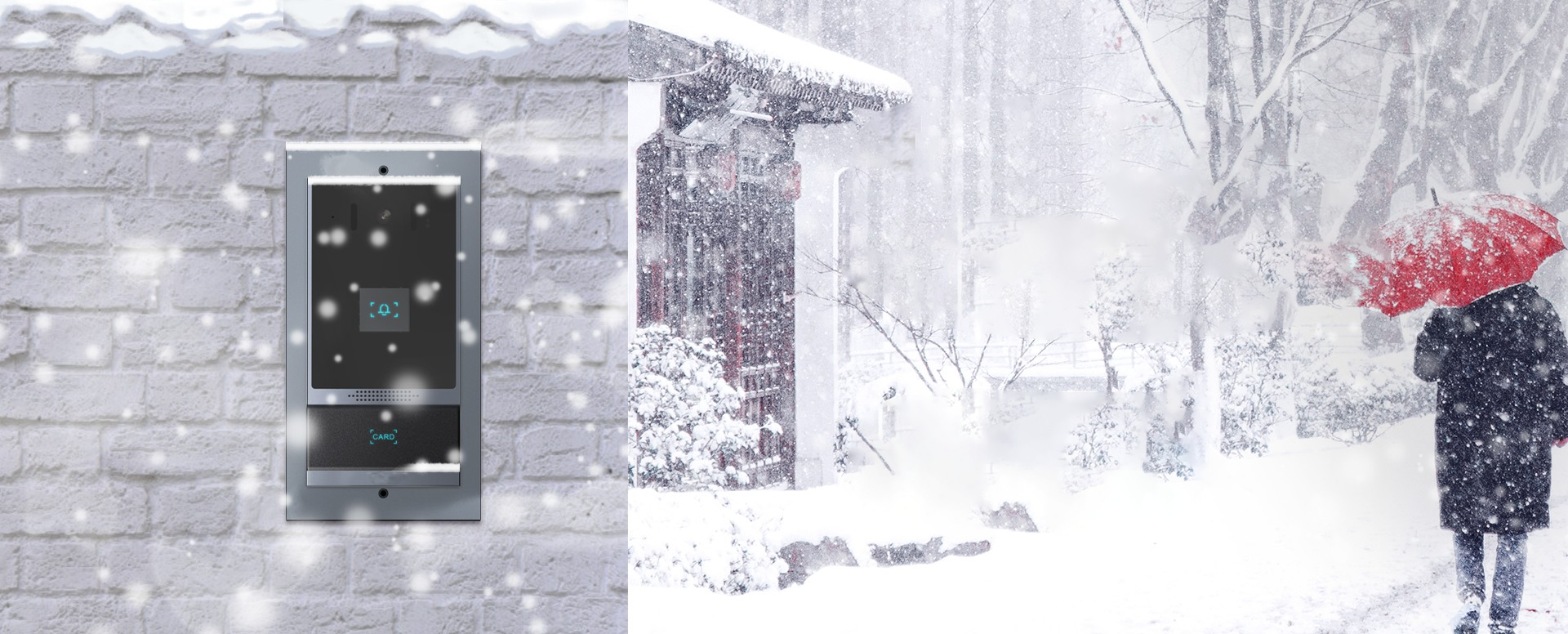

Strong and Durable

Featuring highly waterproof and dustproof, anti-collisiongrade, i62 has great performance in different outdoorenvironments,Anti-tamper will alarm and report to the controlcenter when the cover is unauthorized opened.

Real-time Access Control

Create a seamless experience for residents to stay informed about every visitor. With the link App, residents can

instantly connect to door phone calls, ensuring effortless control over every visitor.

Efficient and Convenient

i62 allows users to achieve access control with RFlD/lC cards.indoor switch, remote DTMF and Timed open door. lt providesclear video image even in dark with an infrared night-visioncamera.

Thoughtful and Helpful

i62 is able to be integrated with induction loop antenna, providingthe more humanized service for the users with hearing impairment

*The hearing aid needs to be ordered separately

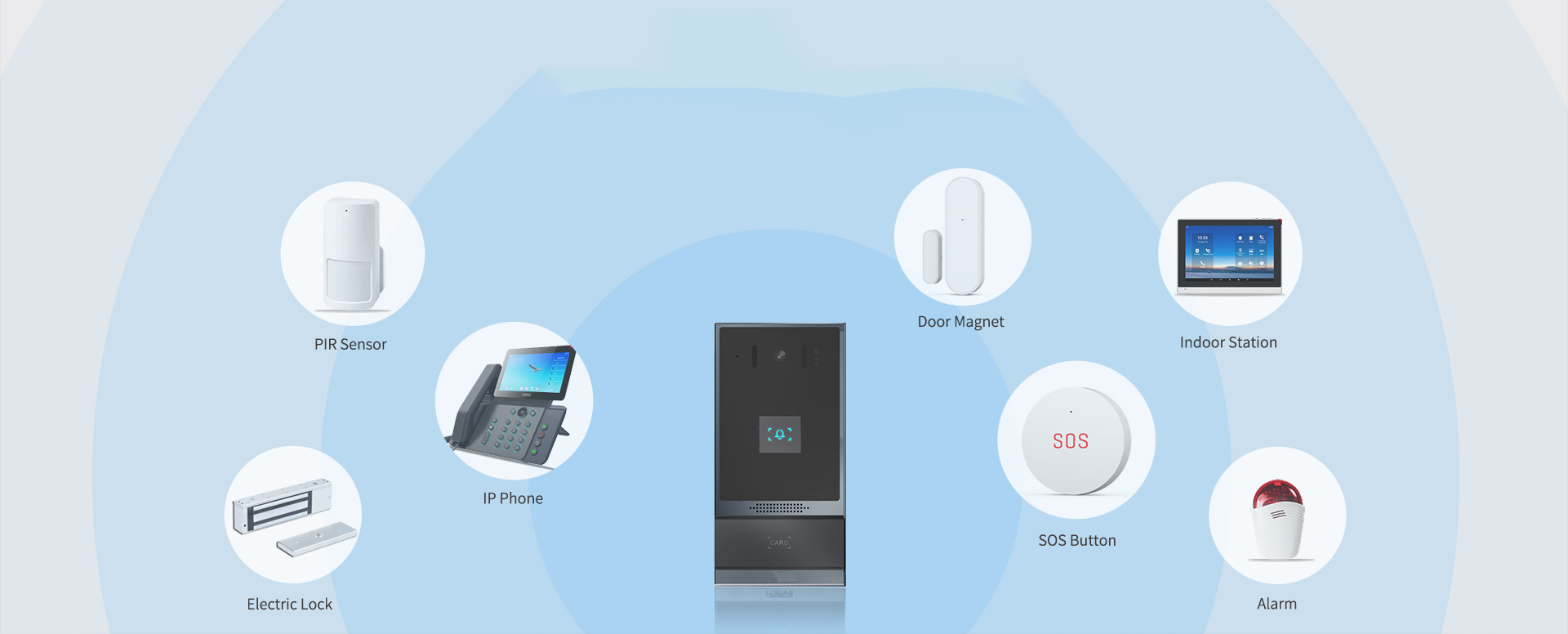

Linkage with Security System

With rich input and output interfaces, i62 can be connected with 3rd party devices. lt is easy to be integrated with securityproducts in diferent solutions, reducing investment cost and safeguarding the security of communities.

i62 SlP Doorphone

High protection level of lP66 and lK07, wide temperature range from -40°C to 70°CSupport to open door with RFlD/lC cards, indoor switch, remote DTMF and Timed open doorAluminum alloy design and single speed-dial button

Built-in 2 Mega-pixel wide-angle camera: 120°(H), 60°(V) with infrared night-vision featureCompatible with ONVlF protocol

Built-in 3 short-in detect ports and 2 short-out control ports, can be integrated withinduction loop antenna

Built-in maximum 128GB capacity TF card slot for image storage

HD voice speech quality with built-in 2.5W speaker and Acoustic Echo Canceller

Product parameters

Specifications

Panel Type：Multi-apartmentC, ommunity, Hotel, Villa

Screen/Keyboard：Quick call button ×1

Body：Aluminum

Colors：Gunmetal

Sensor；1/2.9-inch, CMOS

Camera：2 Mpx,Support infrared

Viewing Angle：120°(Horizontal) 60°(Vertical)

Output Video：H.264 (Baseline, Main Profile)

Light Sensitivity：0.1Lux

Card Storage：10,000

Power Consumption：PoE: 1.69~6.84W；Adapter: 1.42~5.93W

Power Supply：DC 12V / 1A；POE 802.3af Class 3

Working Temperature：-40℃~+70℃

Storage Temperature：-40℃~+70℃

Size of the Panel (LWH)：177.4x88x36.15mm

IP / IK Level：IP66 / IK07

Installation：Wall-mounted；Flush-mounted(Need to purchase accessories separately：EX102)

Functional Capabilities

Supported Protocols：SIP 2.0 over UDP/TCP/TLS

Lock Opening：IC/ID Card, By DTMF Code, Remote door opening

Interface：Wiegand Input/Output；Short Circuit Input/Output；RS485 (Reserve)；Line out for induction loop

Supported Wiegand：26, 34 bit

Supported ONVIF Types：Profile S

Supported Standards：Mifare Classic 1K/4K, Mifare DESFire, Mifare Ultralight, Mifare Plus；Cards 13.56 MHz，Cards 125 kHz

Talking Mode：Full duplex (High-definition Audio)

Additionally：Built-in relay, Open API, Motion detection, Tamper alarm, TF Card

Featured Features

Equipped with a high-definition camera and infrared fill light, adopting H.264 encoding.
Rated IP66 for waterproof and dustproof performance, suitable for harsh outdoor environments.
Features an aluminum alloy front panel and cast aluminum back shell, with an anti-vandal rating of IK07.
Integrated wide-angle camera (120° horizontal, 60° vertical) for a clearer and broader field of view.
Tamper-proof front cover design triggers an alarm that reports to the control center when tampered with.
Built-in 2.5W speaker and AEC algorithm for high-quality two-way hands-free communication.
Features 3 short-circuit inputs and 2 short-circuit output interfaces.
Integrated TF card slot for image storage.
