i61 Video Door Phone

bekiot-i61

The i61 is an SIP audio-video outdoor intercom terminal integrating access control, intercom, and security functions, developed specifically for the security industry‘s user needs. It features a high-tech design and luxurious craftsmanship, equipped with 1 quick-dial touch button. With IP66 and IK07 high protection ratings, it is suitable for outdoor use. It supports multiple door opening methods for intelligent management and is equipped with a 200W pixel camera for one-touch audio-video calls.......

Datasheet instructions

Product Introduction

The i61 is a SIP video intercom outdoor door control terminal that integrates access control, intercom, and security functions, specifically developed to meet the needs of the security industry users. It features a cutting-edge design and a luxury-level smart manufacturing process, equipped with one rapid dial touch button. With IP66 and IK07 high protection rating standards, it is suitable for outdoor scenarios. It supports multiple door opening methods, realizing intelligent door control management; it is equipped with a 200W pixel camera for one-touch audio and video calls. The i61 supports SIP and ONVIF protocols, enables security device integration, and is compatible with major mainstream platforms. It can be customized into various scene solutions and is suitable for various high-end apartment buildings, office buildings, communities, and industrial parks.

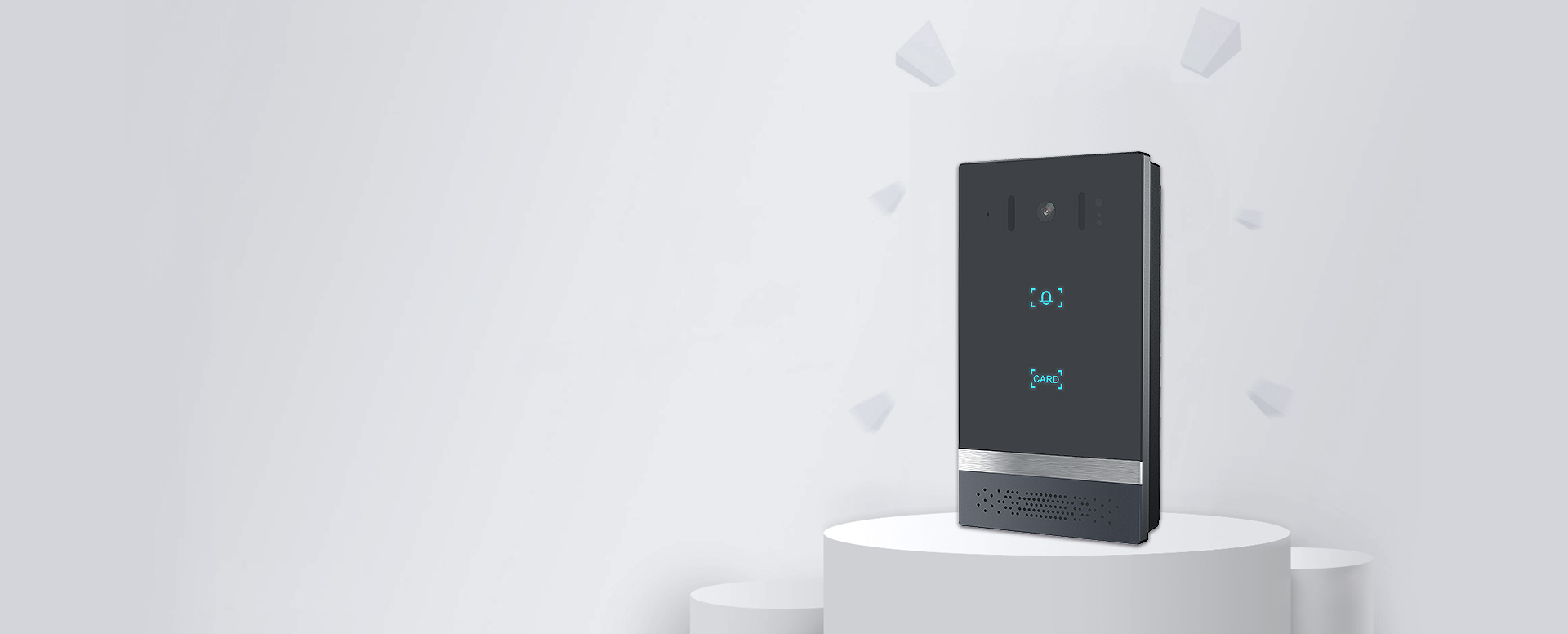

Robust and Elegant

Designed with aluminum alloy outlook, i6l combines technol-ogy and art, The single speed-dial touch button with bluebacklight enables users to see clearly even in low light condi-tions.

Strong and Durable

Featuring highlywaterproof and dustproof, anti-collision grade,i61 has great performance in different outdoor environments.Anti-tamper will alarm and report to the control center whenthe cover is unauthorized opened.

Real-time Access Control

Create a seamless experience for residents to stay informed about every visitor. With the link App, residents can

instantly connect to door phone calls, ensuring effortless control over every visitor.

Efficient and Convenient

i6l allows users to achieve access control with RFlD/lC cards,indoor switch,remote DTMF and Timed open door. lt providesclear video image even in dark with an infrared night-visioncamera.

Thoughtful and Helpful

i61 is able to be integrated with induction loop antenna, providingthe more humanized service for the users with hearingimpairment.

*The hearing aid needs to be ordered separately

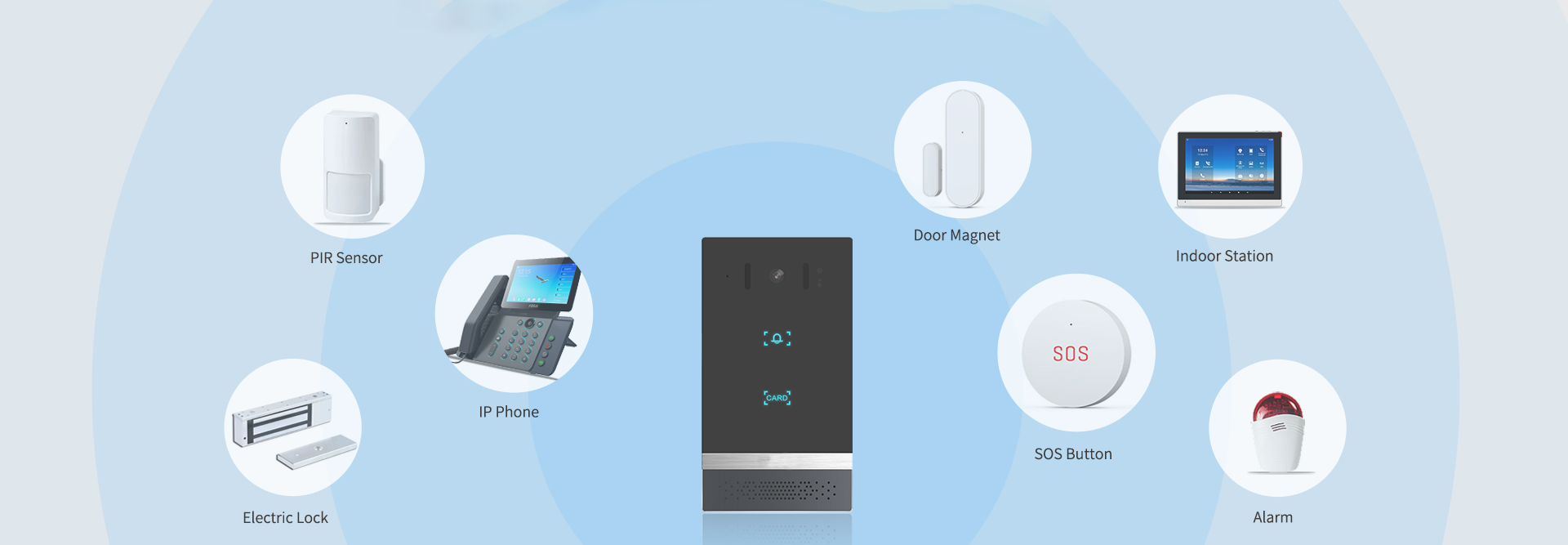

Linkage with Security System

With rich input and output interfaces, i61 can be connected with 3rd parly devices. lt is easy to be integrated with security

products in different solutions, reducing investment cost and safeguarding the security of communities.

anvil i61 SlP Doorphone

High pratection level of lP66 and lK07, wide temperature range from -40°C to 70°CSupport to open door with RFlD/lC cards, indoor switch, remote DTMF and Timed open doorAluminum alloy design and single speed-dial touch button

Built-in 2 Mega-pixel wide-angle camera: 120°(H), 60°V) with infrared night-vision feature2jP9Compatible with @NVlF protocolBuilt-in 3 short-in detect ports and 2 short-out control ports, can be integrated withinduction loop antenna

Built-in maximum 128GB capacityTF card slot for image storageHD voice speech quality with built-in 2.5W speaker and Acoustic Echo Canceller

Product parameters

Specifications

Panel Type：Multi-apartment, Community, Hotel, Villa
Screen/Keyboard ：Capacitive touch button ×1
Body： Aluminum
Colors：Gunmetal
Sensor：1/2.9-inch, CMOS
Camera：2 Mpx, Support infrared
Viewing Angle：120°(Horizontal) 60°(Vertical)
Output Video：H.264 (Baseline, Main Profile)
Light Sensitivity：0.1Lux
Card Storage：1,0000
Power Consumption：PoE:1.63~6.93W；Adapter: 1.51~6.16W
Power Supply：DC 12V / 1A；POE 802.3af Class 3
Working Temperature：-40℃~+70℃
Storage Temperature：-40℃~+70℃
Size of the Panel (LWH)：159.7x88x36.15mm
IP / IK Level：IP66 / IK07
Installation：Wall-mounted；Flush-mounted(Need to Purchase accessories separately：EX101)

Functional Capabilities

Supported Protocols：SIP 2.0 over UDP/TCP/TLS
Lock Opening：IC/ID Card, By DTMF Code, Remote door opening
Interface：Wiegand Input/Output；Short Circuit Input/Output；RS485 (Reserve)；Line out for induction loop
Supported Wiegand：26, 34 bit
Supported ONVIF Types：Profile S
Supported Standards：Mifare Classic 1K/4K, Mifare DESFire, Mifare Ultralight, Mifare Plus
Cards 13.56 MHz, Cards 125 kHz
Talking Mode：Full duplex (High-definition Audio)
Additionally：Built-in relay, Open API，Motion detection, Tamper Alarm, TF Card

Featured Features

Waterproof and dustproof rating: IP66; anti-vandal rating: IK07. Operating temperature: -40°C to 70°C, adapting to harsh outdoor environments.
Supports multiple door-opening methods: RFID/IC card, NFC, indoor switch, DTMF remote door opening, and timed door opening.
Premium intelligent manufacturing process with an aluminum alloy frame and 1 touch button with an indicator light.
Equipped with a 2MP wide-angle camera (120° horizontal, 60° vertical) for a clearer and broader view, supporting night vision.
Tamper-proof front cover design: When tampering is detected, an alarm is triggered and reported to the control center.
Supports SIP and ONVIF protocols.
Built-in 3 short-circuit input interfaces and 2 short-circuit output interfaces; the Line Out interface can connect to hearing assistive devices.
Integrated TF card slot (up to 128G support) for image storage.
Built-in 2.5W speaker and AEC algorithm to achieve high-quality two-way hands-free communication.
