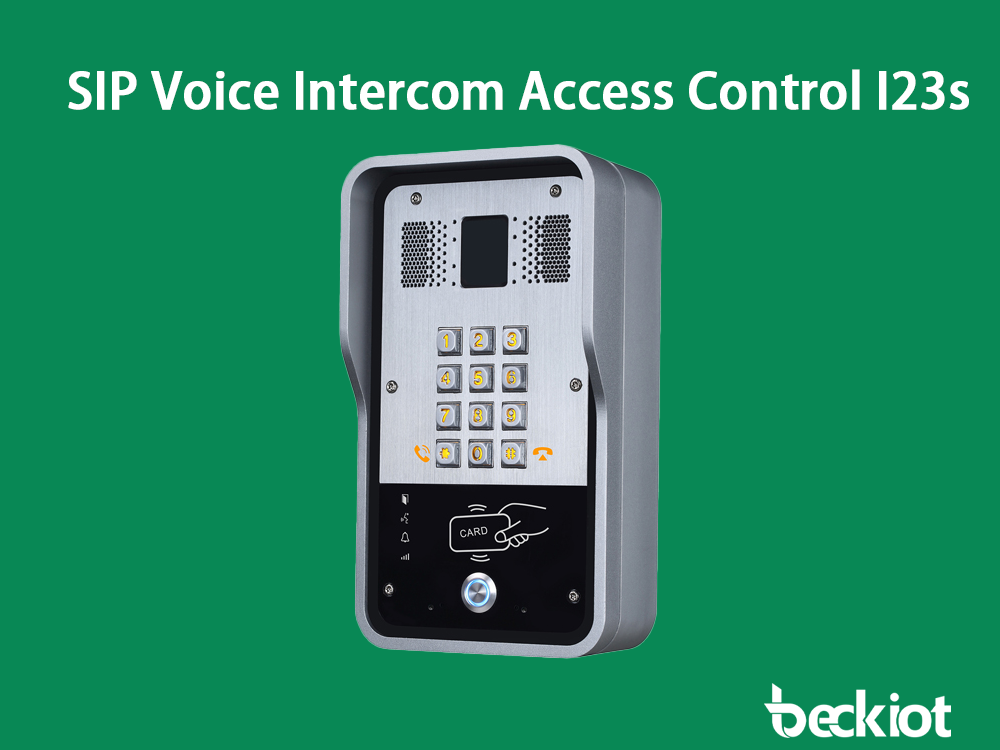

The i23S is an SIP voice intercom access control product developed specifically for industry users' needs based on VoIP phone technology, using standard IP/RTP/RTSP protocols for transmission. It well inherits the advantages of VoIP phones such as high stability and carrier-grade sound quality, and is perfectly compatible with all current mainstream SIP-based IPPBX/softswitch/IMS platforms. With an IP65 protection rating, it effectively prevents dust and water splashing. Integrating remote door opening, password unlocking, card swiping, and indoor switch control, the i23S offers high cost-effectiveness and serves as an ideal choice for customers.

Two SIP lines, supporting SIP 2.0 (RFC3261) and related RFCs
POE-powered (Power over Ethernet)
Full-duplex hands-free communication
Default auto-answer
Unlocking methods: DTMF, password, RFID/IC card, indoor switch
Supports 200,000 door opening records
Supports 5,000 remote access lists
Supports 5,000 RFID/IC cards
Supports internal/external power supply selection for electric locks
Customizable DSS keys
Network time synchronization
ActionURL/ActiveURI remote control
1 DSS key (speed dial key)
5 indicator lights (including speed dial key backlight)
12 standard numeric keys (with backlight)
1 indoor door opening interface
1 relay: NC/NO Contacts, MAX 30V/1A AC/DC
Relay output drive: 12V/650mA DC
RFID/IC card reader: ID (EM4100, 125KHz) & I (MIFARE ONE, 13.56MHz)
Microphone: -38dB
Speaker: 4Ω/3W
WAN port: RJ45, 10/100M auto-negotiation
Power supply: 12V±15%/1A DC or POE
Network cable: CAT5e or higher
Shell material: Aluminum alloy front panel, cast aluminum bottom shell
Installation: Wall-mounted or flush-mounted
Operating temperature: -40~70℃
Storage temperature: -40~70℃
Relative humidity: 10~90%
Protection ratings: IP65 and IK10
