DP81 Audio SIP Intercom-Bek Industrial Communications

DP81 Audio SIP Intercom

bekiot-DP81

The bekiot-DP81 is a two-button SIP access intercom with echo-canceling audio, enabling real-time communication with visitors via indoor units. It offers keyless remote control of electronic locks, ensuring secure, efficient access through internet tech. Ideal for commercial, institutional, and residential use, it combines convenience and safety in a compact design.......

Datasheet instructions

Product Introduction

The bekiot-DP81 is a two-button SIP access control intercom integrated with an advanced audio system featuring echo cancellation. When used with an indoor intercom, it allows users to communicate with visitors at any time. The DP81 provides users with keyless convenient door unlocking: electronic door locks can be remotely controlled, and efficient communication is achieved via internet technology for safer and faster access. It is fully suitable for commercial, institutional, residential and other environments.

One-touch button SlP Intercom

High Stability and Reliability

SIP v1 (RFC2543), V2 (RFC3261)
SIP over TLS, SRTP
TCP/IPV4/UDP
HTTP/HTTPS/FTP/TFTP
ARP/RARP/ICMP/NTP
DNS SRV/ A Query/NATPR Query
STUN, Session timer
DHCP/Static/PPPoE
DTMF Mode: In-Band, RFC2833 and SIP INFO

Easy Management

Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
Configuration via HTTP/HTTPS web

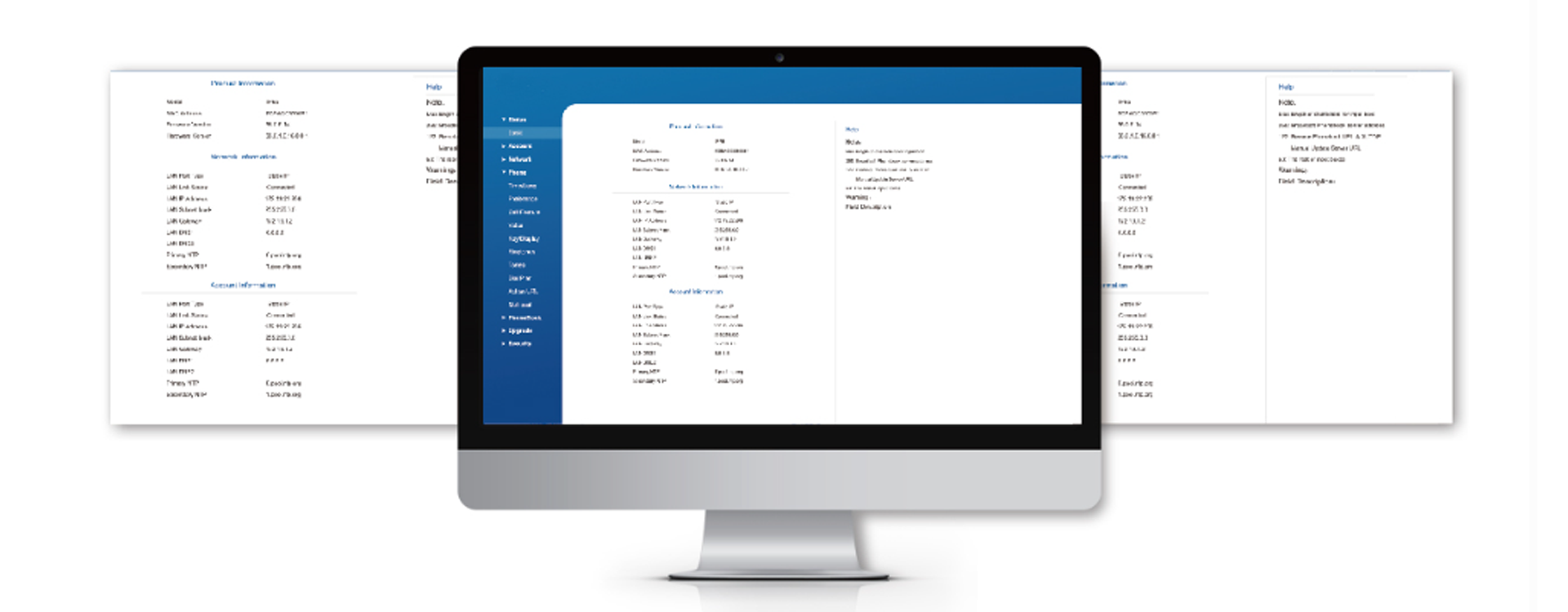

Configuration web-based management
SNMP/TRO69
Configuration backup/restore
Syslog

Product parameters

Physical Specifications
2 call buttons
Aluminum front panel, metal back shell
Power supply: DC 12V/1A or 802.3af PoE (Class 3)
Compliance: IEEE 802.3af PoE
11xRJ45 10/100M Ethernet sockets
Mounting: Wall-mountable
Dimensions: 153×120×38 mm
Operating temperature: -20~65 ℃
Storage temperature: -40~70 ℃
Relative humidity: 10~90%

Featured Features

Access Control

2 SIP lines with dual SIP server support
Door unlocking: DTMF signals
Intercom features: Full-duplex, default auto-answer, remote control via URL/URI, speed dial

Protocols & Networking

SIP: v1 (RFC2543), v2 (RFC3261)
Security: TLS-based SIP, SRTP
Integration: ONVIF (external camera support), RTSP
Network: TCP/IPv4/UDP
Media: RTP/RTCP, RFC2198, 1889
Services: HTTP/HTTPS/FTP/TFTP
Management: ARP/RARP/ICMP/NTP
DNS: SRV/A Query/NAT PR Query, primary/secondary DNS
Firewall: NAT traversal, session timer
QoS: 802.1p/q, DSCP, 802.1x
Connectivity: DHCP/Static/PPPoE
DTMF: In-Band, RFC2833, SIP INFO
