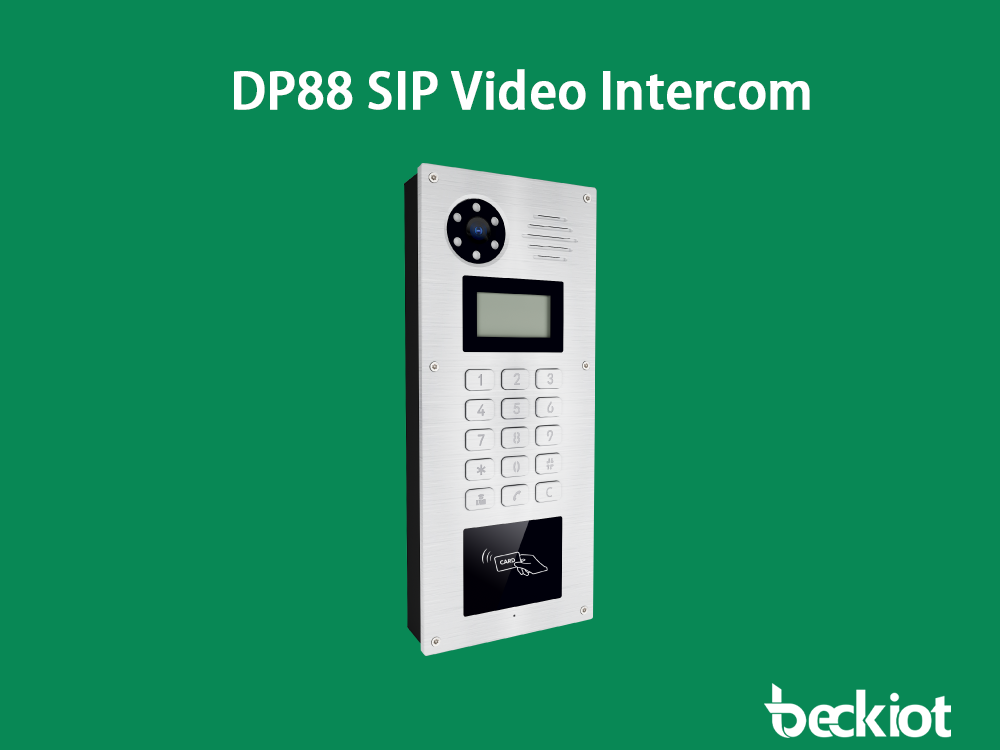

The bekiot-DP88 is a multi-button SIP card-swiping video access control device that provides users with keyless convenient door unlocking. It supports remote control of electronic door locks, as well as local unlocking via passcodes or RFID cards. Equipped with a high-definition camera and an advanced audio system with echo cancellation, it supports H.264 video compression and delivers excellent 1080P video quality. Used with indoor monitors, it enables real-time communication with visitors while allowing users to view live footage from the access control camera.

Multi-button SlP Video Intercom

High Stability and Reliability

• SIP 1 (RFC2543), V2 (RFC3261)
• SIP over TLS, SRTP
• TCP/IPV4/UDP
• RTP/RTCP, RFC2198,1889
• HTTP/HTTPS/FTP/TFTP
• ARP/RARP/ICMP/NTP
• DNS SRV/ A Query/NATPR Query
• STUN, Session timer

Easy Management

• Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP

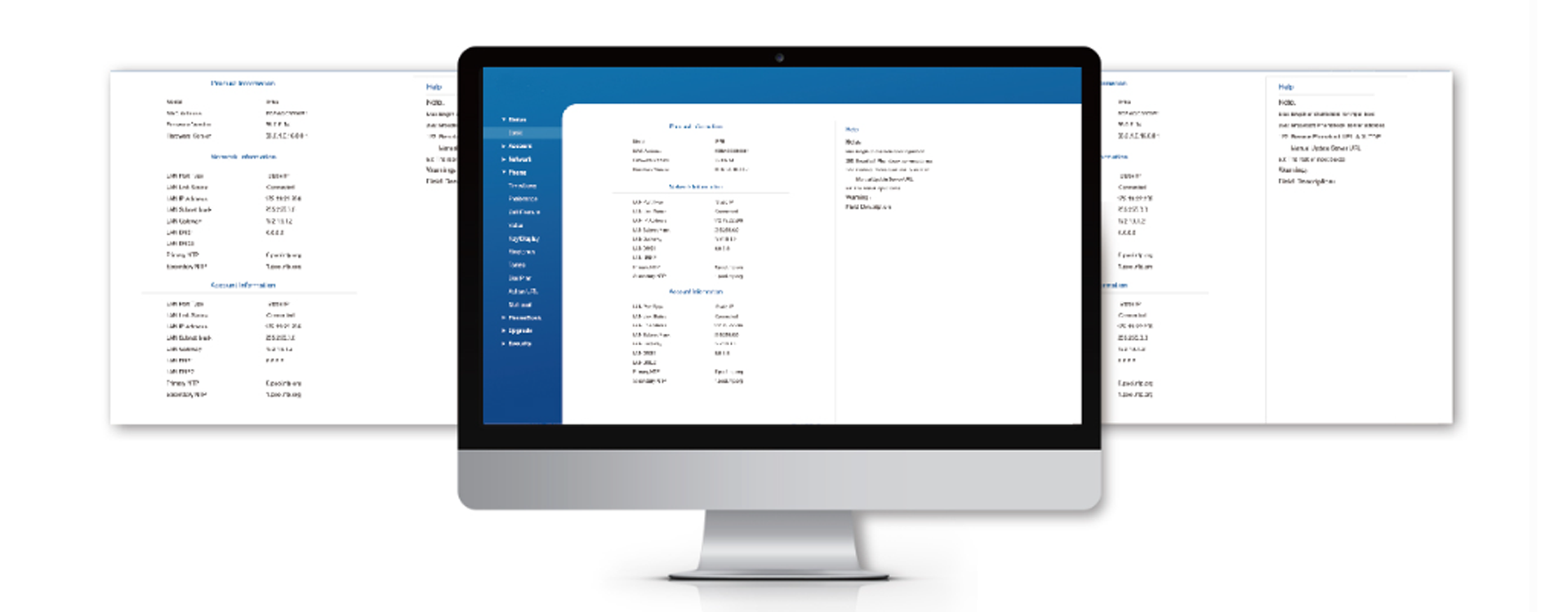

• Configuration via HTTP/HTTPS web
• NTP/Daylight Saving Time
• Syslog
• Configuration backup/restore
• Configuration keypad-based
• SNMP/TRO69

• 1x 10/100M Ethernet port (PoE)
• 1x Ethernet camera port (H264/H265 support)
• 2x relay outputs
• 2x door sensor short-circuit inputs
• 2x indoor switch inputs
• 1x recording output
• 1x 8Ω speaker output
• 1x analog audio output
• 1x external audio input
• 1x microphone input
• 1x tamper detection input
• 1x Wiegand reader interface
• 1x RS232 interface (RFID reader support)
• 1x 2.3" monochrome LCD
• 1x 15-key numeric keypad
• 2x DSS key interfaces

• Display: 2.3" 132×64 backlit graphic LCD
• Full numeric keypad
• Card reading area
• Aluminum front panel, metal back shell
• Power supply: DC 12V/1A or 802.3af PoE (Class 3)
• Compliance: IEEE 802.3af PoE
• 11xRJ45 10/100M Ethernet sockets
• Mounting options: Wall-mounted/flush-mounted
• Dimensions: 285×120×38mm

• 2MP color CMOS camera
• Max image transmission: 1080P @25fps
• Video codec: H.264
• Resolution: Up to 1920×1080
• Viewing angle: 80° (vertical), 60° (horizontal)
• Minimum illumination: 0.1lux

• 2 SIP lines with dual SIP server support
• Unlocking methods: DTMF, passcode, RFID card
• Intercom features: Full-duplex, default auto-answer, remote control via URL/URI
• Speed dial function
