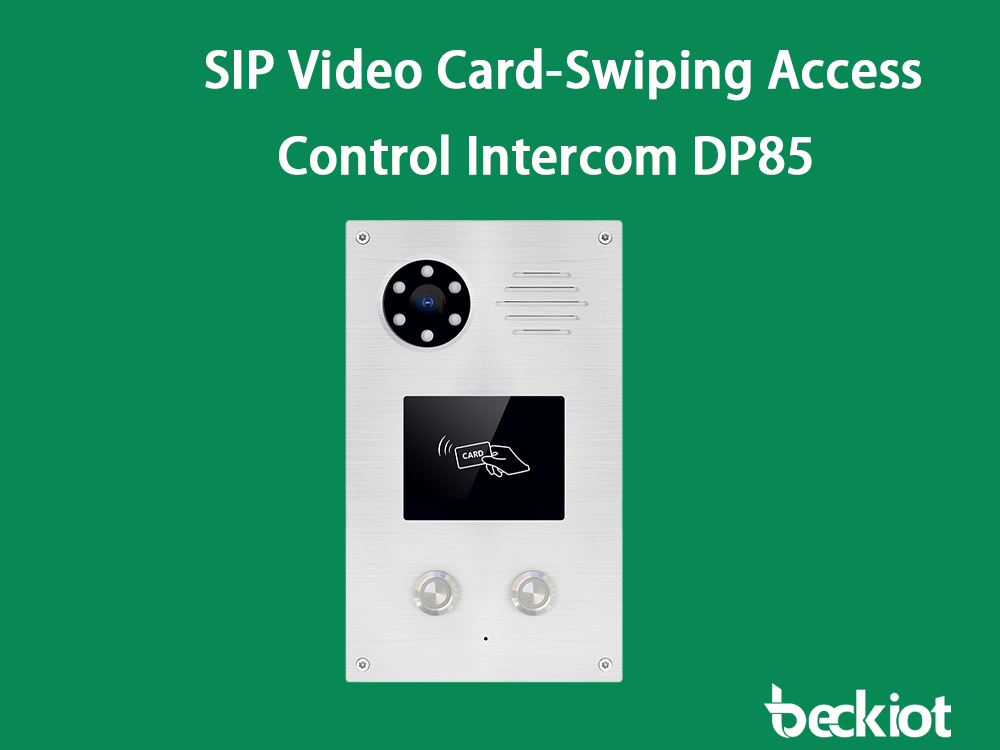

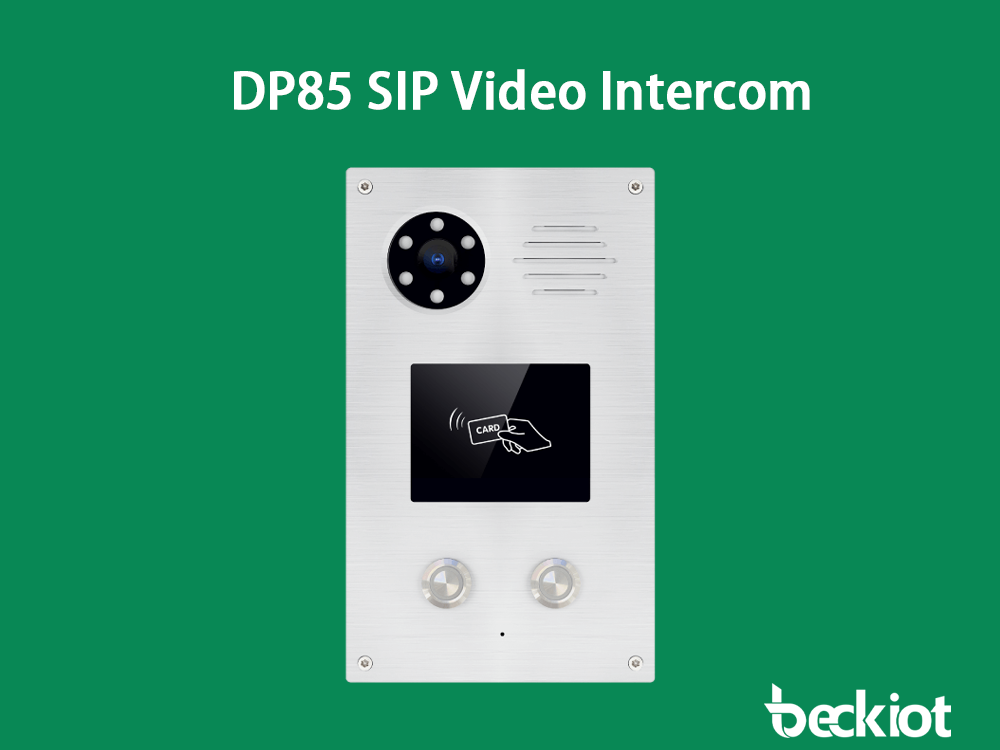

The bekiot-DP85 is a dual-button SIP access control intercom that offers users keyless convenient door unlocking. It enables remote control of electronic door locks and local access via RFID cards. Equipped with a high-definition camera and an advanced audio system featuring echo cancellation, it supports H.264 video compression and delivers excellent video quality at 720P resolution. When used with indoor monitors, it allows users to communicate with visitors in real-time while viewing live footage from the access control camera. Leveraging internet technology for efficient communication, it ensures safer and faster access management, making it fully suitable for commercial, institutional, and residential applications.

1080P HDSlP Video Intercom

High Stability and Reliability

• SIP V1 (RFC2543), V2 (RFC3261)
• SIP over TLS, SRTP
• TCP/IPV4/UDP
• HTTP/HTTPS/FTP/TFTP
• ARP/RARP/ICMP/NTP
• DNS SRV/ A Query/NATPR Query
• STUN, Session timer
• DHCP/Static/PPPoE
• DTMF Mode: In-Band, RFC2833 and SIP INFO

Easy Management

• Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP

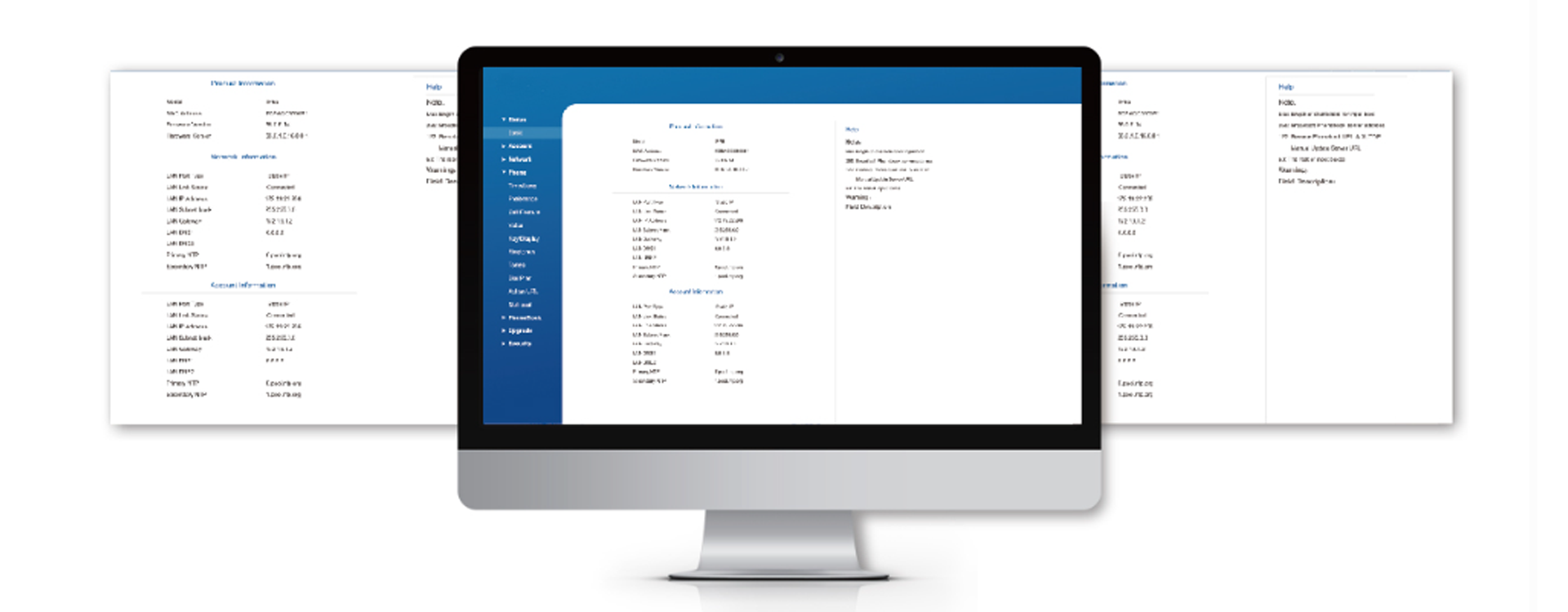

• Configuration via HTTP/HTTPS web
• Configuration web-based management
• SNMP/TRO69
• Configuration backup/restore
• Syslog

Wall‐mounted  installation
2 call button
Syslog
Configuration backup/restore
SNMP/TR069
DTMF Mode: In-Band, RFC2833 and SIP INFO
HTTP/HTTPS Web Management
STUN, Session timer
Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
DHCP/Static/PPPoE
HTTP/HTTPS/FTP/TFTP
TCP/IPv4/UDP
SIP over TLS, SRTP
Resolution:  up to 1280 x 720
Viewing Angle: 80°(H), 60°(V)
Codec: PCMA, PCMU, G.729, G723_53, G723_63, G726_32
Wideband codec: G.722
Two‐way audio stream
HD voice
Video Codec: H.264
Maximum image transfer rate: 1080P -30fps
Door Access: DTMF tones
2 SIP line, Dual SIP servers
2M Pixels color CMOS cameraDSS key interfaces

Video Functions

• 2MP color CMOS camera
• Max image transmission rate: 1080P @25fps
• Video codec: H.264
• Resolution: Up to 1920×1080
• Viewing angle: 80° (vertical), 60° (horizontal)
• Minimum illumination: 0.1lux

Access Control

• 2 SIP lines with dual SIP server support
• Access methods: DTMF signals, RFID cards
• Intercom features: Full-duplex, default auto-answer, remote control via URL/URI, speed dial

Protocols & Networking

• SIP: v1 (RFC2543), v2 (RFC3261)
• Security: TLS-based SIP, SRTP
• Integration: ONVIF (external camera support), RTSP
• Network: TCP/IPv4/UDP
• Media: RTP/RTCP, RFC2198, 1889
• Services: HTTP/HTTPS/FTP/TFTP
• Management: ARP/RARP/ICMP/NTP
• DNS: SRV/A Query/NAT PR Query, primary/secondary DNS
• Firewall: NAT traversal, session timer
• QoS: 802.1p/q, DSCP, 802.1x
• Connectivity: DHCP/Static/PPPoE
• DTMF: In-Band, RFC2833, SIP INFO
