DP83 SIP Video Intercom-Bek Industrial Communications

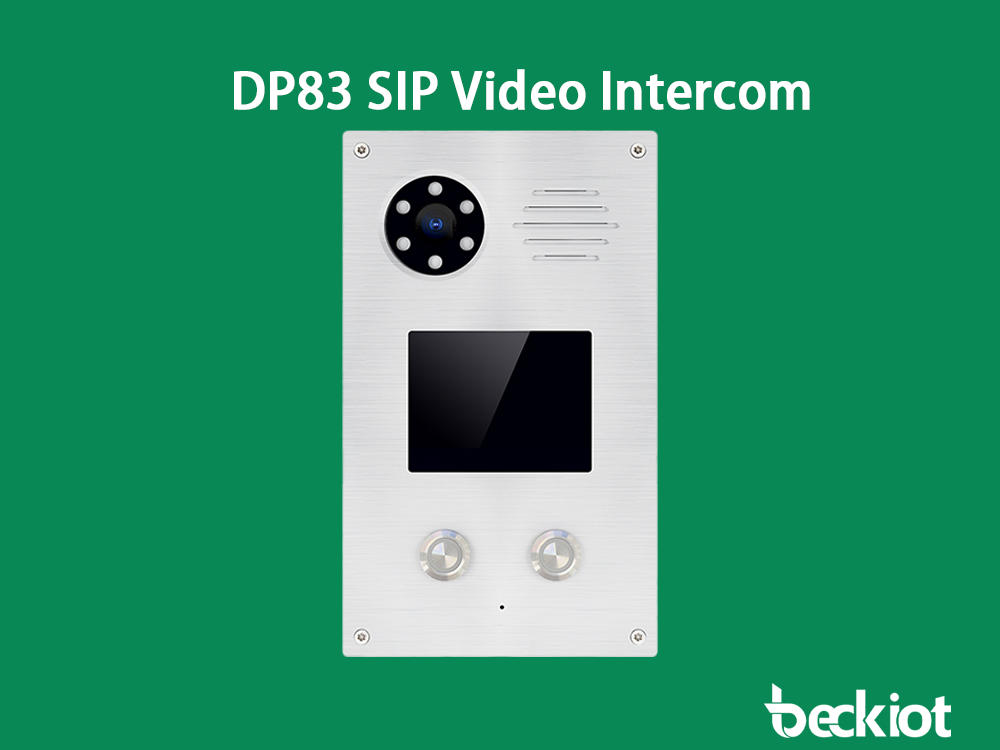

DP83 SIP Video Intercom

bekiot-DP83

The bekiot-DP83 is a two-button SIP access intercom with HD camera and echo-canceling audio, supporting H.264 1080P video for real-time intercom and live viewing via indoor monitors. It enables keyless remote control of electronic locks, ensuring secure, efficient access via internet tech for commercial, institutional, and residential use.......

Datasheet instructions

Product Introduction

The bekiot-DP83 is a two-button SIP access control intercom integrated with a high-definition camera and an advanced audio system featuring echo cancellation. Supporting H.264 video compression, it delivers excellent video quality at 1080P resolution. Used with indoor monitors, it enables users to communicate with visitors in real time while viewing live footage from the access control camera. It offers keyless convenient door unlocking, allowing remote control of electronic door locks. Leveraging internet technology for efficient communication, it ensures safer and faster access, making it fully suitable for commercial, institutional, and residential environments.

Product parameters

Physical Interfaces

1x 10/100M Ethernet port (PoE)
1x Ethernet camera port (H264/H265 support)
2x relay outputs
2x door sensor short-circuit inputs
2x indoor switch inputs
1x recording output
1x 8Ω speaker output
1x analog audio output
1x external audio input
1x microphone input
1x tamper detection input
1x Wiegand reader interface
1x RS232 interface
2x DSS key interfaces

Physical Specifications

2 call buttons
Aluminum front panel, metal back shell
Power supply: DC 12V/1A or 802.3af PoE (Class 3)
Compliance: IEEE 802.3af PoE
11xRJ45 10/100M Ethernet sockets
Wall-mountable design
Dimensions: 200×120×38mm

Featured Features

Video Functions

2MP color CMOS camera
Max image transmission rate: 1080P @25fps
Video codec: H.264
Resolution: Up to 1920×1080
Viewing angle: 80° (vertical), 60° (horizontal)
Minimum illumination: 0.1lux

Access Control

2 SIP lines with dual SIP server support
Door unlocking: DTMF signals
Intercom features: Full-duplex, default auto-answer, remote control via URL/URI, speed dial
