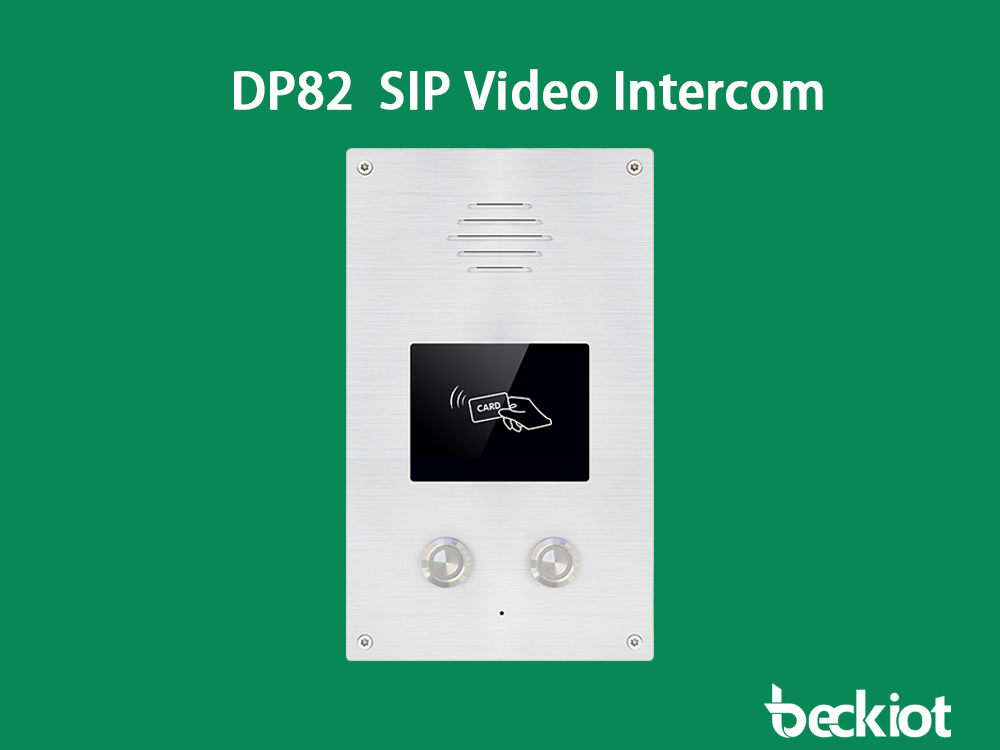

DP82 SIP Video Intercom

bekiot-DP82

The bekiot-DP82 is a two-button SIP access phone with RFID reader and echo-canceling audio, enabling real-time intercom with indoor units. It offers keyless remote control of electronic locks via RFID or online, ensuring secure, efficient access. Ideal for commercial, institutional, and residential use, it combines convenience and safety through advanced tech.......

Datasheet instructions

Product Introduction

The bekiot-DP82 is a two-button SIP access control telephone with an RFID card reader, integrated with an advanced audio system featuring echo cancellation. Used with an indoor intercom, it allows real-time communication with visitors at any time. The DP82 provides users with keyless convenient door unlocking: electronic door locks can be remotely controlled, or locally unlocked via RFID cards. Leveraging internet technology for efficient communication, it ensures safer and faster access, making it fully suitable for commercial, institutional, and residential environments.

Product parameters

Physical Interfaces

1x 10/100M Ethernet port (PoE)
2x relay outputs
2x door sensor short-circuit inputs
2x indoor switch inputs
1x recording output
1x 8Ω speaker output
1x analog audio output
1x external audio input
1x microphone input
1x tamper detection input
1x Wiegand reader interface
1x RS232 interface
2x DSS key interfaces

Physical Specifications

2 call buttons
Card reading area: Aluminum front panel, metal back shell
Power supply: DC 12V/1A or 802.3af PoE (Class 3)
Compliance: IEEE 802.3af PoE
11xRJ45 10/100M Ethernet sockets
Mounting: Wall-mountable
Dimensions: 200×120×38 mm
Operating temperature: -20~65 ℃
Storage temperature: -40~70 ℃
Relative humidity: 10~90%

Featured Features

Protocols & Networking
SIP: v1 (RFC2543), v2 (RFC3261)
Security: TLS-based SIP, SRTP
Integration: ONVIF (external camera support), RTSP
Network: TCP/IPv4/UDP
Media: RTP/RTCP, RFC2198, 1889
Services: HTTP/HTTPS/FTP/TFTP
Management: ARP/RARP/ICMP/NTP
DNS: SRV/A Query/NAT PR Query, primary/secondary DNS
Firewall: NAT traversal, session timer
QoS: 802.1p/q, DSCP, 802.1x
Connectivity: DHCP/Static/PPPoE
DTMF: In-Band, RFC2833, SIP INFO
