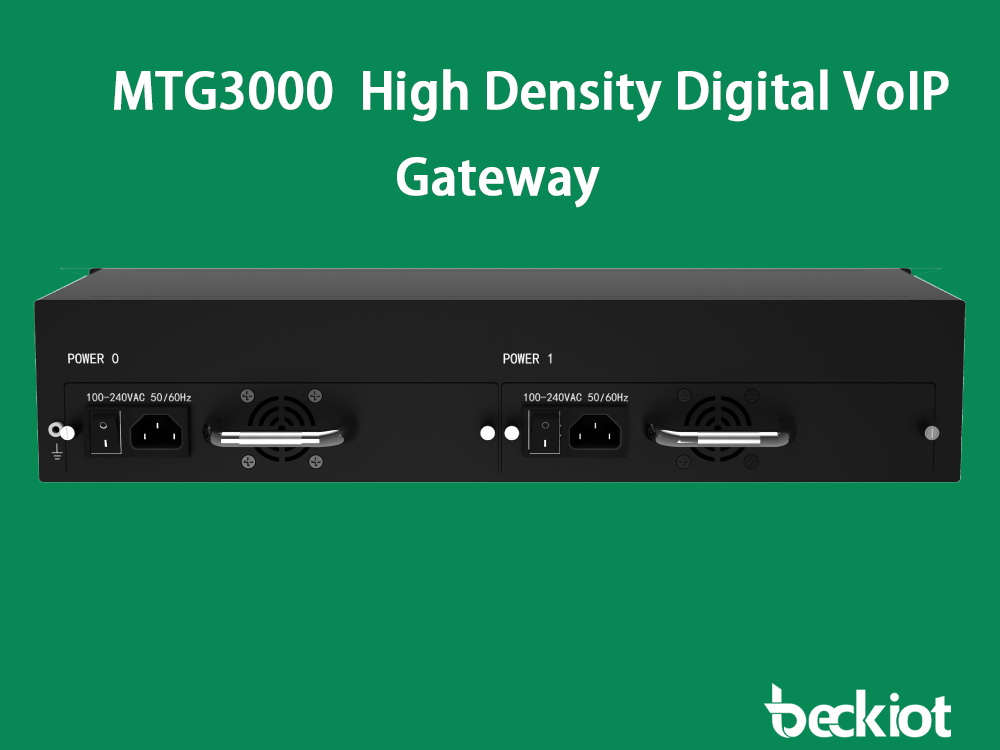

The MTG3000 trunk gateway is a new-generation intelligent trunk gateway designed for the business needs of industries and operators. Based on the design philosophy of maintainability, manageability, and operability, it features telecom-grade reliability, high density, and large capacity. Equipped with SDH synchronous optical fiber interfaces (STM-1), it integrates enhanced functions such as IP voice, IP fax, Modem, and voice recognition, providing users with a flexible and efficient future-oriented communication network. It supports multiple signaling protocols to realize the conversion between traditional signaling (SS7, PRI) and the SIP protocol. The MTG3000 supports various codecs, offering comprehensive codec capabilities, and provides signaling encryption and intelligent voice recognition technologies to ensure voice quality while improving the usage efficiency of trunk resources. It is widely applicable to access networks of various scales, such as operators and large enterprises.

• 16 to 63 ports E1/T1 in 2U chassis, STM-1 interfaceUp to 1890 simultaneous callsRedundancy Dual Mcu units
• Dual Power Supplies
• Flexible routing
• Multiple SlP trunks
• Fully compatible with mainstream VolP platforms

Rich Experiences on PSTNProtocols

• ISDN PRI
• ISDN SS7, SS7 links redundancy
• R2 MFC
• T.38 and Pass-through fax
• Support modem and POs machinesMore than 10-year experiences to integrate witha wide range of Legacy PBXs/Service providers
• PSTN networks

Easy Management

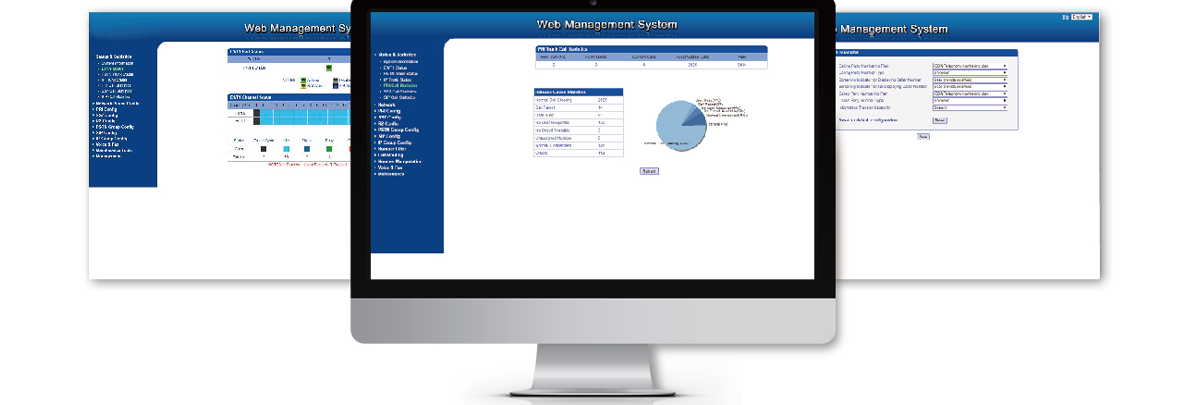

• Intuitive Web interface
• Support SNMP
• Automated provisioning
• Dinstar Cloud Management System
• Configuration Backup & Restore
• Advanced Debug tools

• Provides 2 standard 155M LC SDH optical interfaces
Mutual backup and protection
Operates in 1+1 channel protection mode
Up to 63 E1 ports with configurable port mapping
Supports master-slave clock, configurable

• Dual main control hot backup (optional), dual power supply hot backup
Supports hot-swappable

• DTU modules, up to 4 units, hot-swappable:
Each module supports 512 simultaneous calls (16E1), up to 1953 simultaneous calls (63E1)

• Ethernet interfaces
GE1/GE0: 10/100/1000 BaseT adaptive Ethernet

• Serial port
1× RS232, 115200bps

• Local ringback tone/call waiting tone passthrough
• Overlapping dialing
• Dialing rules, supports up to 2000 rules
• Trunk group division by E1 port/slot
• IP trunk grouping configuration
• Voice codec grouping
• Calling/called number whitelist
• Calling/called number blacklist
• IP access list firewall function
• IP trunk priority
• Voice and signaling encryption function (VOS RC4)
• Supports full concurrent recording and call frequency control

1. Web-based visual configuration and maintenance
2. SIP/IMS registration accounts: Up to 2000
3. Telecom-grade high reliability, dual power supplies, dual main controls, supporting hot-swappable
4. High port density rack equipment, 2U height supports up to SDH 155M 63E1 (STM-1)
5. Service-oriented architecture with rich service support, capable of supporting voice, IP fax, and Modem/POS services
6. Flexible dialing rules and operations, allowing users to customize dialing rules and quantities according to different countries and regions
7. Multiple coding standards: G.711A/U, G.723.1, G.729A/B, iLBC, AMR
8. Support PRI/SS7, SIP/IMS
