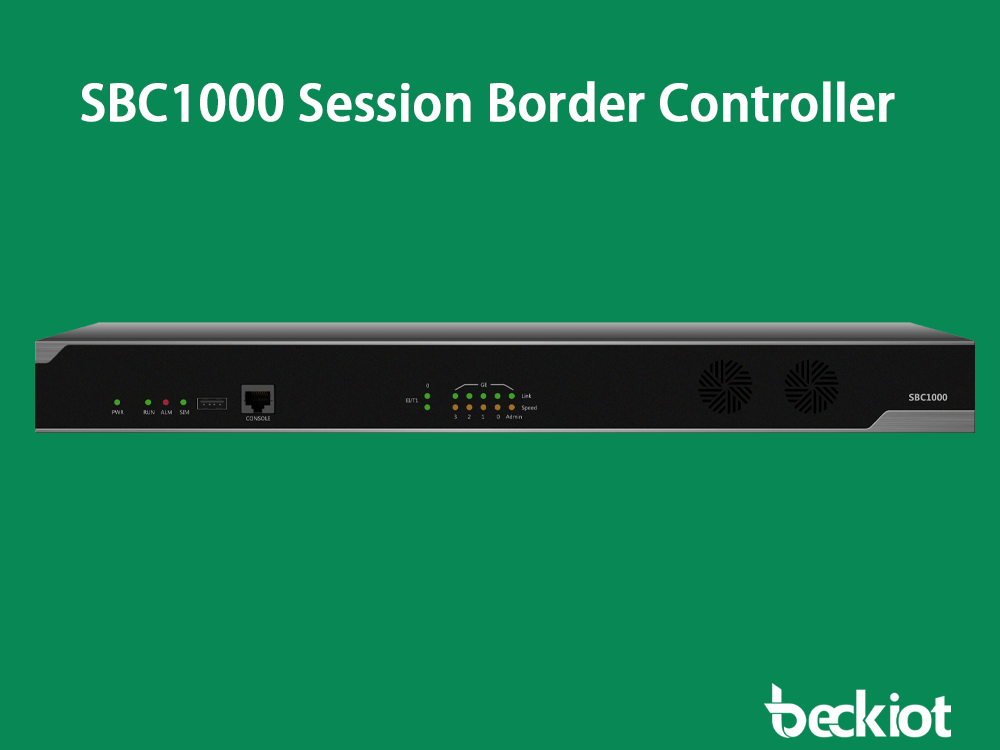

The SBC1000 (Session Border Controller) delivers comprehensive security, access, interconnection, routing/policy management, signaling flow control, QoS, and media processing for SIP networks of small and medium-sized telecom operators. It cost-effectively addresses two key challenges in enterprise IP communication systems: secure terminal access and NAT traversal for IP multimedia services. Featuring a distributed multi-core processor architecture, non-blocking gigabit switching fabric, and embedded Linux OS, the SBC1000 achieves high performance with minimal power consumption. It supports up to 500 concurrent sessions, 200-channel voice transcoding, and encrypted SIP over TLS/SRTP sessions. Beyond traditional telecom codecs, its media processing capabilities include wireless and internet codecs such as AMR, OPUS, and iLBC.

• 50-500 SlP sessions, 50-200 transcoding
• 1+1 Active-standby redundancy for business continuity
• Dual Power supply
• Comprehensive SlP interoperability, Easily connect with
• multiple service providers
• SlP mediation, SlP message Manipulation
• Unlimited SlP trunks
• Flexible routing to access lMs
• QoS, static route, NAT traversal

Enhanced Security

• Protection against malicious attack: DoS/DDoSmalformed packets, SlP/RTp flooding
• Perimeter defense against eavesdropping, fraud
• and service theft
• TLS/SRTP for call security
• Topology hiding against network exposureACL, Dynamic white & black list
• Bandwidth limitation & traffic control

Easy Management

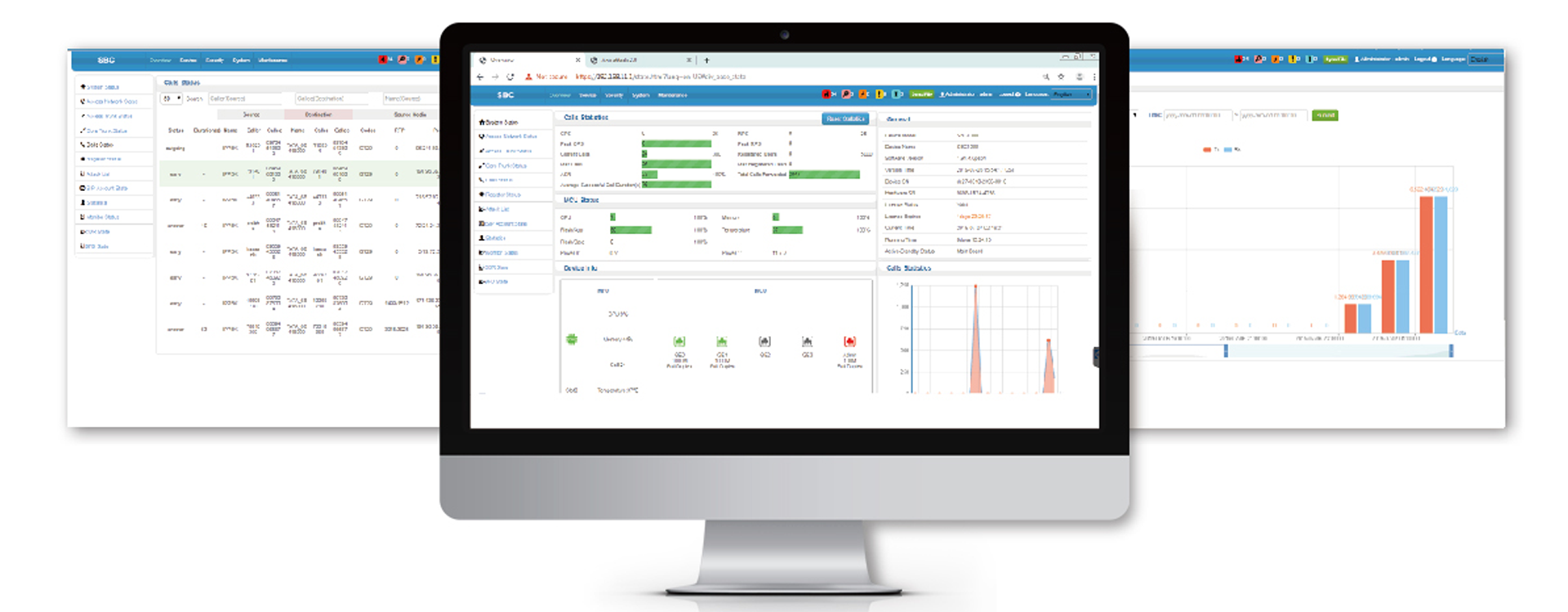

• Intuitive Web interface
• Support SNMP
• Automated provisioning
• Dinstar Cloud Management System
• Configuration Backup & Restore
• Debug tools

VoIP Protocols
SIP v2.0, UDP, TCP, TLS, RFC3261
SIP Trunking Modes: Peer/Access
SIP User Registrations: Up to 3,000
B2BUA User Agent
SIP Call Flow Control
SIP Registration Flow Control
Dynamic Scanning for SIP Registration Message Attacks
Dynamic Detection of Anomalous SIP Call Attacks
SIP Header Transformation
SIP Message Redundancy Mechanism
Multi-Softswitch Support with Anti-Blocking Protection
QoS (ToS, DSCP)
NAT Traversal

Security Features
DOS/DDOS Attack Defense
Access Control Policies
Policy-Based IP and SIP Attack Prevention
Malformed Packet Detection and Handling
UDP-Flood Attack Mitigation
TCP-Flood Attack Mitigation
TLS & SRTP Encrypted Sessions
Caller/Callee Number Blacklist/Whitelist
ACL Control
VoIP Firewall

Physical Specifications

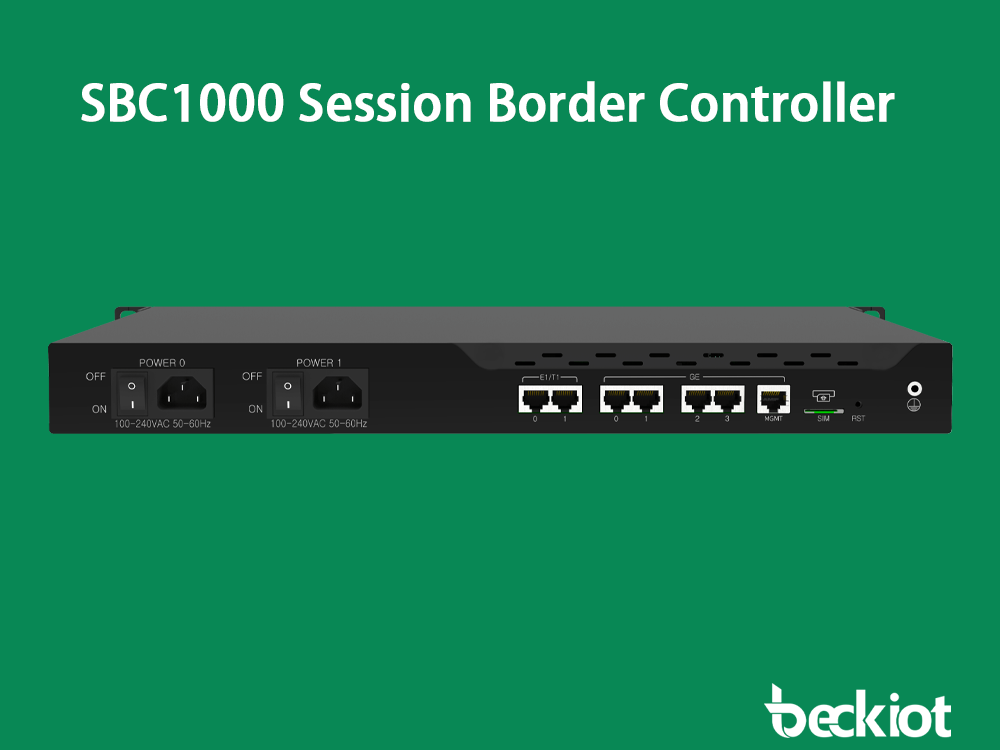

Ethernet Interfaces: 5× 10/100/1000M Base-T
1× USB2.0 Interface
1× SD Card Slot
Serial Port: 1× RS232, 115200bps
LTE (TBD): 1× SIM Card Slot

Physical Characteristics
Power Supply: Redundant Power, 100-240VAC, 50-60 Hz
Power Consumption: 15W
Operating Temperature: 0℃~45℃, Storage Temperature: -20℃~80℃
Humidity: 10%-90% Non-Condensing
Dimensions (W/D/H): 226×146×39mm
Weight: 2.5kg
Certifications: CE, FCC

1. Supports 500 concurrent sessions and 200-channel voice media transcoding
2. Standard SIP protocol with flexible routing rules for perfect IMS system compatibility
3. Built-in VoIP firewall for secure anti-attack protection of core networks
4. Intelligent bandwidth limiting and dynamic blacklist management
5. Cross-network and NAT traversal capabilities for diverse networking environments
6. SIP over TLS and SRTP encrypted sessions for enhanced security
7. Multiple codec support: G.711A/U, G.723.1, G.729A/B, iLBC, AMR, OPUS
8. User-friendly Web management interface with multiple administrative methods
