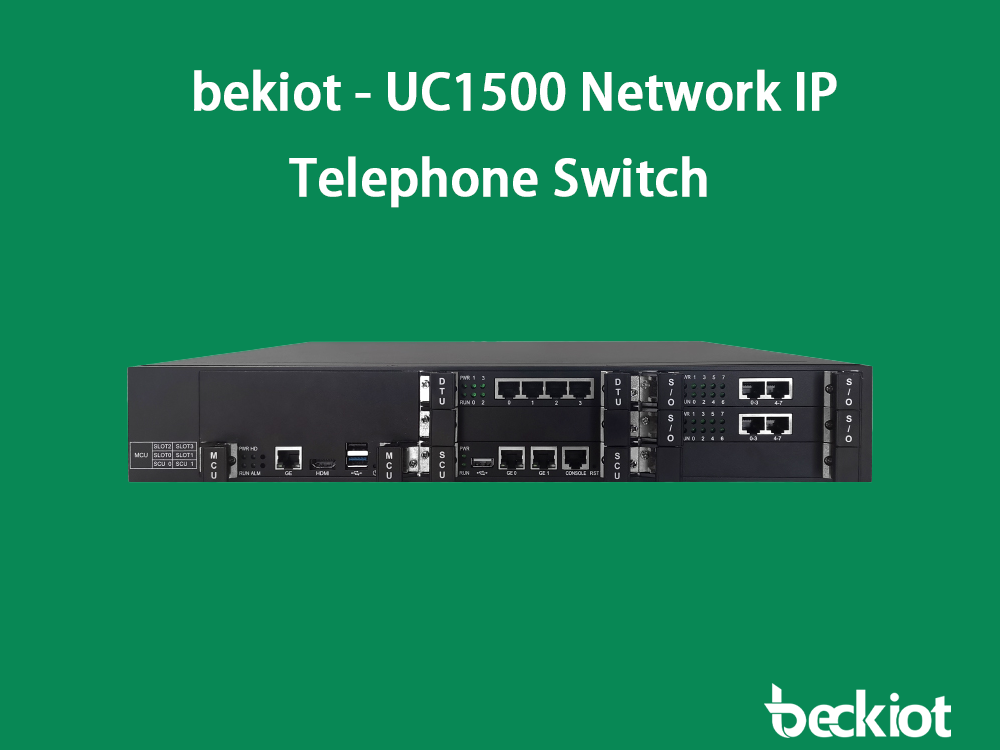

bekiot - UC1500 Network IP Telephone Switch

bekiot-UC1500

UC1500 is an open-hardware converged gateway with dual-power & dual-control design. Its x86-based MCU board supports 3rd-party PBX software, while SCU manages chassis and service boards (E1/T1/FXS/FXO) via APIs for flexible voice service scheduling.......

Datasheet instructions

Product Introduction

UC1500 is a converged gateway product with an open hardware platform, featuring dual-power and dual-main-control high-reliability design. The MCU main control board based on the x86 platform is fully open to users, allowing the installation of third-party PBX software systems. The SCU switching network board manages the chassis and configures other service boards, integrating service board resources and interfacing with PBX software systems via unified APIs. Through these APIs, PBX software can flexibly schedule service boards for various voice services. Depending on the type, service boards support E1/T1, FXS, or FXO interfaces, with universal slots for flexible configuration according to actual scenarios.

Product parameters

Frame Specifications
MCU main control board: 1 piece, hot-swappable
HDX expansion board: 1 piece, hot-swappable
SCU switching network board: 2 pieces, hot-swappable
DTU service board: 4×E1/T1 per board, up to 4 boards insertable
FXS service board: 8×FXS per board, up to 4 boards insertable
FXO service board: 8×FXO per board, up to 4 boards insertable
4S4O service board: 4×FXS+4×FXO per board, up to 4 boards insertable
PWR power module: 1×220VAC module (300W), fixed
FAN fan module: 1 piece, fixed
Voice Features
Voice codecs: G.711a/μlaw, G.723.1, G.729A/B, iLBC, AMR
Silence suppression and detection
Comfort noise generation
Voice activity detection
Echo cancellation (G.168), up to 128ms
Adaptive dynamic buffering
Voice and fax gain control
Fax: T.38 and Pass-through
Support for Modem/POS
DTMF modes: RFC2833/Signal/Inband
VLAN 802.1P/802.1Q
Layer3 QoS and DiffServ

Featured Features

High-port density rack equipment, 1.5U height supports up to 16 E1 interfaces or 32 FXS/FXO interfaces
Open hardware platform architecture with rich interface support for voice, IP fax, and Modem/POS services
All single boards support hot-swapping, suitable for various complex working scenarios
Multiple coding standards: G.711A/U, G.723.1, G.729A/B, iLBC, AMR
High-reliability design based on x86 platform, good compatibility for easy installation of third-party PBX software systems
