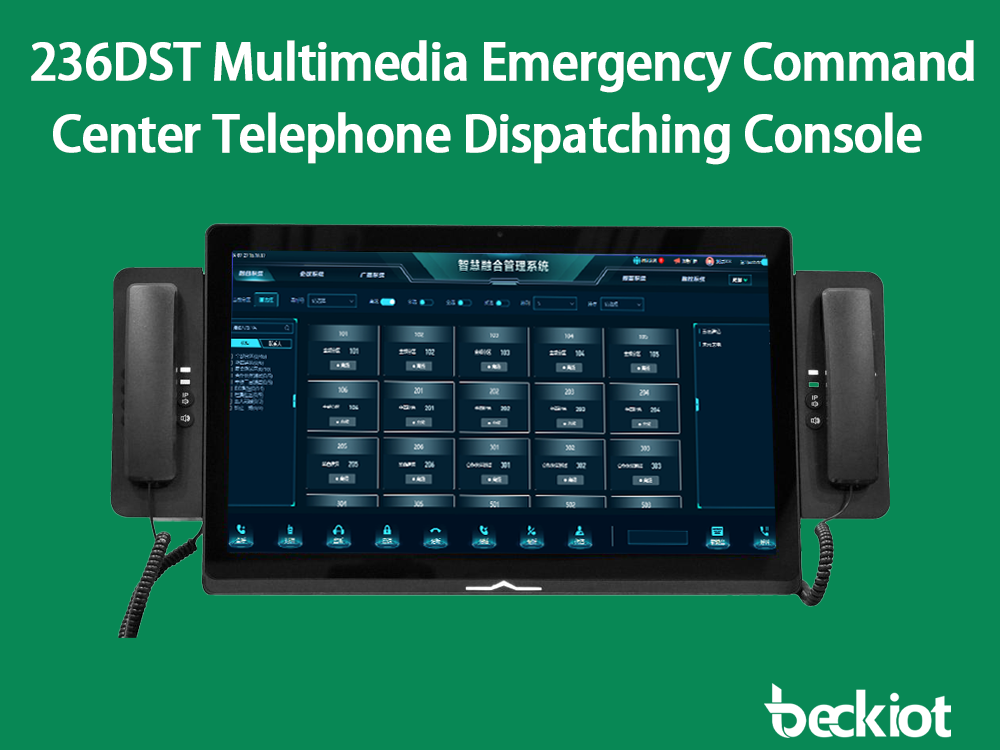

236DST Multimedia Emergency Command Center Telephone Dispatching Console

236DST

The 236DST is a 23.6-inch IP multimedia dispatching terminal with built-in switch, VESA stand (90-180), dual SIP phones, HD touchscreen, aluminum frame. Widely used in power, military, etc.......

Product Introduction

The 236DST is a 23.6-inch IP multimedia dispatching terminal with a built-in 5-port small switch, which can connect to the Internet by simply plugging in an external network cable. It is equipped with a VESA desktop stand, allowing angle adjustment from 90 degrees to 180 degrees through flipping. There is a SIP handset telephone on each side (left and right), and the telephones on both sides can be flexibly replaced. It comes with personalized red and blue indicator lights, and features such as a keyboard, automatic IP broadcasting, one-key dialing, and one-key hands-free function. Adopting a high-definition LED LCD screen and a 10-point capacitive touch screen, it has a panel without a chassis structure, making it a stylish model. With an aluminum alloy frame, it is lightweight and aesthetically pleasing in appearance. As a robust, fashionable, and powerful multimedia dispatching console, it is widely used in professional dispatching communication fields such as electric power, coal, petroleum, military, rail transit, and government emergency response.


Product parameters


Chipset: Intel HM87 chipset
Operating system: Windows 7, Windows 8 or Windows 10
Screen size: 23.6 inches
Light transmittance: 98%
Resolution: 1920*1080
Brightness: 800 cd/m³
Viewing angle: 170/1760 degrees
Touch screen: 23.6-inch 10-point capacitive screen
Operating voltage: Contact jitter less than 10ms
Overall dimensions: 755mm (width) * 364mm (height) * 60mm (thickness)

Featured Features

23.6-inch aluminum alloy frame with oxidation treatment (silver color), built-in 2-megapixel camera
Touch screen: 10-point capacitive touch screen
Display: 23.6-inch TFT LED, maximum resolution: 1920*1080
Modular IP phone, flexible to change and disassemble, dual-phone or single-phone options
IP phone with one-key hands-free and one-key IP broadcasting functions
Logo indicator light at the bottom of the front panel, red and blue alternating indicator light
Built-in small switch in the machine, connect to the network with one external network cable
VESA desktop stand, 90-180 degree angle flip adjustment
CPU: onboard Intel® J1900/i3/i5 CPU (optional)
Memory: standard modular DDR3 memory 2-8G
Hard disk: 500G or SSD
Serial port: 1 RS-232 serial port, 6 USB ports
Power supply: input voltage 12V5A
