Zhaojin Mining Dispatching and Command System

Zhaojin Mining Industry Company Limited (the “Company”) (Stock Code: 1818) is a joint-stock company established by initiation on 16 April 2004 in the People’s Republic of China with the approval of the People’s Government of Shandong Province by Shandong Zhaojin Group Co., Ltd., Shanghai Fosun Industrial Investment Co., Ltd., Shanghai Yuyuan Tourist Mart (Group) Co., Ltd., Shenzhen Guangxin Investment Co., Ltd. and Shanghai Laomiao Gold Co., Ltd. The Company was successfully listed on the Main Board of The Stock Exchange of Hong Kong Limited on 8 December 2006. The Company is a comprehensive gold producer and gold smelting enterprise integrating exploration, mining, mineral processing and smelting operations, focusing on the development of the gold industry. Its main products are “9999 Gold” and “9995 Gold” standard gold ingots; its main production technologies and equipment are at the domestic leading and international advanced level; and it is a national high-tech enterprise. The Company is located in Zhaoyuan City on the Jiaodong Peninsula in Shandong Province, China. Rich in resources and enjoying a uniquely advantageous geographical location, Zhaoyuan has a long history of gold mining. According to data provided by the China Gold Association, Zhaoyuan’s gold resources account for about one-tenth of China’s total remaining gold resources, making it the country’s largest gold production base and the top gold-producing city in China, honoured by the China Gold Association as “China’s Gold Capital”.

Customer Command & Dispatch Requirements and Application Background

Coal mines, petroleum, chemical plants, steel mills and other enterprises feature rapid production rhythms and complex process flows, with tight links between upstream and downstream processes. During production, personnel at related locations must frequently communicate or handle emergency accidents and operational control, necessitating a high-quality communications system suitable for extremely harsh environments. Zhaojin Mining’s communication system requirements are as follows:

1. System Capacity: The system must support up to 200 voice users, no fewer than 30 concurrent outside lines, and be able to complete mass outbound calls to outside lines within a specified time.

2. Full Digital & IP-based: Dispatch consoles and dispatch telephones must be fully digital and IP-based.

3. Rich Voice Dispatch Functions: Forced answer, forced release, barge-in, monitoring, transfer, group call, selective call, conference and queue notification.

4. Simple & Flexible Dispatch Console: Terminal status information is centralized on a touch-screen dispatch console or large screen; the dispatch console computer adopts a touch screen for easier operation.

5. Call Status Display: The dispatch interface can display the real-time call status of all terminals at the dispatch center, such as idle, ringing, talking, etc.

6. Compatibility with Various Terminals: Using the number as the terminal identifier, free scheduling of IP-side (soft phone, IP voice gateway, IP phone, Wi-Fi phone) and PSTN-side (mobile phone, fixed phone) terminals is achieved.

7. Telephone Conference: Supports multi-party telephone conferences for dispatchers and duty officers to organize multi-party meetings.

8. Call Recording Function: Records every call.

9. TTS Function: Supports text-to-speech and playback.

10. SMS Function: Supports 106 SMS interface integration.

11. Multi-privilege Accounts: Supports multiple dispatch platform accounts.

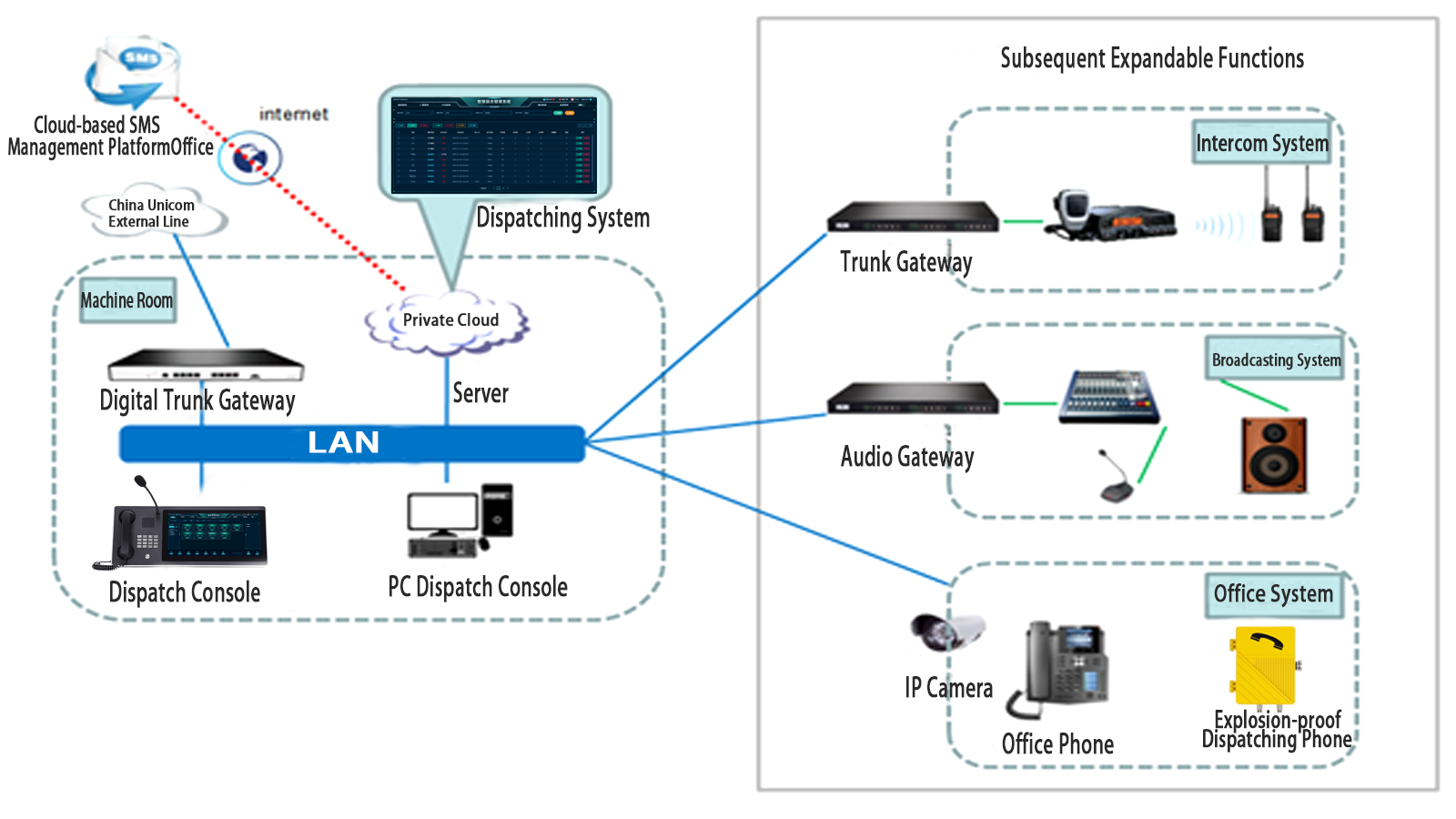

III. Command & Dispatch Solution and Topology Diagram

The system solution is based on an IP network. A beckiot converged dispatch system is deployed in the equipment room to provide emergency command, communication, incident management, digital recording, daily management, and broadcasting services. The dispatch system can be installed on public or private cloud servers. Dispatch consoles and dispatch telephones can be deployed in the dispatch center and offices.



The beckiot IP command & dispatch system can integrate with commonly used industry business systems—such as monitoring systems, telephone systems, and broadcasting systems—via various functional gateways, bringing different systems onto a unified platform for unified management and dispatch.



1. Equipment Room: Deploy the beckiot converged dispatch system in the equipment room. The system can be installed on a hardware server or cloud server and connected to the local LAN.

2. Outside Lines: China Unicom digital lines are used, accessed via an E1 gateway located at the interface between the Public Switched Telephone Network (PSTN) and the IP network, enabling interworking between public phones, mobile phones and the converged dispatch system, so that outbound calls can be placed from the dispatch system to broadcast or notify outside lines.

3. Control Center: Dispatch centers and offices can deploy dispatch consoles or PCs running the dispatch console client software, providing voice dispatch, video dispatch, and a unified control management interface for integrated third-party business data. The graphical human-machine interactive interface allows switching between different screens via touch or click, supporting hierarchical dispatching.

4. SMS Notification: beckiot provides a cloud-based SMS platform that interfaces with the converged dispatch system to realize SMS notification.

5. Offices: IP phones can be deployed in offices and registered to the converged dispatch system via the intranet to enable manual voice notifications.
