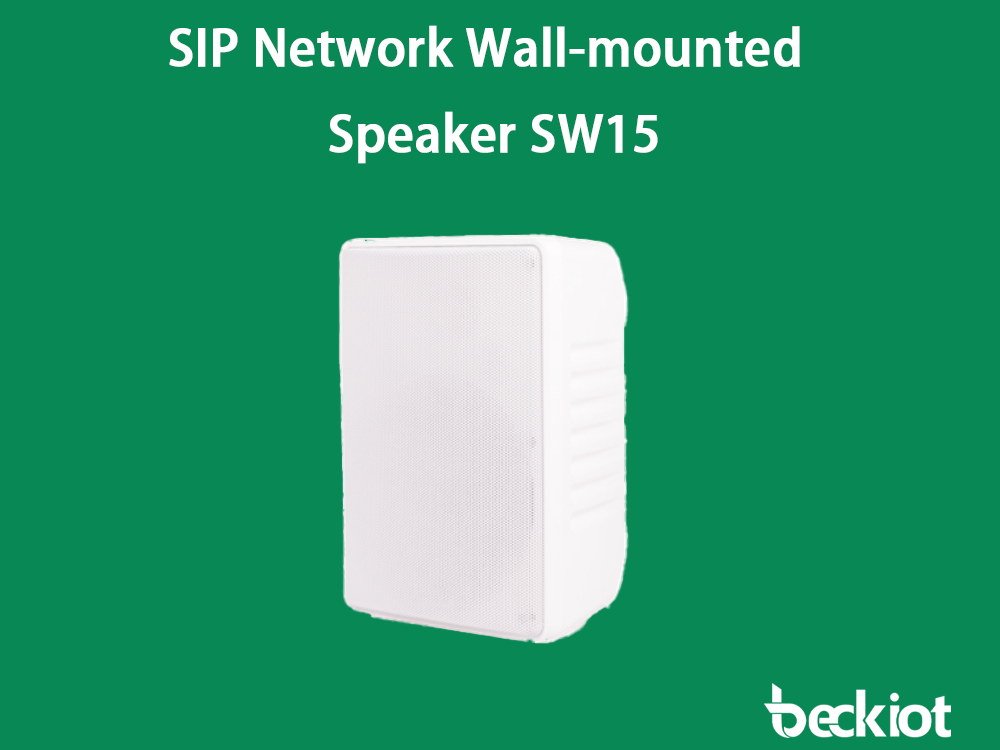

SIP Network Wall-mounted Speaker SW15 supports docking with third-party SIP standard telephone systems, enabling the integration of telephone, broadcasting, and intercom systems. It can be used in various broadcasting scenarios and for high-definition background music playback. Driven by high and low-frequency dual speaker units, the SW15 features a wide frequency response, high sensitivity, and beautiful sound, delivering a unique auditory experience to listeners. Whether for SIP-based public address or streaming media-based background music, it perfectly interprets various sound effects of human voices and music. It is suitable for application scenarios such as offices, schools, hotels, and supermarkets.

• Speaker Units: 5.25-inch woofer + 1.5-inch tweeter
• Sensitivity: 85dB/1m/1W
• Maximum SPL: 100dB
• Amplifier: Class D power amplifier
• Rated Power: 8Ω 15W
• Frequency Response: 70Hz – 20KHz
• Coverage Parameters: 90°H 50°V 30m²
• Sound Effect: Mono
• Audio Coding: G.722, G.711A-law, G.711U-law, Opus
• Audio Stream: MP3 sampling rate 8–48KHz, bit rate 64–320kbps, mono or stereo
• Network Interface: 10/100Mbps, supports PoE IEEE 802.3at
• Network Protocols: SIP (RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH
• Weight: 3.29KG
• Dimensions: 240mm(H)×180mm(W)×150mm(D)

1. Compatible with the standard SIP (RFC3261) protocol, it can be connected to mainstream IPPBX/IMS platforms. It supports the G.722 wideband high-definition audio coding, enabling high-fidelity SIP broadcasting.
2. With an integrated wall-mounted design, it integrates network audio decoding, a digital power amplifier, and a built-in high-fidelity 15W speaker.
3. It 联动 (interacts) with IP cameras to monitor the site in real-time during broadcasting. The output volume can be adjusted remotely via software.
4. Equipped with a standard RJ45 interface, it can be connected wherever there is an Ethernet port, supporting cross-segment and cross-route usage.
5. Supporting PoE (IEEE802.3at), it allows simple installation with only one network cable. If needed, an external power supply can also be connected to the device.
6. Featuring a built-in Class D power amplifier, it supports volume adjustment locally or from the server side. While ensuring wide sound coverage, the SW15 also maintains auditory relaxation and comfort.
7. Driven by high and low-frequency dual speaker units, it has a wide frequency response, high sensitivity, and beautiful sound, delivering a unique auditory experience to listeners.
