SIP Network Visual PA Speaker SQ10-C/CF-Becke Telcom

SIP Network Visual PA Speaker SQ10-C/CF

SQ10-C/CF

SIP Visual PA Square Speaker SQ10-C/CFIn the era of intelligent and integrated communication systems, the demand for multi-functional, high-reliability audio-visual PA devices has......

Datasheet instructions

Product Introduction

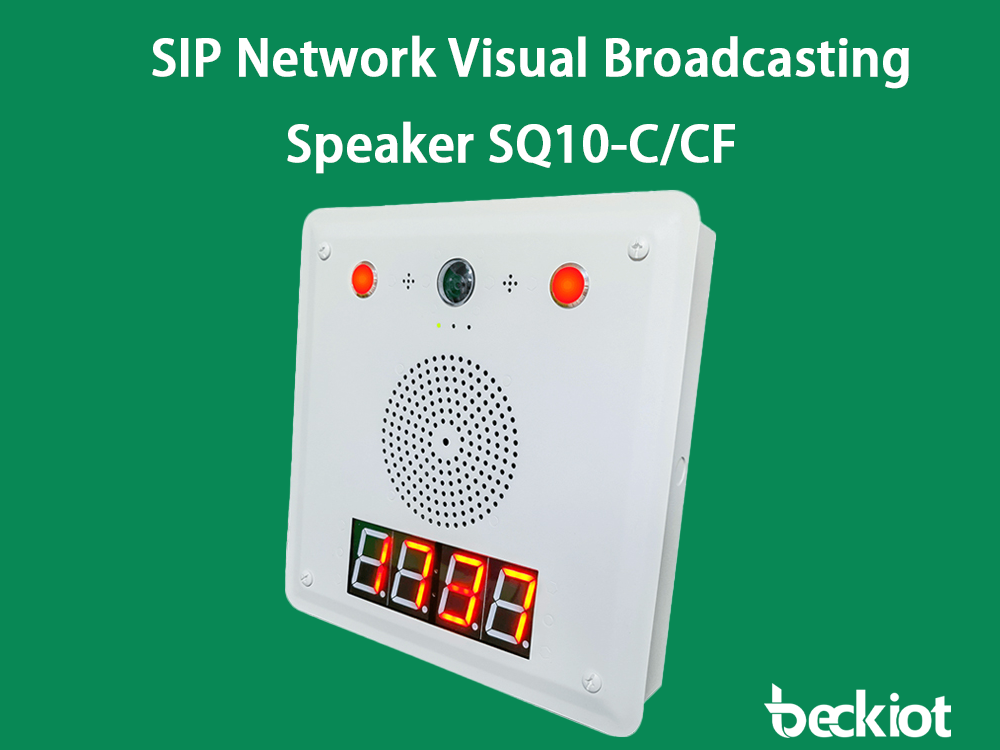

SIP Visual PA Square Speaker SQ10-C/CF

In the era of intelligent and integrated communication systems, the demand for multi-functional, high-reliability audio-visual PA devices has surged across various indoor scenarios, from educational institutions and corporate offices to public libraries and administrative buildings. Addressing this need, the SIP Visual PA Square Speaker SQ10-C/CF emerges as a high-performance network terminal engineered to support the Session Initiation Protocol (SIP), a core standard for modern IP-based voice and multimedia communication. Unlike traditional standalone speakers that only deliver one-way audio playback, the SQ10-C/CF integrates a comprehensive suite of audio, visual, and interactive features, redefining the role of a PA device from a passive sound output tool to an active, two-way communication hub that meets both daily notification needs and emergency response requirements.

At its core, the SQ10-C/CF is built around full SIP protocol compatibility, which enables seamless integration with existing SIP-based communication ecosystems, including IP-PBX systems, SIP servers, and unified communication platforms widely deployed in enterprises, campuses, and government agencies. This compatibility eliminates the need for additional conversion hardware, reducing deployment costs and simplifying system maintenance. The device supports standard SIP signaling such as INVITE, ACK, and BYE, ensuring stable and low-latency audio transmission for both one-way PA and two-way intercom. Whether it is a routine announcement delivered from a central dispatch console or an emergency alert triggered by a security system, the SQ10-C/CF can receive and process signals in real time, ensuring that information is disseminated to indoor users without delay.

A standout feature of the SQ10-C/CF is its dual LED flashlight array embedded in the front panel, which transforms the speaker into a multi-modal notification device that combines audio and visual alerts. In environments where audio broadcasts may be easily overlooked—such as noisy open-plan offices, libraries where users wear headphones, or classrooms with students engaged in group activities—the LED flashlights serve as a critical supplementary reminder. The device offers a range of customizable flashing modes, including steady glow, rapid strobing, slow intermittent flashing, and alternating blinking between the two lights. These modes can be pre-configured via the device’s web-based management interface or dynamically adjusted through remote commands from the central communication system. For example, in a fire emergency, the flashlights can be set to rapid strobe mode to draw immediate attention to the audio evacuation alert; in a school setting, a slow intermittent flash can accompany a class change announcement, ensuring that students and teachers alike can notice the notification even if they are not actively listening to the audio. The LED lights use low-power consumption technology, ensuring long operational life and minimal impact on the device’s overall energy usage, making them suitable for 24/7 operation in mission-critical environments.

Complementing its audio-visual notification capabilities, the SQ10-C/CF is equipped with a built-in high-definition (HD) camera, which elevates the device’s functionality to include remote environment monitoring. The camera features a 120-degree wide-angle lens, capturing a broad field of view that covers most indoor spaces such as a classroom, a small office, or a library reading area. With a resolution of 1080p Full HD, it delivers clear and detailed visual feeds, allowing authorized operators to remotely check the status of the environment anytime and anywhere. This monitoring function is particularly valuable in scenarios where on-site personnel may not be present, such as after-hours office security checks, remote supervision of library reading rooms to ensure compliance with quiet zone rules, or real-time observation of classroom conditions during distance learning sessions. The camera’s video stream is transmitted via the SIP network using standard RTP (Real-time Transport Protocol), ensuring low latency and smooth playback. Additionally, the camera supports motion detection technology; when abnormal movement is detected in the monitored area, the device can automatically trigger an alert to the central console, sending both a video snapshot and an audio notification to designated administrators. For privacy protection, the camera can be disabled remotely or locally via a physical switch on the device, addressing data security concerns in sensitive environments such as private offices or counseling rooms.

To enable two-way interactive communication, the SQ10-C/CF is fitted with a high-sensitivity built-in microphone that supports full-duplex intercom. The microphone uses noise-canceling technology to filter out background noise such as air conditioning hum, keyboard clicks, or classroom chatter, ensuring that the transmitted voice is clear and intelligible. This feature makes the device suitable for a wide range of intercom scenarios: in a school, teachers can use the speaker to communicate directly with the campus security office; in an office building, employees can initiate a call to the facility management team to report maintenance issues; in a library, staff can coordinate with the front desk to assist users without leaving their posts. The full-duplex design allows both parties to speak simultaneously without the need for push-to-talk (PTT) activation, mimicking the natural flow of a face-to-face conversation. Moreover, the microphone is integrated with the device’s audio system, enabling it to pick up audio from the surrounding environment for broadcast purposes if needed—for example, in a conference room, the microphone can capture the voice of a speaker and transmit it to other speakers in the network, creating a distributed audio system.

Adding to its user-friendly design, the SQ10-C/CF incorporates a high-definition LED clock on its front panel, displaying the current time with clear, bright digits that are easily visible from a distance. The clock supports 12-hour and 24-hour format switching, catering to different user habits and regional preferences. The LED display is adjustable in brightness, allowing users to dim the screen in low-light environments such as a library reading room or a night-shift office to avoid glare, while maintaining high visibility in bright daylight. The clock is synchronized with the network time protocol (NTP) server, ensuring accurate timekeeping without manual adjustment. This feature not only adds practical value to the device but also enhances its role as a daily utility tool in indoor spaces.

In terms of hardware design and durability, the SQ10-C/CF features a compact square form factor, making it easy to install on walls or ceilings without occupying excessive space. The device’s casing is made of high-quality ABS plastic with a scratch-resistant and flame-retardant finish, meeting international safety standards for indoor electronic devices. It is designed to operate in a wide temperature range of -10°C to 50°C, ensuring stable performance in various indoor environments, from air-conditioned offices to unheated school classrooms during winter. The speaker is equipped with a 5-watt high-fidelity audio driver that delivers clear and loud sound with a frequency response range of 200Hz to 12kHz, covering the full spectrum of human speech and ensuring that announcements are heard clearly even in large spaces. The audio volume is adjustable both locally via a physical knob and remotely via the web management interface, providing flexible control options for users.

For installation and configuration, the SQ10-C/CF offers plug-and-play functionality, simplifying the deployment process. The device is powered via Power over Ethernet (PoE), eliminating the need for a separate power supply cable and reducing cable clutter. It can be connected to the local area network (LAN) via a standard Ethernet port, and once connected, it automatically obtains an IP address via DHCP. The web-based management interface is intuitive and user-friendly, allowing administrators to configure SIP parameters, LED flashing modes, camera settings, and audio volume with just a few clicks. The device also supports remote firmware updates, ensuring that it can be upgraded with the latest features and security patches without on-site maintenance.

The versatility of the SQ10-C/CF makes it an ideal solution for a wide range of indoor scenarios. In educational institutions, it can be used in classrooms to deliver class change announcements, emergency alerts, and remote teacher-student communication; in libraries, it provides quiet zone notifications and staff coordination without disrupting users; in corporate offices, it serves as a communication hub for internal announcements, security alerts, and inter-departmental intercom; in government buildings, it supports emergency response notifications and public service announcements. Its combination of audio PA, visual alerts, remote monitoring, two-way intercom, and time display functions makes it a all-in-one solution that meets the diverse communication needs of modern indoor environments.

In conclusion, the SIP Visual PA Square Speaker SQ10-C/CF stands out as a high-performance, feature-rich network communication device that goes beyond the capabilities of traditional speakers. Its full SIP compatibility ensures seamless integration with existing IP communication systems, while its dual LED flashlights, HD camera, noise-canceling microphone, and LED clock deliver a comprehensive set of functions that cater to both daily use and emergency response scenarios. With its durable design, easy installation, and user-friendly configuration, the SQ10-C/CF is poised to become a key component in the intelligent communication infrastructure of indoor spaces, enhancing information dissemination efficiency and improving overall safety and operational management.

Product parameters

Speaker Size: 4.5 inches
Amplifier: Class D power amplifier
Rated Power: 8Ω 10W
Coverage Parameters: 90°H 50°V 30m²
Audio Coding: G.722, G.711A-law, G.711U-law, Opus
Power Input: PoE+ or external 24V DC power input
Housing Material: Cold-rolled steel treated with white textured epoxy resin
Storage: 128MB RAM, 256MB flash memory
Power Input: PoE+ or external 24V DC power input
Housing Material: Cold-rolled steel treated with white textured epoxy resin
Installation Method: Wall-mounted
Weight: 3.15kg
Surface Mounting Size: 28028065mm
Embedded Mounting Size: 30030065mm
Reset (RST) Button: Long press for 3 seconds to broadcast the IP address, long press for 10 seconds to restore factory settings

Featured Features

HD Camera
SQ10-CF is equipped with a built-in HD camera, allowing operators to detect the indoor environment anytime and anywhere through the control platform. It can also be bound to third-party IP cameras for video linkage.
Peripheral Equipment Integration
With a standard RJ45 interface, it can be accessed wherever there is an Ethernet port. It supports cross-segment and cross-route usage, as well as peripheral integration, which can connect to strobe alarm lights, call buttons, volume controllers, external LED screens, door magnets, and other peripherals.
HD Audio
It supports high-definition MP3 music files and streaming music with a bit rate of 320Kbps, and functions such as music playback, real-time announcements, intercom, music appointment, and zoned broadcasting. The output volume can be adjusted remotely online through software.
Built-in Microphone
The built-in microphone of SQ10 can be set to half-duplex or full-duplex grouping modes according to the software platform used. When the "one-key shouting" button is pressed, it can initiate extension calls or trigger specified tasks from the room through the speaker.
LED Clock
The LED panel has a time display function, so there is no need to use a separate clock system. It is very suitable for use in classrooms, libraries, offices, and other scenarios. The clock is visible within 50 feet.
POE Power Supply
It supports Power over Ethernet (POE) power supply, making installation simple and convenient. Only one network cable is needed to connect to a POE switch for installation. If necessary, an external power supply can also be connected to the device for power supply.
