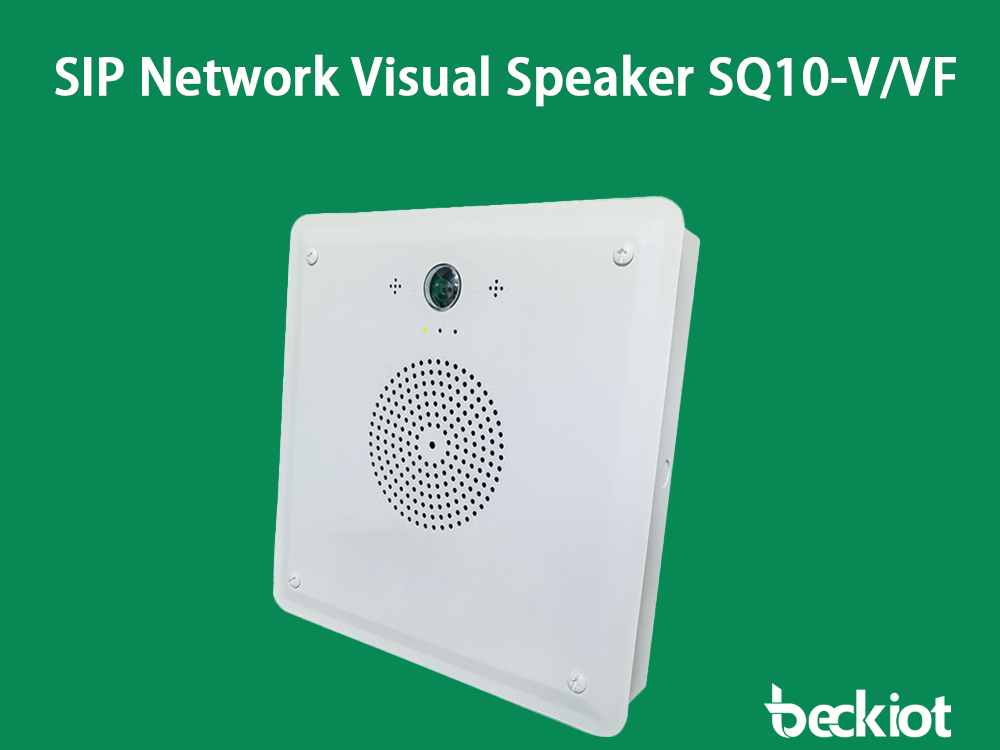

The SIP Network Square Speaker SQ10-V/VF is a fully functional, high-performance SIP speaker that integrates with third-party SIP-standard telephone systems to unify telephony, broadcasting, and intercom capabilities. Equipped with a built-in HD camera and microphone, operators can monitor indoor environments and conduct two-way communication anytime, anywhere. Ideal for classrooms, libraries, offices, and similar settings, it offers both surface-mounted and flush-mounted enclosure options to suit diverse application scenarios.

Speaker Size: 4.5 inches
Power Amplifier: Class D power amplifier
Rated Power: 8Ω 10W
Coverage Parameters: 90°H 50°V 30m²
Audio Codecs: G.722, G.711A-law, G.711U-law, Opus
Ethernet: IEEE 802.3 10/100Base-T
Power over Ethernet (POE): IEEE 802.3 AT
Supported Protocols: SIP (RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH
IP Addressing: DHCP/Static
Power Input: PoE+ or external 24V DC power input
Housing Material: Cold-rolled steel with white textured epoxy resin treatment
Installation Method: Wall-mounted
Weight: 3.15kg
Surface Mounting Dimensions: 280*280*65mm
Recessed Mounting Dimensions: 300*300*65mm
Reset (RST) Button: Press and hold for 3 seconds to broadcast the IP address; press and hold for 10 seconds to restore factory settings

High-Definition Audio
SQ10 supports high-definition MP3 music files and streaming music with a 320Kbps bitrate, featuring functions such as music playback, real-time announcements, intercom, music reservation, and zoned broadcasting.
Built-in Microphone
The built-in microphone of SQ10 can operate in half-duplex or full-duplex grouping modes according to the software platform used.
POE Power Supply
Supports Power over Ethernet (POE) for simple installation—only one network cable is needed to connect to a POE switch. If required, an external power supply can also be connected to power the device.
Standard SIP Protocol
Compliant with the standard SIP protocol, it can integrate with third-party SIP servers. It also supports G.722 wideband high-definition voice coding, enabling high-definition audio SIP broadcasting.
