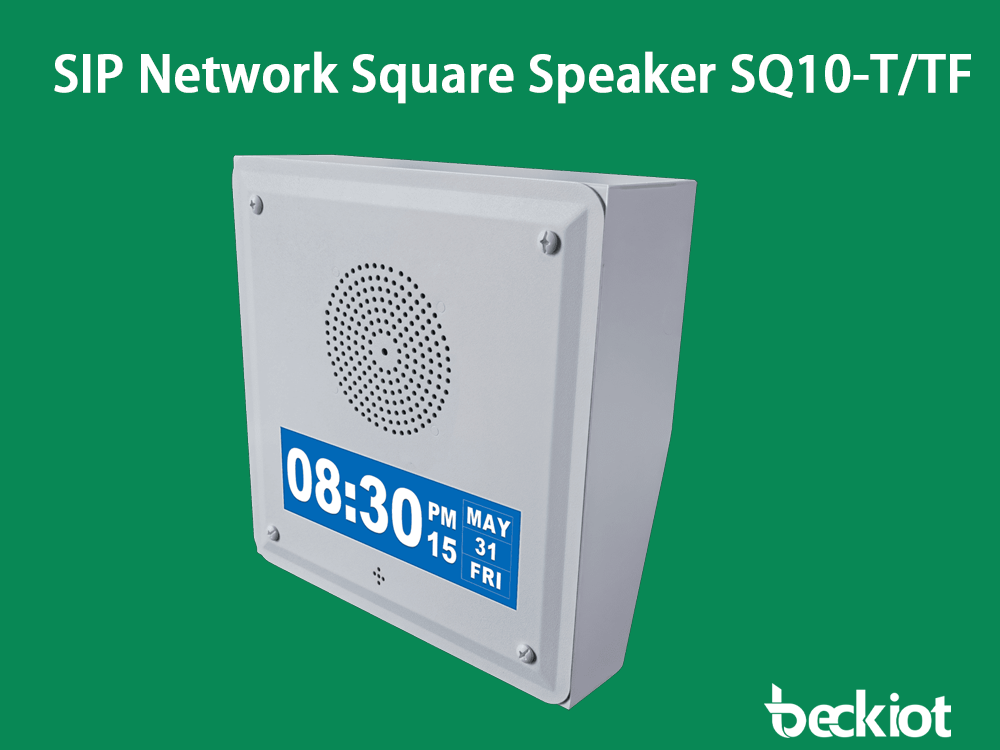

The SQ10-T/TF Network Square Speaker it is a high-performance network square speaker supporting the SIP protocol. Two LED strobe lights are installed on the front panel of the speaker. Different flashing modes can be configured to remind indoor users of audio messages or emergency notifications. With a built-in microphone, operators can conduct two-way communication anytime, anywhere. Meanwhile, it is equipped with a high-definition LED clock for time display, making it ideal for use in classrooms, libraries, offices and other scenarios. In addition, it provides surface-mounted and flush-mounted casings for selection according to different application scenarios.

Diverse Installation Methods

The SO10 series supports multiple wall-mounted installation methods, including vertical installation and tilting installation. When installed at a high position with a tilt angle, it can optimize sound coverage while making the screen content of the SO10-T more visible to the crowd.

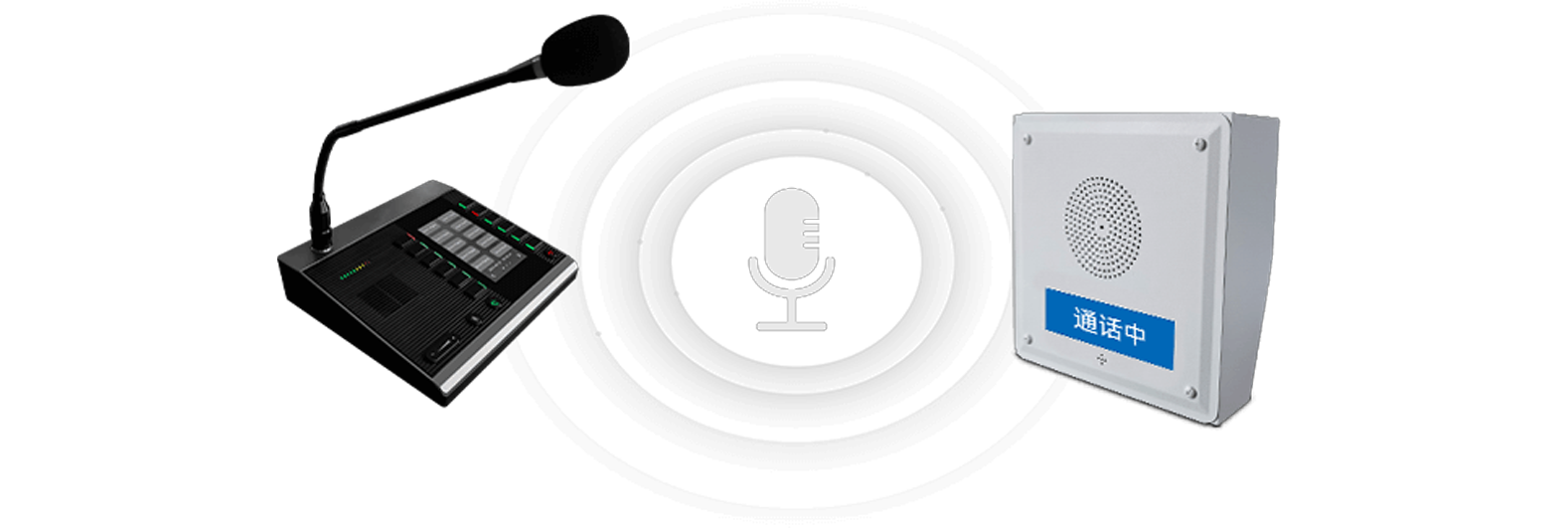

Two-way Intercom

The SQ10 series is equipped with a built-in microphone, supporting two-way communication. When assistance is needed, users can directly talk to security personnel via external buttons, ensuring a rapid response.

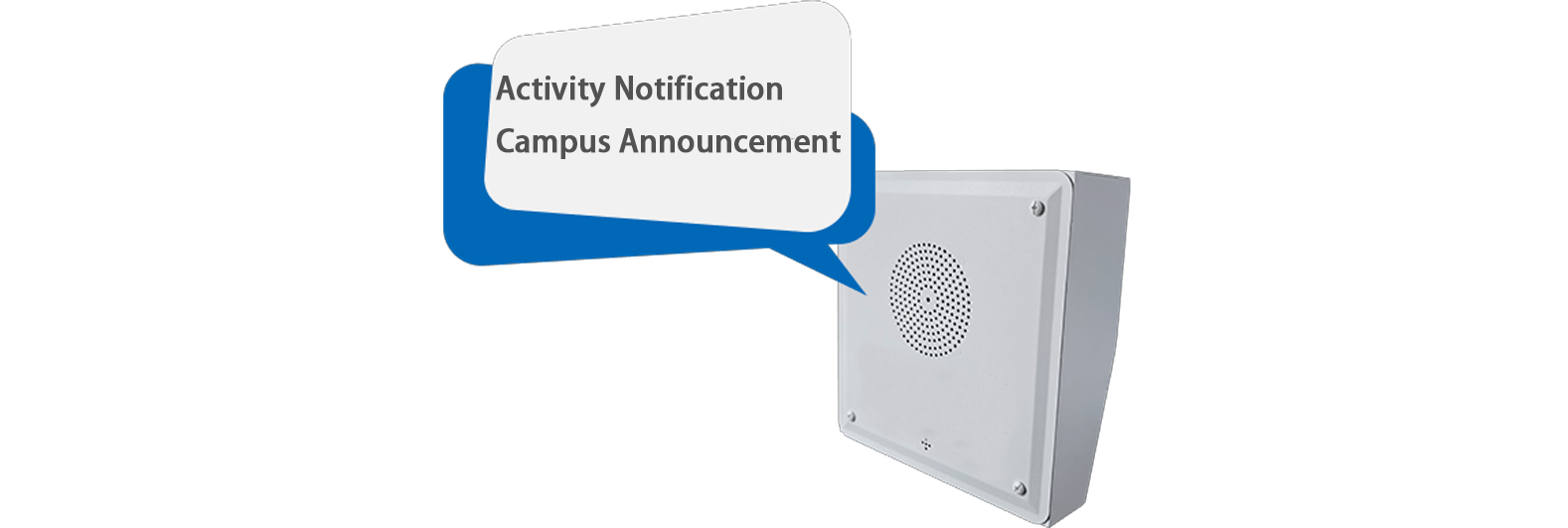

Daily Notifications

For daily arrangements, event announcements, and other routine matters, the SQ10-T can play prompt tones at scheduled times and display relevant information on the screen, ensuring key notifications are clearly communicated.

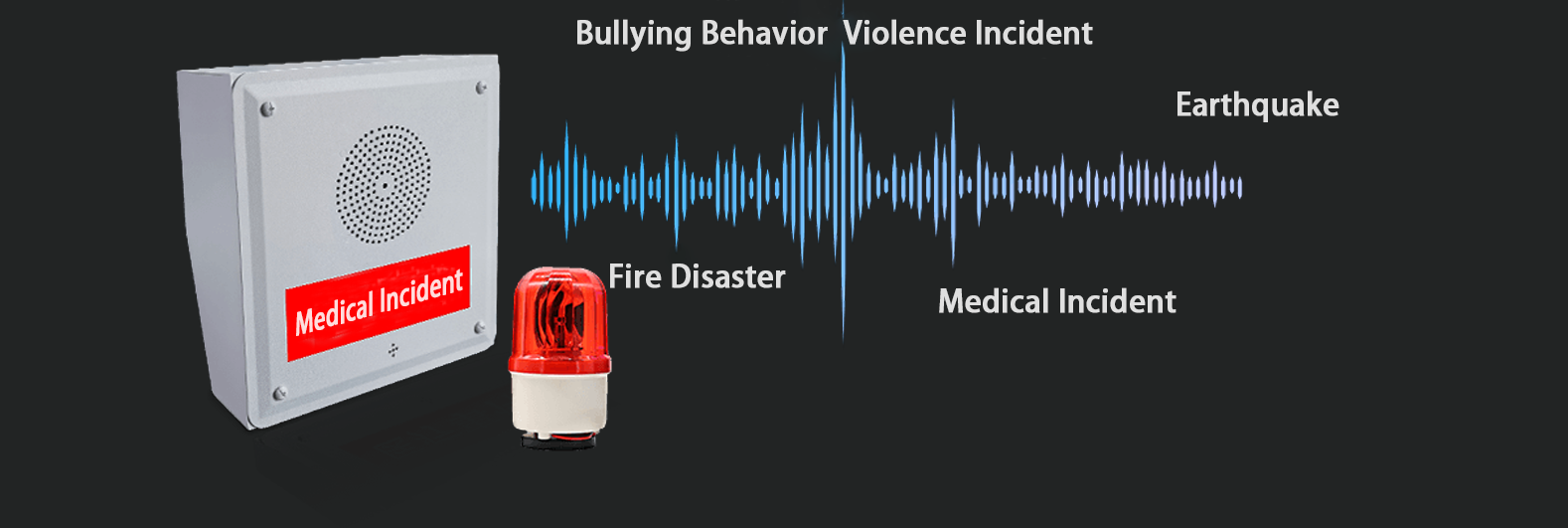

Emergency Alarm & Peripheral Linkage

In emergency situations such as fires, earthquakes, medical emergencies, or violent incidents, when staff activate the SQ10-T with one key, the pre-set critical information will be displayed on the LCD screen, and alarm lights can be linked to enhance visibility and response effectiveness.

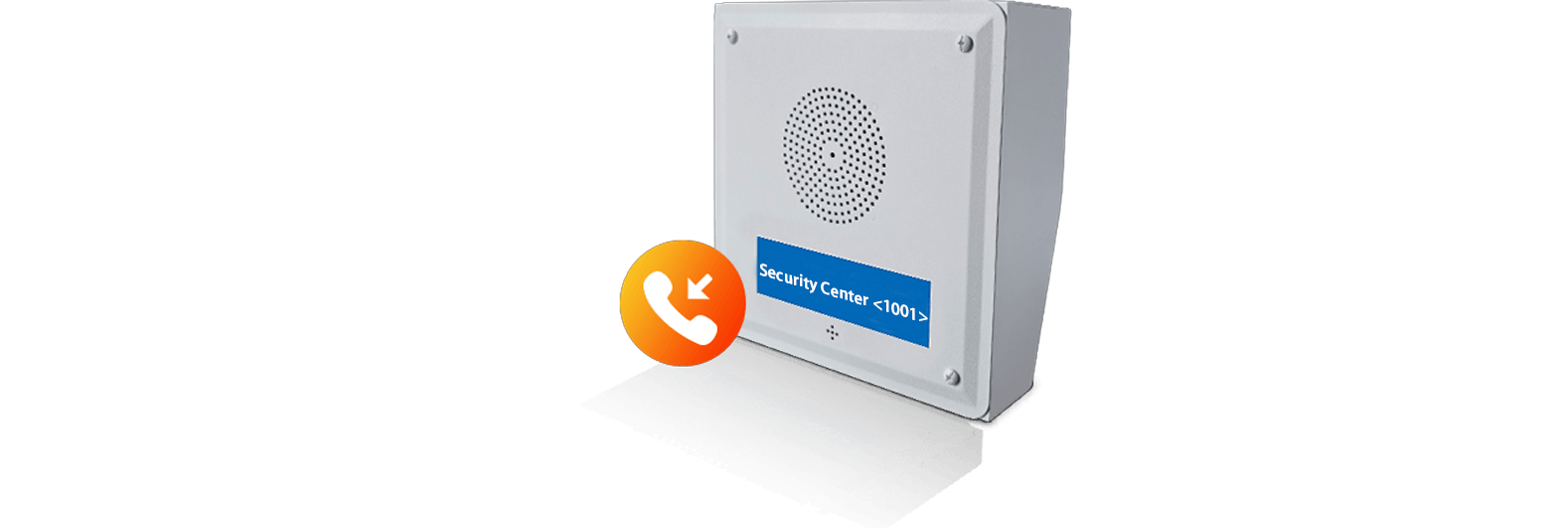

Incoming Call Information Display

Administrators can configure the SQ10-T to display incoming call numbers and names for quick identification of callers. It also supports precise number matching settings to trigger the display of preset text, enhancing information management efficiency.

More Features

Speaker Specifications

• Speaker Size: 4.5 inches
• Average Sensitivity: 91dB/1m/1W
• Frequency Response: 70Hz~20KHz
• Distortion: <0.1%
• Maximum Sound Pressure Level (Passive) at 1m: 101dB SPL
• Amplifier: Class D power amplifier
• Rated Power: 8Ω 10W
• Coverage Parameters: 90°H 50°V 30m²
• Audio Coding: G.722, G.711A-law, G.711U-law, Opus
• Ethernet: ΙΕΕΕ 802.3 10/100Base-T
• Power over Ethernet (POE): ΙΕΕΕ 802.3 AT
• IP Addressing: DHCP/Static
• Power Input: PoE+ or external 24V DC power input
• Installation Method: Wall-mounted
• Weight: 3.15kg
• Surface Mounting Dimensions: 28028065mm
• Flush Mounting Dimensions: 30030065mm
• Reset (RST) Button:
  • Long press for 3 seconds to broadcast IP address
  • Long press for 10 seconds to restore factory settings

Peripheral Device Integration

• Supports peripheral integration, enabling connection to strobe alarm lights, call buttons, volume controllers, external LED screens, door magnets, and other peripherals.

Diverse Installation

• Each of the four sides of the casing has an additional semi-finished knock-out hole. Simply knock off the knock-out hole baffle to allow cables to enter the speaker from any direction.

High-Definition Audio

• Supports high-definition MP3 music files and streaming music at a bit rate of 320Kbps. Output volume can be adjusted remotely online via software.

Built-in Microphone

• The built-in microphone of SQ10 can be set to half-duplex or full-duplex grouping modes according to the software platform used. When the "one-key paging" button is pressed, it can initiate extension calls or trigger specified tasks from within the room through the speaker.

LED Clock

• The LED panel features a time display function, eliminating the need for a separate clock system. It is ideal for use in classrooms, libraries, offices, and other scenarios. The clock is visible within 50 feet.

POE Power Supply

• Supports Power over Ethernet (POE) for simple and convenient installation—only one network cable is needed to connect to a POE switch. If required, an external power supply can also be connected to the device.

Standard SIP Protocol

• Supports the standard SIP protocol for integration with third-party SIP servers. Equipped with a standard RJ45 interface, it can be connected wherever there is an Ethernet port, supporting cross-segment and cross-router usage.
