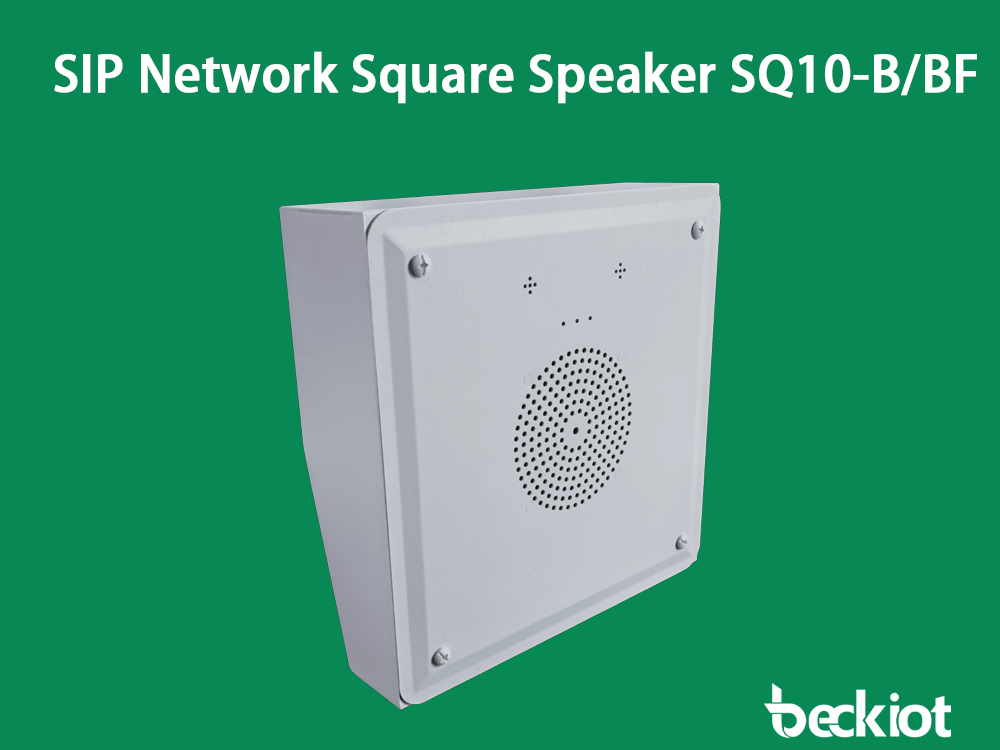

SIP Network Square Speaker SQ10-B/BF a high-performance network square speaker supporting the SIP protocol, SQ10-B/BF can interface with third-party SIP-standard telephone systems to integrate telephone, broadcasting, and intercom systems. With a built-in microphone, operators can conduct two-way communication from anywhere at any time. It is ideally suited for scenarios such as classrooms, libraries, and offices. Additionally, it offers surface-mount and embedded-mount enclosures for flexible deployment in different application environments.

Diverse Installation Methods

The SO10 series supports multiple wall-mounted installation methods, including vertical installation and tilting installation. When installed at a high position with a tilt angle, it can optimize sound coverage while making the screen content of the SO10-T more visible to the crowd.

Two-way Intercom

The SQ10 series is equipped with a built-in microphone, supporting two-way communication. When assistance is needed, users can directly talk to security personnel via external buttons, ensuring a rapid response.

Daily Notifications

For daily arrangements, event announcements, and other routine matters, the SQ10-T can play prompt tones at scheduled times and display relevant information on the screen, ensuring key notifications are clearly communicated.

Emergency Alarm & Peripheral Linkage

In emergency situations such as fires, earthquakes, medical emergencies, or violent incidents, when staff activate the SQ10-T with one key, the pre-set critical information will be displayed on the LCD screen, and alarm lights can be linked to enhance visibility and response effectiveness.

Incoming Call Information Display

Administrators can configure the SQ10-T to display incoming call numbers and names for quick identification of callers. It also supports precise number matching settings to trigger the display of preset text, enhancing information management efficiency.

More Features

Speaker Size: 4.5 inches
Average Sensitivity: 91dB/1m/1W
Frequency Response: 70Hz~20KHz
Distortion: <0.1%
Maximum Sound Pressure Level at 1m (Passive): 101dB SPL
Amplifier: Class D Power Amplifier
Rated Power: 8Ω 10W
Coverage Parameters: 90°H 50°V 30m²
Audio Codecs: G.722, G.711A-law, G.711U-law, Opus
Ethernet: ΙΕΕΕ 802.3 10/100Base-T
Power over Ethernet (POE): IΕΕΕ 802.3 AT
Supported Protocols: SIP (RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH
IP Addressing: DHCP/Static
Surface Mount Size: 28028065mm
Embedded Mount Size: 30030065mm

High-definition Audio

• SQ10 supports high-definition MP3 music files with a bit rate of 320Kbps and streaming music, and enables functions including music playback, real-time announcements, intercom, music scheduling, and zonal broadcasting.

POE Power Supply

• It supports Power over Ethernet (POE) for convenient installation. Only one network cable is required to connect to a POE switch for setup. If needed, an external power supply can also be connected to the device for powering.

Standard SIP Protocol

• With support for the standard SIP protocol, it can be integrated with third-party SIP servers. It also supports G.722 wideband high-definition audio encoding, enabling high-fidelity SIP broadcasting with clear sound quality.
