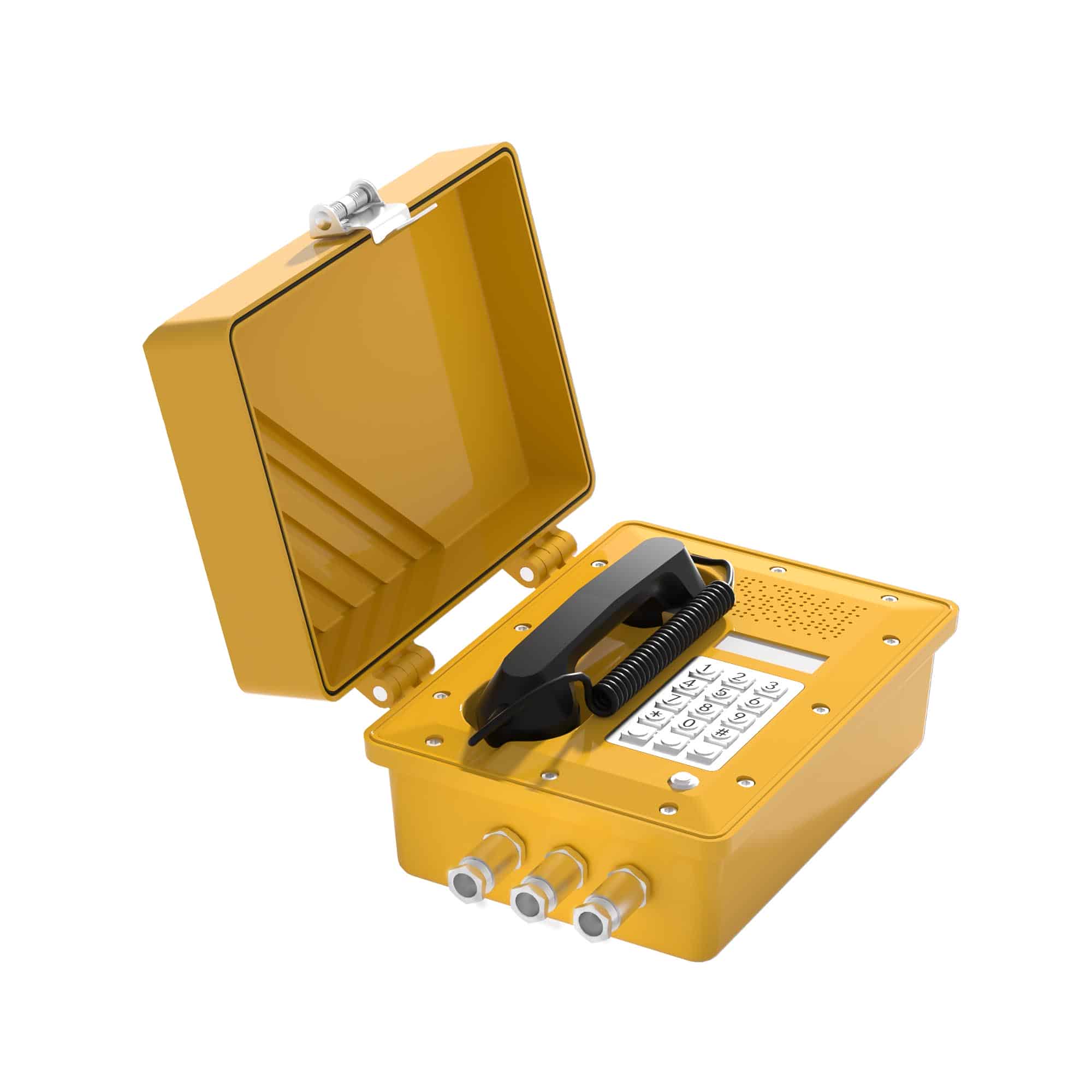

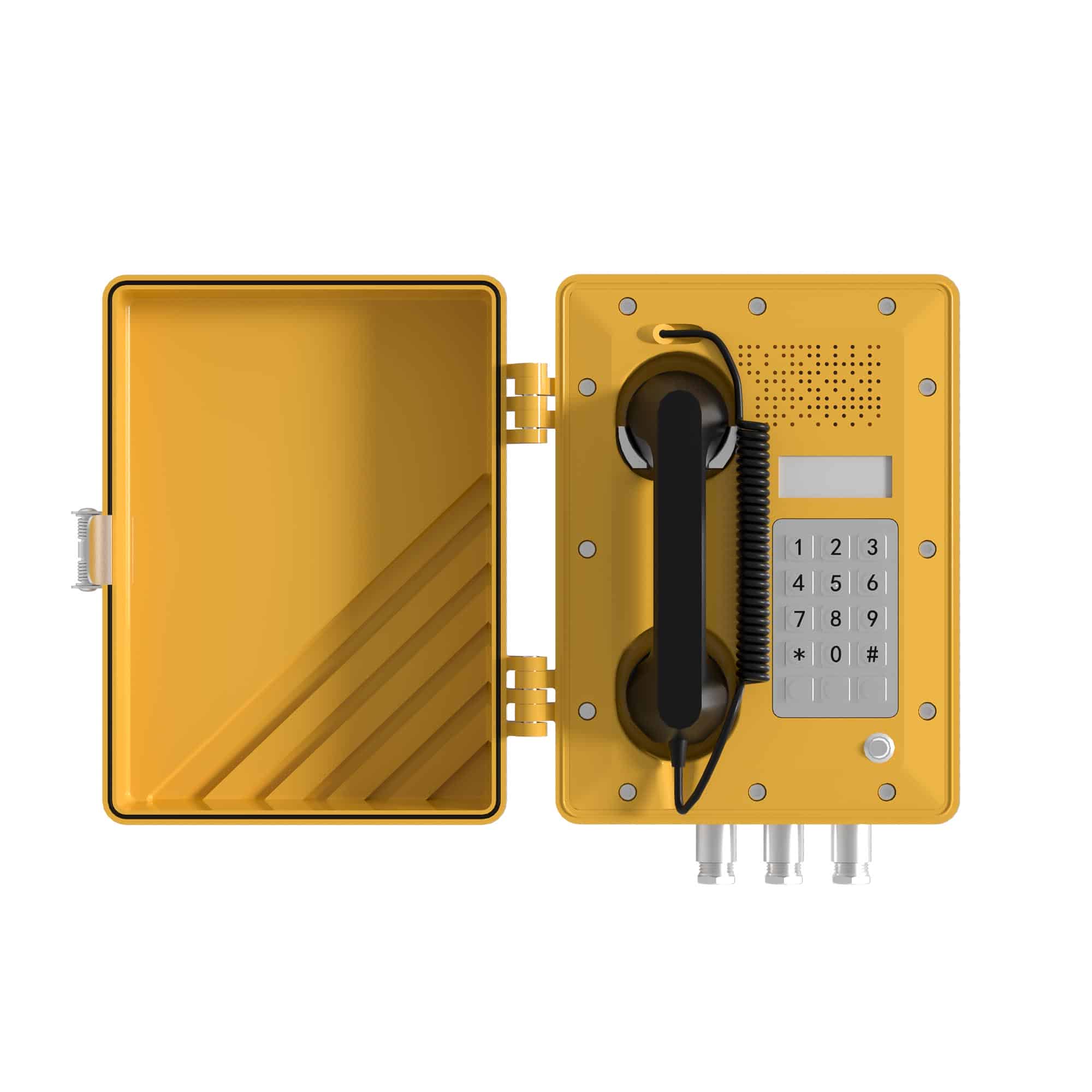

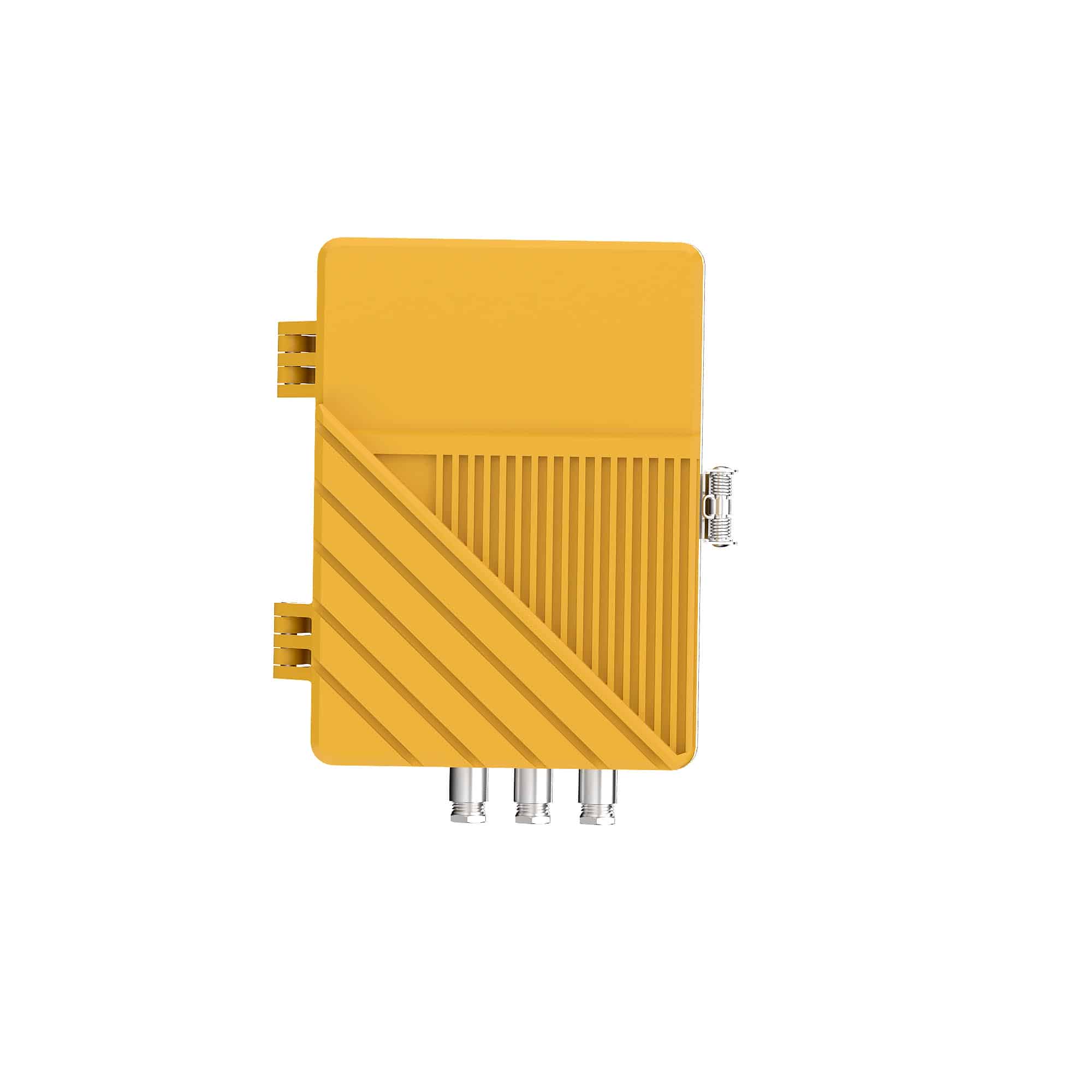

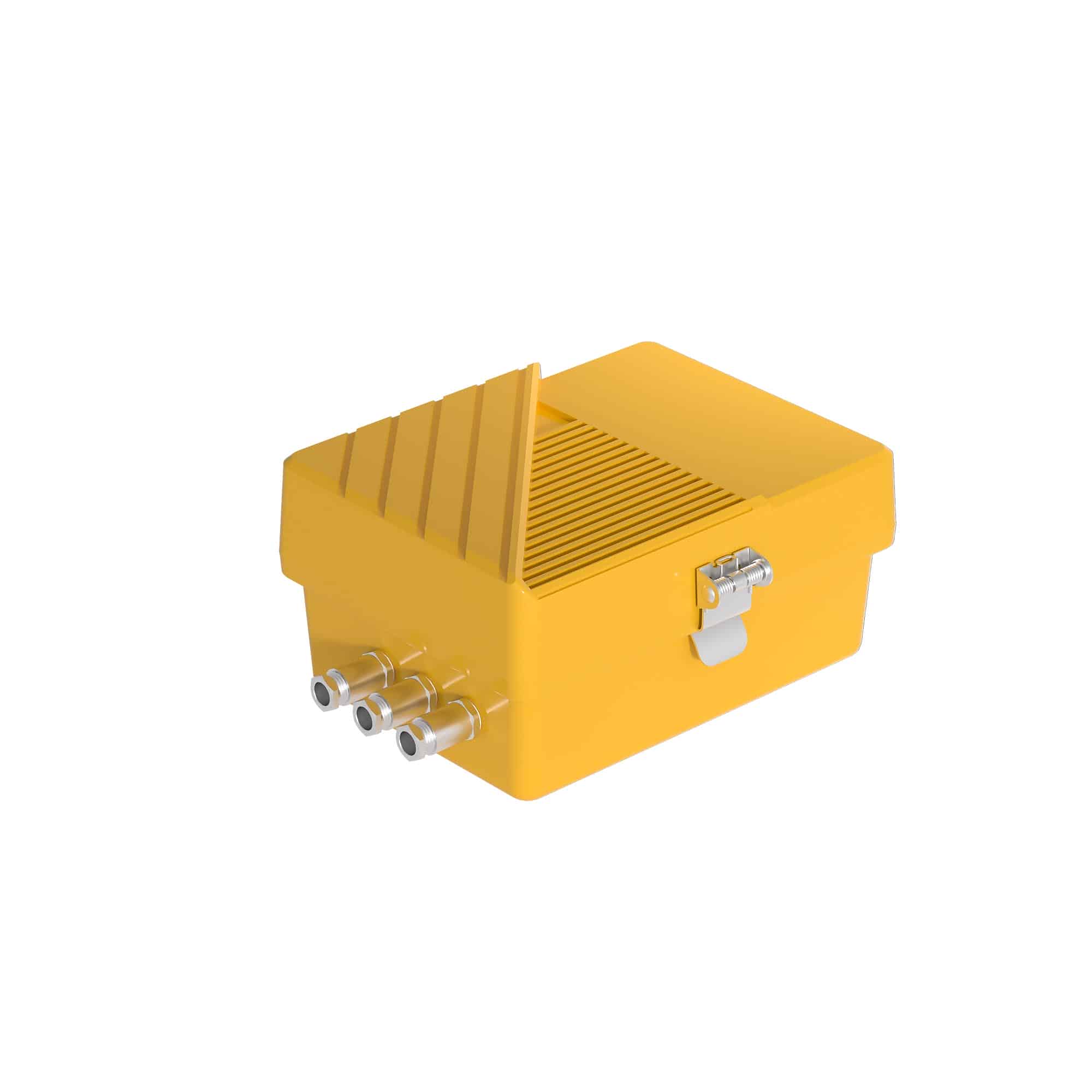

Explosion Proof Telephones-BekX7

model：Bek-x7

As an intrinsically safe phone, the Bek-x7 is intended for use in nuclear power plants, chemical, petroleum, and natural gas industries, among other hazardous areas. It provides essential safe communication equipment, suitable for use in fire situations where the environment is contaminated with flammable gases, steam, dust, or flammable vaporized liquids, or in areas filled with flammable fibers in the air.......
Datasheet instructions

Product Introduction

The Bek-x7 is an explosion-proof VoIP phone designed specifically for communication in hazardous areas. Its ATEX-certified construction utilizes heavy metal for the outer casing, ensuring a robust and vandal-resistant housing. This makes it ideal for use as emergency communication equipment in environments such as petrochemical mining.

As an intrinsically safe phone, the Bek-x7 is intended for use in nuclear power plants, chemical, petroleum, and natural gas industries, among other hazardous areas. It provides essential safe communication equipment, suitable for use in fire situations where the environment is contaminated with flammable gases, steam, dust, or flammable vaporized liquids, or in areas filled with flammable fibers in the air.

In dangerous environments, the Bek-x7's operation does not serve as a source of ignition. Enclosed within a metal case, the intrinsically safe Bek-x7 features a waterproof rating of IP66 and is resistant to dust and drops.

The Bek-x7 is certified by international organizations IECEx and ATEX, ensuring full guarantees of safety availability. Its functionality is extensive, utilizing VoIP communication. You can easily configure the phone on any PC, with a simple setup process, ensuring stable calls and free communication.

Pearl's new range of PoE-enabled SIP ruggedized phones merges the advantages of VoIP with a durable, rugged design, engineered to withstand harsh conditions including extreme temperatures, adverse weather, and vandalism.

Product parameters

1. An explosion-proof VoIP phone featuring a robust body constructed from aluminum alloy die-casting.
2. Protection types: II 2G Ex db ib IIBT5 Gb, suitable for use in environments ranging from -20℃ to 55℃。
3. Degree of protection: IP66, as tested according to EN 60529 standards.
4. A VoIP SIP2.0 industrial telephone.
5. Equipped with Dual Tone Multi Frequency (DTMF) dialing capabilities.
6. Boasting a Mean Time Between Failure (MTBF) of 100,000 hours.
7. Call control signaling: Utilizes VoIP SIP info (DTMF) and RFC 2833 (DTMF) protocols.
8. Features an external safety ring indicator, PED20, equipped with 8x 0.5W and LED 5Vdc 0.75W.
9. Powered by Power over Ethernet (PoE): Input voltage of 48Vdc.
10. Auxiliary contacts: Provides 1 auxiliary output, configured as a dry contact.
11. Contact ratings: Load capacity is designed for resistive loads.
12. Rated load: 0.3A at 125VAC or 1A at 30VDC.
13. Rated carry current: 1A.
14. Maximum switching voltage: 125VAC and 30VDC.
15. Maximum switching current: 1A.
16. Ringing sound level: Exceeds 100dB(A) at a distance of 50cm.
17. Speed dialing keypad: Offers a highly functional feature for dialing up to 3 groups of numbers stored in memory.
18. Audio codes supported: G.711, G.722, G.729.
19. Network capabilities: 10/100 BaseTX Ethernet, utilizing RJ45 connectors and Cat5e or higher quality cables.
20. IP protocols supported: IPv4, UDP, DHCP, SIP.
21. LAN protocols supported: Power over Ethernet (PoE, 802.3af), WLAN (IEEE 802.3af), Network Access Control (IEEE 802.1x), HTTP, HTTPS, SIP2.0.
22. Programming: Allows for non-volatile flash memory programming and configuration via a Web GUI interface.
23. Management and operation: Supports DHCP and static IP configurations, remote automatic software updates, and centralized monitoring capabilities.
24. Echo cancellation code: Implemented is the G.167 / G.168 standard.
25. Unit dimensions: Measured at 278×349×161 millimeters.
26. Weight: 10.65 kilograms (excluding the speaker and lighting).
27. Environmental conditions:
  • Ambient temperature range: -20℃ to 55℃.
  •  Relative humidity: 10% to 95%.
  • Atmospheric pressure: 86 to 106 kilopascals.
  • Surrounding noise level: Less than 60dB(A).

Featured Features

  1. An explosion-proof industrial VoIP phone featuring a sturdy body made of aluminum alloy die-casting, along with hardware that is vandal and tamper-resistant.
  2. It has a waterproof rating of IP66, which includes dustproofing.
  3. The phone comes with a full keypad with memory, a 3-button programmable telephone, and a Magnetic reed hook-switch.
  4. It is equipped with an external safety ring indicator, PED20, which includes 8x 0.5W and an LED 5Vdc 0.75W.
  5. The handset is heavy-duty with an industrial-strength curly cord and a hearing-aid-compatible receiver, including a noise-canceling microphone.
  6. The phone is powered by Power over Ethernet (PoE) with an input of 48Vdc.
  7. The keypad is made of stainless steel to maintain waterproof and dust-proof capabilities.
  8. They are suitable for use in Zone 1 and Zone 2, Group IIA and IIB, T5 gas explosive atmospheres.
  9. The door cover is designed to orient automatically and self-close, providing convenience for use.
  10. The temperature range it can operate in is from -20 degrees Celsius to +55 degrees Celsius.
  11. It supports echo cancellation.
  12. The phone is powder-coated with a UV-stabilized polyester finish.
  13. Applications include hazardous dust and gas atmospheres, petrochemical industry, tunnels, metro, railway, LRT, speedway, marine, shipping, offshore, mining, power plants, and bridges.
