PAGA Systems: Functions, Standards, and Application Solutions

Introduction to PAGA Systems

A Public Address and General Alarm (PAGA) system is a critical personnel safety system that broadcasts emergency messages throughout a facility . It combines the capabilities of a public address (PA) system with a general alarm (GA) system to provide voice announcements for both routine and emergency situations . PAGA systems are typically used in industrial plants, power stations, ships, offshore platforms, and other facilities where clear communication during emergencies is essential . They are designed to be reliable and robust, often meeting stringent safety standards and featuring redundant architecture to ensure continuous operation even in adverse conditions .

Key Functions of PAGA Systems

PAGA systems offer a range of integrated functions that serve both normal operations and emergency response:

• Public Address (PA): The primary function of a PAGA system is to allow voice announcements to be broadcast to one or more areas. This can include routine messages (such as instructions, information, or background music) and urgent communications. Users can initiate live voice broadcasts from microphones or other input sources and target specific zones or the entire facility . PAGA systems often support zone-specific announcements and have visual indicators (e.g. flashing lights) to draw attention to broadcast messages .
• General Alarm (GA): This function triggers predefined alarm signals (audible tones or prerecorded messages) to alert occupants in an emergency. When an alarm is activated (manually by staff or automatically by a sensor), the system plays an alarm sound throughout the designated area or the entire facility. The GA function is typically integrated with fire detection, gas detection, or other emergency systems. It ensures that an audible warning is heard by all relevant personnel, enabling them to take immediate action . PAGA systems often include multiple alarm tones (e.g. fire alarm, gas leak, evacuation alarm) that can be played in sequence or simultaneously .
• Intercom and Emergency Communication: Many PAGA systems incorporate intercom capabilities, allowing two-way voice communication between the control center and field personnel. This can include emergency telephones or intercom panels that enable direct calls or page-outs. Some advanced PAGA systems act as an integrated intercom/PABX (private automatic branch exchange) system, enabling staff to call specific zones or individuals and even hold conference calls . For example, the system might support “all-call” announcements (contacting every station), one-to-one calls, or group calls to facilitate coordination during emergencies . This function is crucial for issuing instructions, coordinating evacuations, and providing a means of communication when normal telephone lines might be disrupted.
• Fire and Emergency Linkage: PAGA systems are designed to interface with fire alarm and gas detection systems. In an emergency, the PAGA system can be triggered by signals from these systems to automatically play evacuation instructions or alarm tones . For instance, if a fire sensor is activated, the PAGA system will play a pre-recorded evacuation message or alarm tone to guide people to safety . This linkage ensures that the PA/GA system responds in real time to critical events. Many PAGA systems also allow manual override by security or emergency personnel to broadcast additional instructions.
• Zone Management and Flexibility: PAGA systems often support multiple broadcast zones, enabling announcements to be targeted to specific sections of a facility while others remain silent. This is useful for localized announcements or during partial evacuations. The system may allow the creation of virtual zones or grouping of speakers. It also typically includes controls for volume levels and can play different audio files in different zones. Some PAGA systems provide remote control stations in various locations, allowing localized paging in those areas . This flexibility ensures that announcements can be precisely delivered where needed.
• Recorded Messages and Scheduling: In addition to live voice broadcasts, PAGA systems can play pre-recorded audio messages. These can include emergency instructions, safety information, or scheduled announcements. The system may allow users to store and schedule messages for playback at specific times. For example, a facility might schedule periodic safety messages or emergency drills using the PAGA system. Some systems also offer a message store and replay feature, enabling quick playback of critical messages during an emergency . This ensures that consistent, clear instructions are available on demand.
• Redundancy and Self-Diagnostics: Reliability is a hallmark of PAGA systems. Many systems are built with redundant components (dual controllers, power supplies, etc.) to prevent a single point of failure . They often feature automatic failover so that if the primary system fails, the backup system can take over immediately. PAGA systems also include self-diagnostic features to monitor the status of speakers, amplifiers, and other components. If a speaker or amplifier malfunctions, the system can alert operators and often continue to function in other areas . Some systems perform periodic tests of the entire broadcast system to ensure it is in working order . This proactive maintenance helps maintain the system’s effectiveness over time.
• Integration with Other Systems: Modern PAGA systems can integrate with other safety and communication systems. For example, they may connect with security cameras to provide a visual overlay of emergency messages on monitors, or with intercom systems to allow multi-media communication. PAGA systems can also interface with emergency telephone systems and even with mobile communication networks (through gateways) to enable alerts via SMS or other channels . This interoperability enhances the overall emergency response capability of the facility. Additionally, PAGA systems often include input/output interfaces to receive signals from other emergency devices (such as door release signals or fire pump activation) and to trigger external devices (like lights or sirens) during an alarm .

In summary, a PAGA system provides a comprehensive solution for communication and emergency notification. It serves as both a public address system for routine information and a general alarm system for urgent safety alerts. Its key functions – voice broadcast, alarm tone playout, intercom, linkage with emergency sensors, and redundancy – make it an indispensable part of the safety infrastructure in many industries .

Critical Standards for PAGA Systems

Public Address and General Alarm systems are subject to various national and international standards to ensure their performance, reliability, and safety. These standards cover aspects such as audibility, intelligibility, fire safety, electrical safety, and interoperability. Below are some of the key standards relevant to PAGA systems:

• EN 54 (European Standards): The EN 54 series (European Standard for fire detection and alarm systems) includes specific parts for voice alarm systems. EN 54-24, for example, covers the performance requirements for emergency voice/alarm communication systems. This standard ensures that PAGA systems meet certain criteria for sound level, intelligibility, and reliability in emergency situations . EN 54 standards are widely adopted in Europe and provide a benchmark for fire alarm and emergency communication systems . Compliance with EN 54 is often mandatory for public and commercial buildings in Europe . Other EN 54 parts cover fire detection and control components, which indirectly affect PAGA integration (e.g. control panels, detectors) .
• NFPA 72 (National Fire Alarm and Signaling Code): NFPA 72, the National Fire Alarm Code in the United States, provides guidelines for the installation, testing, and maintenance of fire alarm and emergency communication systems . Chapter 24 of NFPA 72 specifically addresses voice evacuation systems and public address systems in emergency situations . It outlines requirements such as the minimum sound level (e.g. 115 dB(A) at ear level in some areas), specified warning tones, monitoring of speaker integrity, priority messaging, and other performance criteria . For instance, NFPA 72 requires that emergency voice announcements be intelligible and that certain tones (like a fire alarm tone) be of a specific frequency and duration . It also mandates regular testing of the system to ensure it will function during an actual emergency . Compliance with NFPA 72 is important for PAGA systems in the US to meet legal requirements and ensure the safety of building occupants.
• ANSI/ASA S12.60 (American National Standard): This standard, published by the American National Standards Institute (ANSI) in collaboration with the Acoustical Society of America (ASA), specifies the performance requirements for sound systems used in emergency public address applications . It covers aspects such as audibility (sound pressure level and coverage), intelligibility (clarity of speech), and reliability. For example, ANSI/ASA S12.60 might require that emergency announcements be audible above ambient noise levels and that speech intelligibility be maintained even in high-noise environments . This standard complements NFPA 72 by focusing on the acoustical performance of the PA system. Many PAGA systems are designed to meet or exceed the criteria of S12.60 to ensure effective communication during emergencies.
• IEC Standards: The International Electrotechnical Commission (IEC) develops international standards for electrical, electronic, and related technologies. While there is no single IEC standard explicitly called “PAGA,” various IEC standards are relevant to the components and systems used in PAGA. For example, IEC 60068 covers environmental testing (temperature, humidity, vibration, etc.), which is important for ensuring PAGA equipment can operate in harsh conditions. IEC 60268 addresses audio equipment performance. Additionally, the IEC Technical Committee 57 (Industrial Process Measurement, Control, and Automation) might produce standards for fire and gas detection systems that PAGA systems interface with. IEC standards often serve as a basis for national standards (such as EN standards in Europe) . Many PAGA system components are compliant with IEC standards, which ensures compatibility and safety across different regions .
• ISO Standards: The International Organization for Standardization (ISO) has standards that can influence PAGA systems, especially in areas like emergency preparedness and communication. ISO 22301 is a standard for business continuity management, which includes considerations for emergency communication systems. While not specific to PAGA, it highlights the importance of having reliable systems for emergency messages. ISO 31000 on risk management and ISO 41001 on facility management also encourage the implementation of robust communication systems for safety. In terms of sound quality, ISO 3741 is a standard for determining sound power levels of noise sources, which could be relevant for testing speaker systems in PAGA. In summary, ISO standards often set best practices or management frameworks that support the use of effective PAGA systems.
• ITU Standards: The International Telecommunication Union (ITU) focuses on telecommunications and networking standards. While ITU standards are more about telephony and data networks, they indirectly impact PAGA systems through technologies like VoIP (Voice over IP) which are sometimes used in PAGA intercoms. For example, ITU-T H.323 and SIP standards define how voice communication can be transmitted over IP networks. These standards ensure that PAGA intercoms and IP-based PA systems can interoperate and maintain quality. In maritime contexts, the ITU’s recommendations for maritime communication (such as GMDSS – Global Maritime Distress and Safety System) might influence PAGA interfaces for shipboard systems, though GMDSS is more for distress calls than general PA. Nonetheless, ITU standards contribute to the modern, networked nature of many PAGA systems.
• Local and Industry Standards: Besides the above, many countries and industries have their own standards or guidelines for PAGA systems. For instance, in the UK, the British Standard BS 5839-8 provides requirements for public address and general alarm systems in buildings. It covers topics like speaker placement for coverage, power supply redundancy, and integration with fire detection systems . Compliance with such local standards is often required for installations in those regions. In the maritime sector, SOLAS (Safety of Life at Sea) regulations set out requirements for communication systems on ships, including the need for effective alarm systems. SOLAS Chapter II-2, for example, mandates certain firefighting and safety systems on ships, which can include PAGA for emergency announcements. Similarly, OSHA (Occupational Safety and Health Administration) standards in the US may impose requirements on industrial facilities to have reliable communication systems for employee safety . These local and industry-specific standards ensure that PAGA systems meet the context-specific needs and safety regulations of the application environment.

Overall, adherence to these standards is crucial for PAGA systems to function effectively and safely. Standards like EN 54, NFPA 72, and ANSI/ASA S12.60 help define the performance criteria (sound level, intelligibility, reliability) that PAGA systems must meet, while IEC, ISO, and ITU standards ensure the technical compatibility and quality of components . Compliance with these standards is often required by law or regulatory bodies, making them an integral part of PAGA system design and implementation.

Application Solutions for PAGA Systems

PAGA systems are deployed in a wide range of industries and facilities where clear communication during emergencies is essential. Below, we explore some key application areas and how PAGA systems are implemented in each:

Industrial Applications

Industrial plants, refineries, power stations, and manufacturing facilities often use PAGA systems to ensure that employees can be alerted and guided during emergencies. In such settings, PAGA systems are integrated with safety systems (fire detection, gas detection, emergency shutdown) to provide timely announcements. For example, if a fire or gas leak is detected, the PAGA system will play an evacuation message or alarm tone across the facility. PAGA systems in industrial environments typically cover large areas and must be robust against noise and harsh conditions. They often feature high-powered speakers and multiple zones for targeted announcements. Many industrial PAGA systems are designed with redundant architecture to ensure continuous operation – if one system fails, the backup system takes over . This is critical in facilities where a single point of failure could jeopardize safety. In addition to emergency use, industrial PAGA systems may also be used for routine announcements (such as shift change instructions, safety reminders, or plant-wide communications). Integration with other systems is another key aspect of industrial PAGA solutions. These systems are often interfaced with fire and gas alarm panels, so that activation of a fire detector automatically triggers a PAGA alarm. They may also connect to control room intercoms and emergency telephones, allowing operators to communicate with workers directly. Some industrial PAGA systems include an emergency intercom system where any worker can press a button to call the control room for assistance. The equipment in industrial PAGA systems is typically rugged and corrosion-resistant, suitable for factory floors and plant yards. This includes explosion-proof loudspeakers and amplifiers for hazardous areas, weatherproof speakers for outdoor use, and durable control panels. PAGA systems in industrial applications are often part of a broader safety management system, ensuring that employees receive timely, clear information during emergencies and can coordinate effectively. Regular testing and maintenance are emphasized to keep these systems reliable, as they are a life-critical component in industrial safety.

Maritime and Offshore Applications

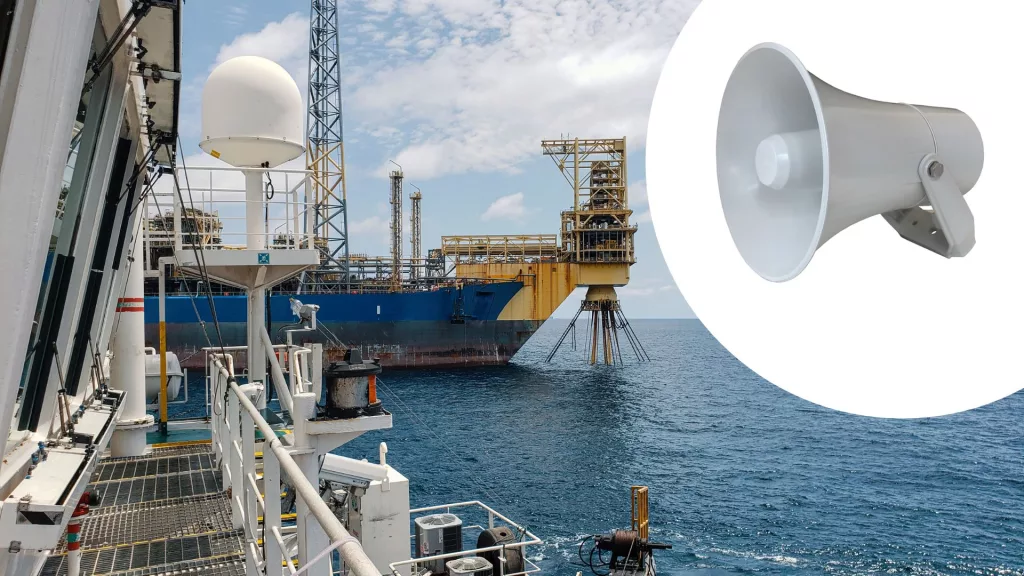

On ships, offshore platforms, and floating production units, PAGA systems are indispensable for communication in emergencies. Maritime PAGA systems are designed to meet stringent marine regulations and to function in challenging environments (vibration, saltwater, noise, etc.). A typical ship or offshore platform PAGA system will cover all decks and compartments, allowing crew to be alerted in case of fires, abandon-ship situations, or other emergencies. These systems often use integrated PA/GA and intercom solutions that can act as both a general alarm and a ship-wide PA system . They are usually connected to fire and gas detection systems and may be part of the ship’s fire control plan. For example, if a fire is detected in an engine room, the PAGA system will trigger an alarm and announce evacuation instructions to all affected areas. Redundancy and reliability are paramount in maritime PAGA systems. Ships often have dual power supplies and dual control units for their PA/GA systems, so that if one fails, the other can continue broadcasting . The systems may also include battery backup to ensure operation during power outages. Many maritime PAGA systems meet classification society standards (e.g. DNV, Lloyd’s Register) which require that certain performance criteria are met, such as the ability to provide a specified sound level over the required coverage distance. Interoperability is another key feature in marine PAGA solutions. These systems often integrate with the ship’s public address system for general announcements, with the ship’s intercom system for direct communication, and with the ship’s distress alert system. For instance, some advanced systems can interface with a ship’s emergency telephone network and even with radio systems to send SMS alerts. Equipment for maritime PAGA includes explosion-proof loudspeakers and amplifiers for areas where flammable gases might be present (such as engine rooms and cargo holds), as well as weatherproof speakers for outside decks. Microphones and control panels on ships are typically ruggedized to withstand saltwater exposure and vibration. Communication modules may be installed to connect with satellite or radio networks for wide-area alerts. During installation, maritime PAGA systems must comply with SOLAS regulations, which mandate fire detection and alarm systems on ships. This means that PAGA systems are part of the fire safety equipment list on a ship and must be regularly tested and maintained. Additionally, training is provided to the ship’s crew on how to use the PAGA system and respond to the alarms. In summary, maritime PAGA systems ensure that all crew members on a ship or offshore platform receive timely and clear emergency instructions, thereby improving the chances of safe evacuation and response during critical incidents.

Transportation and Public Infrastructure Applications

Public buildings and infrastructure like airports, railway stations, tunnels, and large complexes also benefit from PAGA systems for emergency communication. In these settings, PAGA systems are used to broadcast emergency messages to large numbers of people. For example, in an airport, a PAGA system might be used to announce evacuation instructions during a fire or to provide safety information to passengers. These systems must cover large areas (terminals, concourses, etc.) and often include multiple loudspeakers and amplifiers. Interoperability with other safety systems is important here – they may integrate with building fire alarm panels, security systems, and emergency lighting to ensure a coordinated response. Many transportation PAGA systems support multilingual messages to accommodate diverse users. In tunnels or transit systems, PAGA systems can be integrated with emergency telephones and beacons to guide people to safety. Installation and maintenance in public infrastructure must adhere to local codes and standards. For instance, in the US, compliance with NFPA 72 and ANSI/ASA S12.60 is required for such systems in buildings. In some cases, PAGA systems in public facilities may also serve a role in routine announcements (such as station updates or advertisements). However, their primary function is to ensure that during emergencies, everyone can hear clear instructions. These systems are typically tested regularly, and maintenance schedules are followed to keep the speakers and amplifiers in good condition. Integration with intercom and PA systems in public transport can be seen in examples like train stations where an intercom panel allows passengers to call for help and the PAGA system can then relay that request to security. In summary, PAGA systems in transportation and public infrastructure provide a vital communication link that can save lives by ensuring that emergency messages are heard and understood by all occupants of large public spaces.

Nuclear Power Plant Applications

Nuclear power plants have unique safety requirements, and PAGA systems play a crucial role in emergency communication within these facilities. In a nuclear plant, the PAGA system is often part of the emergency preparedness and response infrastructure. It is used to disseminate evacuation instructions, safety information, and emergency directives to plant personnel during events like fires, radiation leaks, or general emergency situations. Nuclear PAGA systems must be extremely reliable and often integrate with other emergency systems such as the fire alarm, radiation monitoring, and plant control systems. For example, if a fire is detected in a reactor building, the PAGA system will automatically play an evacuation message and possibly an alarm tone to guide workers to safety and inform them of the need to follow specific procedures (like donning protective gear). These systems are typically designed to be redundant and robust, with dual power supplies and multiple zones to cover the vast area of a nuclear plant. They also need to be able to function during and after an accident, so backup power (like diesel generators or battery systems) is often provided. Interoperability is a key aspect in nuclear PAGA solutions. The system may interface with the plant’s emergency telephone network, allowing workers to call for help or to be contacted by the control center. It might also connect with emergency lighting systems and ventilation controls, so that lights can be activated and ventilation adjusted as part of the emergency response. Nuclear PAGA systems are often integrated with the plant’s fire and gas detection systems as well as with the plant’s public address system for routine communications. Compliance with international nuclear safety standards is mandatory for these systems. For instance, the International Atomic Energy Agency (IAEA) provides safety standards (like IAEA Safety Guide No. 1) that require the presence of adequate emergency communication systems in nuclear facilities. The IAEA standard emphasizes that such systems must be reliable and capable of broadcasting instructions to all relevant areas . In practice, this means nuclear PAGA systems are tested and maintained rigorously. They undergo periodic tests to ensure that all speakers are functioning and that the system can play messages clearly in different conditions. Staff are trained on how to use the system and on emergency procedures. Given the high stakes, any issues with the PAGA system are immediately addressed to maintain the safety of the plant and its personnel. In summary, PAGA systems in nuclear power plants are an essential component of the emergency communication network. They enable clear and timely communication during emergencies, helping to protect plant workers and facilitate orderly evacuation and response. Their design and operation are tightly controlled to meet the stringent safety requirements of nuclear facilities.

Conclusion

Public Address and General Alarm (PAGA) systems are sophisticated communication solutions that serve as a lifeline during emergencies. By combining public address capabilities with emergency alarm functionality, PAGA systems ensure that critical information can be broadcast to all areas of a facility in a timely and audible manner . Key functions such as voice broadcasting, alarm tone playout, intercom communication, and integration with fire and safety systems make PAGA systems indispensable in industries ranging from oil and gas to transportation and nuclear power. These systems are engineered to be highly reliable, often incorporating redundancy and self-diagnostic features to maintain performance even under adverse conditions . Adherence to national and international standards (like EN 54, NFPA 72, ANSI/ASA S12.60, etc.) ensures that PAGA systems meet the necessary criteria for audibility, intelligibility, and safety, giving users confidence in their effectiveness . In application, PAGA systems have proven their value in countless scenarios, from guiding employees to safety in a factory fire to coordinating evacuations on a ship. Their integration with other safety infrastructure and the ability to be customized for specific needs (such as multi-zone management or bilingual messaging) make them versatile tools for emergency communication. As technology evolves, PAGA systems are also being enhanced with modern features like network connectivity and digital control, further improving their capabilities and ease of use. In conclusion, PAGA systems play a critical role in safeguarding lives and property by providing a clear, reliable, and rapid communication channel during emergencies. Their design, function, and adherence to standards ensure that they remain a cornerstone of emergency preparedness in many of the world’s most essential facilities.
