VPDN Overview (Application Scenarios, Settings, Management, Security, etc.)

What Is VPDN

VPDN (Virtual Private Dial - up Networks) is a technology that provides secure connections for remote users via public networks. It enables remote users to access the servers of Network Service Providers (NSPs) through dial - up, broadband, or the Internet, thereby establishing a Virtual Private Network (VPN). The VPDN technology ensures the security of data transmission through encryption and tunneling protocols and provides reliable connections between remote users and corporate internal networks.

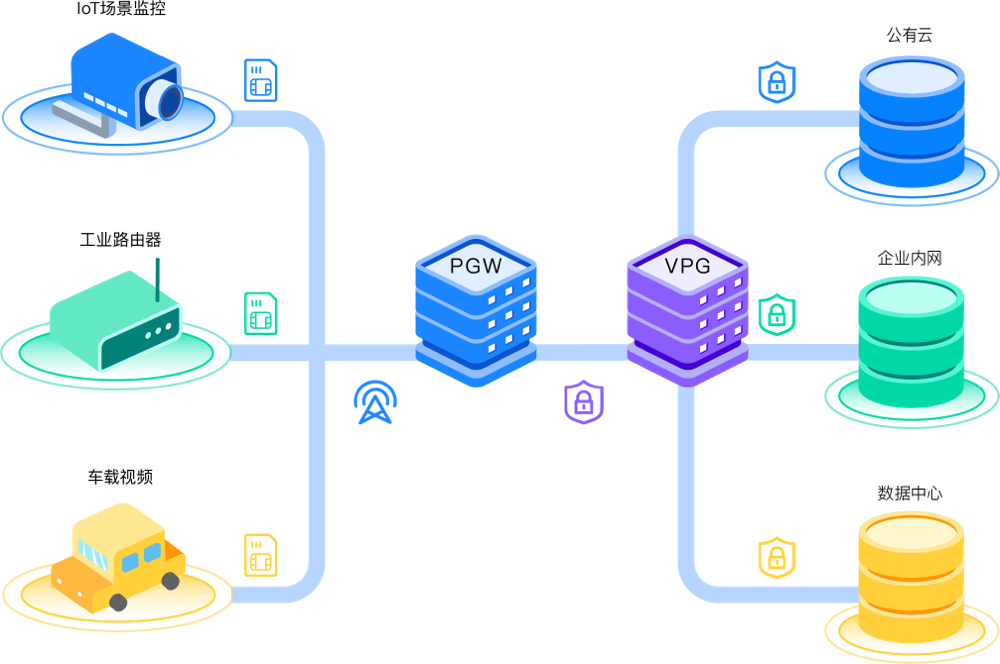

How VPDN Works

VPDN (Virtual Private Dial - up Network), a remote - access solution that utilizes the dial - up function of public networks such as ISDN or PSTN to access public networks. Its working principle involves multiple components and steps, and here is a detailed analysis:

1. Basic Components

• Client: The device that initiates a VPDN connection, usually a remote user's computer or mobile device.
• LAC (L2TP Access Concentrator): The L2TP Access Concentrator is a device attached to the network with PPP end - system and L2TP protocol - processing capabilities. Generally, it is a network access server used to provide network access services for users.
• LNS (L2TP Network Server): The L2TP Network Server is the end point of the L2TP tunnel, usually referring to the router of the enterprise client, used to terminate the L2TP protocol.
• AAA (Authentication, Authorization and Accounting): The Authentication, Authorization, and Accounting server completes domain name authentication and the authentication of enterprise - access usernames and keys in VPDN services.

2. Workflow

1. Client Dial - up Request: The client initiates a dial - up request, and this request first reaches the GGSN (a core network element).
2. GGSN Accesses AAA: The GGSN accesses the Unicom AAA server to check whether the domain name is legal.
3. L2TP Tunnel Request: The GGSN sends an L2TP tunnel request to the LNS to establish a tunnel connection.
4. Establish PPP Connection: The client establishes a PPP connection with the LNS, which is achieved through the L2TP tunnel.
5. Security Verification: The LNS accesses the customer's AAA server to conduct security verification to ensure the user's legality.
6. Access Private Network: After the security verification is passed, the client can successfully access the enterprise's internal private network.

3. Authentication Methods

• PAP (Password Authentication Protocol): A simple plain - text authentication method without encryption, with relatively poor transmission security.
• CHAP (Challenge Handshake Authentication Protocol): An encrypted authentication method that can avoid password leakage during transmission and has higher security.

4. Application Scenarios

• Enterprise Remote Access: Enterprises can provide remote users with an economical and effective point - to - point connection method, enabling them to securely access the enterprise's internal resources.
• Internet of Things (IoT) Cards: Public - network cards use public and general APNs for communication, and operators manage them through APIs and are only used to access the Internet; private - network cards use IoT - specific APNs for communication. Operators manage them through APIs and the VPDN network of the Internet of Things to manage the traffic of IoT cards. VPN devices can be added to the customer's internal network to achieve private - network interconnection and enable cross - operator fixed IPs.
• Secure Access to Special Networks such as Taxation, Public Security, and Banking: These industries require secure access to special - purpose networks without Internet connection.

Application Scenarios of VPDN

As a virtual private dial - up network technology, VPDN (Virtual Private Dial - up Network) has a wide range of application scenarios in multiple fields. Here are some common application scenarios:

• Enterprise Remote Office: VPDN allows enterprise employees to securely access the company's internal network resources through public networks (such as the Internet). This is very important for employees who work remotely or on the move. They can access files, applications, and emails as if they were in the company.

• Branch Office Connection: For enterprises with multiple branch offices, VPDN can provide a secure and reliable network connection to achieve data sharing, communication, and collaboration between the headquarters and branch offices. This can reduce the need for expensive dedicated - line connections and improve the organization's collaborative work ability.

• Internet of Things (IoT) Applications: In the field of the Internet of Things, VPDN can provide a secure connection method for IoT devices, enabling them to communicate with the enterprise's internal network or cloud platforms. For example, IoT - card terminals can directly dial into the enterprise's internal network through the operator's mobile network to achieve communication with enterprise - internal - network applications.

• Remote Service Providers: Remote service providers (such as IT support, technical consulting, etc.) can establish secure connections with customers through VPDN to achieve remote services and maintenance. This not only saves time and cost but also improves service efficiency and expands the service scope.

• Mobile Office: With the popularization of mobile devices, employees are increasingly using mobile devices such as mobile phones and tablets to work. VPDN can provide these mobile devices with a secure way to remotely access the internal network, enabling employees to work anytime and anywhere and improving work efficiency.

• Backup Channel: The VPDN channel can serve as a backup for wired links, realizing a supplement to broadband VPDN access and improving network reliability.

• Flexible Network Configuration: The IoT VPDN service can flexibly configure the network through the operator's network to achieve internal - network communication between branch offices and the headquarters.

• Security Guarantee: VPDN can restrict customers from accessing the public network and only allow access to the internal network, improving the security of VPDN services.

• Fixed IP: A fixed IP address can be issued for each IoT - card terminal, facilitating enterprises to manage and control their own IoT devices.

• Access Authentication: It has multi - level security controls, and customers can self - build AAA (Authentication, Authorization, and Accounting) to achieve authentication and binding of IoT cards.

Setup and Management of VPDN

To set up VPDN, configuration is required on the servers of Network Service Providers (NSPs). This includes steps such as selecting appropriate authentication methods, configuring VPN tunneling protocols, and creating virtual template interfaces. On the user side, only the VPDN account needs to be entered to access the private - dedicated network. The management of VPDN includes functions such as traffic statistics, billing, network activation and deactivation services, as well as network - speed control, black - and - white - list setting, and card - to - card intercommunication.

Security of VPDN

VPDN (Virtual Private Dial - up Network) is a virtual private network technology based on public networks (such as the Internet). It protects data transmission through establishing tunnel connections and using encryption protocols to ensure the security of user data. Here is a detailed analysis of the security of VPDN:

1. Data - Transmission Encryption

VPDN uses encryption technology to encrypt the transmitted data. Even if the data is intercepted in the public network, the original data cannot be decrypted. For example, KCPVPN supports multiple encryption algorithms (such as AES), ensuring the security of data transmission over the public network.

2. Authentication and Authorization Mechanisms

1. User Authentication
   • In VPDN, users need to be authenticated when remotely logging in, usually using usernames and passwords for identity verification. After successful authentication, the user is authorized to use the specified enterprise resources.
   • For example, in the VPDN applications of some enterprises, employees use their own accounts and passwords to log in, and the system verifies their identities. Only legitimate users can access the enterprise's internal network.
2. Tunnel - Establishment Authentication
   • When VPDN uses tunneling protocols (such as L2TP, PPTP, etc.) to establish virtual tunnels, there is also a corresponding authentication process. For example, the business security of the China Telecom VPDN system is provided through authentication during the establishment of the second - layer tunneling protocol.

3. Tunnel - Technology Guarantee

VPDN uses tunnel technology to encrypt and encapsulate the traffic of remote users in the public network for transmission, thereby realizing a secure connection between remote users and the enterprise's internal network. Tunnel technology is relatively simple, effective, and easy to manage, and many existing network - access - switching devices, access servers, and wide - area - network routers support relevant tunnel - technology standards.

4. Other Security Measures

1. User - Rights Setting
   • Enterprises can carry out customized configurations according to their needs and centrally manage the access rights of remote users. For example, different users' access rights to different enterprise - internal resources can be set, and some users can only access specific folders or applications.
2. Firewall Isolation
   • A firewall can be used to isolate the external - facing servers from the internal - facing servers in the user's network, further enhancing network security.

What Encryption Algorithms Does VPDN Technology Use to Ensure Data - Transmission Security?

The VPDN (Virtual Private Dial - up Network) technology mainly uses the following encryption algorithms to ensure security during data transmission:

• Symmetric - Encryption Algorithms: Symmetric - encryption algorithms use the same key for data encryption and decryption. Common symmetric - encryption algorithms include AES (Advanced Encryption Standard) and DES (Data Encryption Standard). These algorithms are characterized by fast encryption speed and are suitable for encrypting large amounts of data, but key management is more complex and keys need to be properly safeguarded.

• Asymmetric - Encryption Algorithms: Asymmetric - encryption algorithms use a pair of keys, namely a public key and a private key. The public key is used to encrypt data, and the private key is used to decrypt data. Common asymmetric - encryption algorithms include RSA (Rivest - Shamir - Adleman) and ECC (Elliptic - Curve Cryptography). The advantage of asymmetric - encryption algorithms is that key management is relatively simple and they can be used to encrypt large amounts of data, but the encryption speed is slower.

• Tunneling Protocols: The VPDN technology usually uses tunneling protocols to establish a secure virtual private network, such as L2TP (Layer 2 Tunneling Protocol) and IPsec (Internet Protocol Security). IPsec is a point - to - point VPN protocol that provides functions such as data - source verification, data encryption, data - integrity assurance, and anti - replay.

• Other Security Technologies: Besides the above - mentioned encryption algorithms and tunneling protocols, the VPDN technology may also use other security technologies, such as password protection, user - authentication technology, one - time - password technology, user - rights setting, firewalls, etc., to further enhance the security of data transmission.

In conclusion, the VPDN technology can effectively ensure the security of data transmission by combining multiple encryption algorithms and security technologies and prevent data from being illegally stolen or tampered with during transmission.

Application Cases of VPDN in the Internet of Things Field

VPDN (Virtual Private Dial - up Network) is a virtual private dial - up network technology that allows users to establish secure and dedicated network connections through public networks. In the field of the Internet of Things, VPDN technology is widely used in various scenarios to ensure the secure transmission of data and the remote management of devices.

• Energy Management: In the energy field, VPDN technology can help achieve remote monitoring and control of equipment. For example, in the oil/gas industry, VPDN technology can be used to monitor drilling and oil - production processes in real - time. Wind - turbine and photovoltaic - power - station can use VPDN for remote monitoring, data collection, and analysis to achieve the automation, digitization, and intelligence of the operation and management of multiple power stations and multiple units.

• Data Collection: VPDN technology is also used in wireless - data - collection projects. For example, in an industrial - and - trade - comprehensive enterprise group, data collection at various sites is achieved through VPDN technology, and the collected data is aggregated to a unified - management platform to achieve centralized management and analysis of data.

• Smart Meter Reading: In the smart - meter - reading system, VPDN technology can help achieve remote data collection and transmission and improve the accuracy and efficiency of data collection. For example, the Unicom - IoT cards combined with VPDN technology can achieve mutual communication and data transmission between devices and are used to remotely monitor the usage data, device status, and performance information of energy equipment.

• Real - Time Video Surveillance: VPDN technology can also be used to build a real - time video - surveillance system based on the Internet of Things and 4G wireless to achieve remote video surveillance and data transmission and improve the real - time and accuracy of surveillance.

These application cases show that VPDN technology has broad application prospects in the field of the Internet of Things and can effectively improve the security of data transmission and the convenience of device management. With the continuous development of Internet of Things technology, the application range and depth of VPDN technology are expected to expand further.

VPDN Configuration Steps

VPDN (Virtual Private Dialup Network) is a technology that establishes a virtual private network through public - telephone networks or other forms of dial - up networks. It allows remote users to connect to a central node through dial - up to access internal - network resources. The following are the basic steps for configuring VPDN to achieve network interconnection between different locations:

• Configure VPDN Server: First, it is necessary to configure a VPDN server at the central location. Usually, it is a router or server with a fixed IP address. The server needs to configure the corresponding VPDN group, define authentication methods (such as CHAP, PAP), tunnel passwords, IP - address pools, and other information.

• Client Configuration: At the remote location, it is necessary to configure VPN - client software on the user's computer or device. The client needs to know the IP address of the VPDN server, authentication information (username and password), and the type of VPN connection (such as L2TP/IPsec).

• Network Setup: Ensure that the remote - user's network environment can support VPDN connections. This may involve configuring network - firewall rules to allow VPDN traffic to pass through and setting up Network Address Translation (NAT) so that the remote - user's private IP address can be mapped to the public IP address of the VPDN server.

• Test Connection: After the configuration is completed, the VPDN connection should be tested to see if it is successful. The user can try to connect to the VPDN server and verify whether they can access the internal - network resources.

• Optimization and Maintenance: According to the actual usage situation, it may be necessary to optimize the VPDN configuration to improve performance and security. In addition, it is necessary to regularly update the authentication information and monitor the health status of the VPDN connection.

The above steps are the general VPDN configuration process. The specific configuration details may vary depending on the hardware and software used. During the configuration process, it is recommended to refer to the official documentation of the relevant equipment or contact technical support for detailed guidance.
