Overview of the VB Serial Communication Tutorial

Overview of VB Serial Port Communication Video Tutorials

VB (Visual Basic) is a popular programming language that can be used to develop host computer software and implement serial port communication. Through VB programming, data interaction with external devices can be carried out via serial ports. On the Internet, there are various resources that can help learners understand and master the knowledge and skills of VB serial port communication.

1. Learning Resources

• Video Tutorials: There are some video tutorials on the Internet that specifically focus on VB serial port communication. These tutorials usually introduce in detail the basic knowledge and operation steps of VB serial port communication, including how to implement serial port communication in VB and how to write your own serial port communication programs.

• Online Tutorials: Some professional programming teaching websites offer online tutorials on VB serial port communication. These tutorials usually contain theoretical knowledge and practical operations, which are helpful for learners to fully understand the principles and implementation methods of serial port communication.

• Document Resources: Besides video tutorials, there are also some document resources, such as e-books and PDF files. These resources usually provide more detailed textual descriptions and sample codes, which are very helpful for in-depth learning of VB serial port communication.

2. Learning Suggestions

• Combine Theory with Practice: When learning VB serial port communication, you should not only understand the theoretical knowledge but also practice by writing code to deepen your understanding.

• Use the Latest Resources: Choose the latest tutorials and resources for learning to ensure that the knowledge you learn is up-to-date and avoid poor learning effects caused by outdated information.

• Actively Participate in Communities: Join relevant programming communities, communicate with other developers, and solve problems encountered during the learning process.

Through learning with the above resources, you can gradually master the basic knowledge and skills of VB serial port communication, and then be able to independently develop and debug serial port communication programs.

Common Hardware Interfaces in VB Serial Port Communication Programming

In Visual Basic (VB) serial port communication programming, common hardware interfaces mainly include the following types:

• RS-232 Interface: This is the most traditional serial port communication interface, usually used to connect computers and other devices, such as modems, serial printers, etc. The RS-232 interface usually uses a 9-pin or 25-pin D-type connector, and the 9-pin interface is the most common type.

• RS-485 Interface: The RS-485 interface is a multi-point communication interface that supports long-distance communication and is usually used in fields such as industrial automation and building automation. The RS-485 interface uses differential signal transmission, so it has strong anti-interference ability.

• USB-to-Serial Port Interface: With the popularity of USB interfaces, many modern devices are no longer equipped with traditional serial port interfaces. Instead, serial port communication is achieved through USB-to-serial port adapters. This interface has good compatibility and is easy to install, and is suitable for serial port communication between various devices.

• Serial Port: Some devices, such as printers and industrial equipment, may have dedicated serial ports. These ports are usually DB9 or DB25 connectors and are used for direct communication between devices.

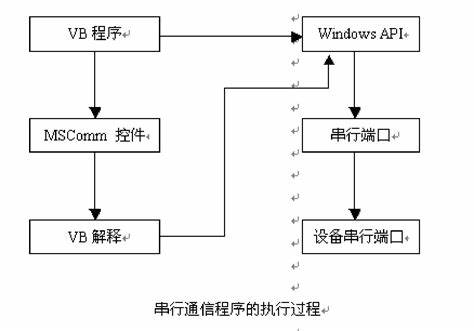

In VB programming, communication with these hardware interfaces can be achieved through the MSComm control or by directly using Windows API functions. The MSComm control is an ActiveX control that simplifies serial communication programming under Windows and provides a convenient way to send and receive data through serial interfaces. In addition, the SerialPort component in VB.NET can also be used to operate serial ports, providing rich properties and methods to manage serial port communication.

Setting the Baud Rate and Data Format of Serial Port Communication in VB

In VB (Visual Basic), you can set the baud rate and data format of serial port communication through the SerialPort class. The following are the specific steps and code examples:

Step 1: Importing the Namespace

First, you need to import the System.IO.Ports namespace in the code because it contains the implementation of the serial port control.

Imports System.IO.Ports

Step 2: Creating the Serial Port Control

In VB, you can use the SerialPort class to create a serial port control. You need to instantiate a SerialPort object and set its corresponding properties.

Dim serialPort As New SerialPort()

Step 3: Setting the Serial Port Parameters

Before using the serial port, you need to set the parameters of the serial port, including the baud rate, data bits, stop bits, parity, etc. The following is an example of setting the serial port parameters.

serialPort.PortName = "COM1" ' Set the serial port name

serialPort.BaudRate = 9600 ' Set the baud rate

serialPort.DataBits = 8 ' Set the number of data bits

serialPort.StopBits = StopBits.One ' Set the stop bits

serialPort.Parity = Parity.None ' Set the parity

Step 4: Opening the Serial Port

After setting the serial port parameters, you need to open the serial port to start communication.

serialPort.Open()

Step 5: Reading Serial Port Data

Once the serial port is opened, you can use the DataReceived event to read the data received by the serial port. In the DataReceived event, you can call the ReadExisting method to read the serial port data.

Private Sub SerialPort_DataReceived(ByVal sender As Object, ByVal e As SerialDataReceivedEventArgs)

Dim receivedData As String = serialPort.ReadExisting() ' Process the received data

End Sub

Step 6: Writing Serial Port Data

If you need to send data to the serial port, you can use the Write method to write the data to the serial port.

serialPort.Write("Hello, World!")

Step 7: Closing the Serial Port

Finally, you need to close the serial port when it is not in use to release the relevant resources.

serialPort.Close()

The above are the complete steps and corresponding code examples for setting the baud rate and data format of serial port communication in VB.

Data Processing in VB Serial Port Communication Programming

When programming serial port communication in VB (Visual Basic), processing the received data usually involves the following steps:

• Initializing the Serial Port: First, you need to open the serial port and set the corresponding communication parameters, such as the baud rate, data bits, stop bits, etc. This can be done by calling the operating system API functions or using the serial port control class provided by VB.

• Receiving Data: After the serial port is set up, data can be received through polling or event-driven methods. Polling means regularly checking whether data has arrived at the serial port, while event-driven means using serial port communication events (such as the data reception event) to automatically trigger the data processing program.

• Data Processing: The received data is usually in the form of a byte stream and needs to be parsed according to the actual situation. If the data is in text form, it can be directly converted into a string for processing. If the data is in binary format, it may need to be decoded according to a specific protocol.

• Data Display: The processed data can be displayed on the interface as needed, such as in text boxes, labels, etc.

• Exception Handling: During the whole process, the handling of abnormal situations needs to be considered, such as serial port read/write errors, data parsing failures, etc., to ensure the stability and reliability of the program.

The following is a simple code snippet for VB serial port data reception and processing:

• ' Assume that the serial port has been successfully opened and the communication parameters have been set
• Dim receivedData As String
• ' Receive data through polling or event-driven methods
• receivedData = ReadSerialData(hPort, dataLength)
• ' Data processing
• If receivedData <> "" Then
• ' Convert the received data into a string
• receivedData = StrConv(buffer(), vbUnicode)
•
• ' Parse or process the string according to the actual situation
• '...
•
• ' Display the processed data on the interface
• TextBox1.Text = receivedData
• End If

In the above code, the ReadSerialData function is used to read data from the serial port, and the StrConv function is used to convert a byte array into a string. The processed data can be displayed in the text box on the interface as needed.

Please note that the above code is just a simplified example. In actual applications, detailed design and coding may be required according to specific communication protocols and business logic. At the same time, in order to ensure the accuracy and integrity of data, issues such as data synchronization and verification also need to be considered.

Summary

The content related to VB serial port communication covers aspects such as learning resources, common hardware interfaces, the setting of baud rate and data format, and data processing. There are various learning approaches. It introduces the types of hardware interfaces, illustrates the steps for setting communication parameters, and elaborates on each link of data processing and provides examples, which helps to master the knowledge and skills of VB serial port communication.
