TMN Architecture Explained in Detail (What Are the Applications?) ）

Definition and Importance of TMN

TMN (Telecommunications Management Network) is the abbreviation of Telecommunications Management Network. It is a network that is logically separated from the telecommunications network and aims to provide an organized network structure to achieve the interconnection between various operating systems (OSs), and between operating systems and telecommunications equipment. TMN transmits and receives management information to and from the telecommunications network through standard interfaces (including communication protocols and information models), so as to achieve the control and operation of the telecommunications network.

Application Scope of TMN

The application scope of TMN (Telecommunications Management Network) is very wide and involves many aspects of telecommunications network and telecommunications service management, including but not limited to the following fields:

• Service Forecasting and Network Planning: TMN can be used to forecast the demand for telecommunications services and carry out corresponding network planning to ensure the effective utilization of network resources and the smooth development of services.
• Telecommunications Engineering and System Installation: During the implementation of telecommunications engineering, TMN can be used to manage and monitor the installation, commissioning and acceptance of the system to ensure the engineering quality and progress.
• Operation and Maintenance and Network Organization: TMN provides the real - time monitoring and management functions of the operation status of the telecommunications network, including performance management, fault management, configuration management, etc., to ensure the stable operation and efficient organization of the network.
• Service Control and Quality Assurance: TMN can control and manage telecommunications services to ensure the quality of services and user experience, including the management and optimization of Quality of Service (QoS).
• Telecommunications Enterprise Affairs Management: TMN can also be applied to the daily affairs management of telecommunications enterprises, such as resource management, personnel management, financial management, etc., to improve the operation efficiency and management level of enterprises.

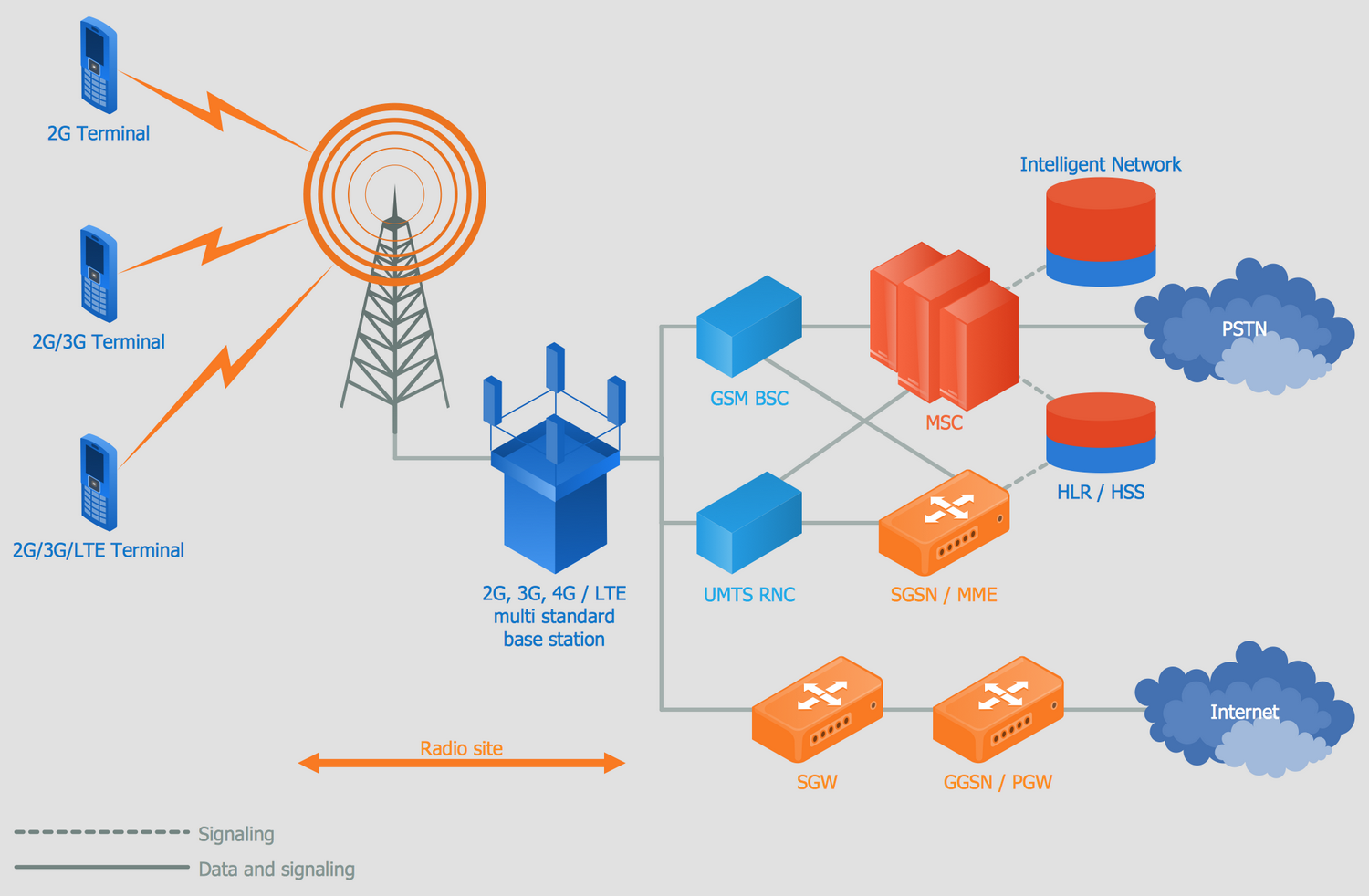

• Equipment Management: TMN can manage various types of telecommunications equipment, including public and private networks (such as ISDN, mobile network, private voice network, virtual private network, intelligent network, etc.), transmission terminals (multiplexers, cross - connections, channel frequency - conversion equipment, ADM, etc.), digital and analog transmission systems (cable, optical fiber, wireless, satellite, etc.), restoration systems, digital and analog switches, computer hosts, front - end processors, cluster controllers, file servers, circuit - switching and packet - switching equipment, signaling terminals and systems (SP, STP, real - time database), bearer services and telecommunications services, PBXS, PBX access and user terminals, ISDN user terminals and related support systems (such as digital synchronization network), etc.

Technical Basis and Standardized Protocols of TMN

The technical basis of TMN includes OSI Open Systems Interconnection Technology, OSI System Management Technology, rapidly - developing computer network technology and distributed processing environment, object - oriented software engineering methods, high - speed data communication technology, and high - intelligence of telecommunications equipment. The standardized protocols of TMN include ITU - T M.3010, M.3400, M.3200 series, M.3020, M.60.2, M.3100 series, etc. These protocols cover the overall requirements, management functions, management services, interface specification definition methods, basic term definitions, general management information models and other aspects of TMN.

Architecture of TMN

Functional Architecture

The functional architecture of TMN divides its functions into functional modules, which simplifies the design and implementation of TMN. These functional modules include:

• Fault Management: Responsible for detecting, isolating and repairing network faults.
• Configuration Management: Responsible for the configuration and management of network equipment.
• Accounting Management: Responsible for the billing and statistics of network usage.
• Performance Management: Responsible for monitoring and optimizing network performance.
• Security Management: Responsible for protecting the network from unauthorized access and attacks.

Physical Architecture

The physical architecture of TMN describes the physical components of TMN and their interconnection methods. These physical components include:

• Operating Systems: Responsible for managing and controlling network equipment.
• Workstations: Provide user interfaces for monitoring and managing the network.
• Data Communication Networks: Used to transmit management information.
• Mediation Devices: Used to convert and process management information.

Logical Hierarchical Architecture

The logical hierarchical architecture of TMN divides TMN into multiple logical layers, and each layer is responsible for different management functions. These logical layers include:

• Business Management Layer: Responsible for business strategies and planning.
• Service Management Layer: Responsible for the provision and management of services.
• Network Management Layer: Responsible for the management and control of network resources.
• Element Management Layer: Responsible for the management of individual network elements.
• Physical Device Layer: Responsible for the management of physical network equipment.

Information Architecture

The information architecture of TMN defines the organization and exchange methods of management information. It includes:

• Management Information Model: Defines the structure and attributes of management objects.
• Management Information Base (MIB): Stores the instance data of management objects.
• Management Protocols: Used to exchange management information among TMN components, such as CMIP (Common Management Information Protocol) and SNMP (Simple Network Management Protocol).

The functional architecture is a structured, general and standardizable management function framework, which is composed of basic elements such as functional blocks, Management Application Functions (MAF), TMN Management Function Sets and TMN Management Functions, reference points, etc.

Management Functions of TMN

The management functions of TMN include object management functions, state management functions, attributes for representing relationships, alarm reporting functions, event reporting management functions, log control functions, security alarm reporting functions, trust and diagnostic testing functions, measurement and summary functions, workload monitoring functions, security inspection and tracking functions, etc.

In summary, TMN is a crucial telecommunications network management tool. It realizes the automated, intelligent and standardized comprehensive management of the telecommunications network through standardized interfaces and architectures, and is of great significance for ensuring the stable operation of the telecommunications network and improving service quality.

The Role of TMN in Telecommunications Management

Telecommunication Management Network (TMN) is one of the support systems for the operation of modern telecommunications networks. Its main role is to ensure the normal operation and service of the telecommunications network. TMN organizes, monitors and optimizes the telecommunications network through effective management to improve the efficiency and reliability of the network. The following are some of the key roles of TMN in telecommunications management:

• Network Traffic Management: TMN can effectively organize network traffic distribution according to the service flow direction and traffic statistical data between offices to ensure the rational utilization of network resources.
• Network State Monitoring and Scheduling: TMN can monitor the network state in real - time and conduct circuit scheduling, detour organization and traffic control according to analysis and judgment to avoid network overload and congestion spread.
• Performance Management: The performance management function provided by TMN can evaluate and report the behavior of telecommunications equipment and the effectiveness of the network and network units, which is helpful for planning and analyzing network performance.
• Fault Management: TMN can detect and respond to network faults in a timely manner, assist in quickly locating problems and taking measures to restore services, and reduce the impact of faults on users.
• Configuration Management: TMN is responsible for managing the configuration information of the network to ensure that network equipment operates according to the established configuration, and also supports network upgrades and changes.
• Security Management: TMN also includes security management functions to protect the network from unauthorized access and attacks and ensure the security and integrity of network data.
• Service Quality Management: TMN can monitor and manage service quality to ensure that users obtain high - quality communication services.

In summary, TMN plays a vital role in telecommunications management. It ensures the efficient, stable and secure operation of the telecommunications network through a variety of management functions, thereby improving the quality of the entire telecommunications service and user experience.

Components of TMN Architecture

TMN (Telecommunications Management Network) is the abbreviation of Telecommunications Management Network. It is a framework used to optimize the management and maintenance operations of telecommunications networks, improve service quality and ensure the effective use of network resources. The architecture of TMN mainly includes the following components:

• Business Management Layer: Located at the top of the TMN hierarchical structure, it is responsible for handling management activities related to the overall business objectives and strategies of telecommunications network operators, including financial analysis, market strategy, investment planning, etc.
• Service Management Layer: Focuses on the quality and performance of telecommunications services, manages and monitors the entire life cycle of telecommunications services, including service configuration, fault management, performance management and billing.
• Network Management Layer: Executes network resource allocation functions, including configuration, control and network supervision.
• Element Management Layer: Directly exercises the management function of individual network elements. The main functions include controlling and coordinating a series of network elements, providing coordination functions for the communication between network - layer management and network elements, and maintaining statistics and other data related to network elements.
• Network Element Layer: Contains the processing functions of individual network elements, namely: alarm management, information processing, file backup, log, hardware and software maintenance, etc.

These hierarchical structures define the management relationships from the highest - level business decision - making to the lowest - level physical equipment, and work together to ensure the effective operation of the entire network.

Standardized Protocols of TMN

TMN (Telecommunication Management Network) is a framework and methodology for managing and monitoring telecommunications networks. It includes a set of standardized interfaces, protocols and data models to achieve various management functions in the telecommunications network. The following are some of the standardized protocols of TMN:

• ITU - T M.3010: This is about the overall requirements of TMN, covering the overall principles, architecture, logical hierarchical structure and basic functional requirements.
• ITU - T M.3400: This is the standard for the management functions of TMN.
• ITU - T M.3200 Series: This is the standard for the management services of TMN and the TMN management services on various telecommunications networks.
• ITU - T M.3020: This is the interface specification definition method of TMN.
• ITU - T M.60.2: This is the basic term definition of TMN.
• ITU - T M.3100 Series: This is the general management information model of TMN.

These protocols and standards ensure that TMN can achieve effective management and communication between different telecommunications networks and equipment.

Summary

TMN, namely Telecommunications Management Network, is a network separated from the telecommunications network. It has a wide application range and covers various aspects of management. It has functional, physical, logical hierarchical, information and other architectures, contains a variety of management functions, and realizes communication relying on standardized protocols. It plays a crucial role in telecommunications management and ensures the efficient, stable and secure operation of the network.
