An emergency command box is no longer just a portable voice terminal for temporary field communication. In public safety, industrial rescue, disaster response, mining emergency support, utility repair, transportation incidents, and large outdoor operations, it often becomes the first communication and information hub deployed at the scene. The command team needs to hear the field, see the field, verify the field, and share the field situation with remote decision-makers as quickly as possible.

Video capability is therefore a core part of the system. A practical command box should be able to collect video from different devices, convert streams between different protocols, optimize video for unstable networks, support local viewing, send video back to the command center, and combine multiple video sources into a unified screen when necessary. These functions directly affect deployment speed, command visibility, evidence confirmation, remote coordination, and response efficiency.

Why video matters in field command

In many emergency situations, voice reports alone are not enough. A dispatcher may hear that a road is blocked, a tunnel entrance is flooded, a production area is under risk, or a rescue route is unsafe, but visual confirmation is needed before a decision can be made. Live video allows the command center to understand the location, scale, direction, crowd movement, equipment condition, and surrounding environment more accurately.

Video also reduces the risk of repeated questioning. Instead of relying only on verbal descriptions from field personnel, remote supervisors can view the same scene and make faster judgments. This is especially useful when several departments are involved, such as emergency management, fire rescue, police, transportation, energy, mining, industrial safety, medical support, or municipal maintenance teams.

A good emergency command box should not treat video as a single camera input. It should work as a portable media node that can collect, process, forward, and display multiple video resources under pressure.

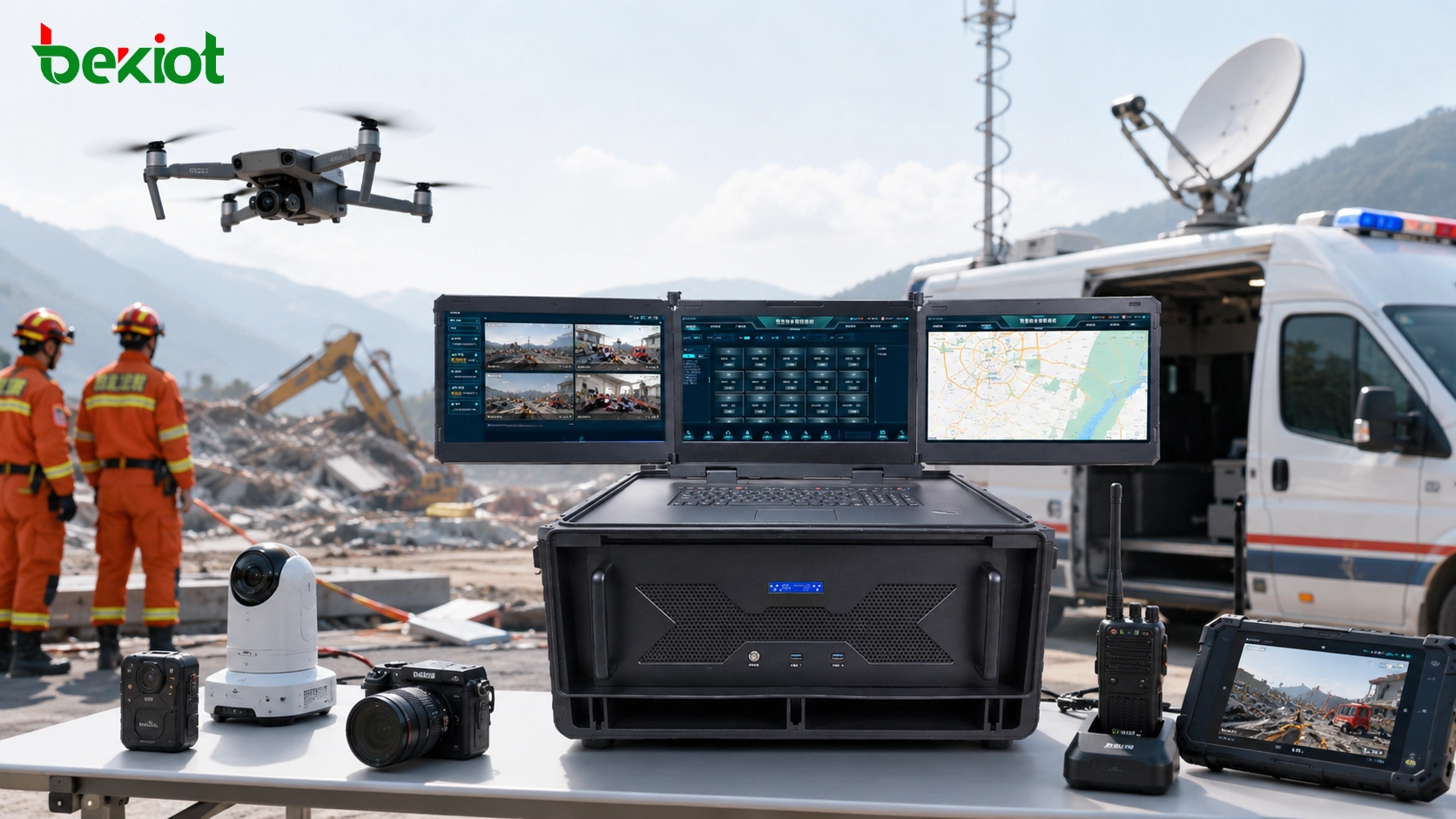

Field sources are usually mixed and unpredictable

Emergency scenes rarely use one fixed type of video device. A response team may bring drones for aerial inspection, body cameras for first-person footage, temporary PTZ cameras for perimeter monitoring, vehicle-mounted cameras for mobile observation, and video terminals for remote consultation. At the same time, the site may already have fixed IP cameras, security cameras, or surveillance platforms that need to be connected.

Because these sources may come from different manufacturers and departments, the video formats and transmission methods are often inconsistent. Some devices may output RTSP streams, some may use RTMP, some may rely on SIP video, while surveillance systems may require GB28181 access. If the command box cannot adapt to these differences, the field team may need extra computers, software clients, encoders, converters, or manual relay devices.

For this reason, multi-protocol video access is one of the first capabilities to evaluate. A more flexible command box should support common protocols such as RTSP, RTMP, RTP, SIP, and GB28181, so that video resources can be connected quickly even when the source devices are not completely unified.

Protocol conversion helps different systems work together

The value of an emergency command box is not only in receiving video, but also in making video usable by different platforms. In real projects, the field team, the command center, the dispatch platform, the video conference system, and the surveillance management system may all have different protocol requirements.

For example, a drone or portable encoder may provide an RTMP stream, while the command center may need GB28181 access. A temporary IP camera may output RTSP, while a video conference terminal may work through SIP. A browser-based local viewer may require WebRTC, FLV, or HLS. Without protocol adaptation, these systems cannot easily exchange video.

A capable command box should act as a video protocol bridge. It should receive streams from one side, convert them when needed, and output them in a format that the target platform can accept. This reduces integration difficulty and allows response teams to keep using existing platforms instead of rebuilding the whole command system.

Uplink capability should match the command center

Collecting field video is only useful when the video can be sent to the right command platform. In many emergency projects, the upper-level system may be a surveillance dispatch platform, an integrated command platform, a video conference system, a media server, a browser-based monitoring page, or a decoding wall. Each system may require a different access method.

GB28181 uplink is important for projects that need to connect with surveillance-oriented platforms or national-standard video management systems. Through GB28181, the command box can aggregate video resources such as SIP, RTMP, RTSP, RTP, and GB28181 streams, then forward them to a higher-level platform for unified viewing, recording, dispatch, or management.

RTSP output is useful for decoders, media players, video platforms, and NVR-related environments. RTMP can be used for streaming servers or media distribution. SIP video can support video intercom, video dispatch, or conference linkage. WebRTC and FLV can improve browser-based preview and reduce the need for dedicated client software at the scene.

Local preview is essential during fast deployment

In the first stage of an incident, the field team may not have enough time to wait for a full command center connection. They may need to confirm whether a camera is online, whether the drone view is stable, whether the direction is correct, or whether a specific video source has been successfully forwarded. Local preview helps technicians and commanders verify the video immediately.

A field command box should therefore support local viewing through screens, laptops, browser pages, or lightweight terminals. Browser-based access is especially helpful because it reduces software dependency. If users can open a stream through WebRTC, FLV, HLS, or another convenient viewing method, the system becomes easier to deploy in temporary environments.

Local preview also helps when the external network is not yet available. The field team can still build a local command view, monitor key areas, and coordinate nearby personnel before the video is sent back to the remote center.

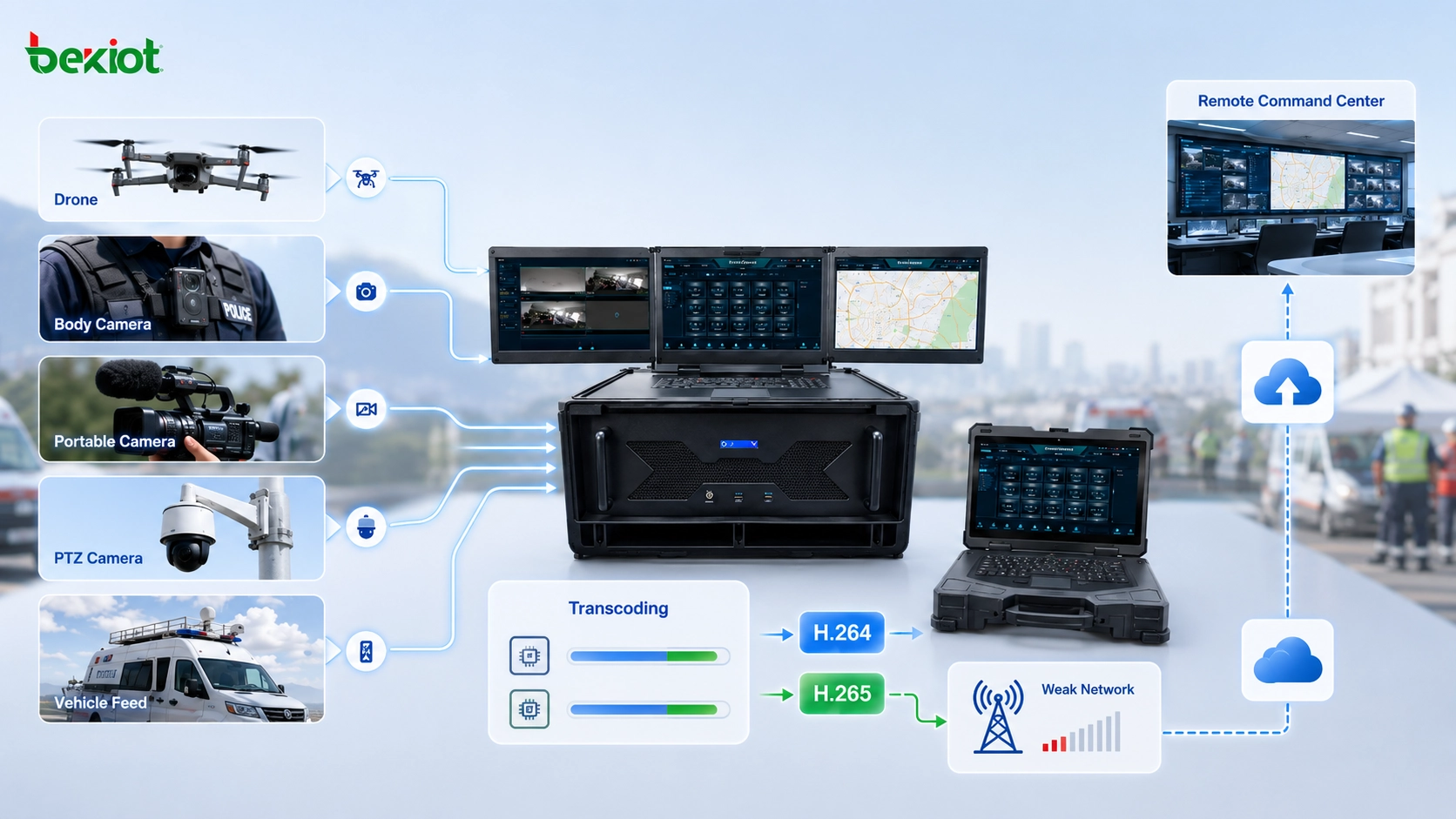

Transcoding keeps video useful under unstable networks

Emergency sites often face difficult network conditions. Wireless backhaul may be unstable, 4G or 5G bandwidth may fluctuate, satellite links may have delay, and temporary private networks may need to carry voice, video, data, and control information at the same time. If the system simply forwards the original high-bitrate video stream, the result may be frame freezing, delay, packet loss, or failed playback.

Video transcoding helps solve this problem. A command box should be able to convert incoming streams into practical encoding formats such as H.264 or H.265. It should also support adjustment of bitrate, frame rate, and resolution according to network quality and platform requirements. This allows the same video source to be adapted for different scenarios, such as high-quality local viewing, medium-quality command center return, or low-bitrate weak-network transmission.

H.264 remains widely compatible with many platforms and terminals, while H.265 can help reduce bandwidth when the receiving platform supports it. In real deployment, the best choice depends on compatibility, decoding capability, available bandwidth, latency requirements, and whether the video needs to be viewed by many users at the same time.

Multi-screen fusion improves situational awareness

When several video sources are available at the same time, the command center may not want to open every stream separately. Too many independent windows can increase bandwidth pressure and make monitoring inefficient. Multi-screen fusion allows the command box to combine several video feeds into one arranged screen, creating a quick overview for remote command.

This is useful in many field operations. A drone view can show the overall situation, a body camera can show close-range rescue progress, a fixed camera can monitor the entrance area, and a vehicle-mounted camera can show the movement route. By combining these sources into one layout, decision-makers can understand the relationship between different positions without switching channels repeatedly.

The fusion function should support different source protocols, including SIP, GB28181, RTMP, RTSP, and RTP. After fusion, the system should be able to output the combined screen through protocols such as SIP, GB28181, RTMP, RTSP, RTP, FLV, HLS, or WebRTC. This makes the fused video easier to distribute to command platforms, browser viewers, conference systems, mobile teams, or remote experts.

Shared viewing supports remote consultation

Field emergency response often requires consultation between people who are not in the same place. A site commander may need support from technical experts, safety supervisors, medical staff, equipment engineers, or higher-level command departments. If all participants can view the same video source or fused video layout, communication becomes more direct.

Instead of describing the scene repeatedly, the field team can share live video with remote participants. Experts can point out risks, confirm equipment conditions, suggest rescue routes, or identify abnormal signs based on the same visual material. This improves decision consistency and reduces misunderstanding between the field and the command center.

For this reason, an emergency command box should not only support one-way video return. It should also support flexible distribution, multi-terminal viewing, and video sharing across different networks and platforms.

Video and voice should be planned together

Although video is important, emergency command still depends heavily on voice communication. Field teams need instant calls, group dispatch, radio communication, SIP intercom, public address, and sometimes cross-department communication between different radio systems. If video and voice are separated into unrelated systems, command efficiency may suffer.

RoIP integration is useful when analog radios, digital radios, dispatch consoles, SIP systems, and IP networks need to communicate with each other. By adding RoIP capability beside video processing, the command box can support both visual awareness and voice coordination. This is especially valuable for field rescue, mining emergency response, industrial safety, transportation incidents, and temporary command posts.

A complete emergency communication workflow should allow the commander to watch the scene, talk to the team, connect with remote supervisors, and coordinate different communication networks from one portable node.

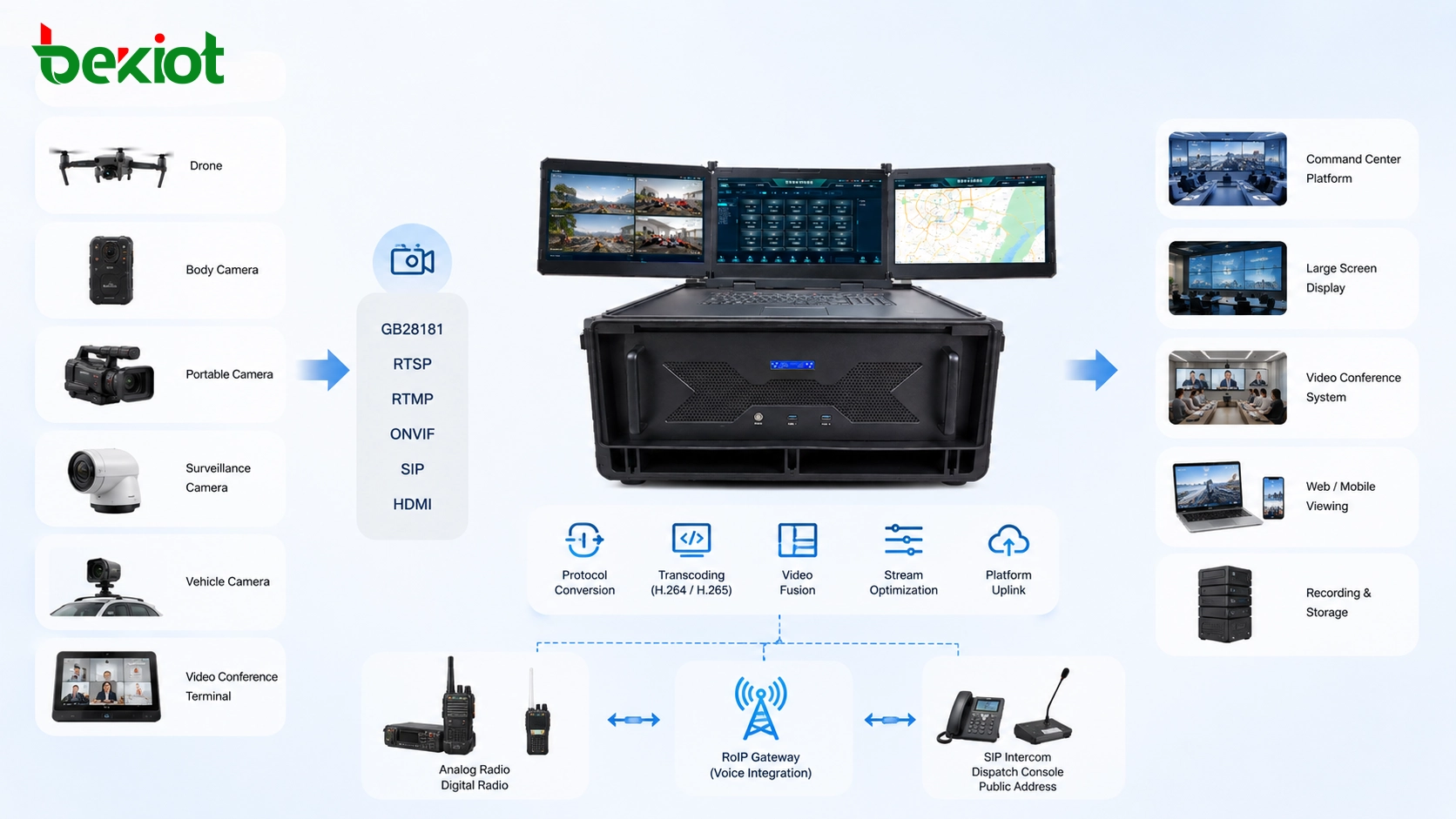

Recommended system architecture

A practical video-enabled command box can be designed as a compact field media gateway. At the access layer, it connects to drones, IP cameras, body cameras, vehicle cameras, portable surveillance units, SIP video terminals, and existing monitoring systems. At the processing layer, it handles protocol conversion, stream management, transcoding, bitrate adaptation, and screen layout. At the output layer, it sends video to local displays, browser viewers, dispatch platforms, conference systems, decoding devices, and upper-level command centers.

This architecture helps reduce the number of temporary devices required at the scene. It also makes deployment cleaner because video access, conversion, viewing, and uplink can be managed through one system. For integrators, this structure improves compatibility with existing customer platforms and makes the solution easier to expand in later projects.

When combined with voice dispatch, RoIP, SIP communication, public address, and data network access, the command box can become a unified emergency communication node instead of a single-purpose video device.

Selection points for project planning

Before selecting an emergency command box, project teams should evaluate video capability from real field operation rather than from a simple specification list. The system should support multiple input protocols, multiple output protocols, stream conversion, local preview, weak-network optimization, platform uplink, and multi-screen fusion.

For command center compatibility, GB28181 uplink, RTSP output, SIP video support, and RTMP streaming are important. For field usability, browser-based viewing through WebRTC, FLV, or HLS can make deployment easier. For unstable backhaul, H.264/H.265 encoding, bitrate adjustment, frame rate control, and resolution control are practical requirements. For complex scenes, fusion output helps reduce switching and improves overview efficiency.

Project teams should also consider power supply, network redundancy, device portability, interface layout, environmental protection, operation permissions, recording needs, and compatibility with the existing dispatch platform. A command box used in emergency response must be simple enough for fast deployment but flexible enough to handle different field conditions.

Typical application scenarios

In public safety and rescue operations, the command box can receive drone video, body camera video, and temporary camera feeds, then send them back to a command center for coordinated decision-making. In industrial parks and factories, it can support emergency monitoring during fire alarms, hazardous material leaks, equipment accidents, or production safety incidents.

In mining, tunnel, railway, highway, and utility maintenance scenarios, the command box can help teams view remote work areas, confirm site conditions, and coordinate repair personnel. In disaster relief or outdoor emergency response, it can provide temporary video access when fixed infrastructure is damaged or unavailable.

In large-scale events, temporary security operations, and mobile command vehicles, the same video processing capability can help integrate fixed cameras, mobile cameras, and command center platforms into one visual workflow.

Conclusion

A qualified emergency command box should be more than a portable communication case. It should work as a field video processing and communication node that can collect different video sources, convert protocols, optimize streams, support weak-network backhaul, merge multiple feeds, and connect with existing command platforms.

As emergency response becomes more visual, mobile, and platform-based, video capability directly affects deployment speed, command visibility, remote consultation, and coordination efficiency. For rescue command, public safety, industrial emergency communication, temporary field operations, mining safety, transportation response, and mobile command center projects, video access, transcoding, uplink, and fusion should be treated as core design requirements.
